Toyota Urban Cruiser

2022-11 → present · chassis FG21###,22###,61###,62### · catalogue 138320 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Side Member

15 part groups · 4 illustrations

Illustrations

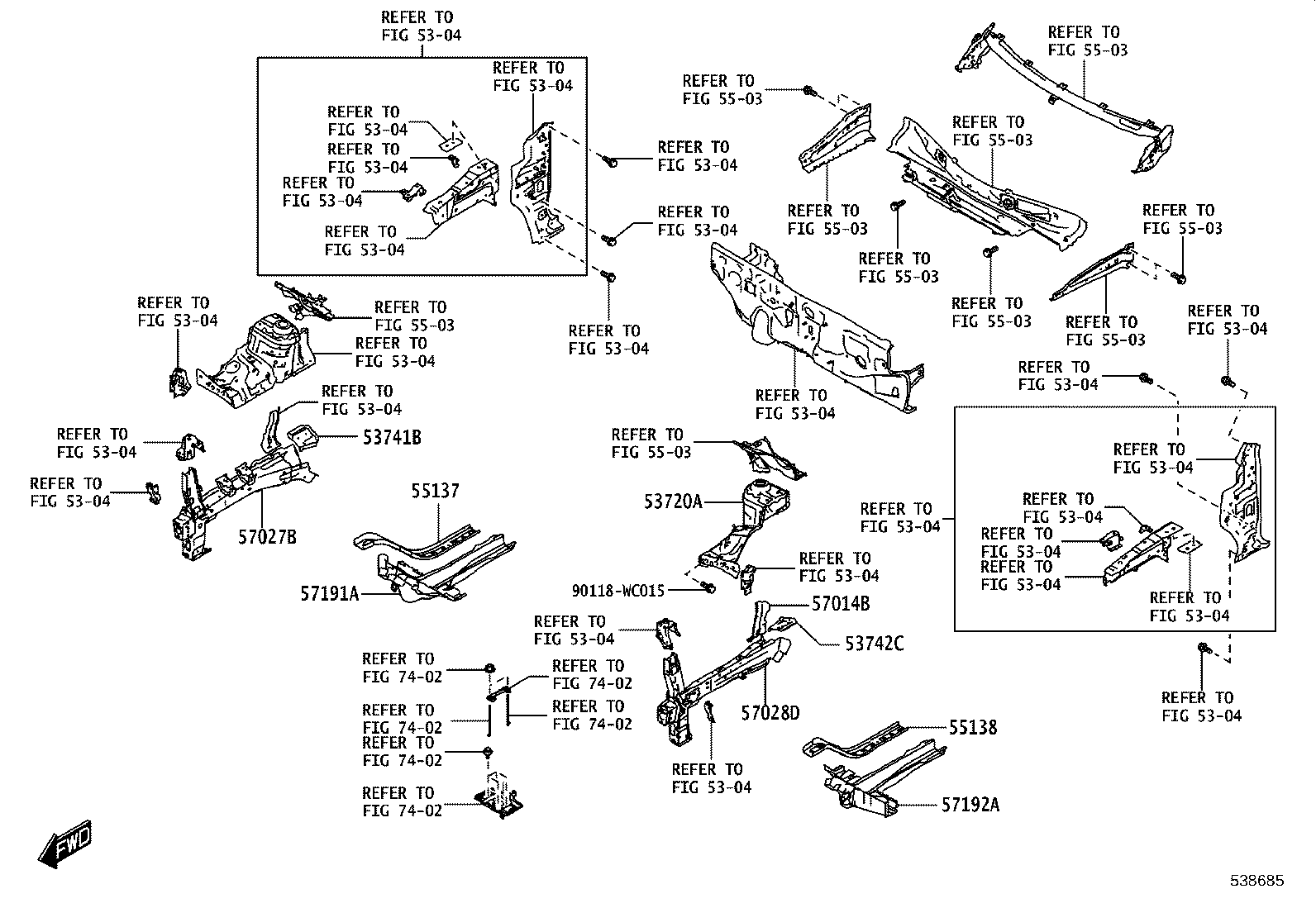

Figure 538684 538684 2022-11 → — Figure 538685 538685 2022-11 → — Figure 538686 538686 2022-11 → — Figure 538687 538687 2022-11 → —

Part groups

PNCDescription
53720A Apron Assy, Front Fender, LH
53741B Plate, Fender Apron Reinforce, RH
53742C Plate, Fender Apron Reinforce, LH
55137 Brace, Dash TO Frame, RH
55138 Brace, Dash TO Frame, LH
57014B Bracket Sub-assy, Front Side Member, LH
57027B Member Sub-assy, Front Side, Inner RH
57028D Member Sub-assy, Front Side, LH
57191A Member, Front Side, Inner Rear RH
57192A Member, Front Side, Inner Rear LH
57601 Member Sub-assy, Rear Floor Side, RH
57602 Member Sub-assy, Rear Floor Side, LH
57661B Member, Rear Floor Cross, Front
58117B Reinforcement, Front Floor Side, RH
58118D Reinforcement, Front Floor Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
