Toyota Urban Cruiser

2022-11 → present · chassis FG21###,22###,61###,62### · catalogue 138320 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

30 part groups · 19 illustrations

Illustrations

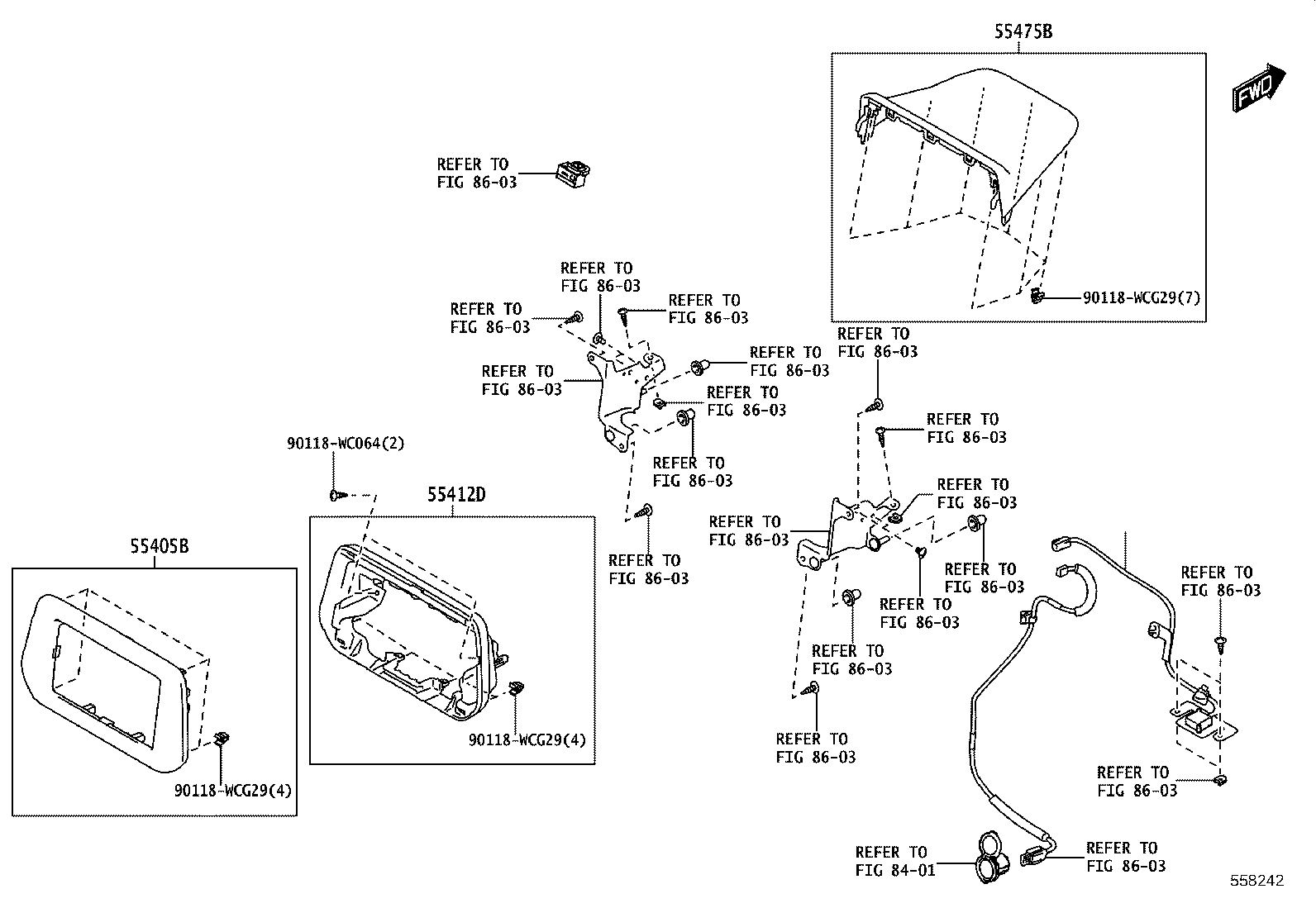

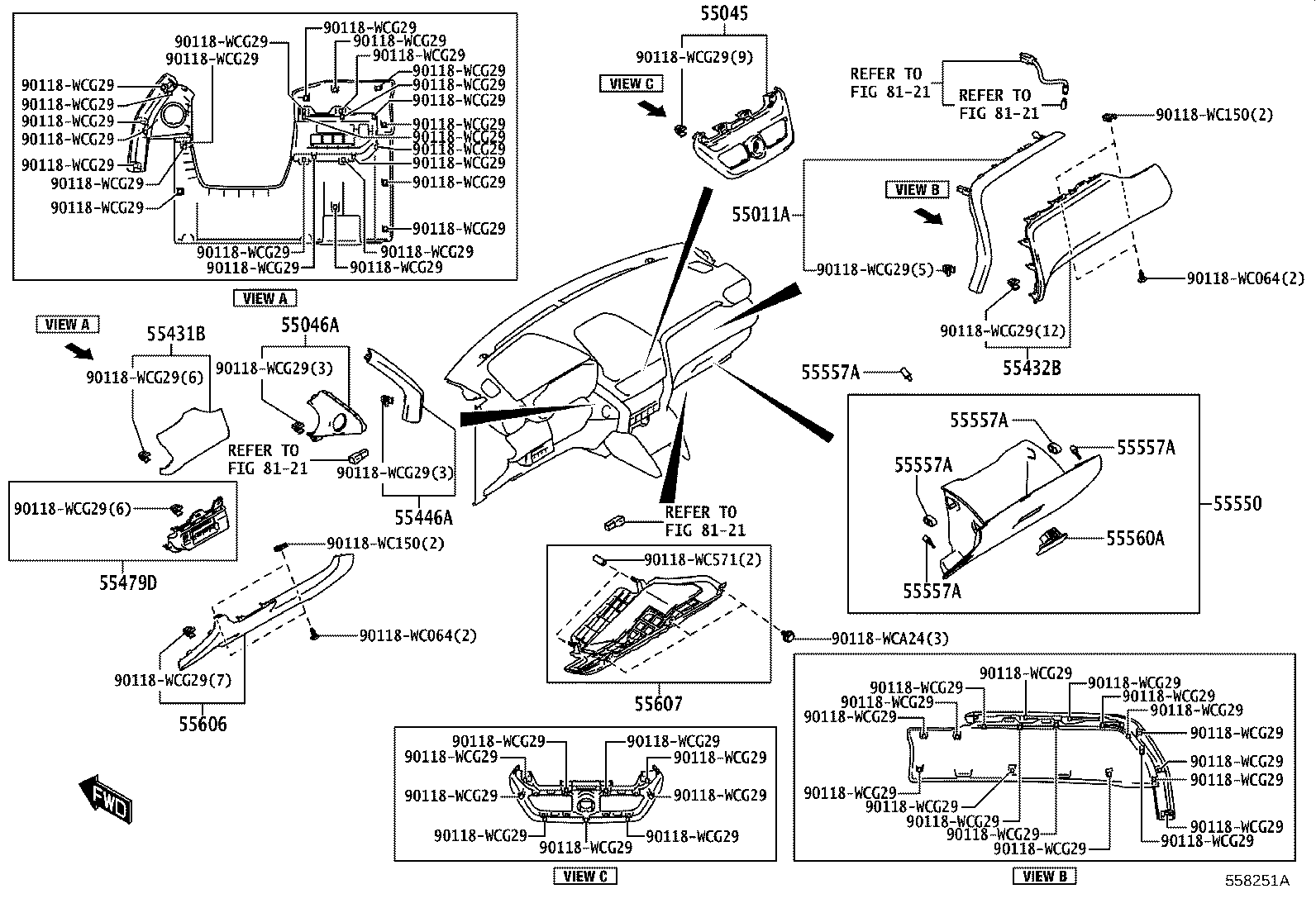

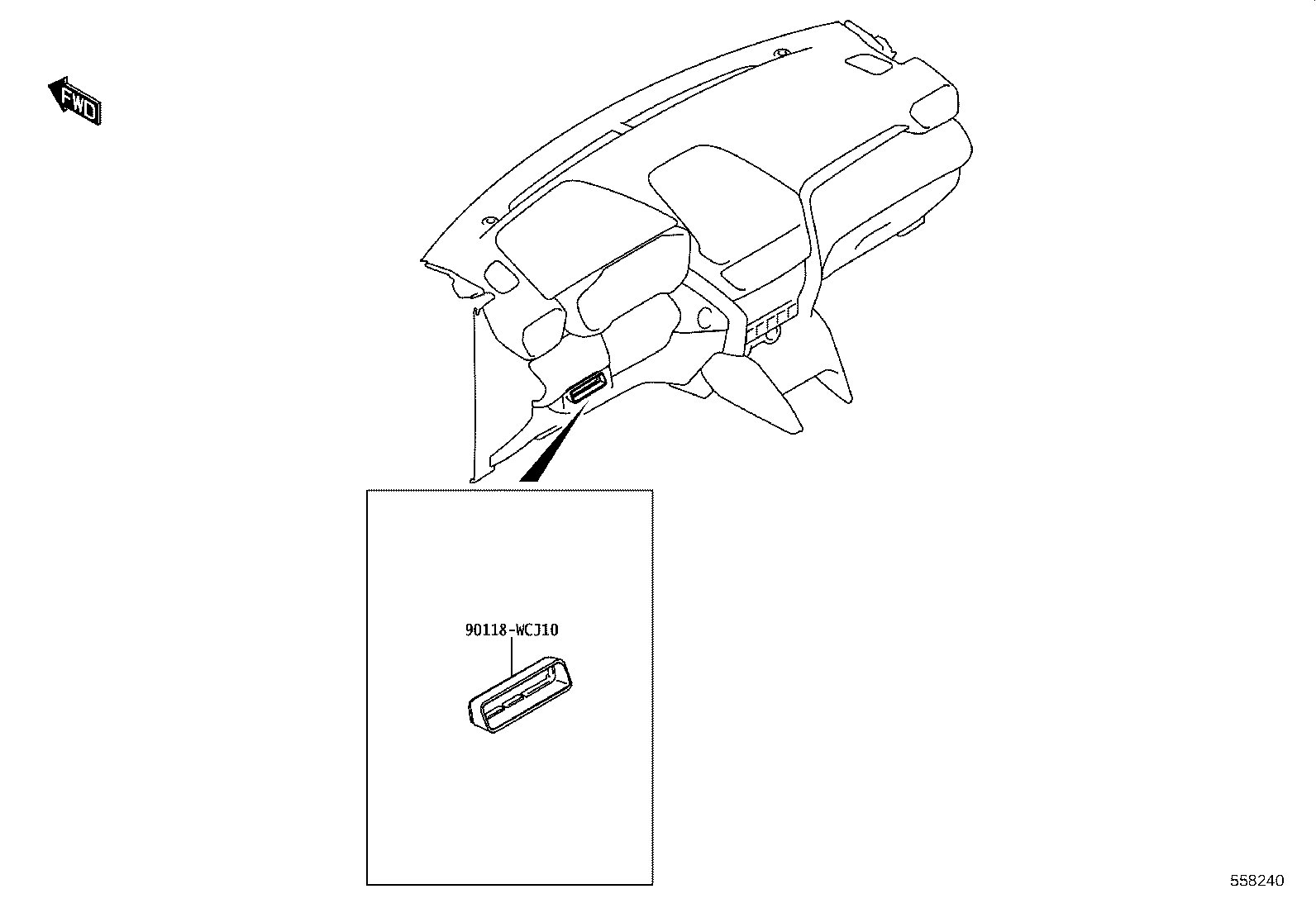

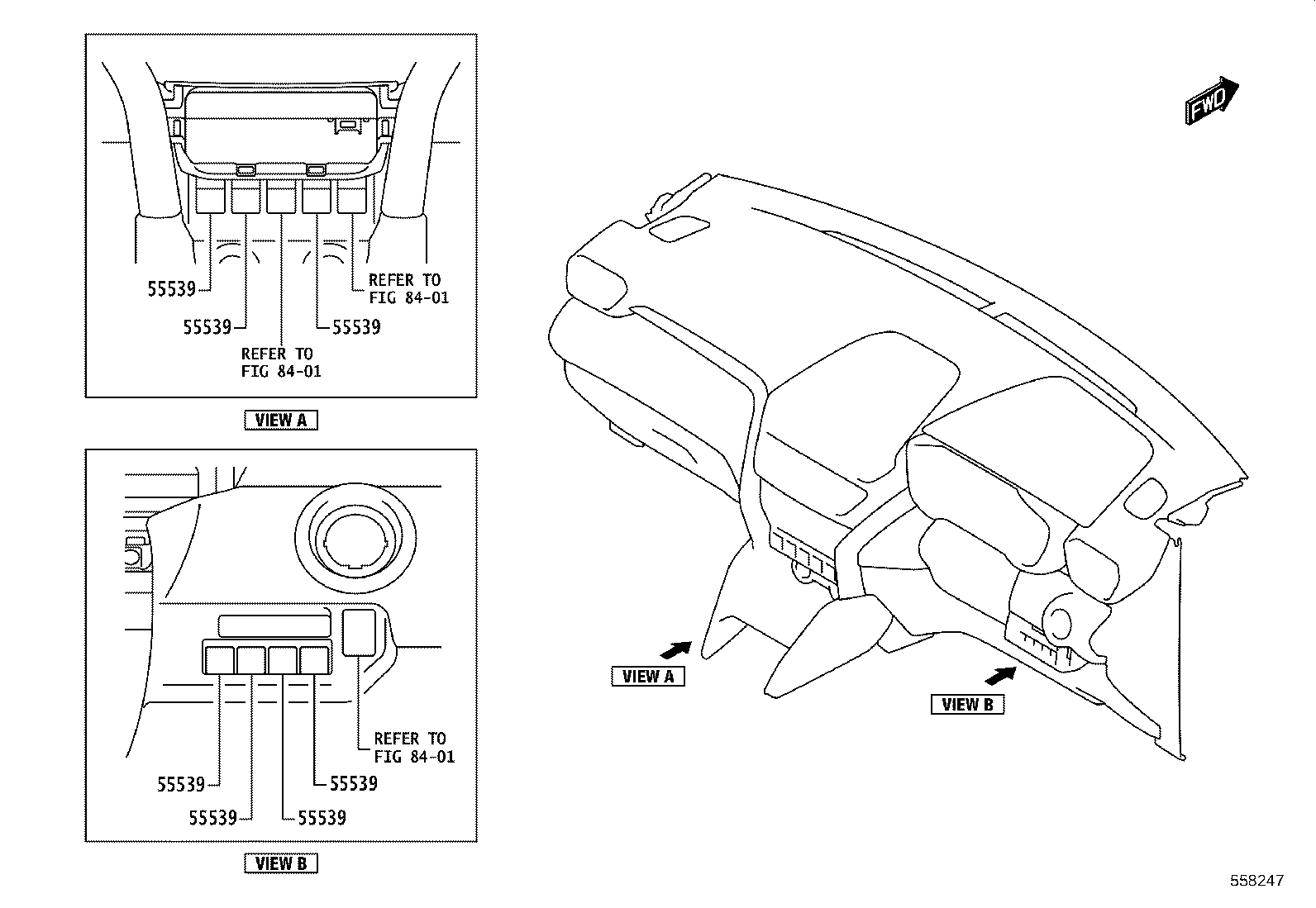

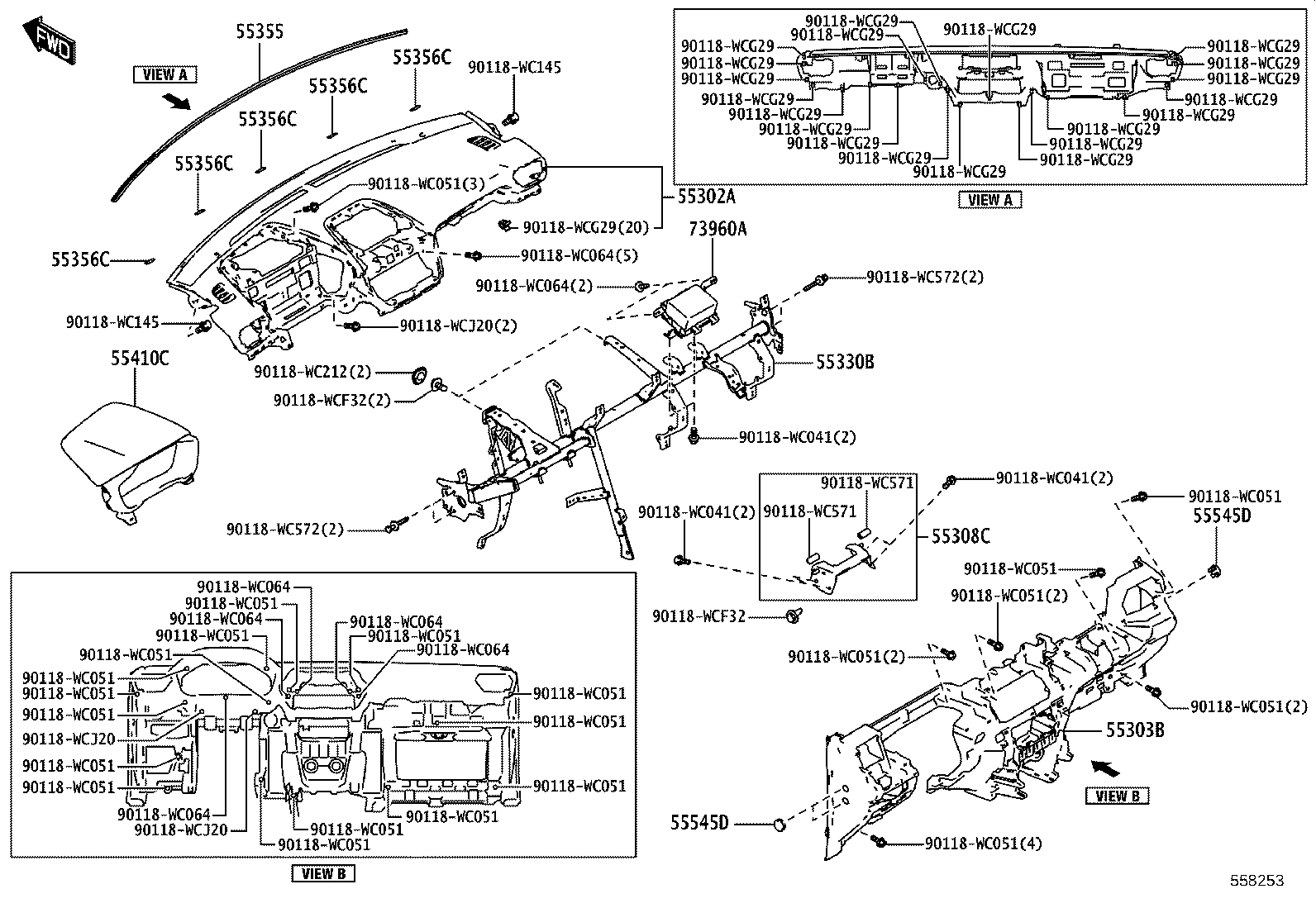

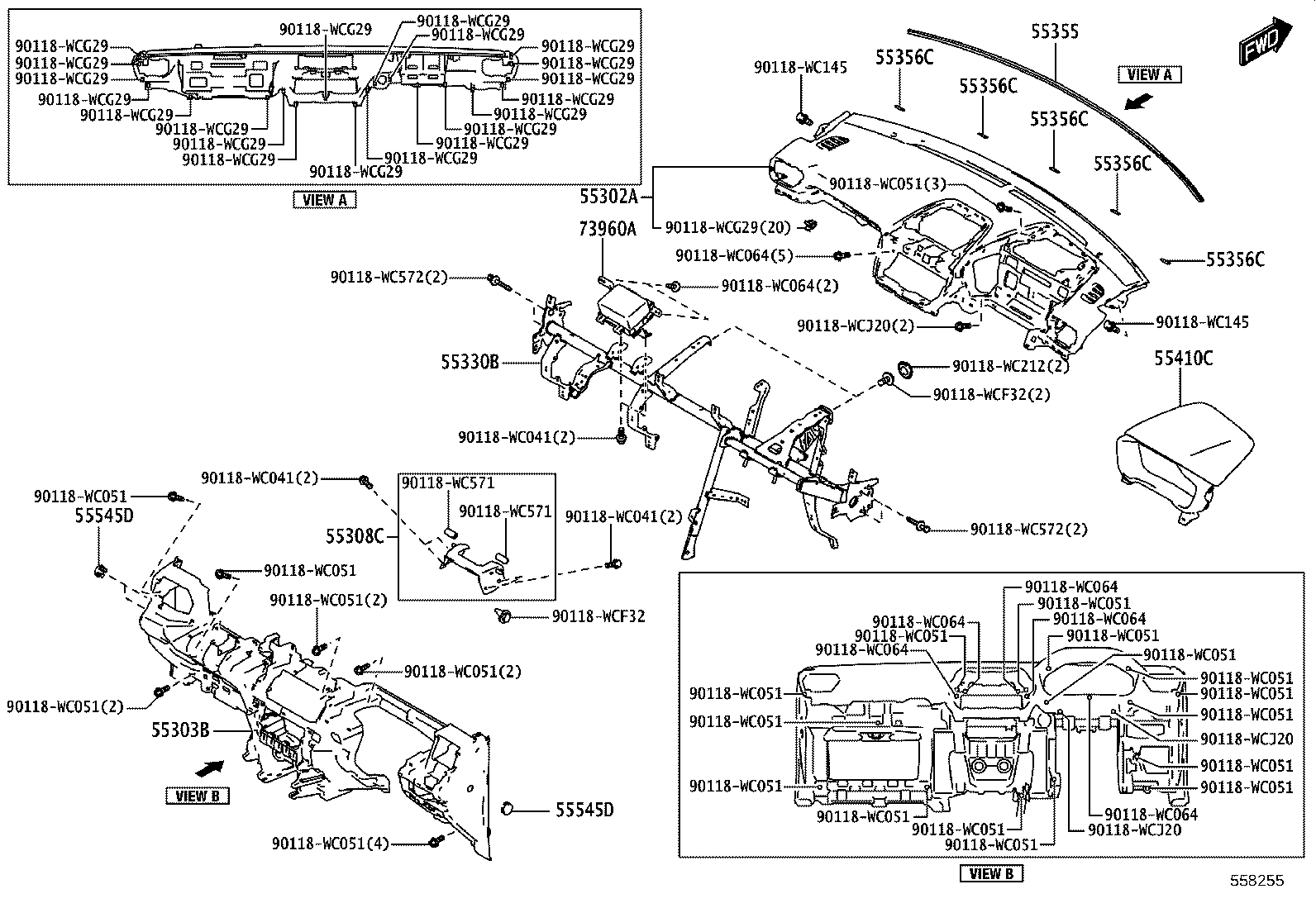

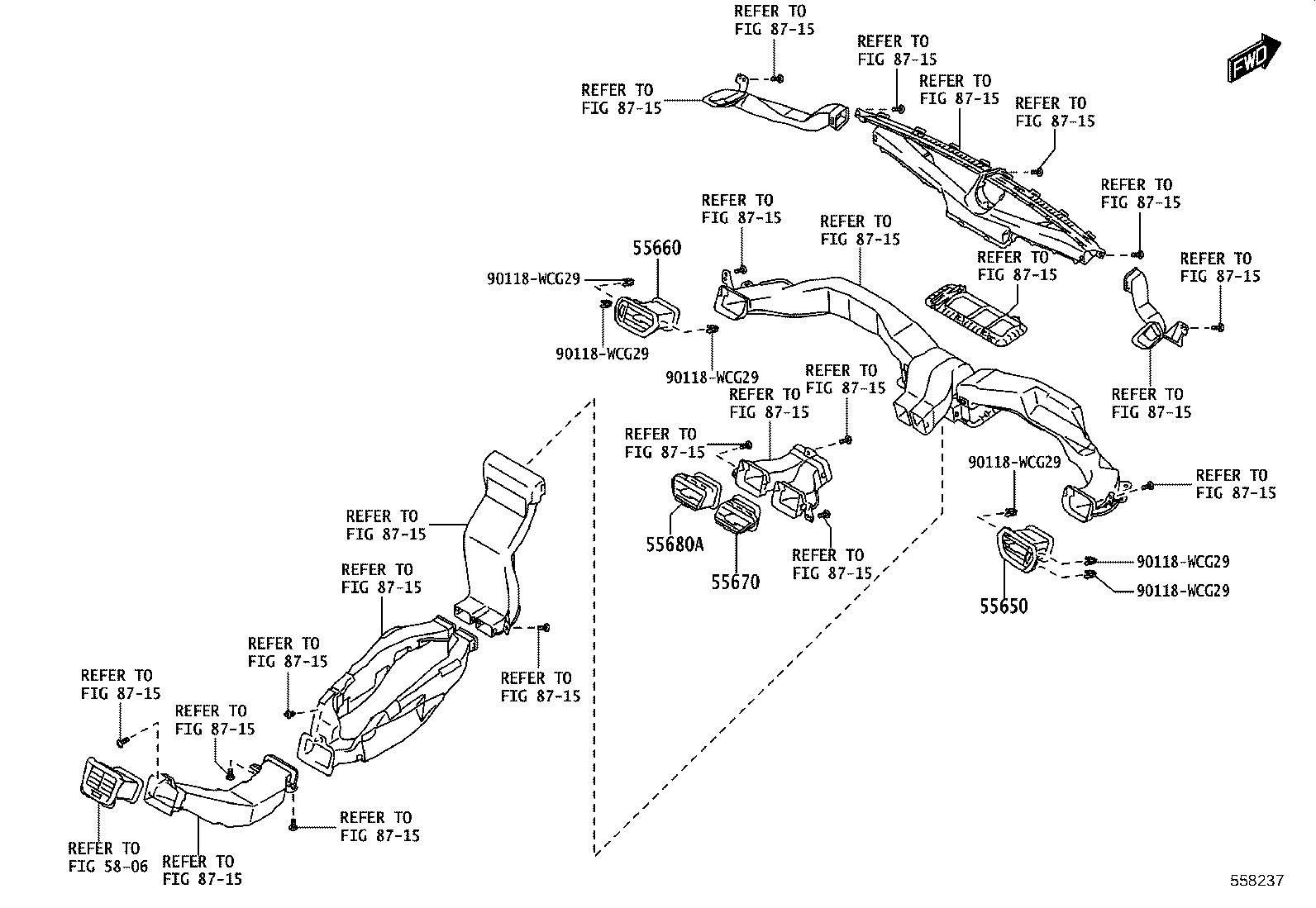

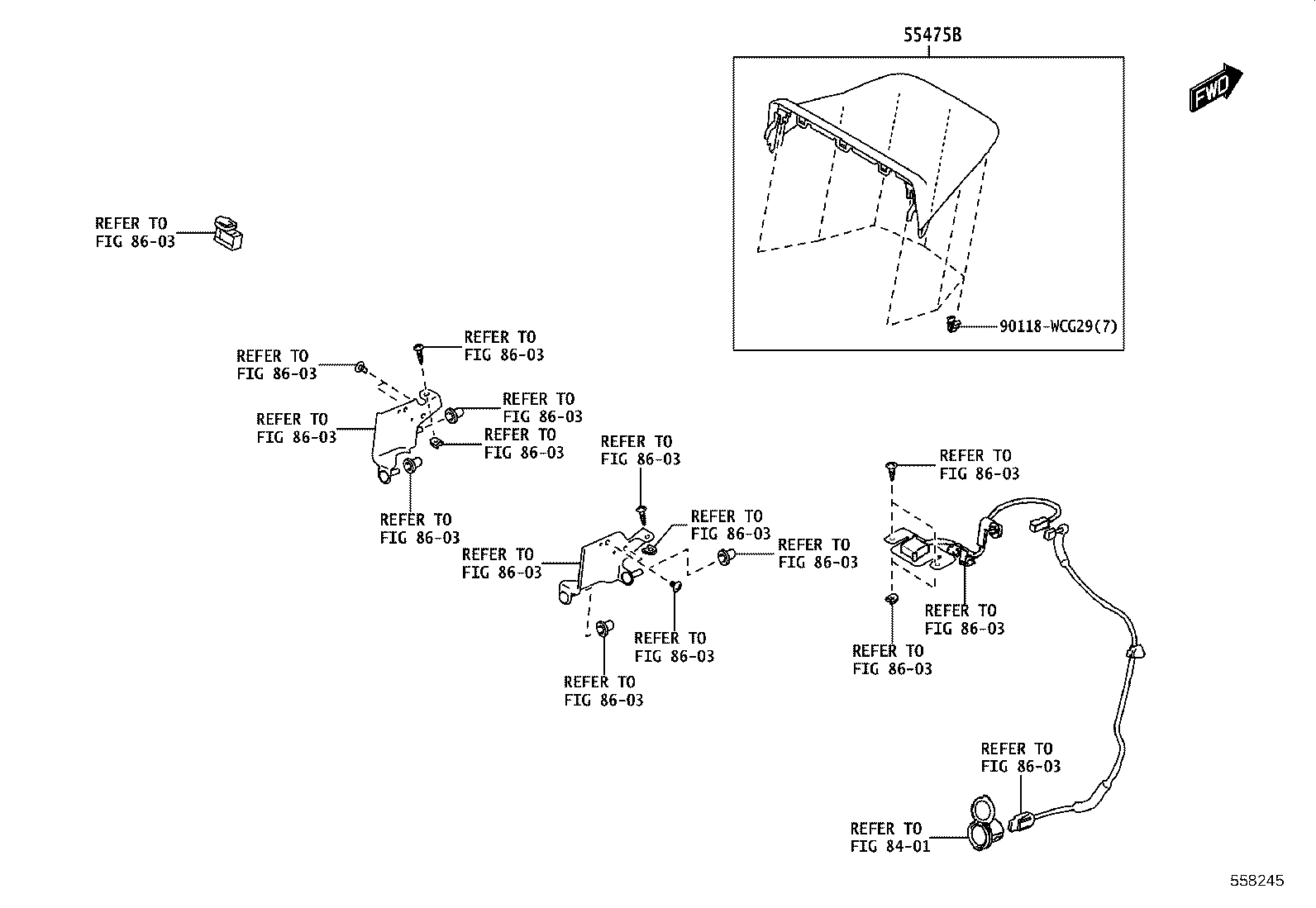

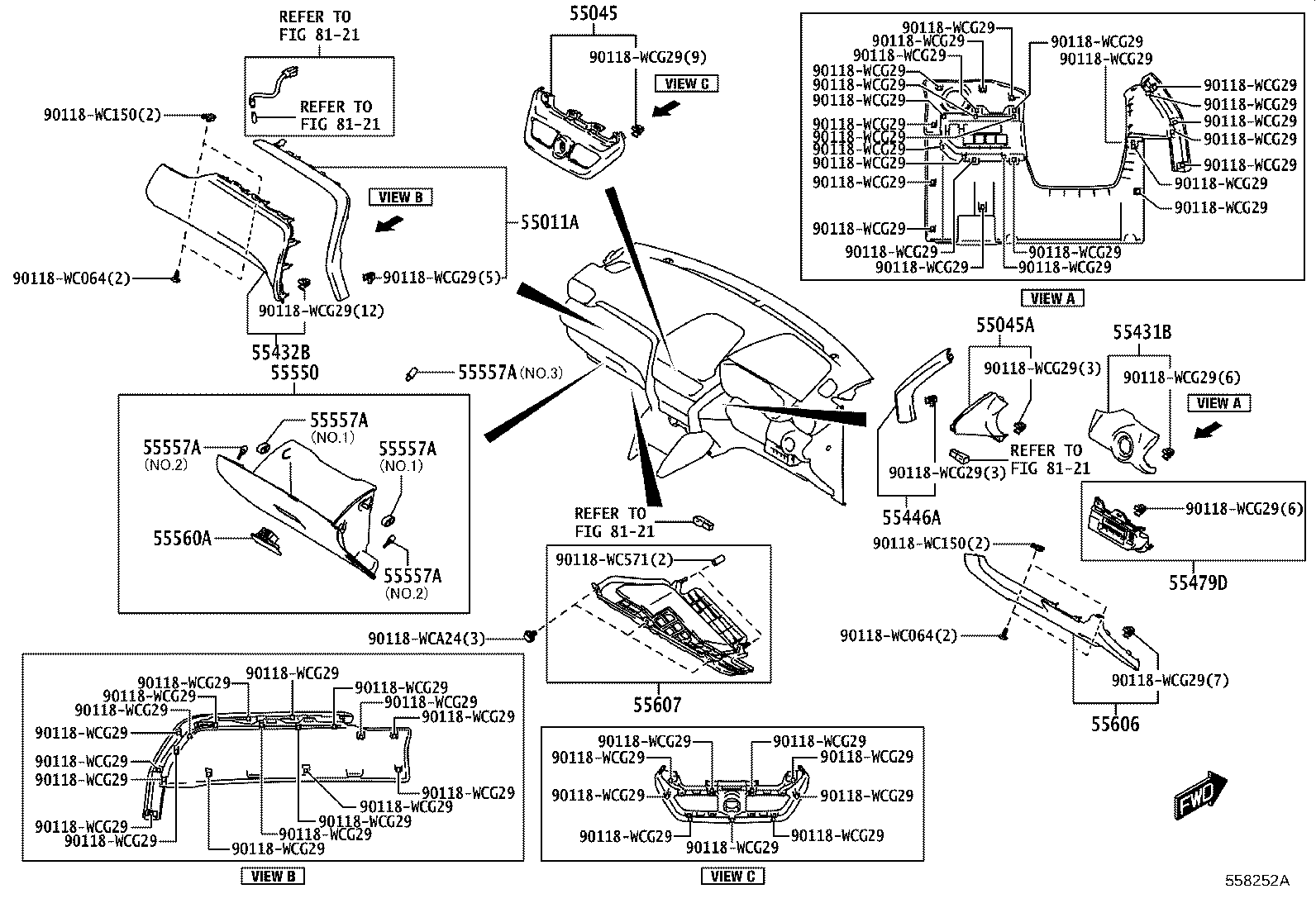

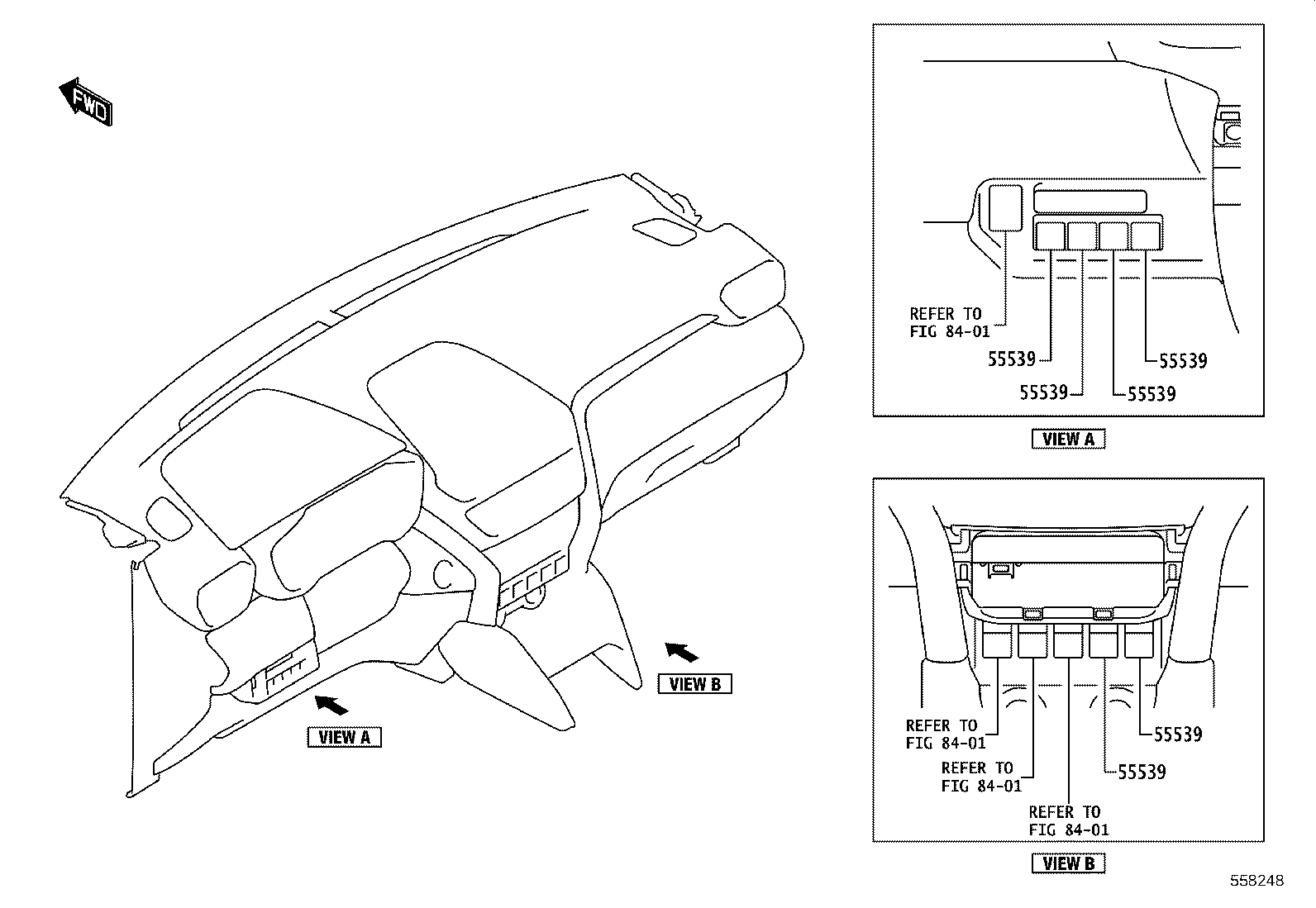

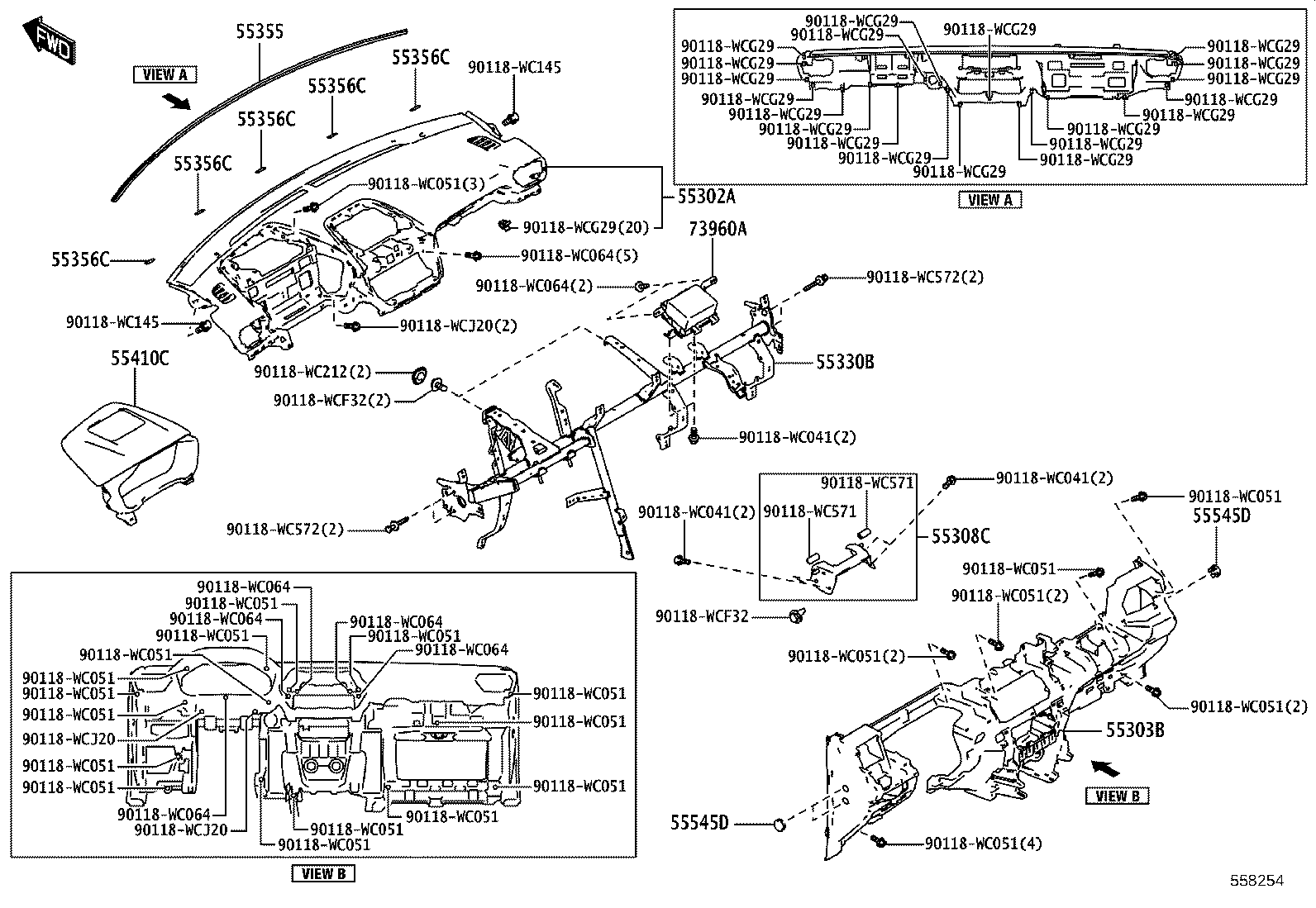

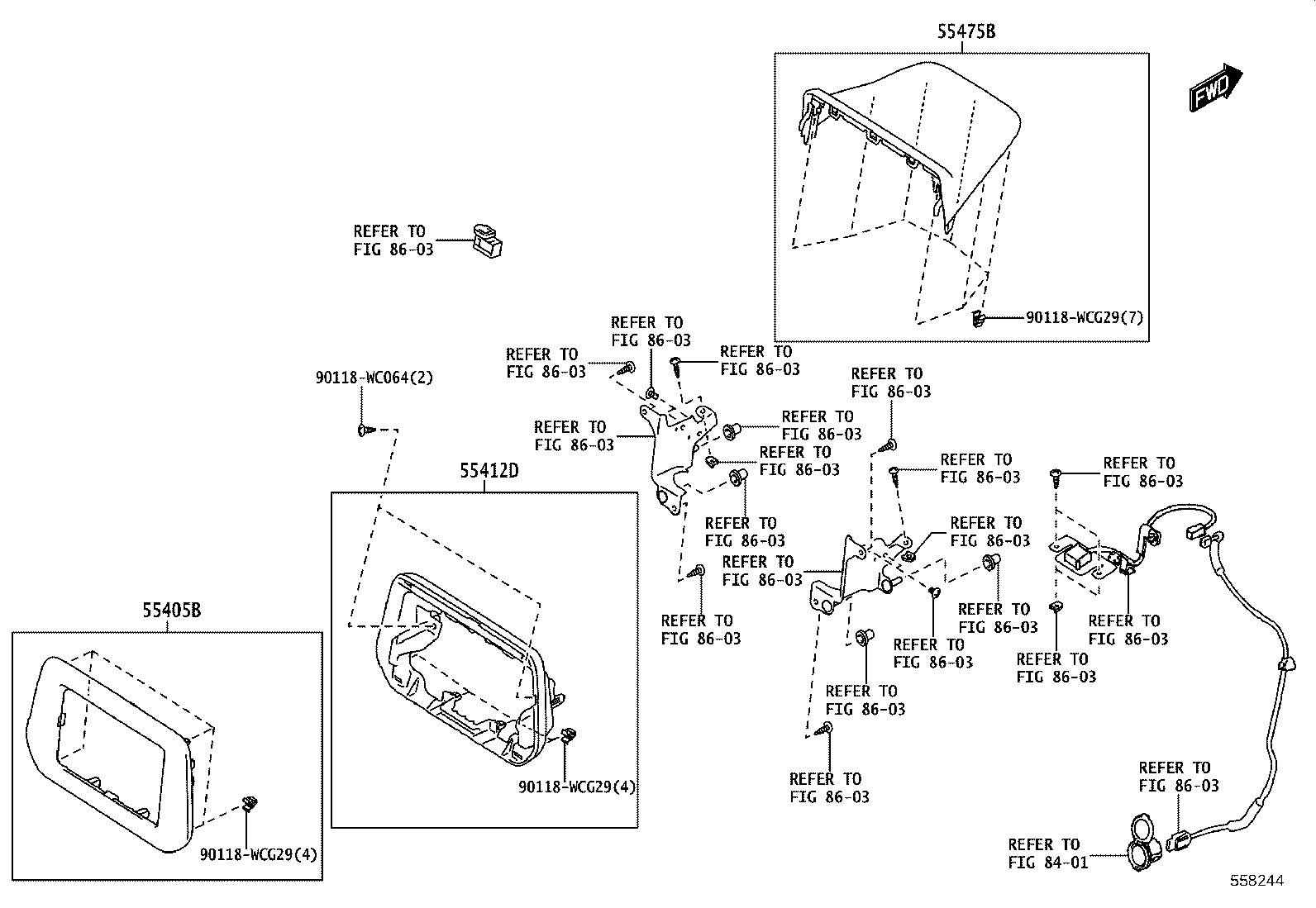

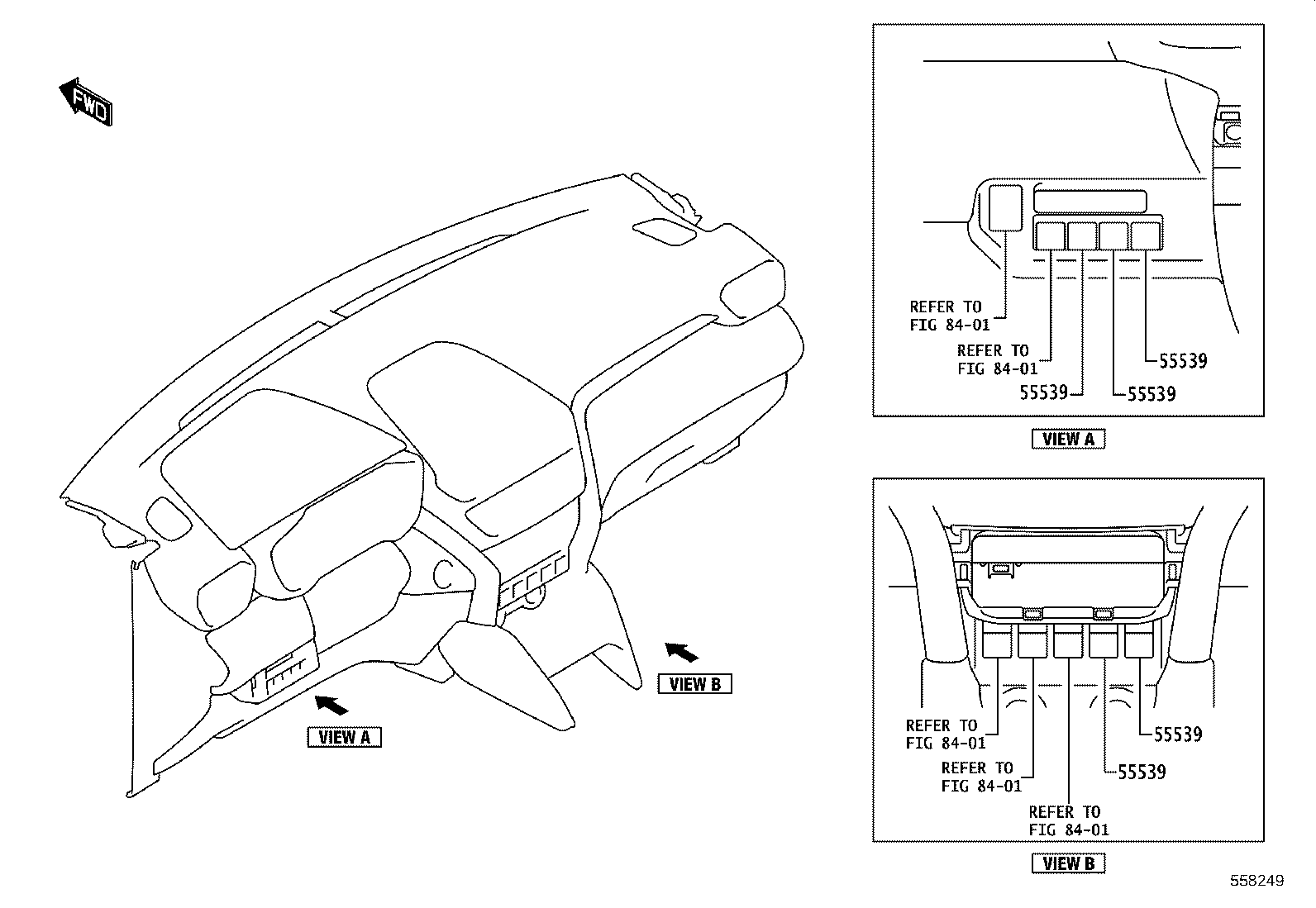

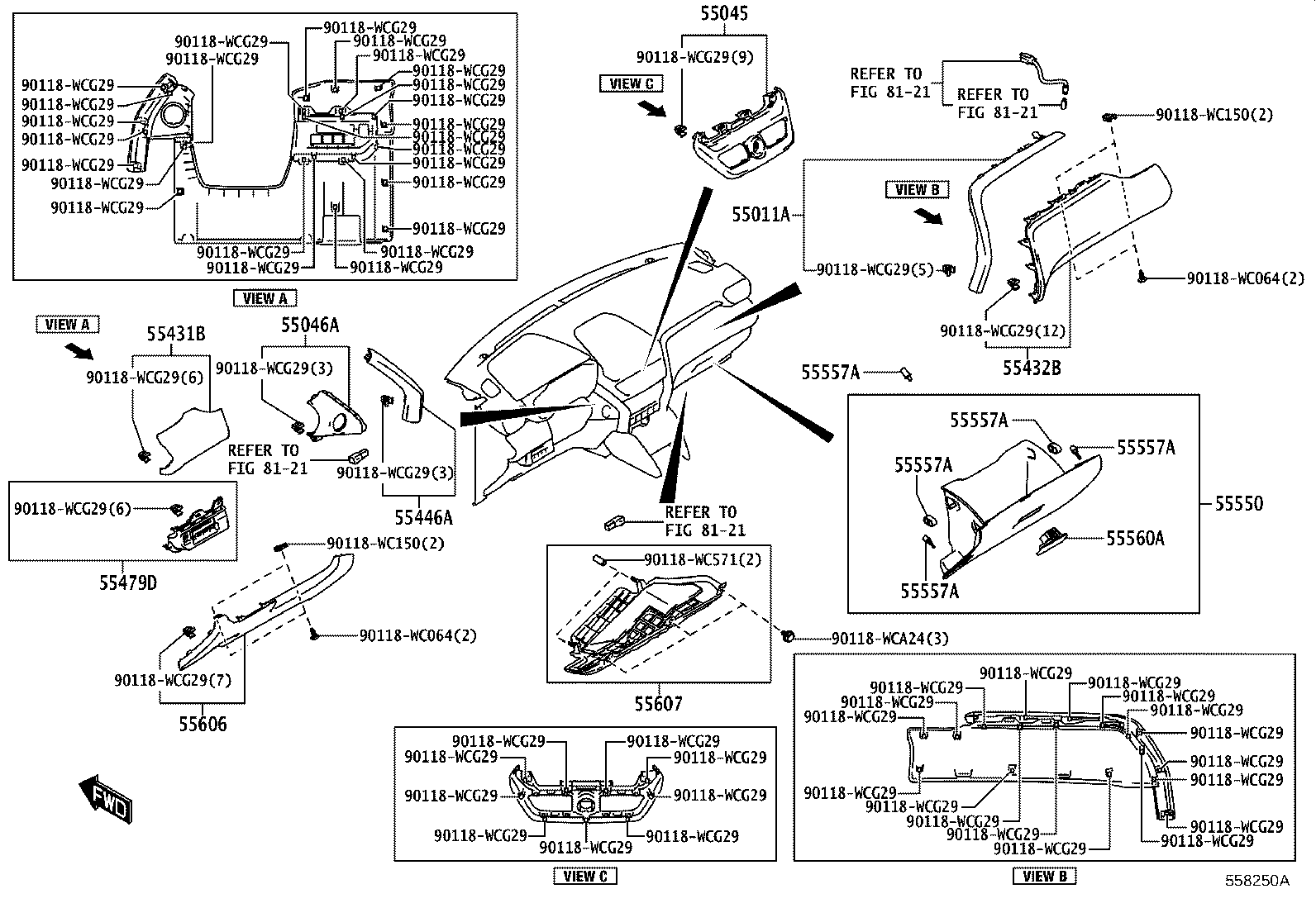

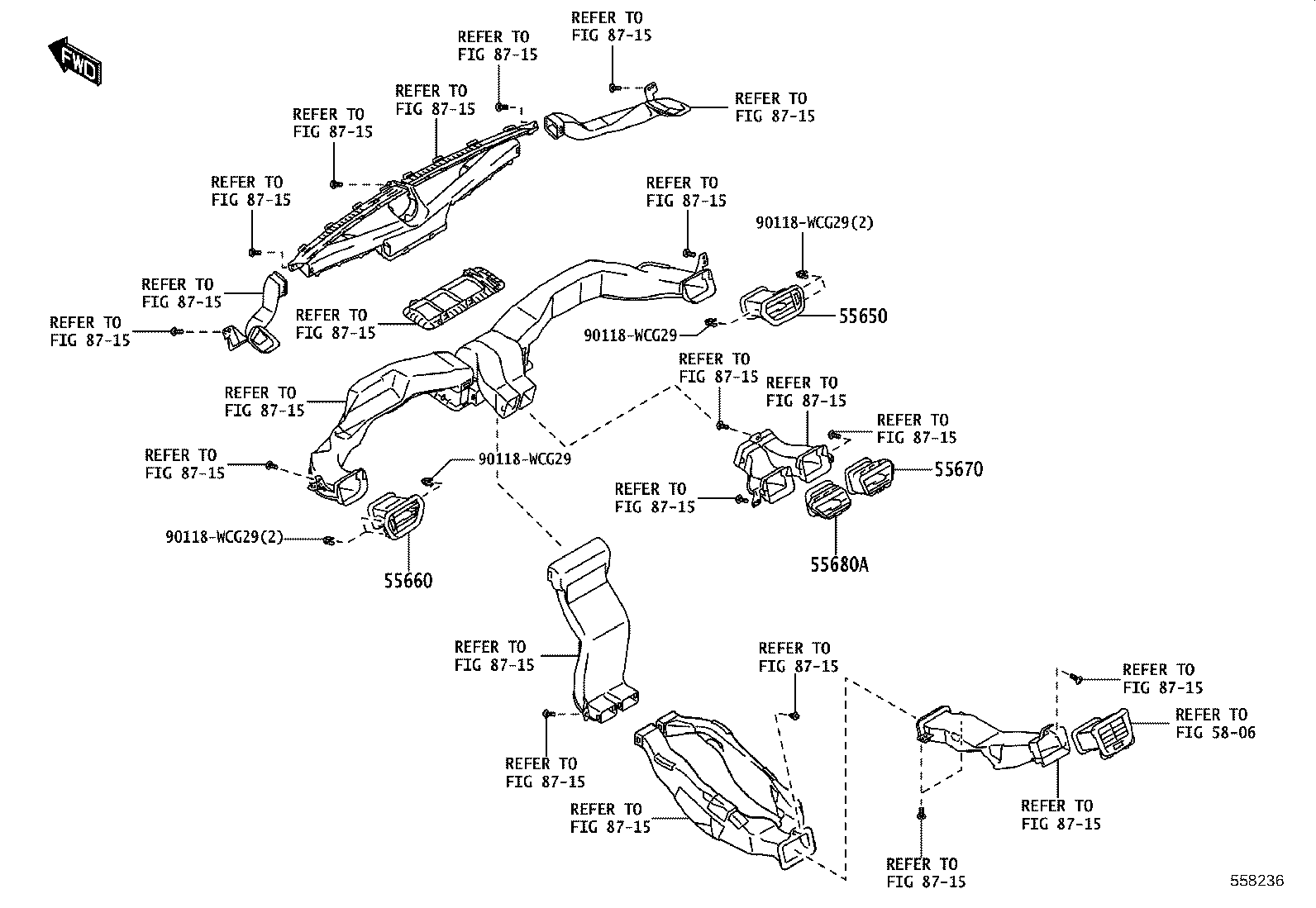

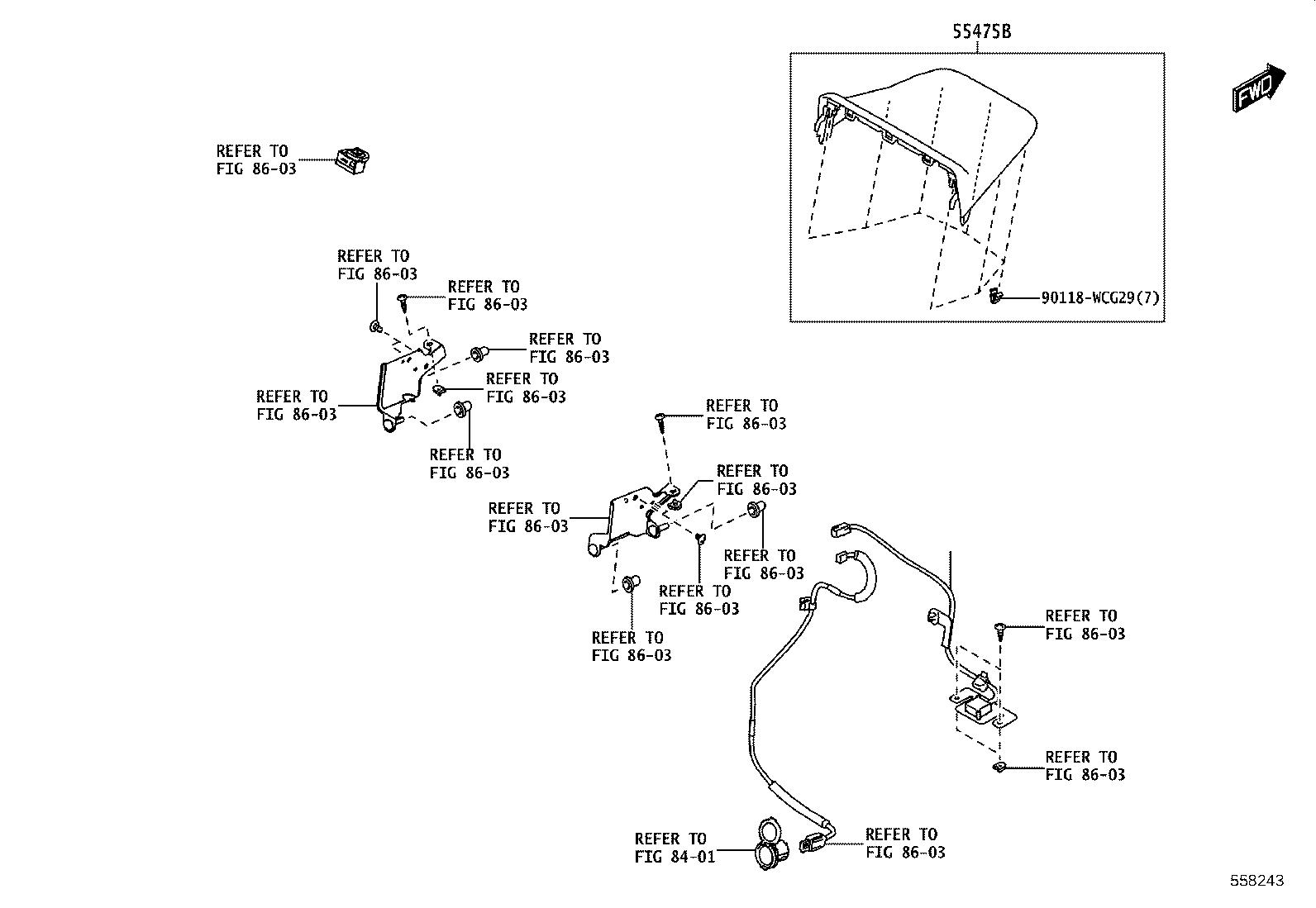

Figure 558246 558246 2022-11 → — Figure 558247 558247 2022-11 → — Figure 558248 558248 2022-11 → — Figure 558249 558249 2022-11 → — Figure 558240 558240 2022-11 → — Figure 558241 558241 2022-11 → — Figure 558242 558242 2022-11 → — Figure 558243 558243 2022-11 → — Figure 558243 558243 2022-11 → — Figure 558244 558244 2022-11 → — Figure 558245 558245 2022-11 → — Figure 558250A 558250A 2022-11 → — Figure 558251A 558251A 2022-11 → — Figure 558252A 558252A 2022-11 → — Figure 558253 558253 2022-11 → — Figure 558254 558254 2022-11 → — Figure 558255 558255 2022-11 → — Figure 558236 558236 2022-11 → — Figure 558237 558237 2022-11 → —

Part groups

PNCDescription
55011A Garnish Sub-assy, Instrument Panel, NO.1
55045 Panel Sub-assy, Instrument Panel Finish, Lower
55045A Panel Sub-assy, Instrument Panel Finish, Lower RH
55046A Panel Sub-assy, Instrument Panel Finish, Lower LH
55302A Panel Sub-assy, Instrument, Upper
55303B Panel Sub-assy, Instrument, Lower
55308C Bracket Sub-assy, Instrument Panel, Center
55330B Reinforcement Assy, Instrument Panel
55355 Cushion, Instrument Panel, NO.1
55356C Cushion, Instrument Panel, NO.2
55405B Panel Sub-assy, Instrument Cluster Finish, Center
55410C Panel Assy, Instrument Cluster Finish
55412D Panel, Instrument Cluster Finish, Center
55431B Panel, Instrument Panel Finish, Upper
55432B Panel, Instrument Panel Finish, Lower
55446A Base, Switch Hole, NO.1
55475B Garnish, Instrument Cluster Finish Panel, Center
55479D Garnish, Instrument Cluster Finish Panel, Lower
55539 Cover, Spare Switch Hole
55545D Cover, Instorument Panel Hole, NO.1
55550 Door Assy, Glove Compartment
55557A Cushion, Glove Compartment Door Check
55560A Lock Assy, Glove Compartment Door
55606 Cover Sub-assy, Instrument Panel Under, NO.1
55607 Cover Sub-assy, Instrument Panel Under, NO.2
55650 Register Assy, Instrument Panel, NO.1
55660 Register Assy, Instrument Panel, NO.2
55670 Register Assy, Instrument Panel, NO.3
55680A Register Assy, Instrument Panel, NO.4
73960A Airbag Assy, Instrument Panel Passenger W/O Door
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
