Toyota Urban Cruiser
2022-11 → present · chassis FG21###,22###,61###,62### · catalogue 138320 · General
Supported model
Data version 2024-04

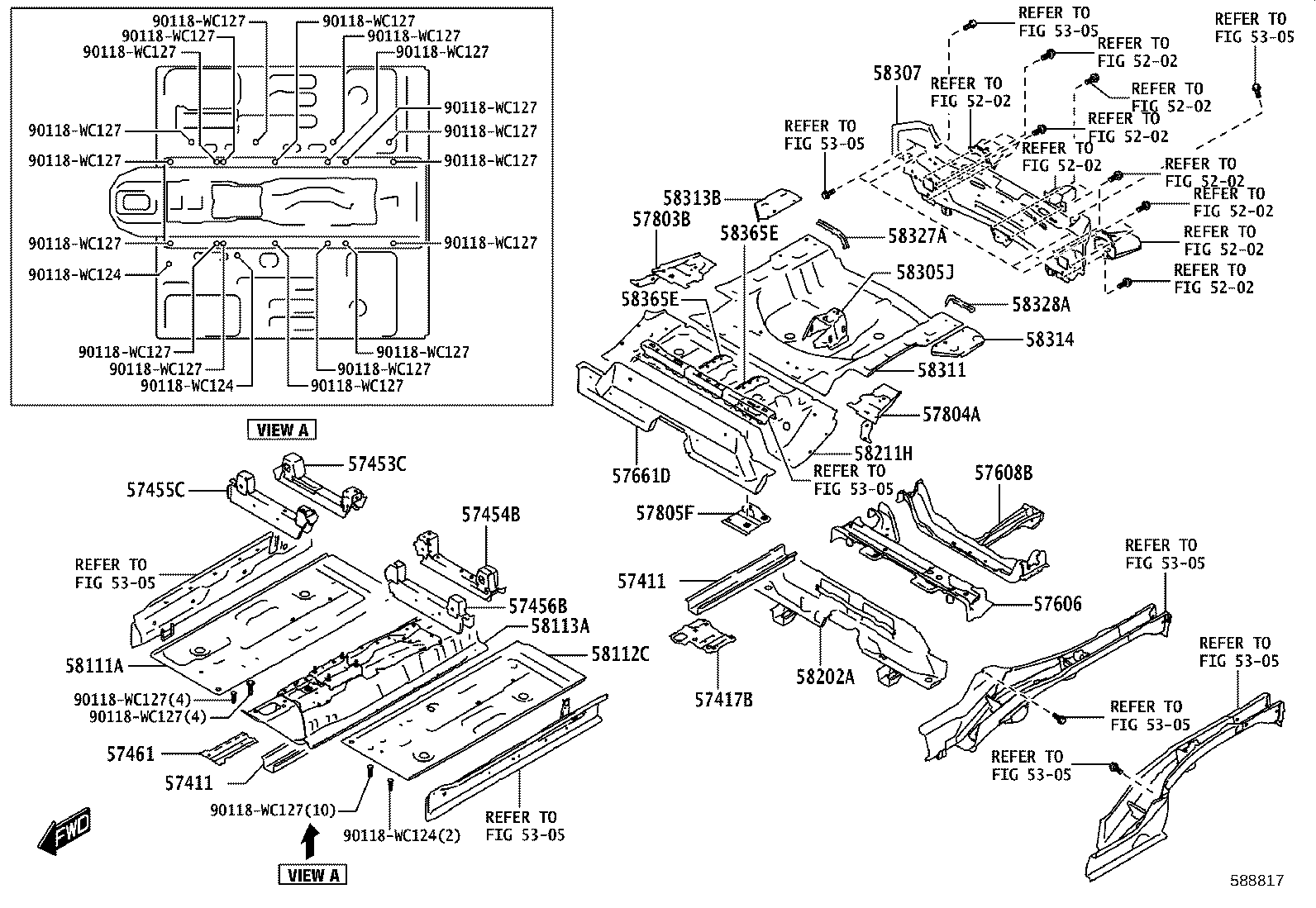

Floor Pan & Lower Back Panel
27 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 57411 | Plate, Floor Side Rail, RH |
| 57417B | Reinforcement, Front Floor Under |
| 57453C | Member, Front Floor Cross Side, RH |
| 57454B | Member, Front Floor Cross Side, LH |
| 57455C | Bracket, Front Seat Mounting, Outside RH |
| 57456B | Bracket, Front Seat Mounting, Outside LH |
| 57461 | Bracket, Floor Panel |
| 57606 | Crossmember Sub-assy, Rear Floor Rear, Inner |
| 57608B | Member Sub-assy, Rear Floor Cross, NO.4 |
| 57661D | Member, Rear Floor Cross, Front |
| 57803B | Reinforce Sub-assy, Belt Anchor, NO.2 RH |
| 57804A | Reinforce Sub-assy, Belt Anchor, NO.2 LH |
| 57805F | Reinforcement Sub-assy, Belt Anchor, NO.1 |
| 58111A | Pan, Front Floor, RH |
| 58112C | Pan, Front Floor, LH |
| 58113A | Panel, Front Floor, Center |

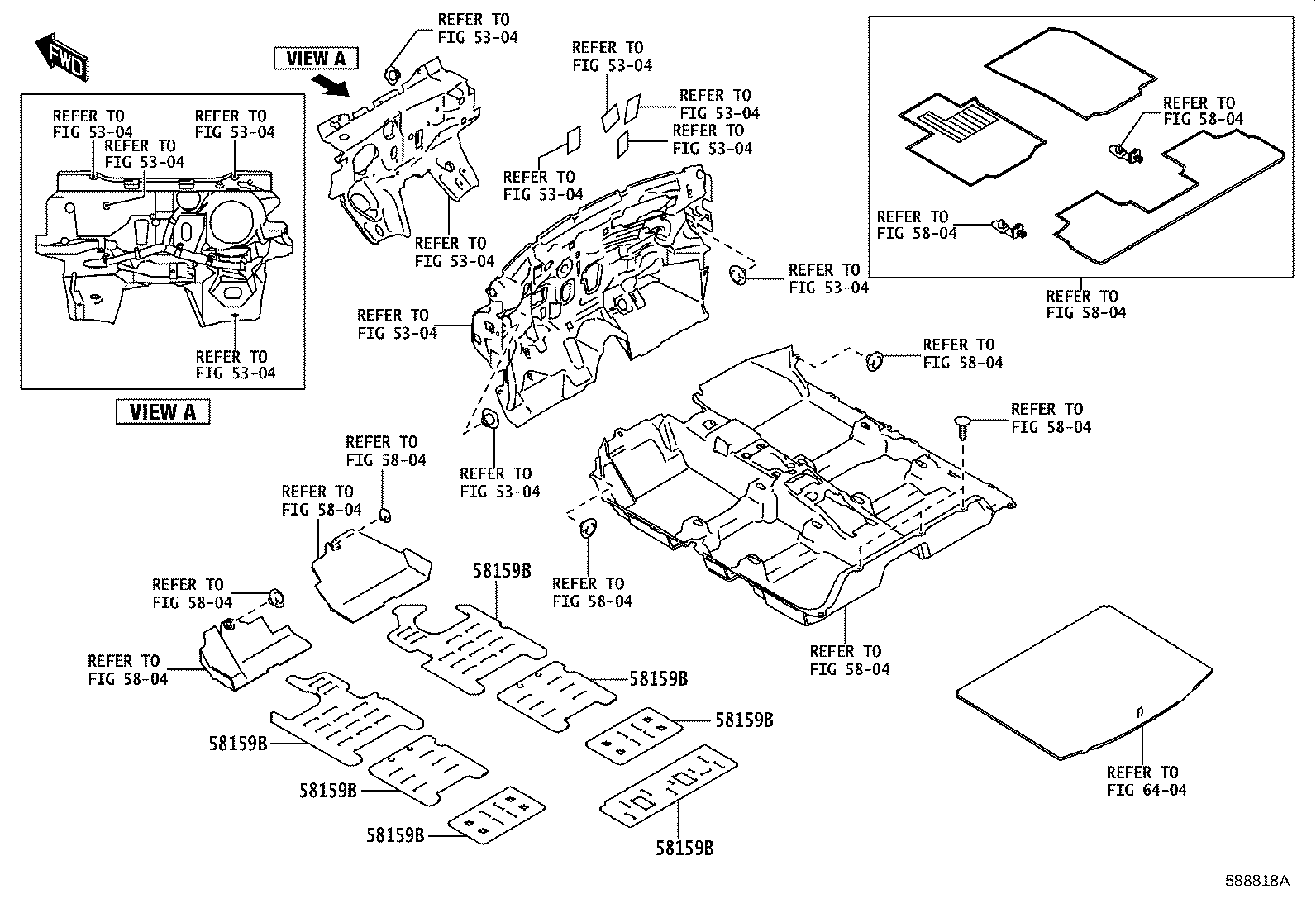

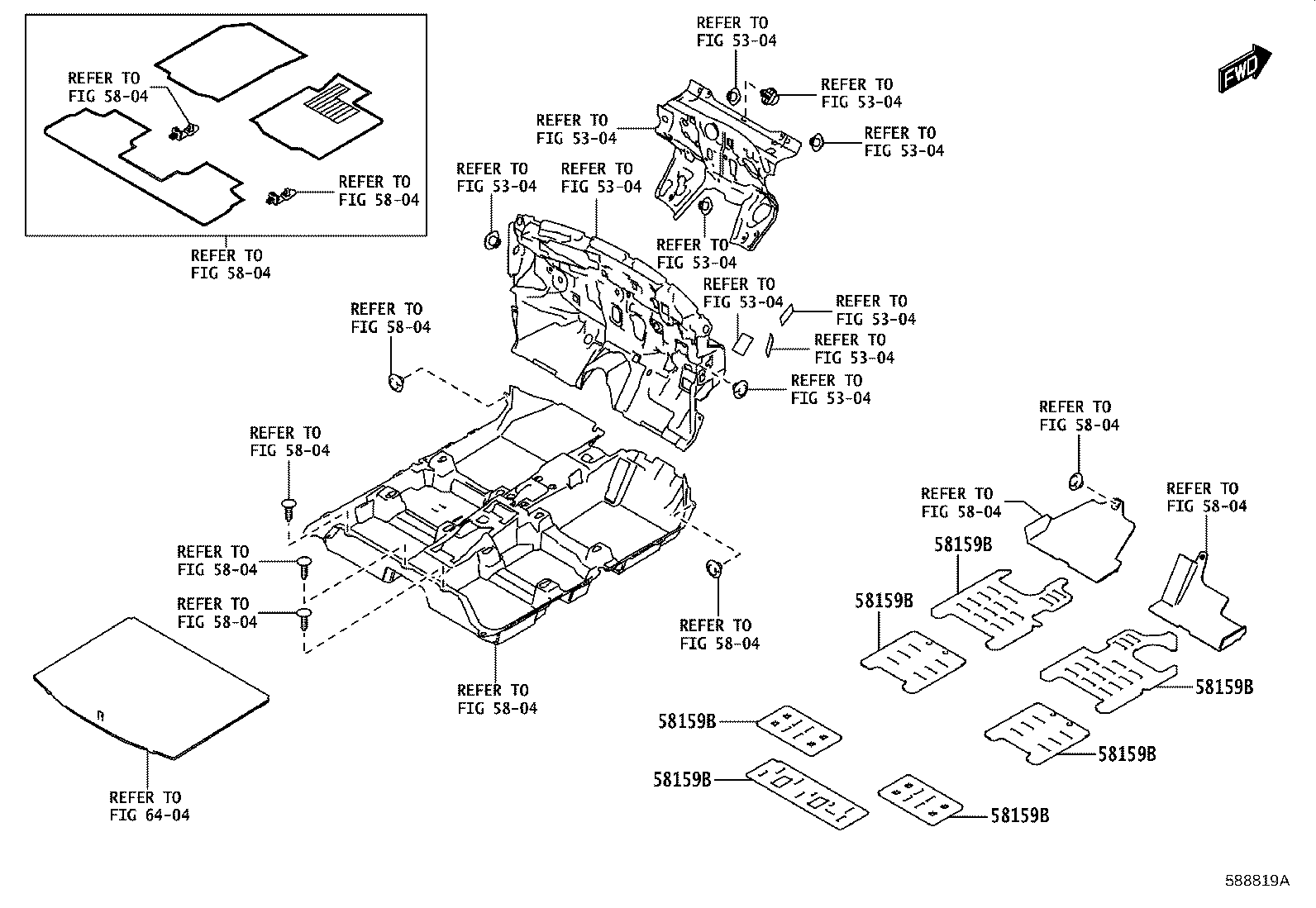

| 58159B | Sheet, Front Floor |
| 58202A | Pan Sub-assy, Center Floor, Front |
| 58211H | Pan, Center Floor |
| 58305J | Bracket, Spare Wheel Carrier |
| 58307 | Panel Sub-assy, Body Lower Back |
| 58311 | Pan, Rear Floor |
| 58313B | Panel, Rear Floor Side, RH |
| 58314 | Panel, Rear Floor Side, LH |
| 58327A | Patch, Rear Floor Side, RH |
| 58328A | Patch, Rear Floor Side, LH |
| 58365E | Reinforcement, Rear Floor Panel, Center |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
