Toyota Urban Cruiser

2022-11 → present · chassis FG21###,22###,61###,62### · catalogue 138320 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

7 part groups · 2 illustrations

Illustrations

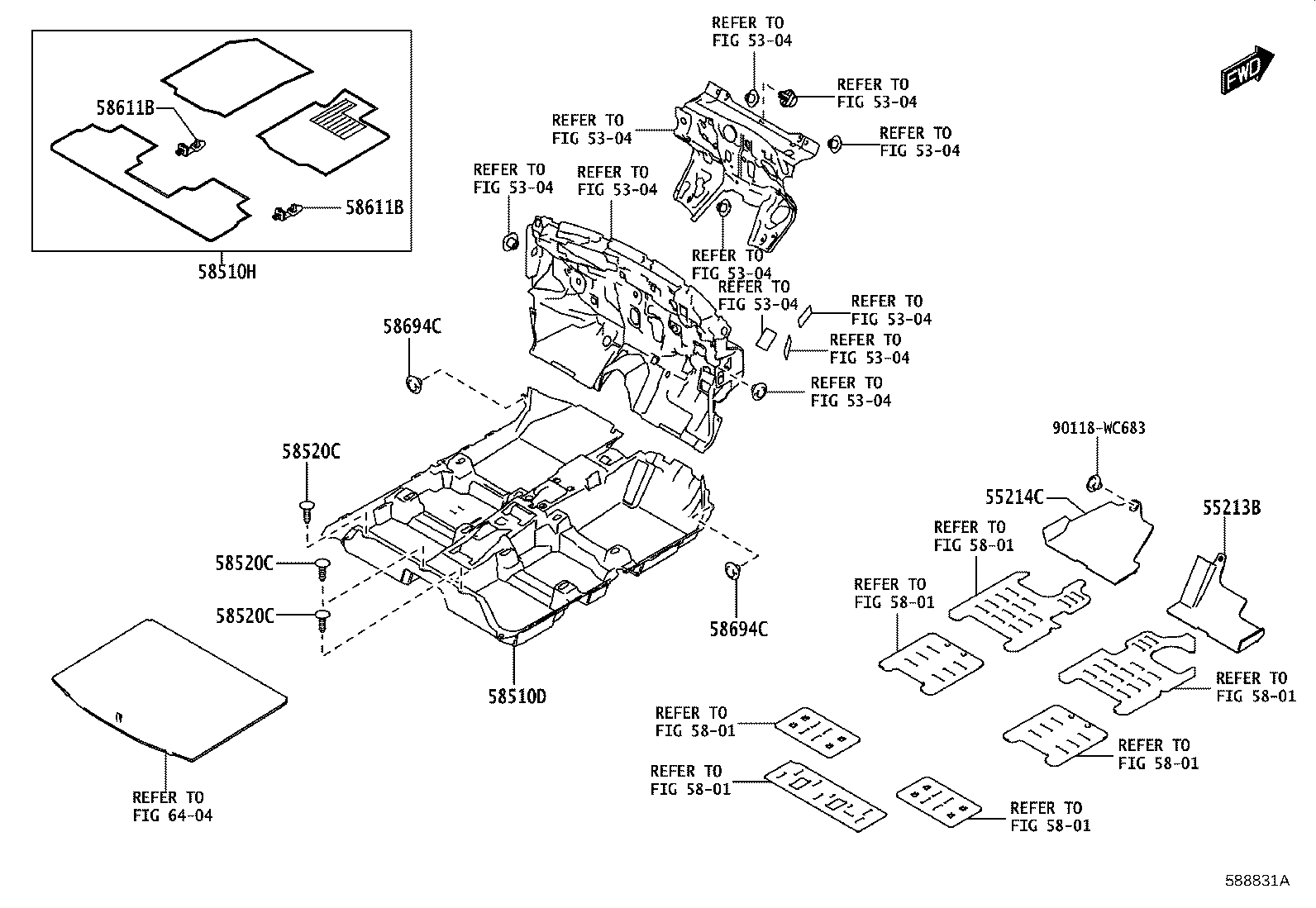

Figure 588824A 588824A 2022-11 → — Figure 588831A 588831A 2022-11 → —

Part groups

PNCDescription
55213B Pad, Dash Panel Insulator, NO.1
55214C Pad, Dash Panel Insulator, NO.2
58510D Carpet Assy, Floor, Front
58510H Mat Assy, Floor
58520C Clip(FOR FRONT FLOOR CARPET)
58611B Plate, Mat Set, NO.1
58694C Grommet(FOR MAT SET PLATE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
