Toyota Urban Cruiser

2022-11 → present · chassis FG21###,22###,61###,62### · catalogue 138320 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

7 part groups · 8 illustrations

Illustrations

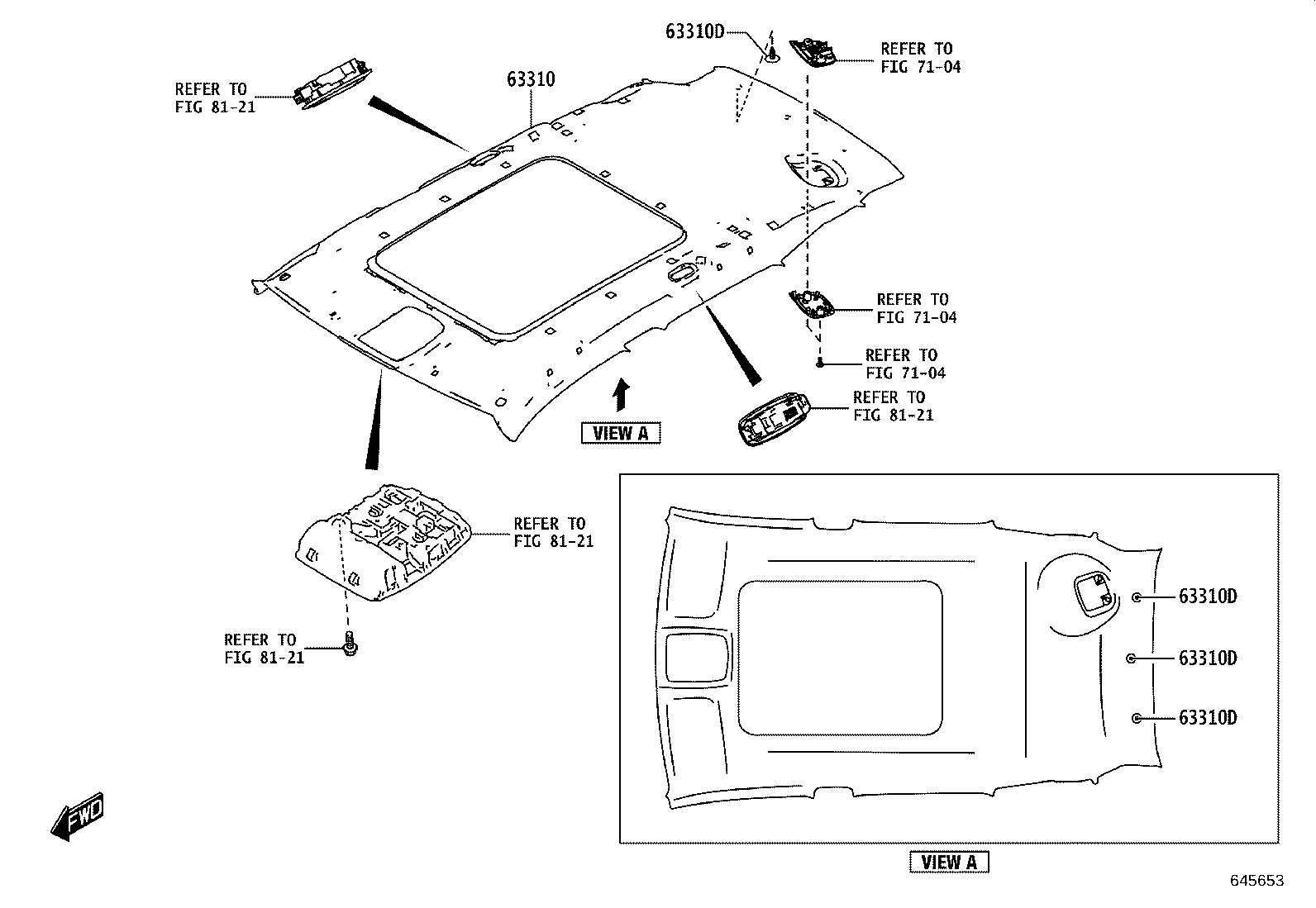

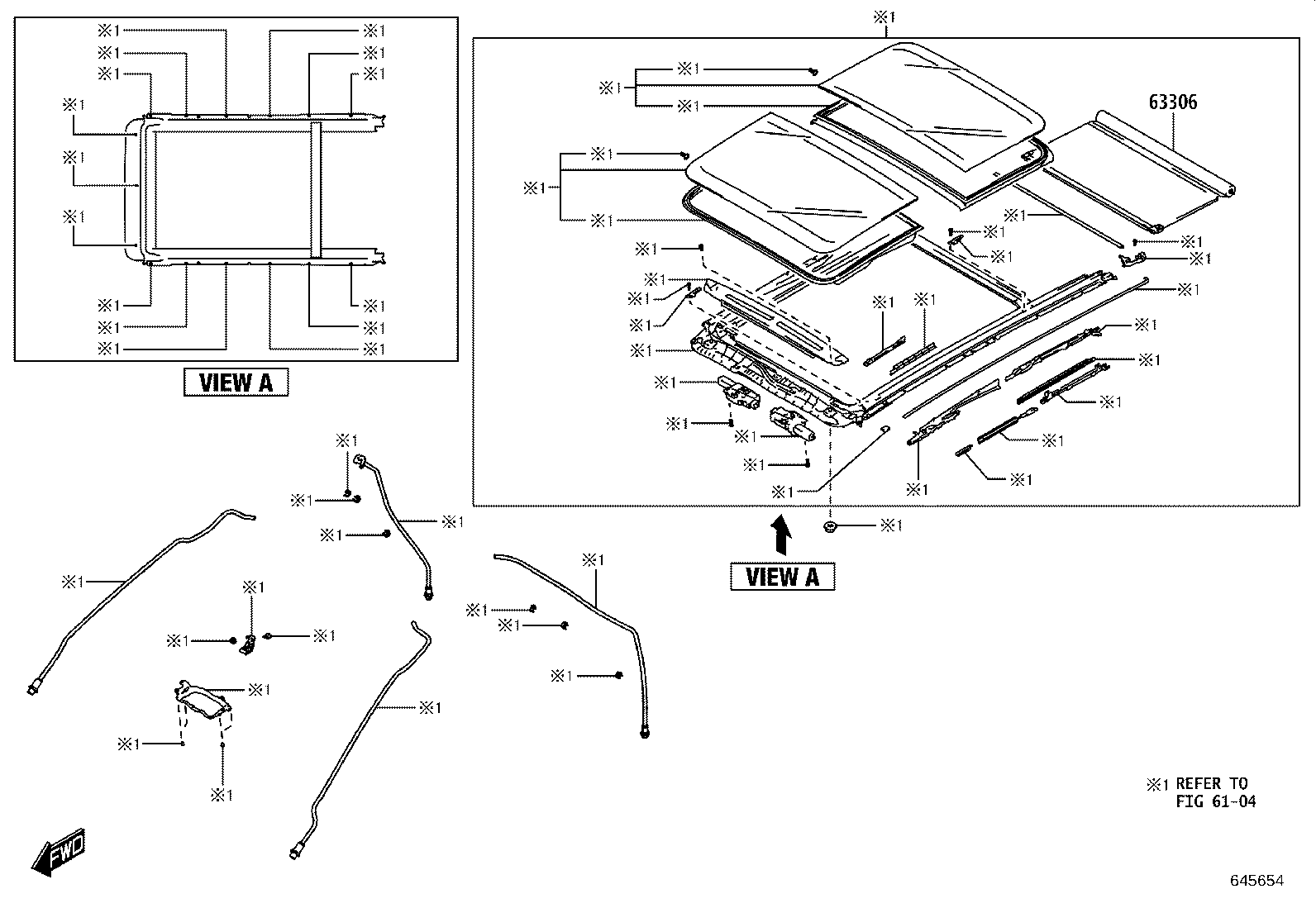

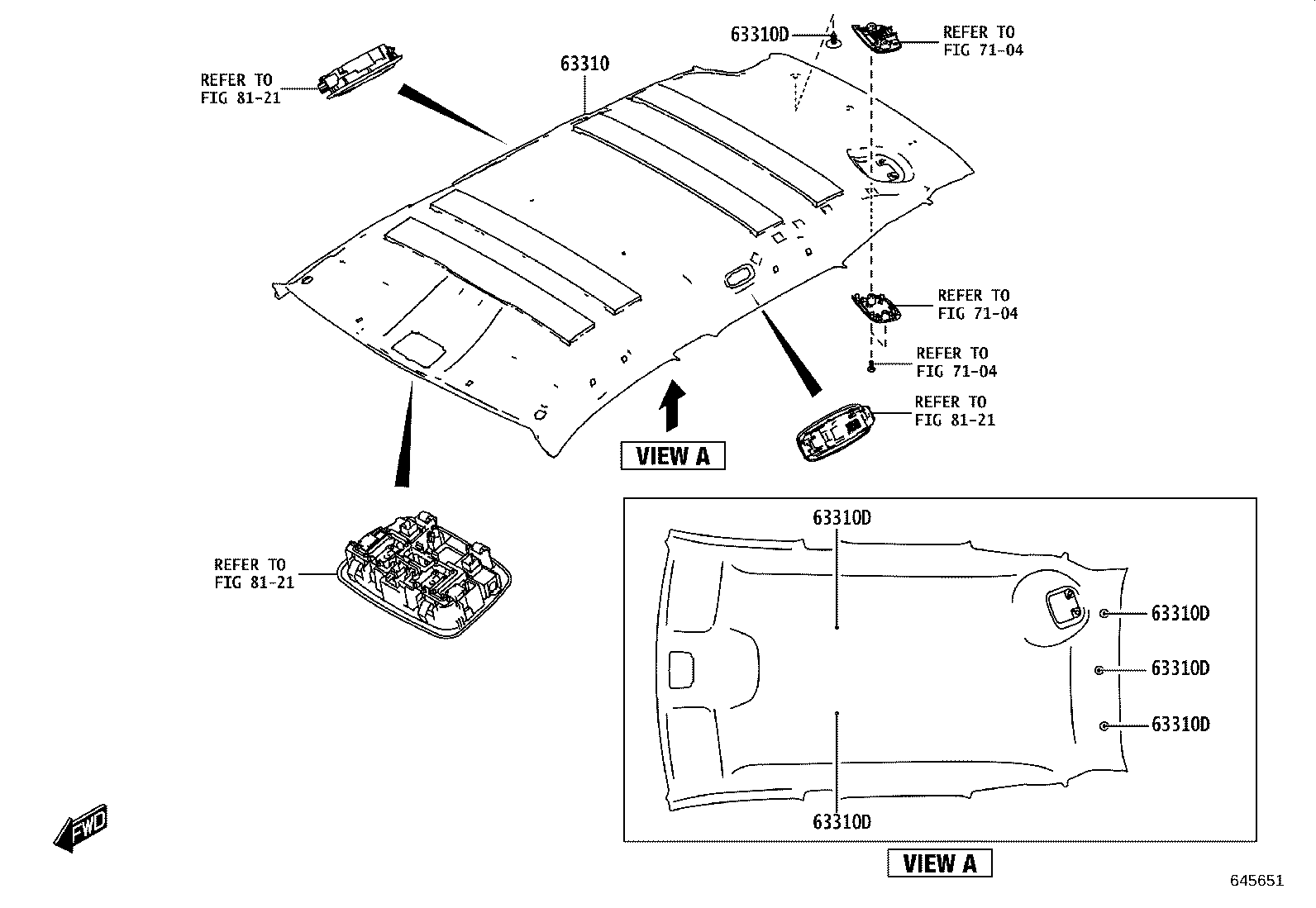

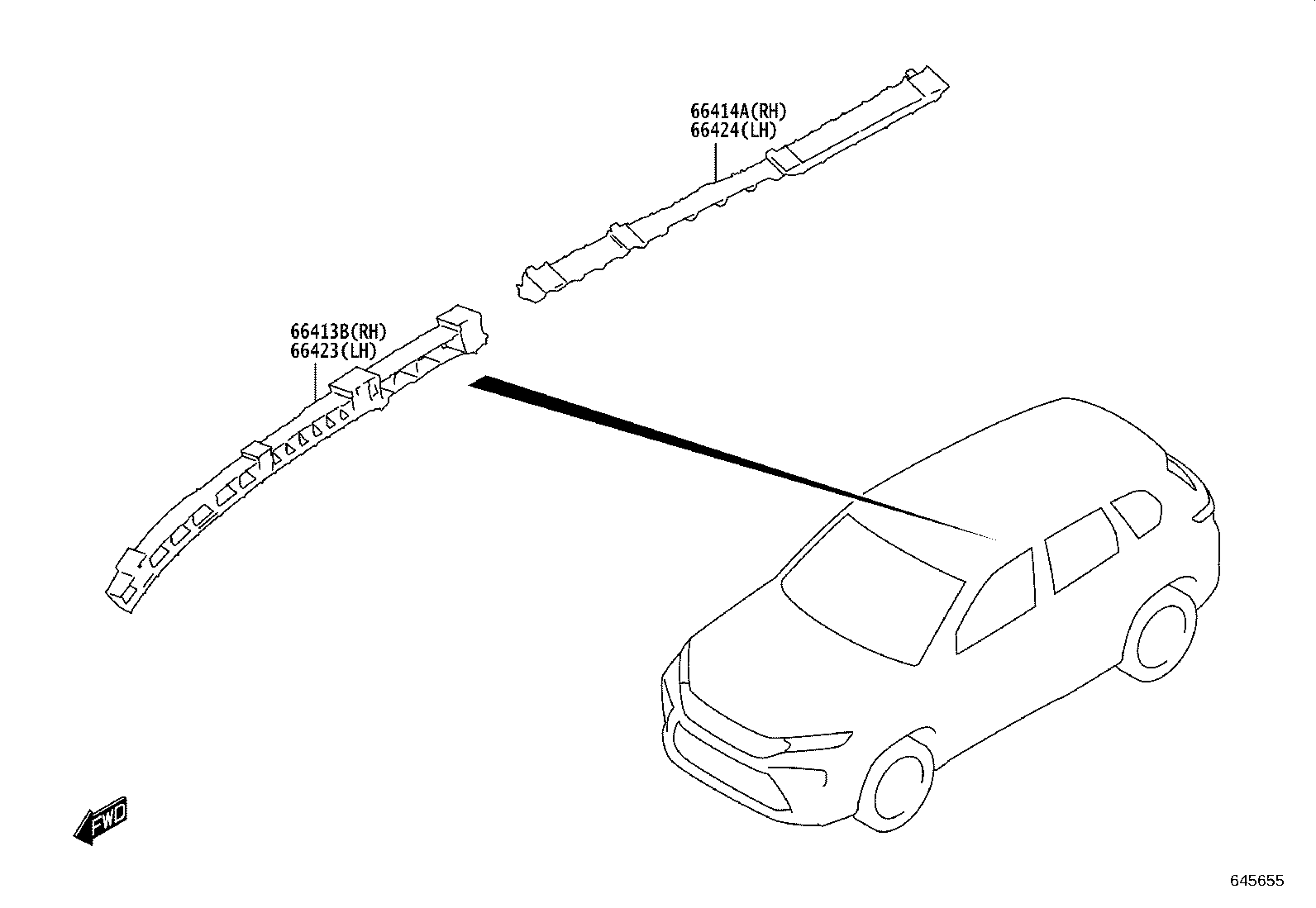

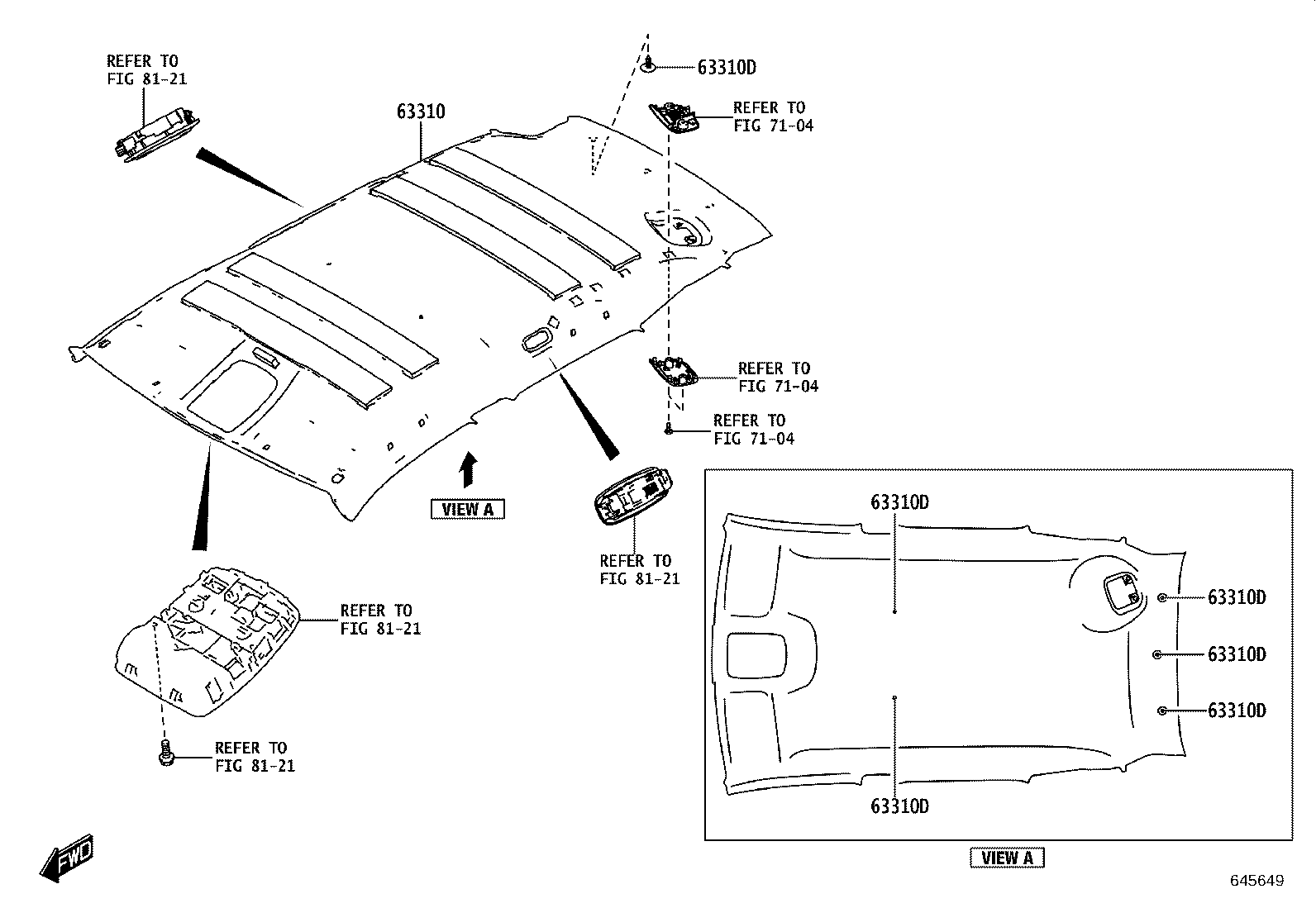

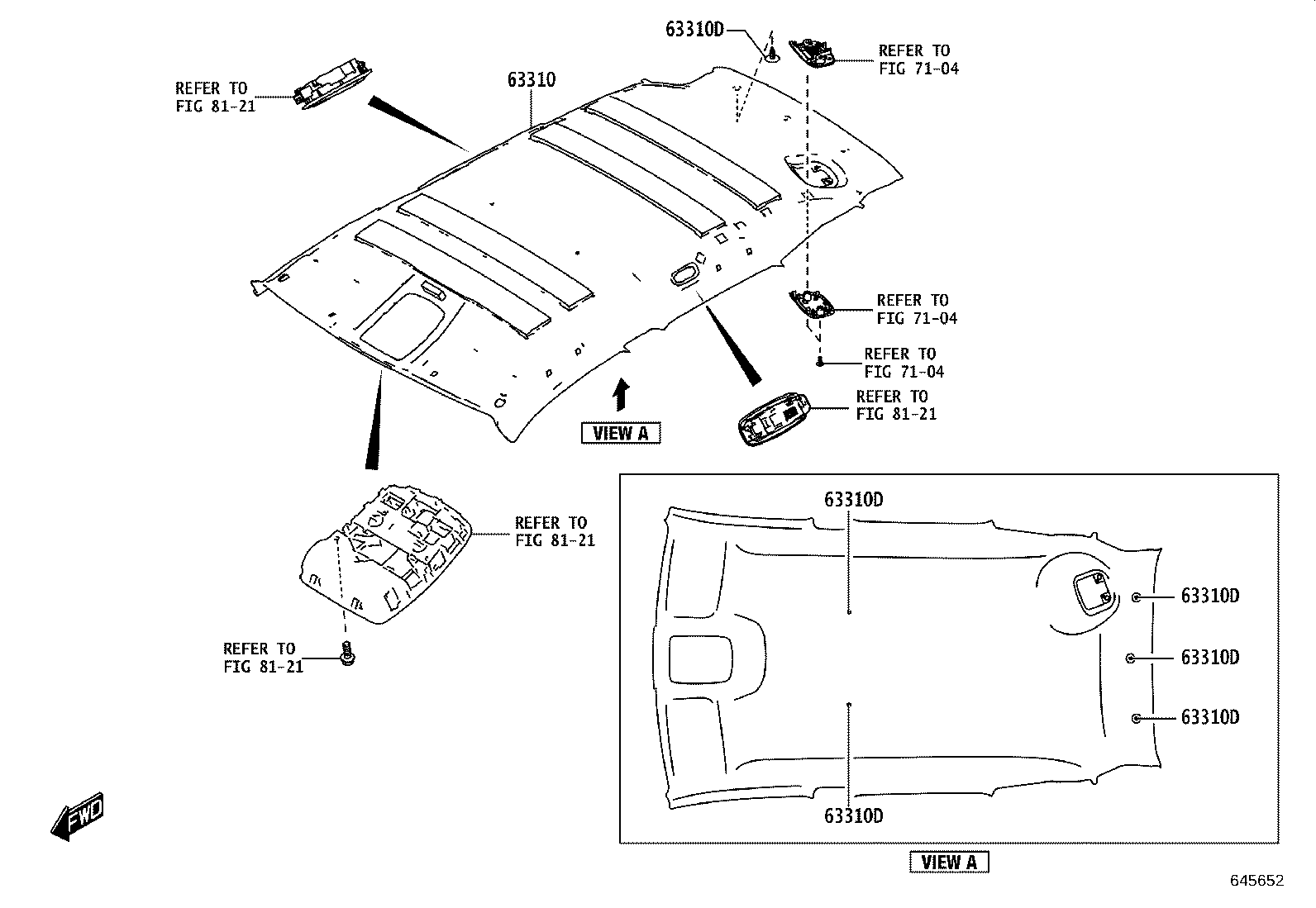

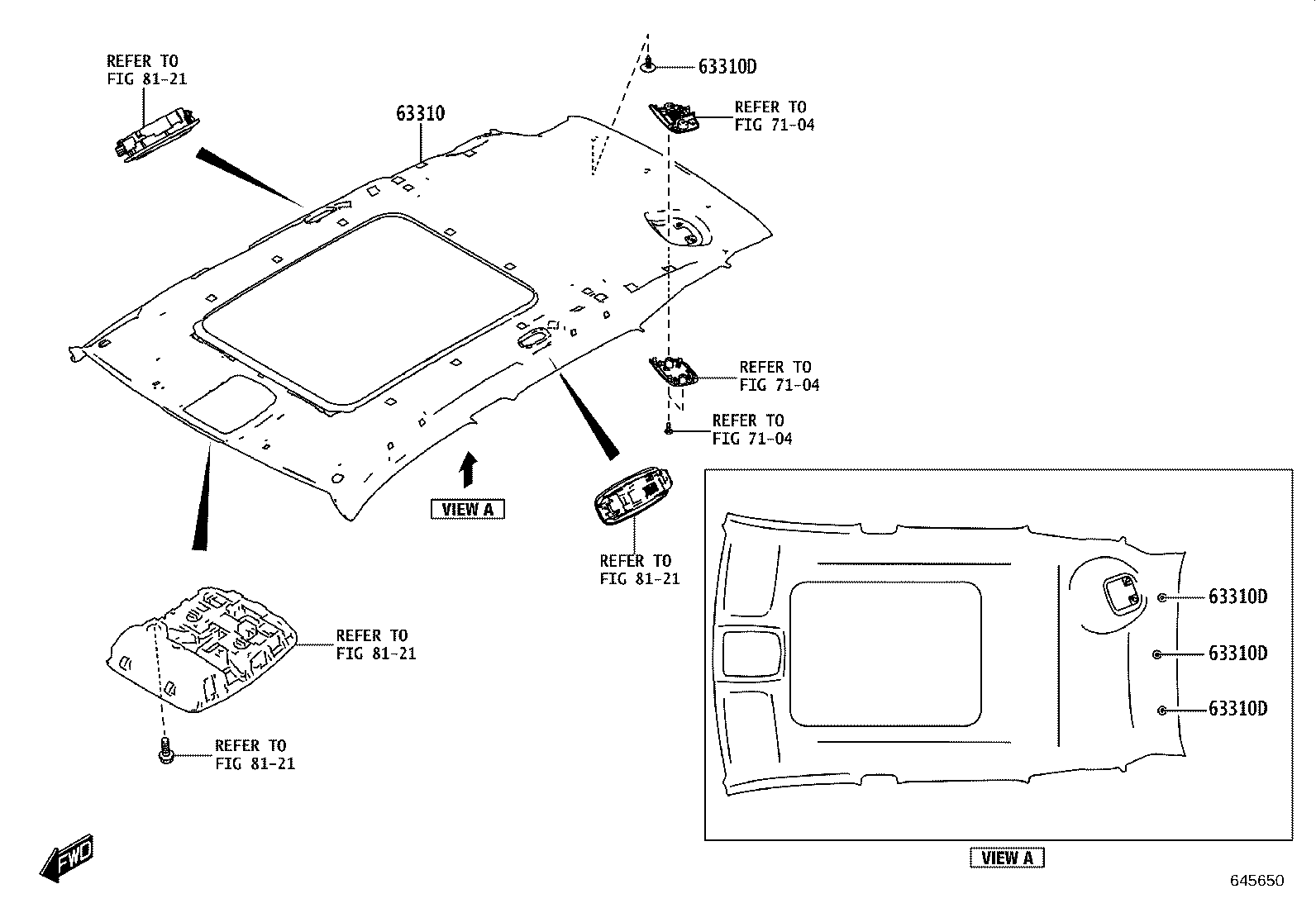

Figure 645648 645648 2022-11 → — Figure 645649 645649 2022-11 → — Figure 645650 645650 2022-11 → — Figure 645651 645651 2022-11 → — Figure 645652 645652 2022-11 → — Figure 645653 645653 2022-11 → — Figure 645654 645654 2022-11 → — Figure 645655 645655 2022-11 → —

Part groups

PNCDescription
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
66413B Spacer, Side Rail, Front RH
66414A Spacer, Side Rail, Rear RH
66423 Spacer, Side Rail, Front LH
66424 Spacer, Side Rail, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
