Toyota Urban Cruiser

2022-11 → present · chassis FG21###,22###,61###,62### · catalogue 138320 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Panel & Glass

28 part groups · 7 illustrations

Illustrations

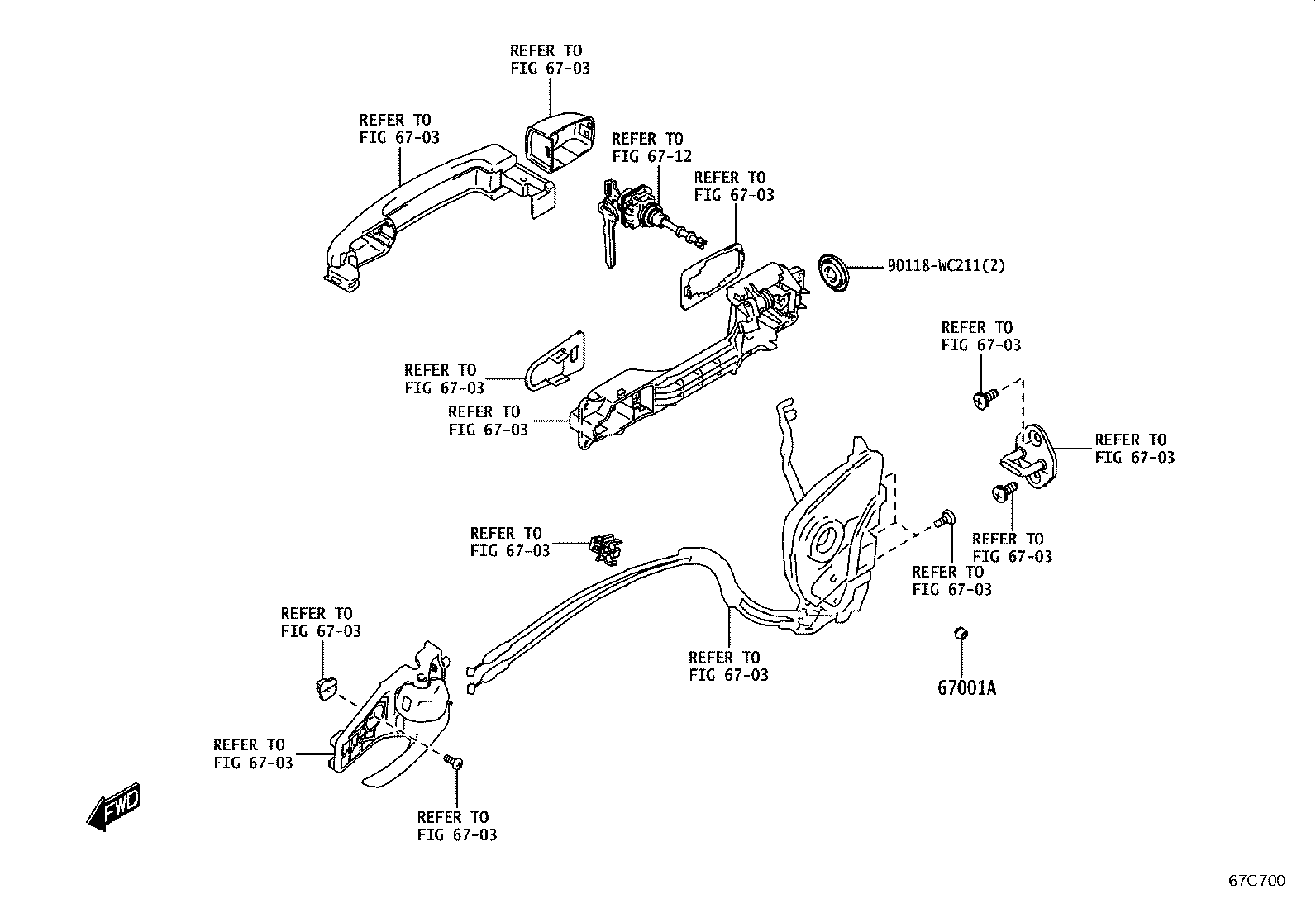

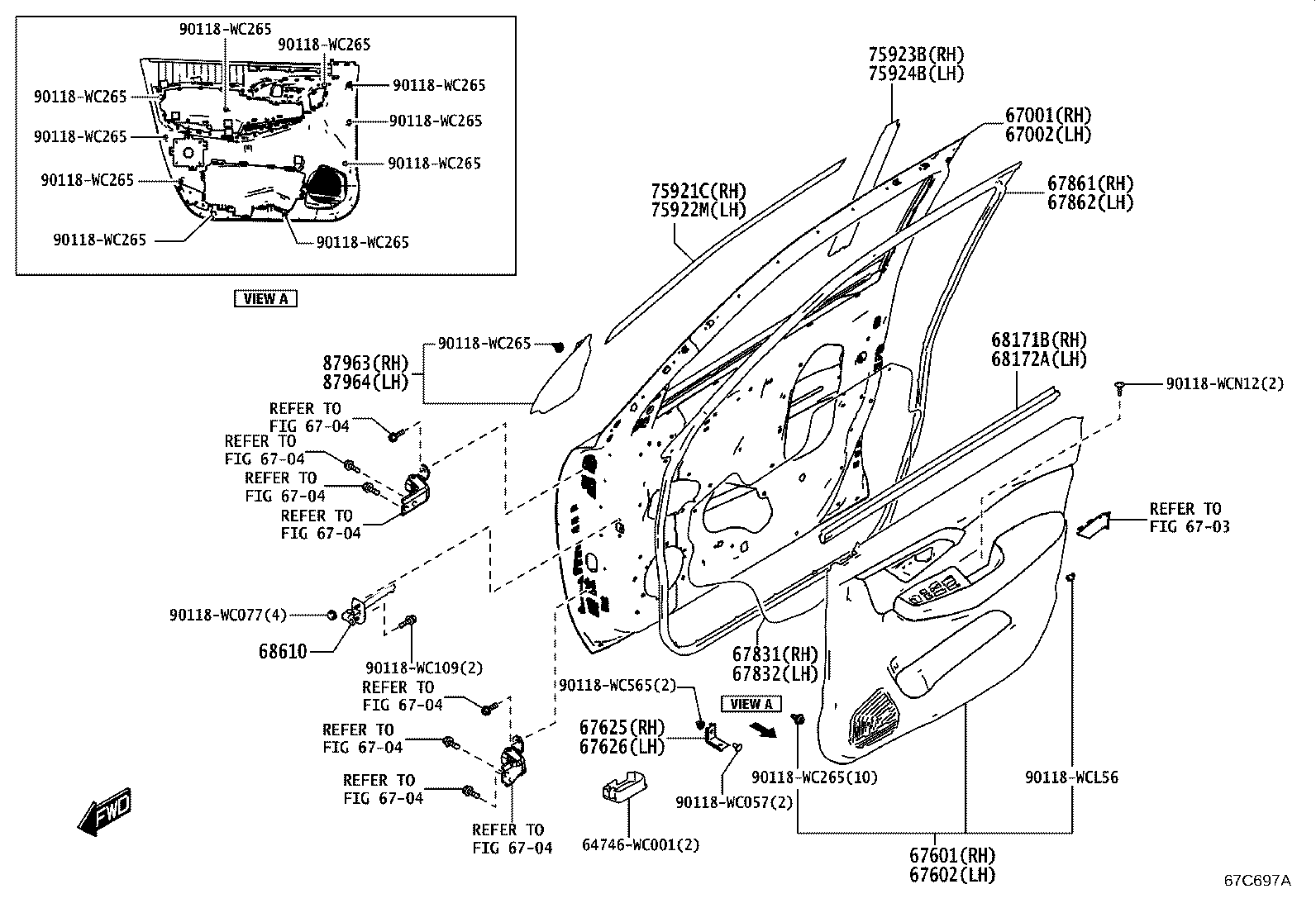

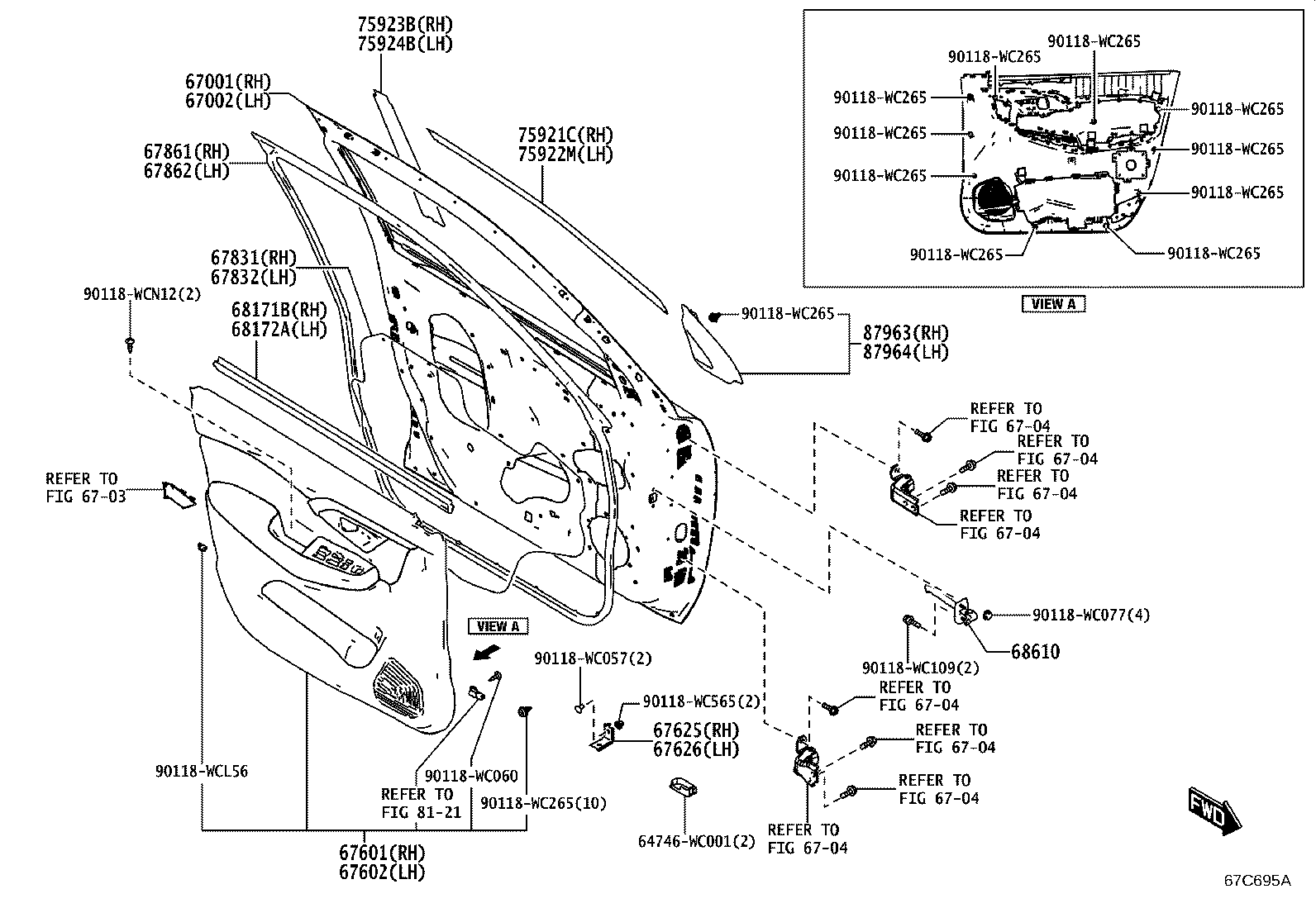

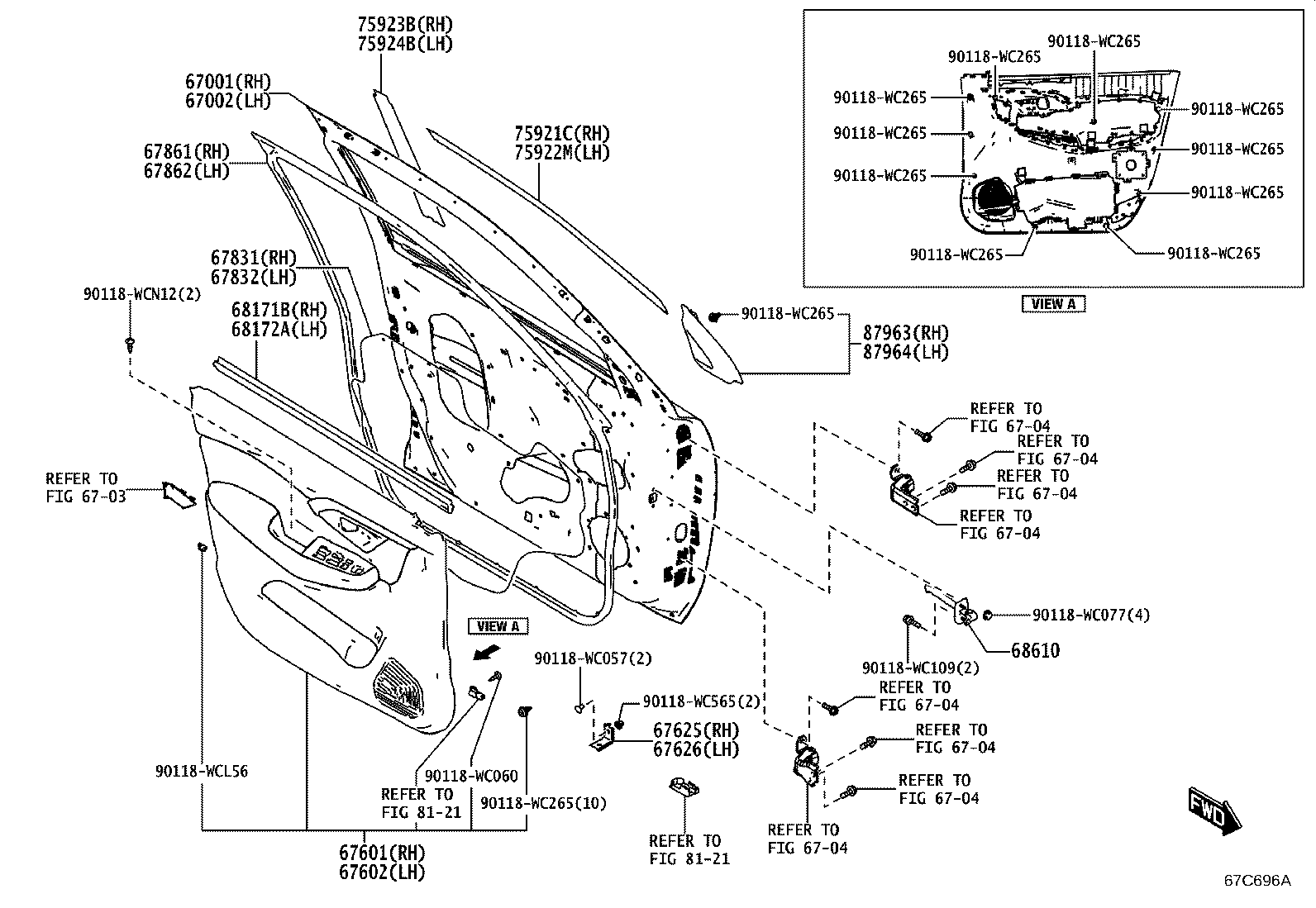

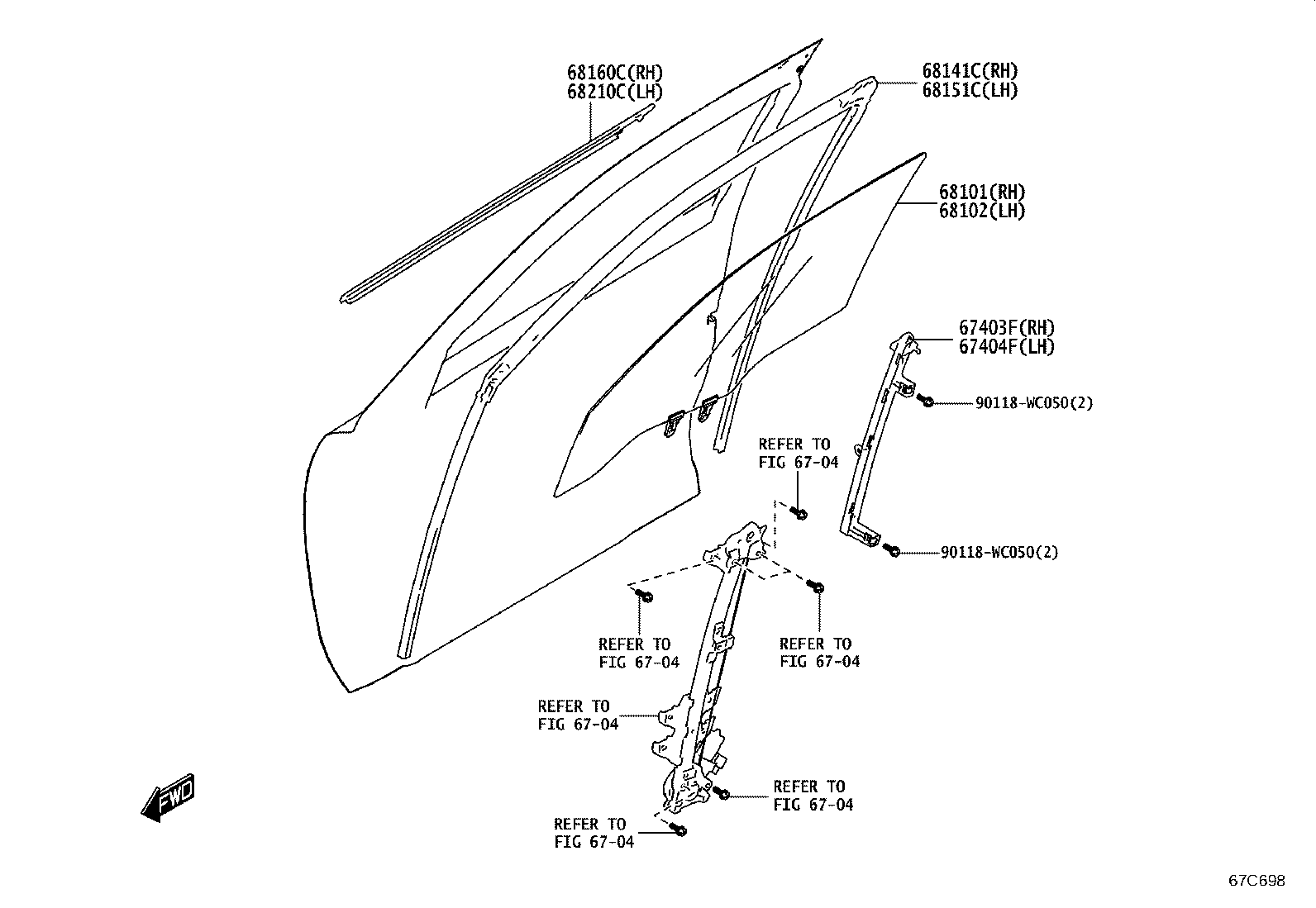

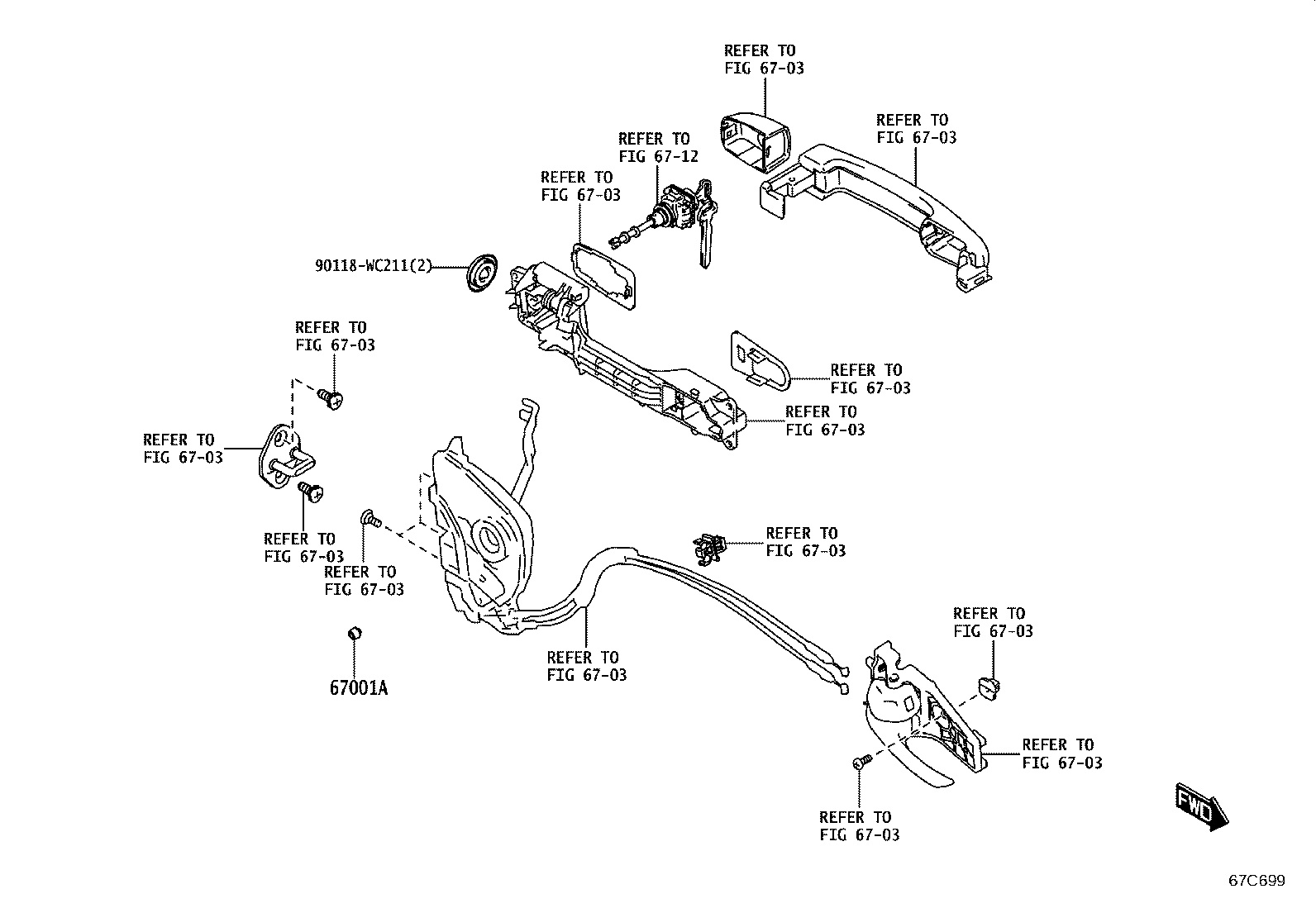

Figure 67C694A 67C694A 2022-11 → — Figure 67C695A 67C695A 2022-11 → — Figure 67C696A 67C696A 2022-11 → — Figure 67C697A 67C697A 2022-11 → — Figure 67C698 67C698 2022-11 → — Figure 67C699 67C699 2022-11 → — Figure 67C700 67C700 2022-11 → —

Part groups

PNCDescription
67001 Panel Sub-assy, Front Door, RH
67001A Cushion, Front Door Panel
67002 Panel Sub-assy, Front Door, LH
67403F Frame Sub-assy, Front Door, Rear Lower RH
67404F Frame Sub-assy, Front Door, Rear Lower LH
67601 Board Sub-assy, Front Door Trim, RH
67602 Board Sub-assy, Front Door Trim, LH
67625 Bracket, Front Door Trim, RH
67626 Bracket, Front Door Trim, LH
67831 Cover, Front Door Service Hole, RH
67832 Cover, Front Door Service Hole, LH
67861 Weatherstrip, Front Door, RH
67862 Weatherstrip, Front Door, LH
68101 Glass Sub-assy, Front Door, RH
68102 Glass Sub-assy, Front Door, LH
68141C Run, Front Door Glass, RH
68151C Run, Front Door Glass, LH
68160C Weatherstrip Assy, Front Door Glass, Outer RH
68171B Weatherstrip, Front Door Glass, Inner RH
68172A Weatherstrip, Front Door Glass, Inner LH
68210C Weatherstrip Assy, Front Door Glass, Outer LH
68610 Check Assy, Front Door
75921C Tape, Black Out, NO.1 RH
75922M Tape, Black Out, NO.1 LH
75923B Tape, Black Out, NO.2 RH
75924B Tape, Black Out, NO.2 LH
87963 Cover, Outer Mirror Install Hole, RH
87964 Cover, Outer Mirror Install Hole, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
