Toyota Urban Cruiser

2022-11 → present · chassis FG21###,22###,61###,62### · catalogue 138320 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Door Lock & Handle

15 part groups · 3 illustrations

Illustrations

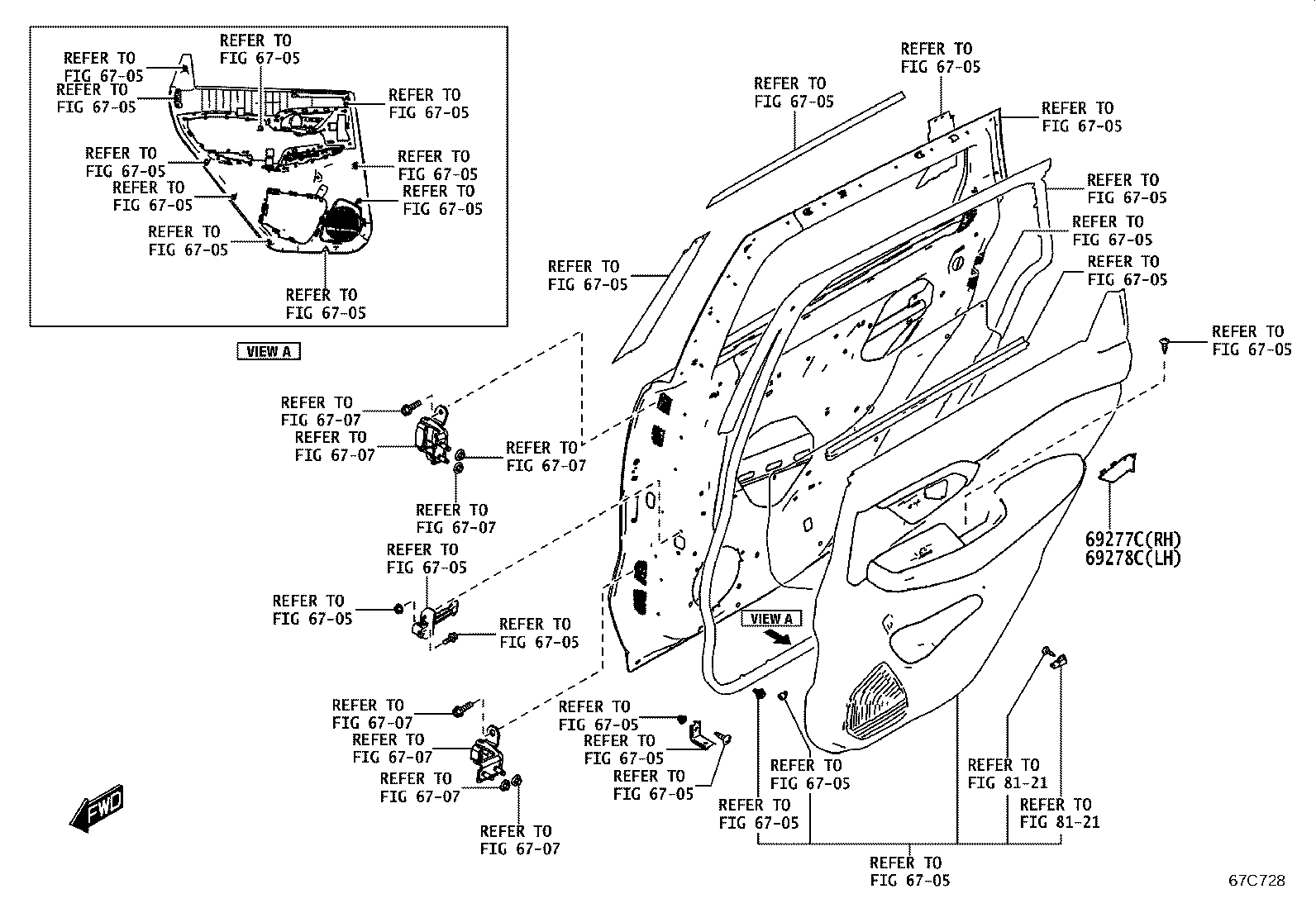

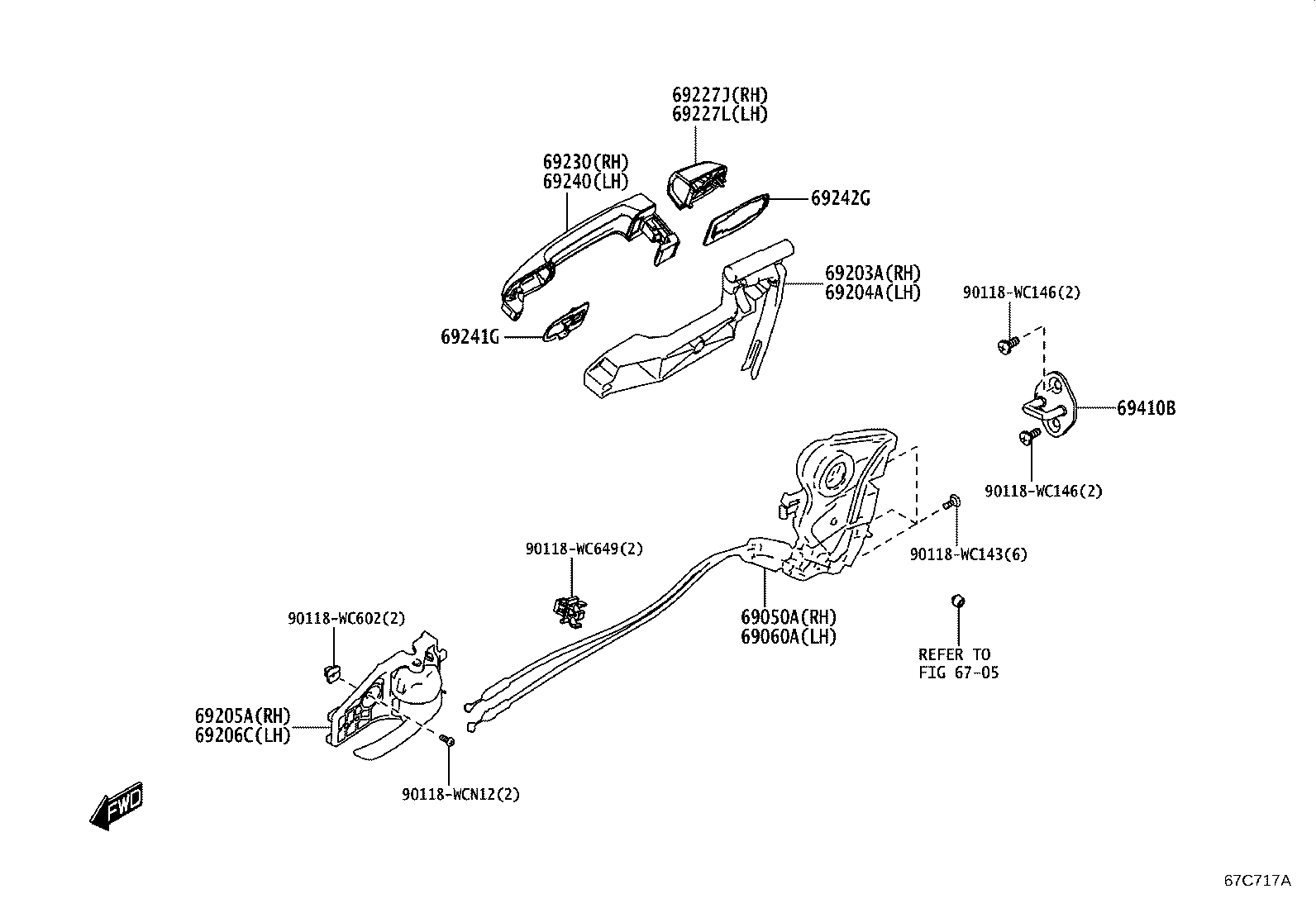

Figure 67C727 67C727 2022-11 → — Figure 67C728 67C728 2022-11 → — Figure 67C717A 67C717A 2022-11 → —

Part groups

PNCDescription
69050A Lock Assy, Rear Door W/Motor, RH
69060A Lock Assy, Rear Door W/Motor, LH
69203A Frame Sub-assy, Rear Door Outside Handle, RH
69204A Frame Sub-assy, Rear Door Outside Handle, LH
69205A Handle Sub-assy, Rear Door Inside, RH
69206C Handle Sub-assy, Rear Door Inside, LH
69227J Cover, Rear Door Outside Handle, RH
69227L Cover, Rear Door Outside Handle, LH
69230 Handle Assy, Rear Door Outside, RH
69240 Handle Assy, Rear Door Outside, LH
69241G Pad, Rear Door Outside Handle, Front
69242G Pad, Rear Door Outside Handle, Rear
69277C Bezel, Rear Door Inside Handle, RH
69278C Bezel, Rear Door Inside Handle, LH
69410B Plate Assy, Rear Door Lock Striker
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
