Toyota Urban Cruiser

2022-11 → present · chassis FG21###,22###,61###,62### · catalogue 138320 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

11 part groups · 3 illustrations

Illustrations

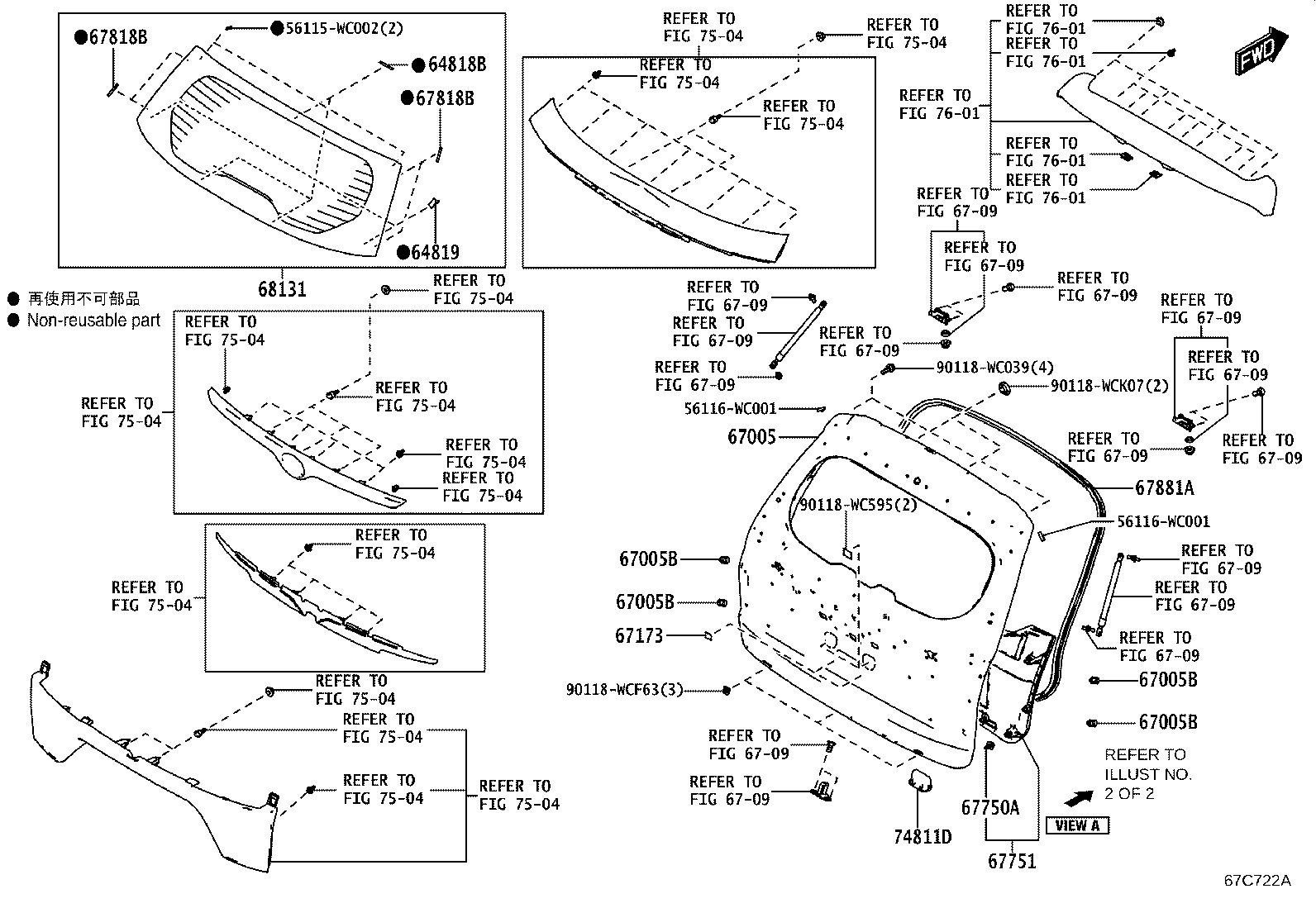

Figure 67C721 67C721 2022-11 → — Figure 67C722A 67C722A 2022-11 → — Figure 67C723 67C723 2022-11 → —

Part groups

PNCDescription
64818B Spacer, Back Door Glass, NO.1
64819 Spacer, Back Window Glass, NO.2
67005 Panel Sub-assy, Back Door
67005B Cushion(FOR BACK DOOR PANEL)
67173 Cushion, Back Door
67750A Clip(FOR BACK DOOR TRIM)
67751 Board, Back Door Trim
67818B Spacer, Back Window Glass
67881A Weatherstrip, Back Door
68131 Glass, Back Door
74811D Handle, Door Pull
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
