Toyota Urban Cruiser

2022-11 → present · chassis FG21###,22###,61###,62### · catalogue 138320 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

4 part groups · 8 illustrations

Illustrations

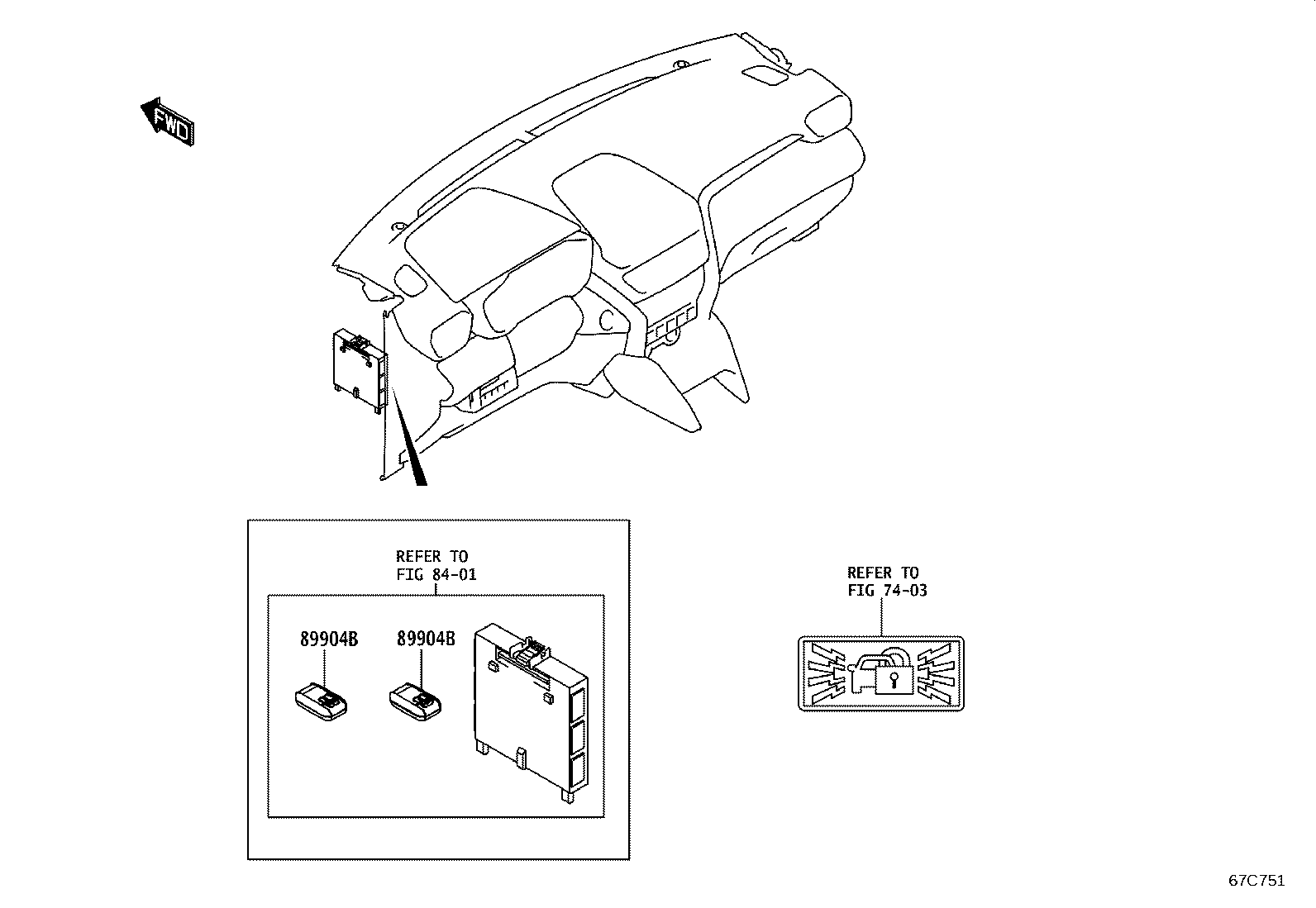

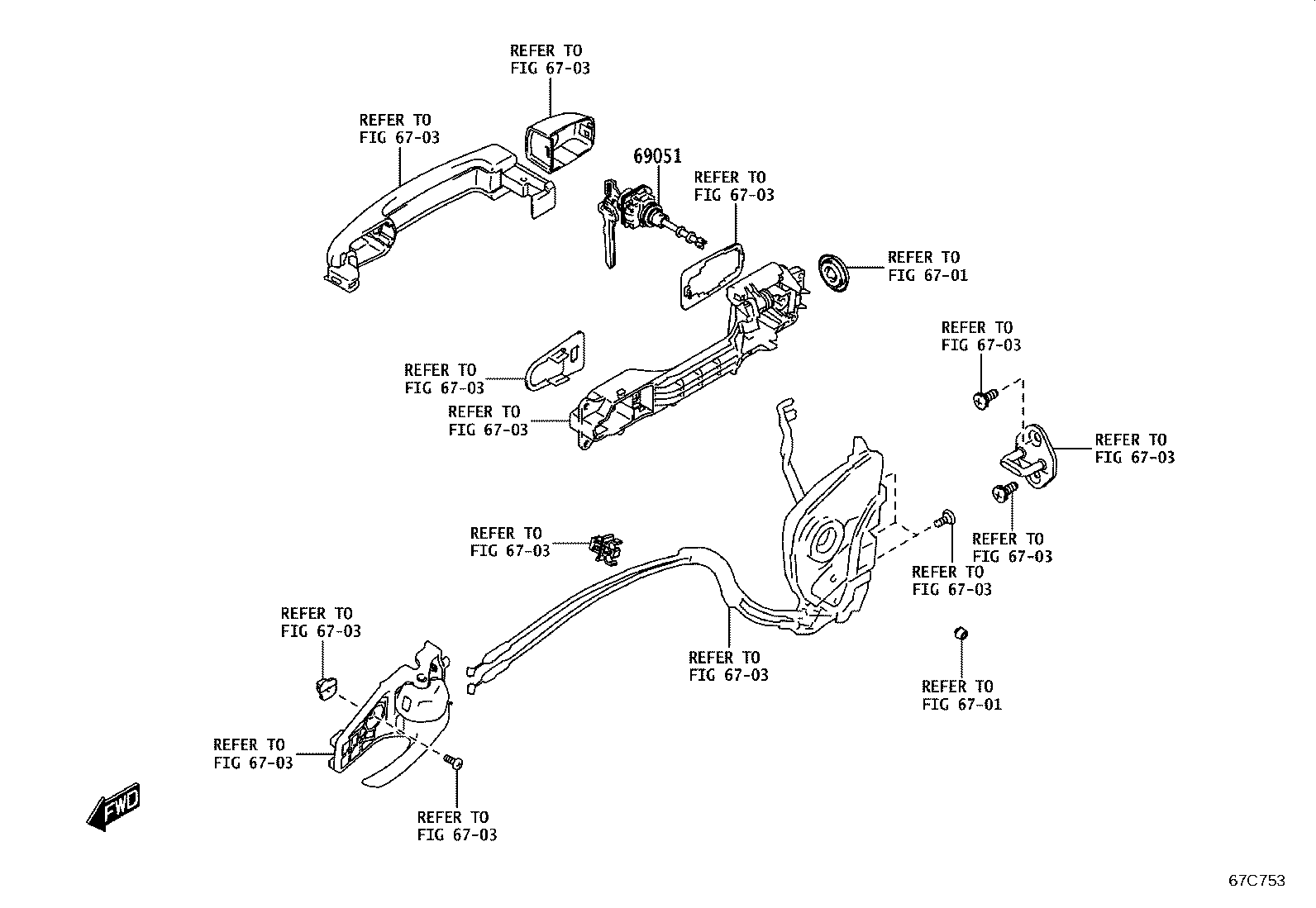

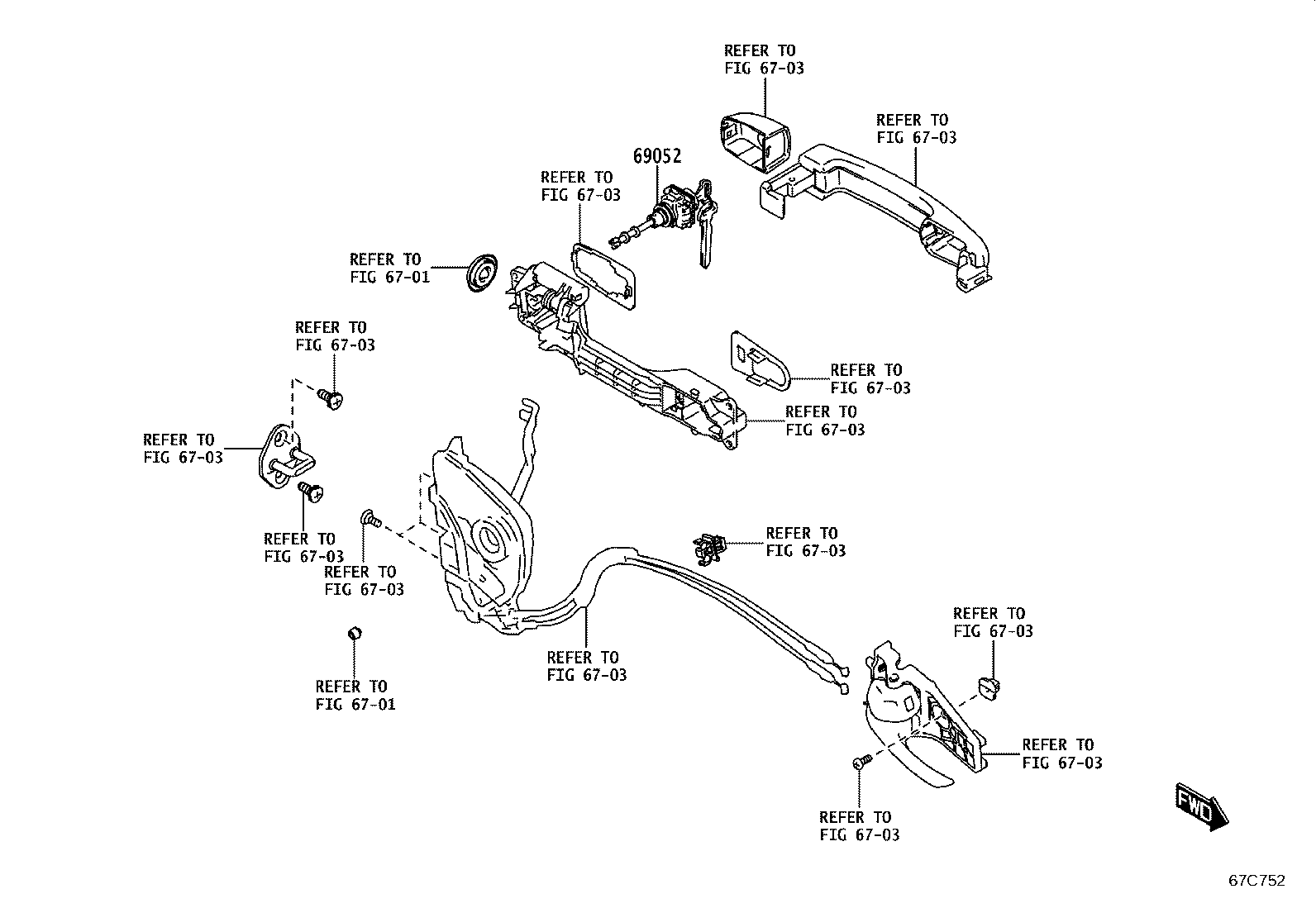

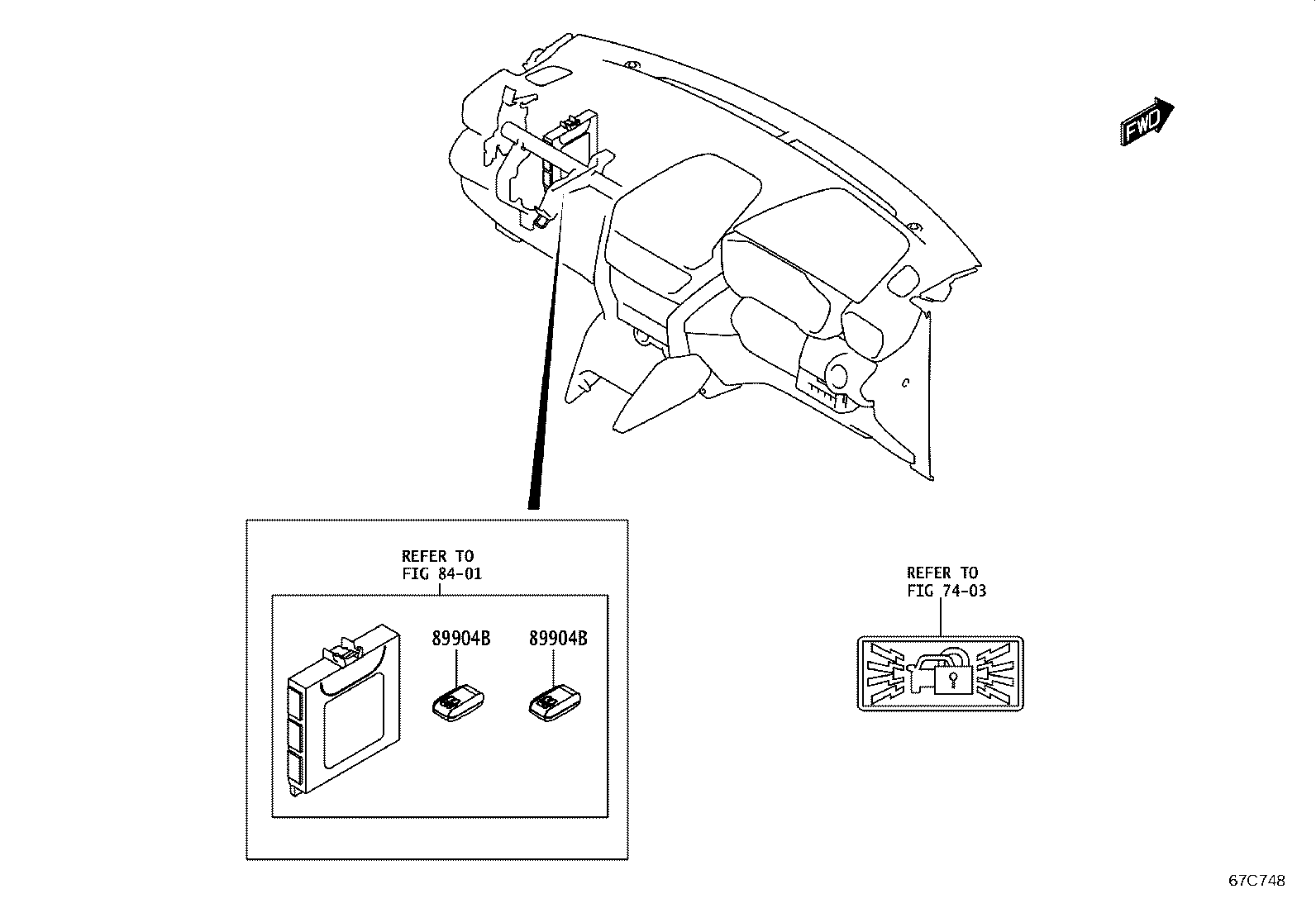

Figure 67C746 67C746 2022-11 → — Figure 67C747 67C747 2022-11 → — Figure 67C748 67C748 2022-11 → — Figure 67C749 67C749 2022-11 → — Figure 67C750 67C750 2022-11 → — Figure 67C751 67C751 2022-11 → — Figure 67C752 67C752 2022-11 → — Figure 67C753 67C753 2022-11 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69503A Key, Blank
89904B Transmitter Sub-assy, Electrical Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
