Toyota Urban Cruiser

2022-11 → present · chassis FG21###,22###,61###,62### · catalogue 138320 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

46 part groups · 8 illustrations

Illustrations

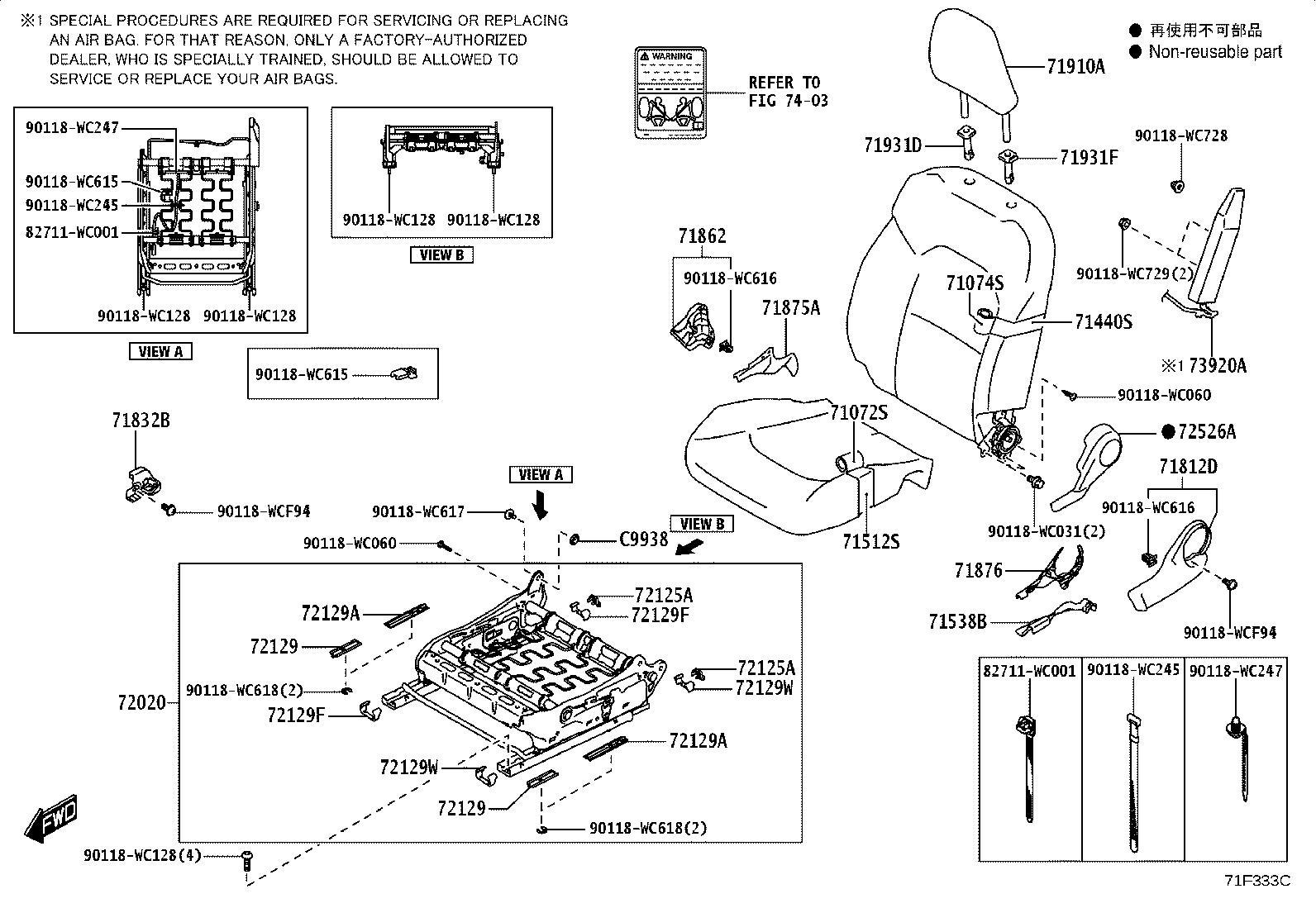

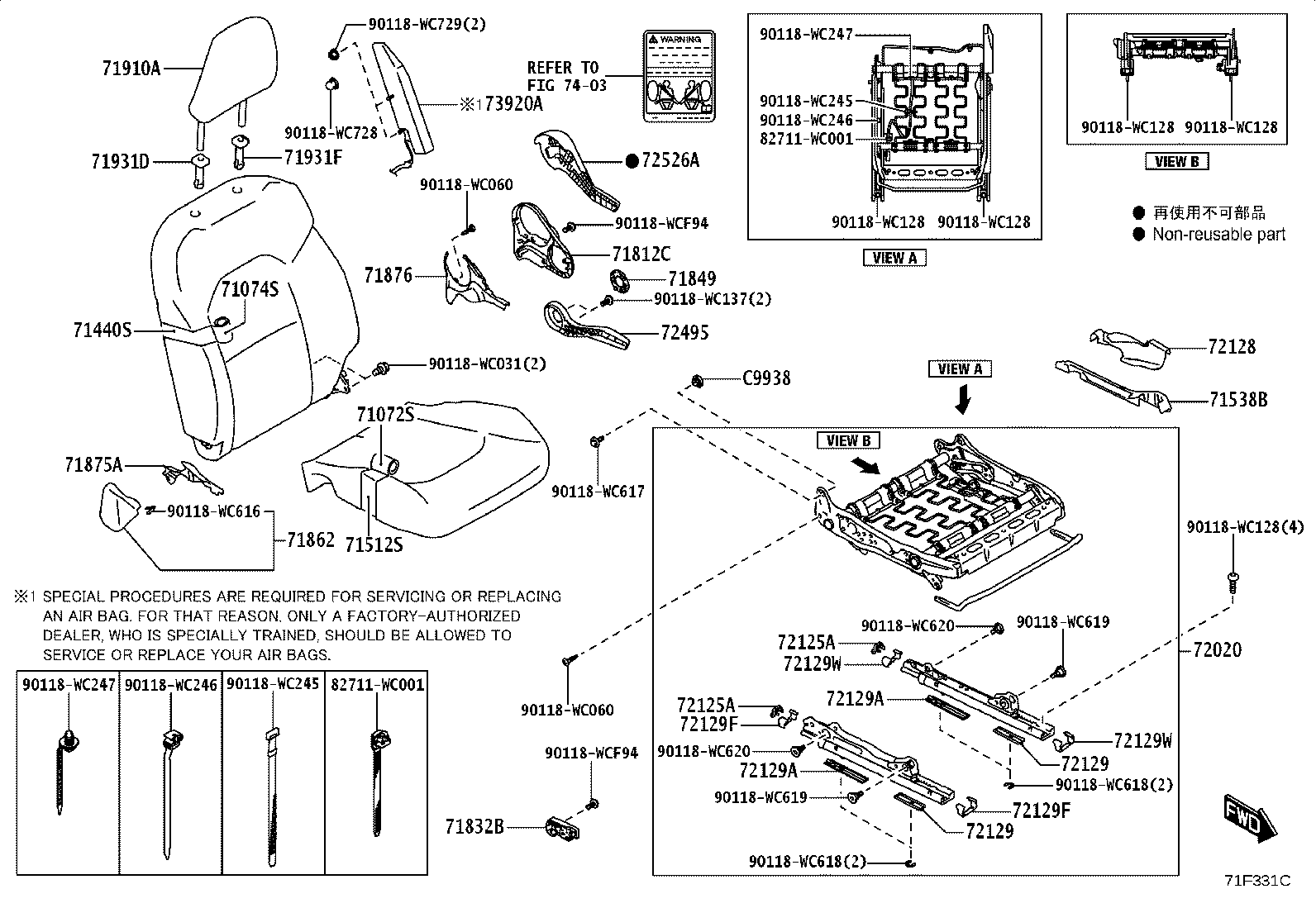

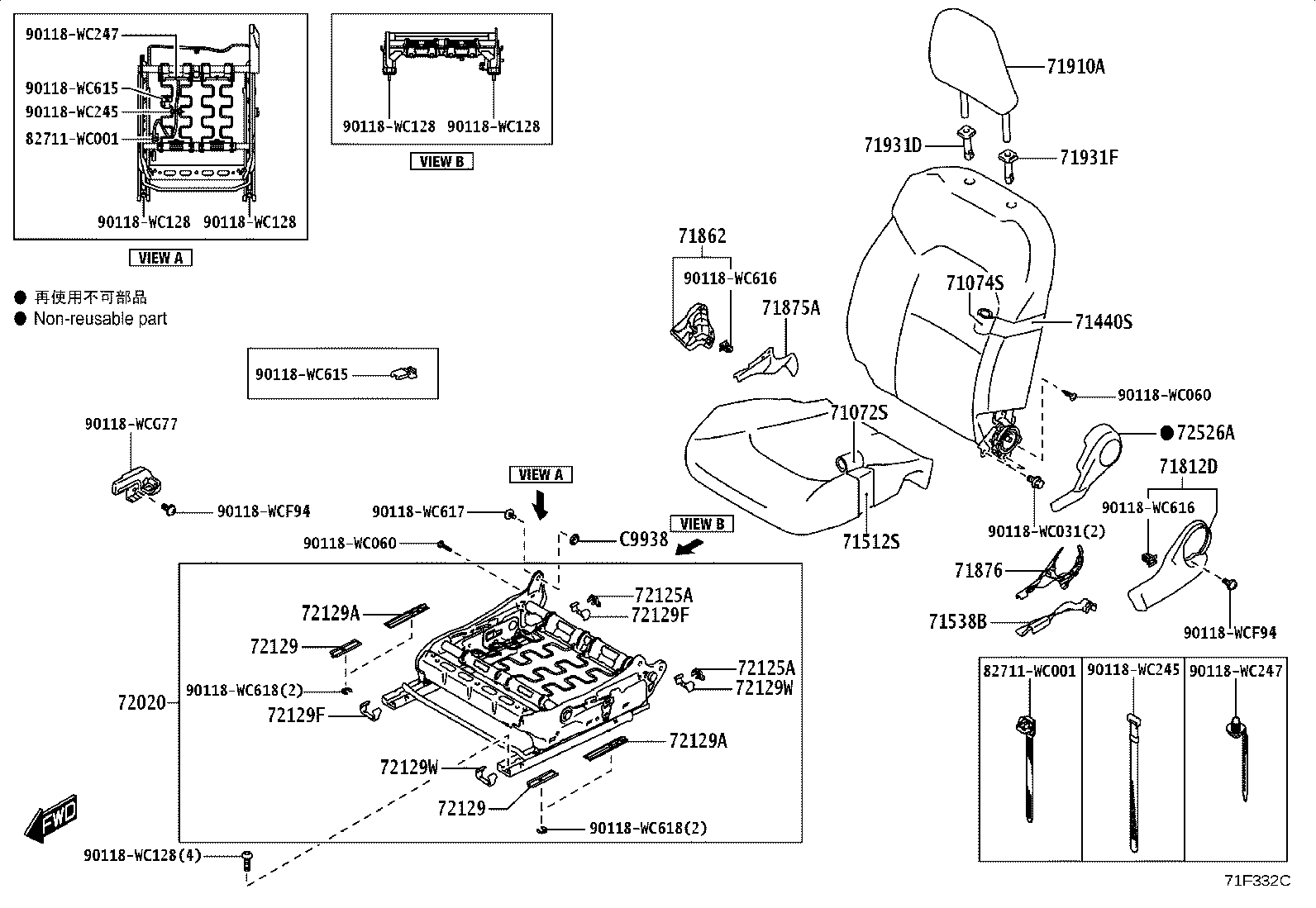

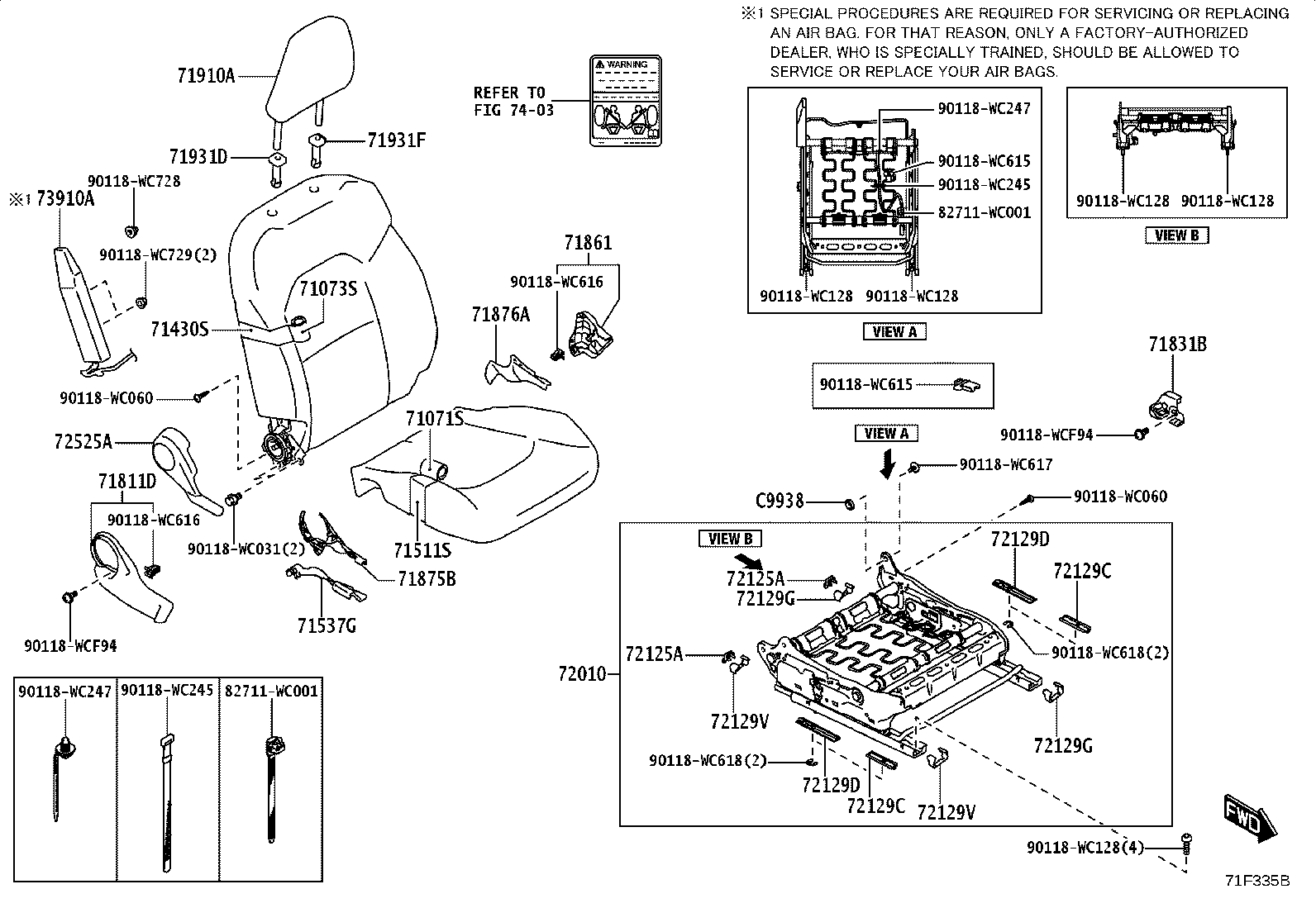

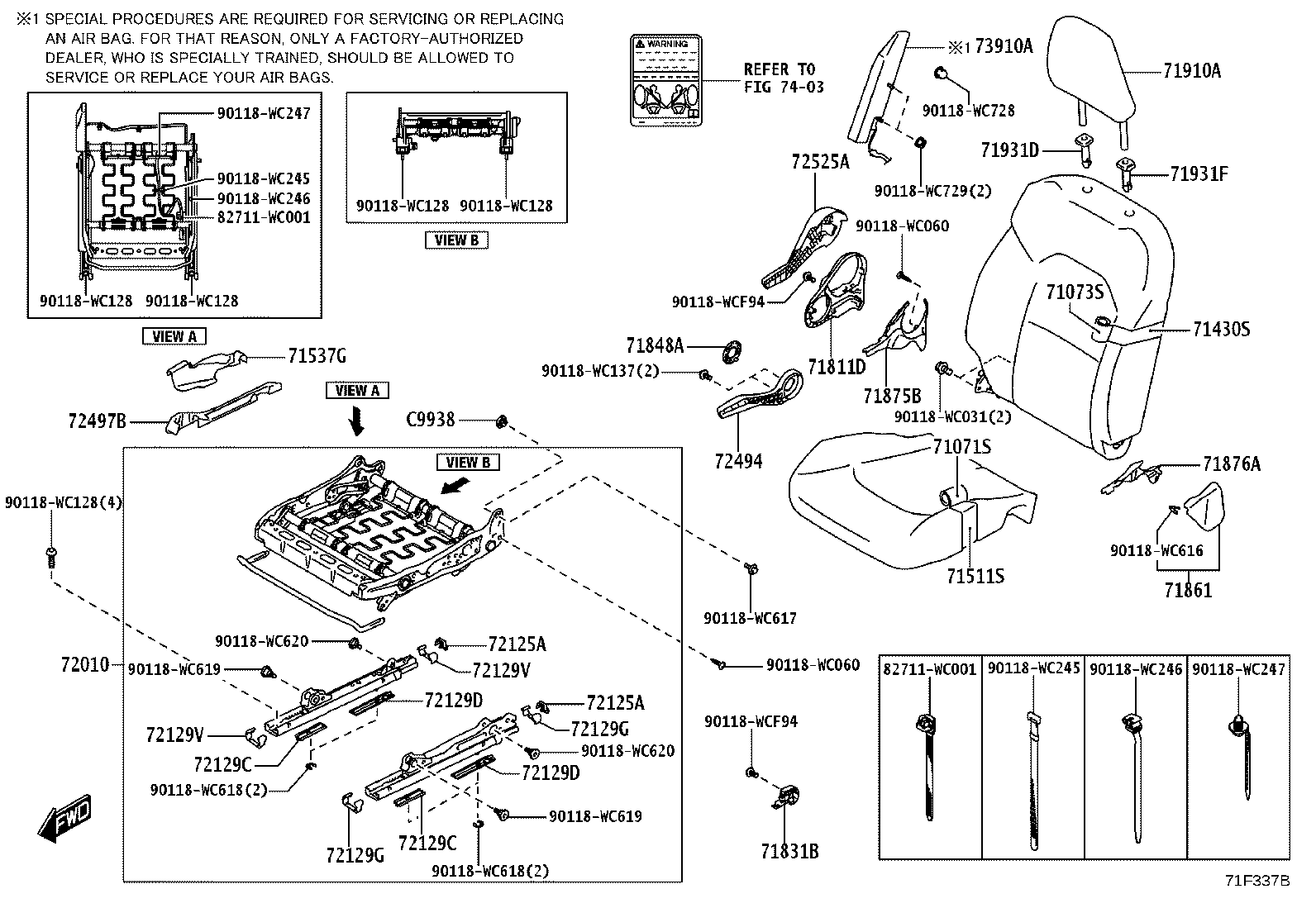

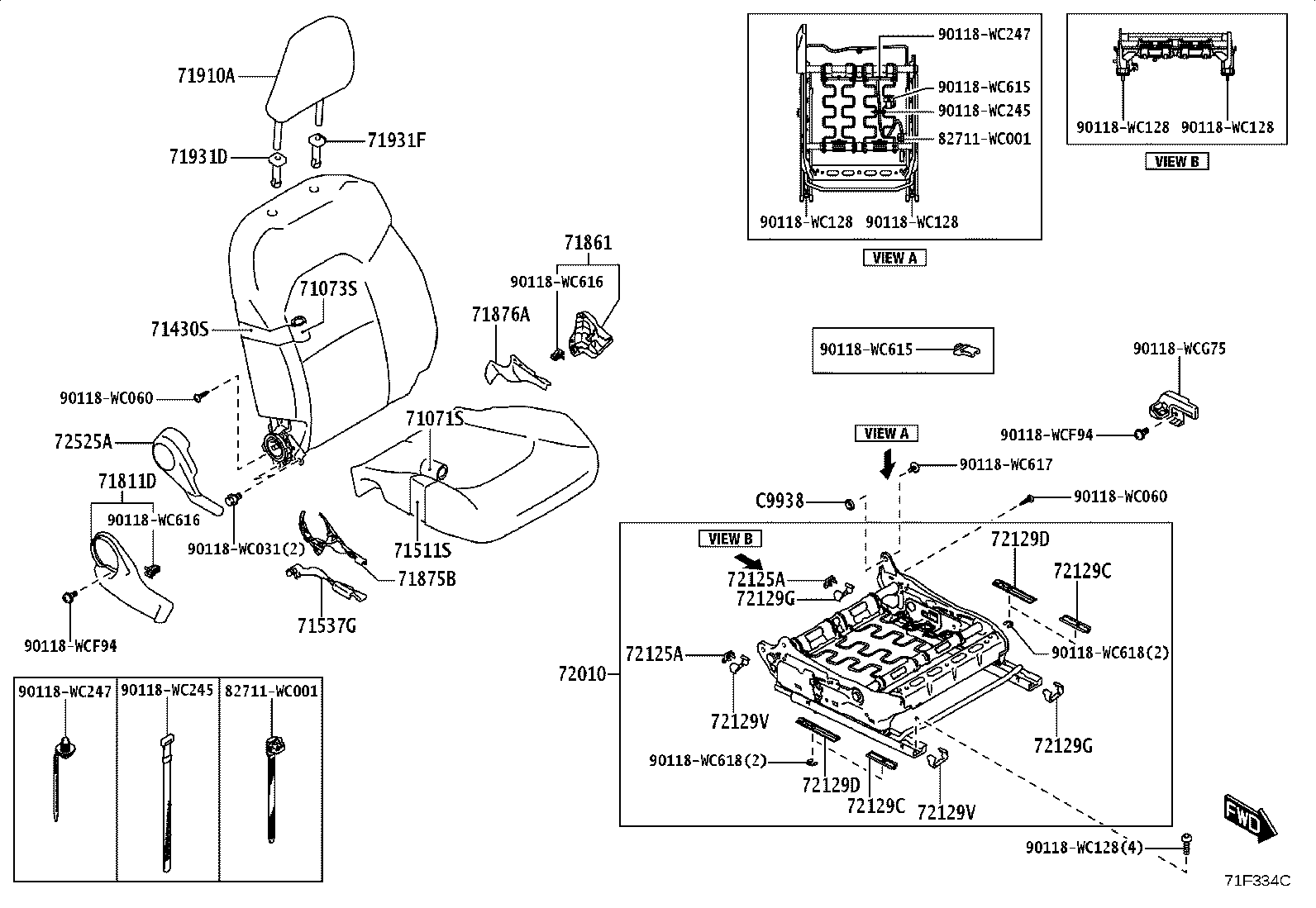

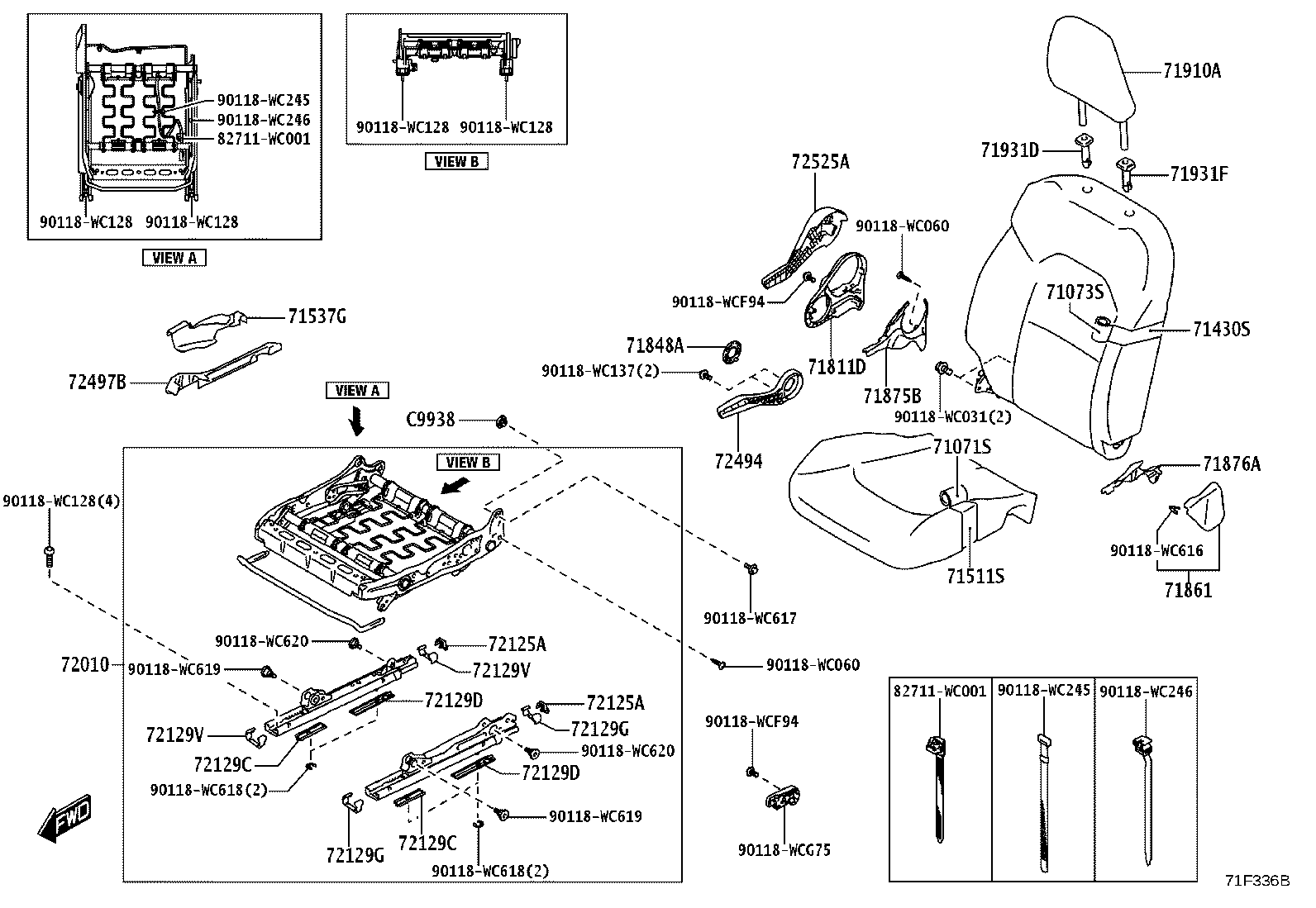

Figure 71F330C 71F330C 2022-11 → — Figure 71F331C 71F331C 2022-11 → — Figure 71F332C 71F332C 2022-11 → — Figure 71F333C 71F333C 2022-11 → — Figure 71F334C 71F334C 2022-11 → — Figure 71F335B 71F335B 2022-11 → — Figure 71F336B 71F336B 2022-11 → — Figure 71F337B 71F337B 2022-11 → —

Part groups

PNCDescription
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71430S Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537G Protector, Front Seat Cushion Edge, RH(FOR RH SEAT)
71538B Protector, Front Seat Cushion Edge, LH(FOR LH SEAT)
71811D Shield, Front Seat Cushion, RH
71812C Cover, Reclining Adjuster, LH
71812D Shield, Front Seat Cushion, LH
71831B Cover, Front Seat Hinge, RH
71832B Cover, Front Seat Hinge, LH
71848A Cap, Seat Adjuster Cover, RH
71849 Cap, Seat Adjuster Cover, LH
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71875A Cover, Reclining Adjuster Inside, RH
71875B Cover, Reclining Adjuster Inside, RH
71876 Cover, Reclining Adjuster Inside, LH
71876A Cover, Reclining Adjuster Inside, LH
71910A Headrest Assy, Front Seat
71931D Support, Front Seat Headrest, RH
71931F Support, Front Seat Headrest, LH
72010 Adjuster Assy, Front Seat, RH
72020 Adjuster Assy, Front Seat, LH
72125A Cover, Seat Track, Upper Rear
72128 Support, LH Seat, Outer
72129 Protector, Seat Track Lower Rail, NO.1
72129A Protector, Seat Track Lower Rail, NO.2
72129C Protector, Seat Track Lower Rail, NO.3
72129D Protector, Seat Track Lower Rail, NO.4
72129F Protector, Seat Track Lower Rail, NO.5
72129G Protector, Seat Track Lower Rail, NO.6
72129V Protector, Seat Track Lower Rail, RH
72129W Protector, Seat Track Lower Rail, LH
72494 Handle, Vertical Adjusting, RH
72495 Handle, Vertical Adjusting, LH
72497B Cover, Vertical Adjuster Bracket, RH
72525A Handle, Reclining Adjuster Release, RH
72526A Handle, Reclining Adjuster Release, LH
73910A Airbag Assy, Front Seat, RH
73920A Airbag Assy, Front Seat, LH
C9938 Bush
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
