Toyota Urban Cruiser

2022-11 → present · chassis FG21###,22###,61###,62### · catalogue 138320 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

14 part groups · 9 illustrations

Illustrations

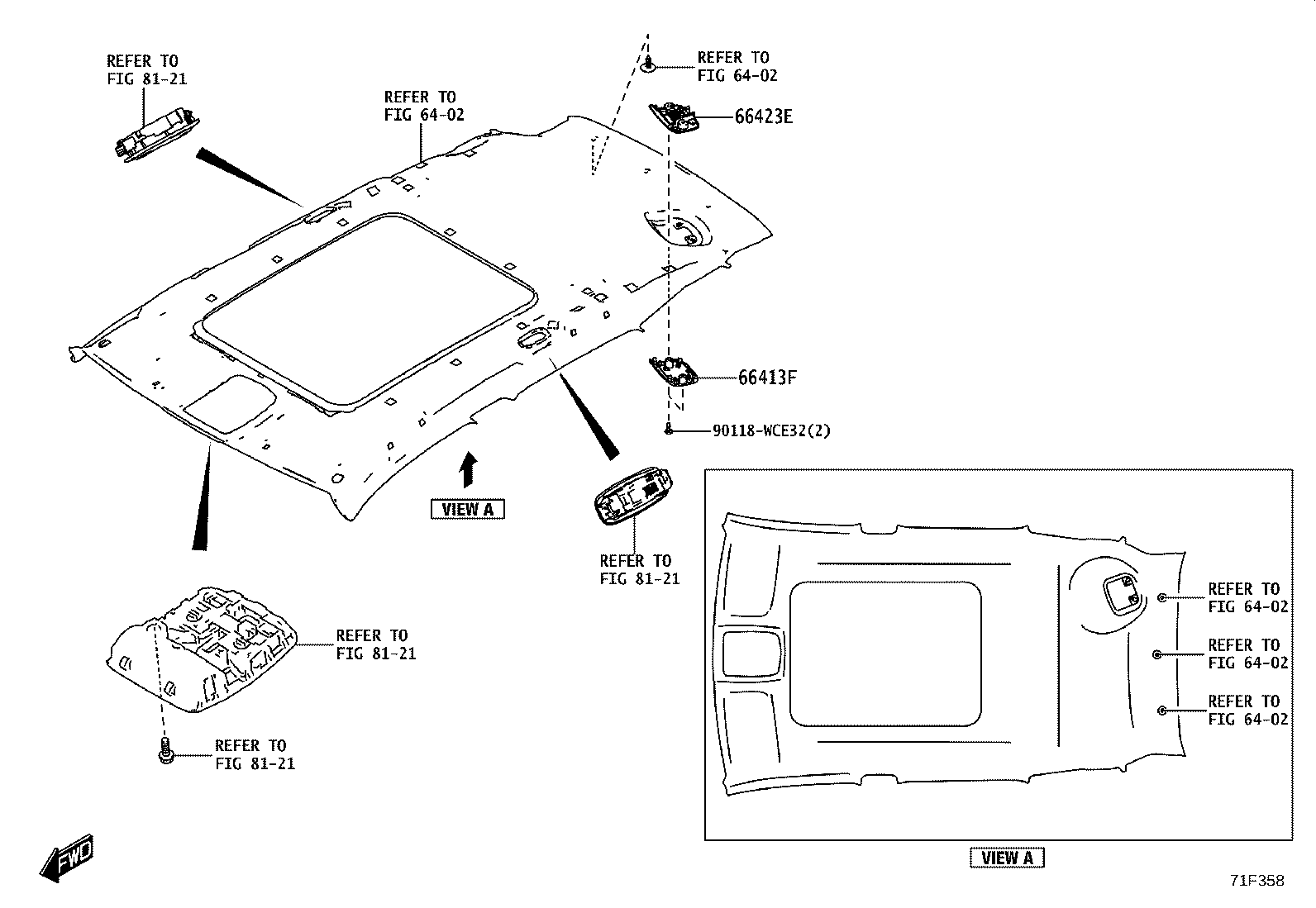

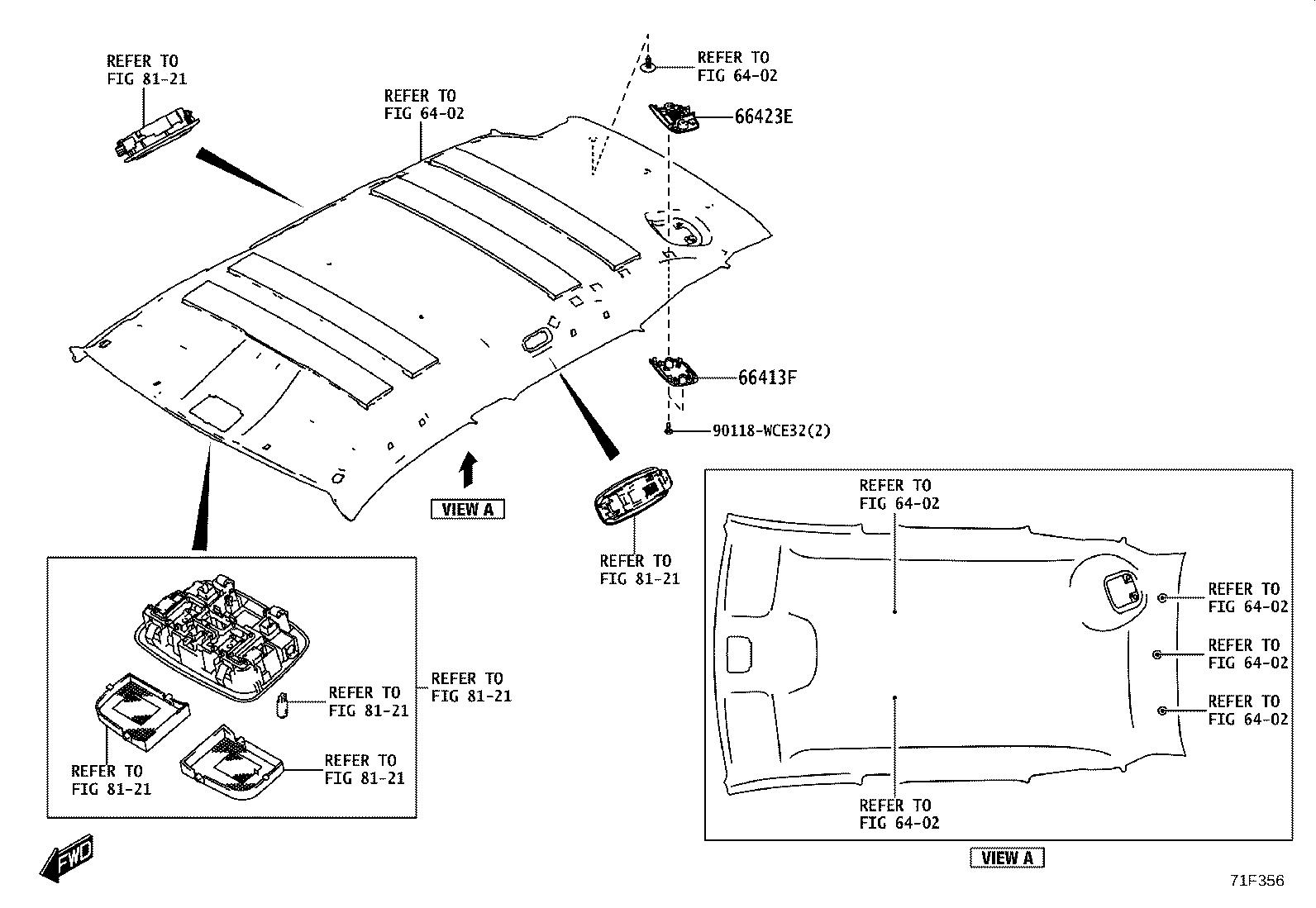

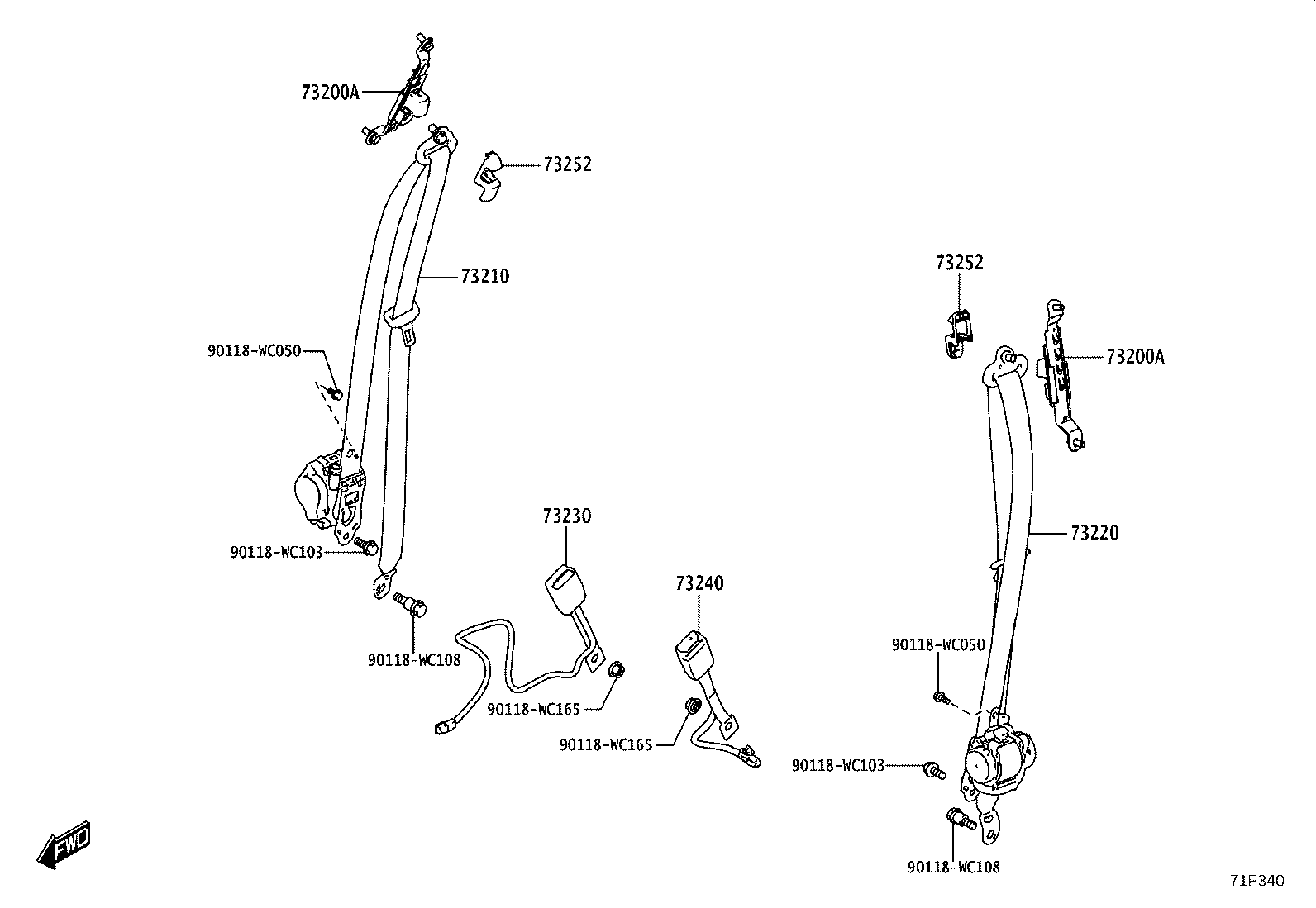

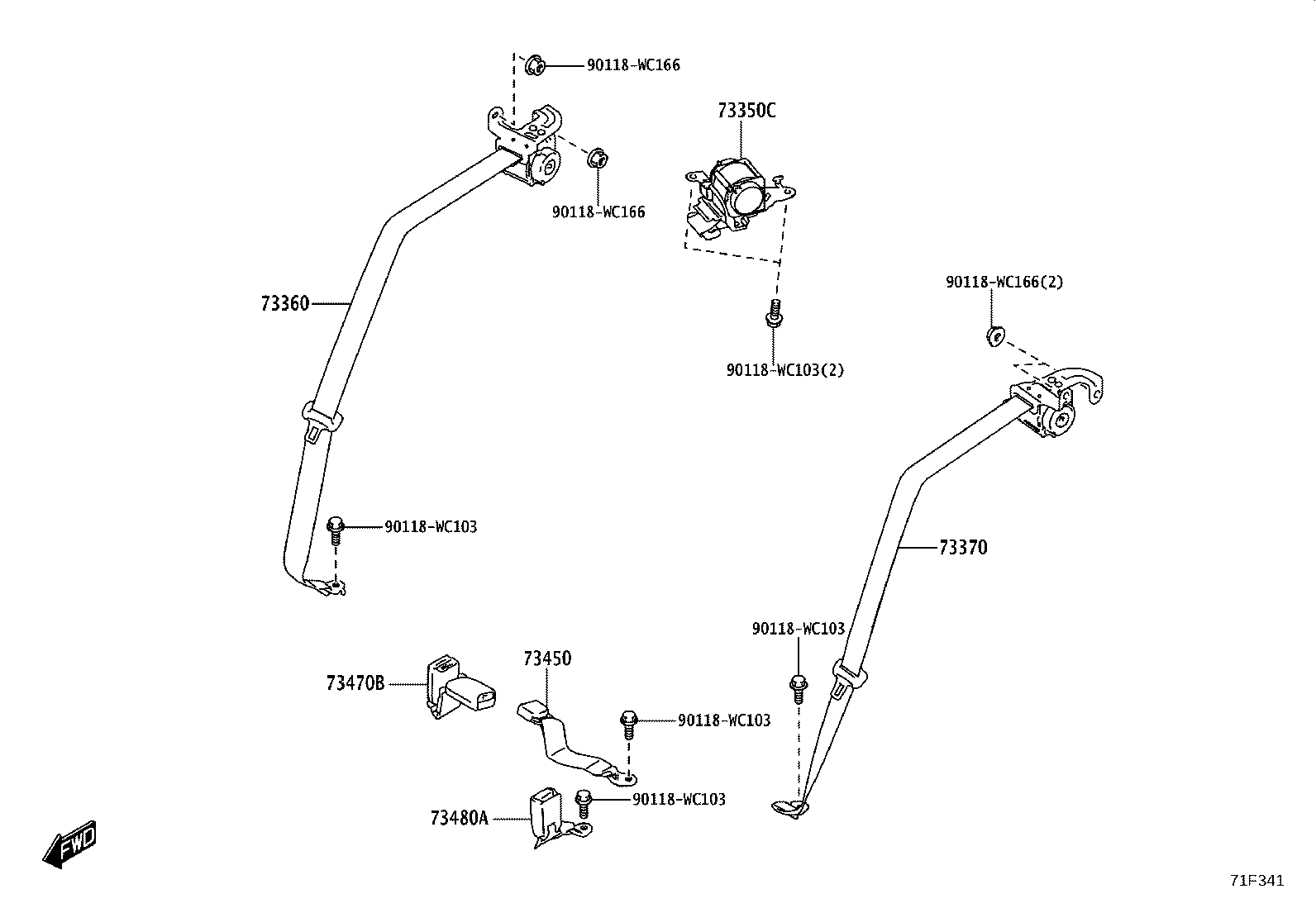

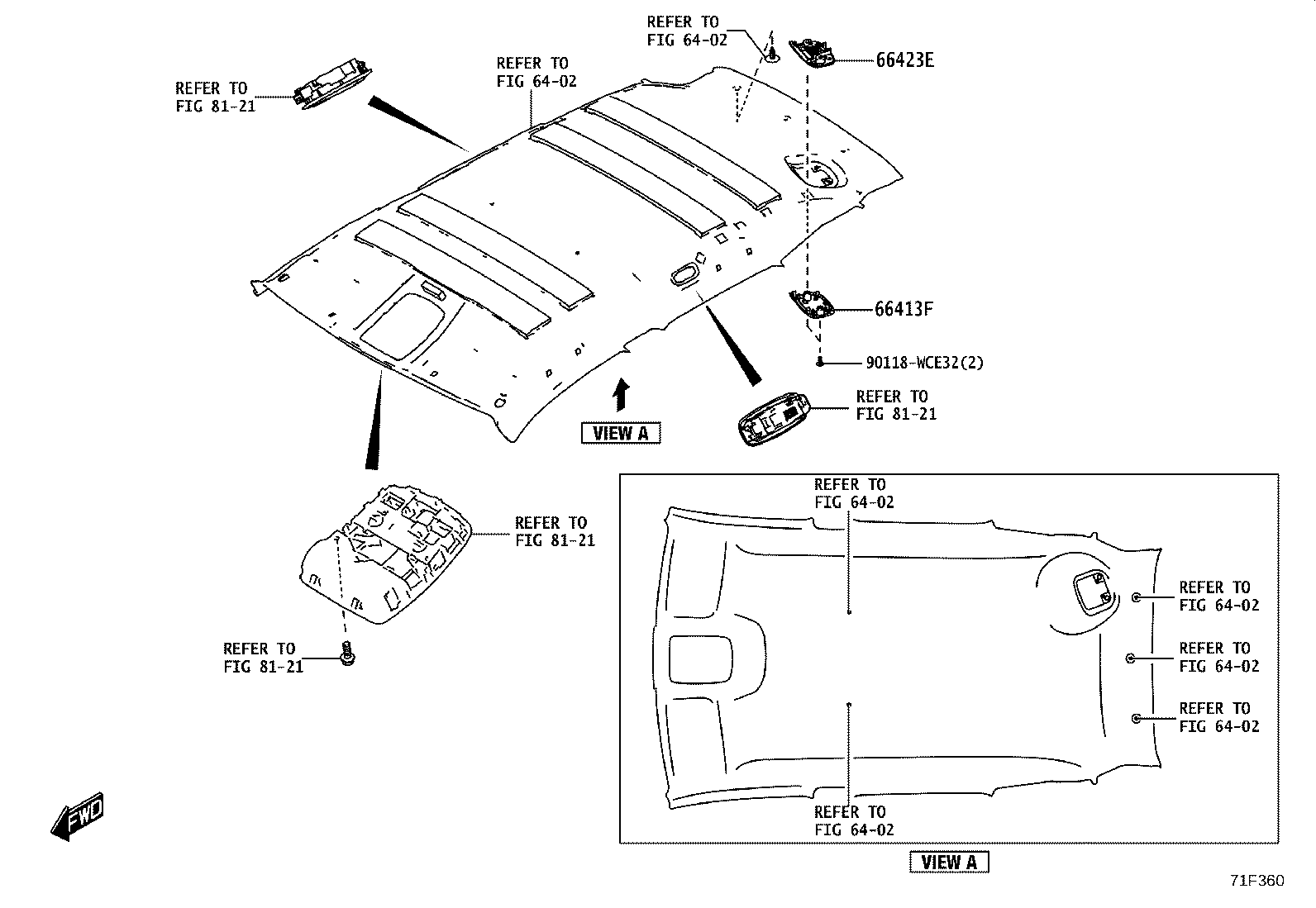

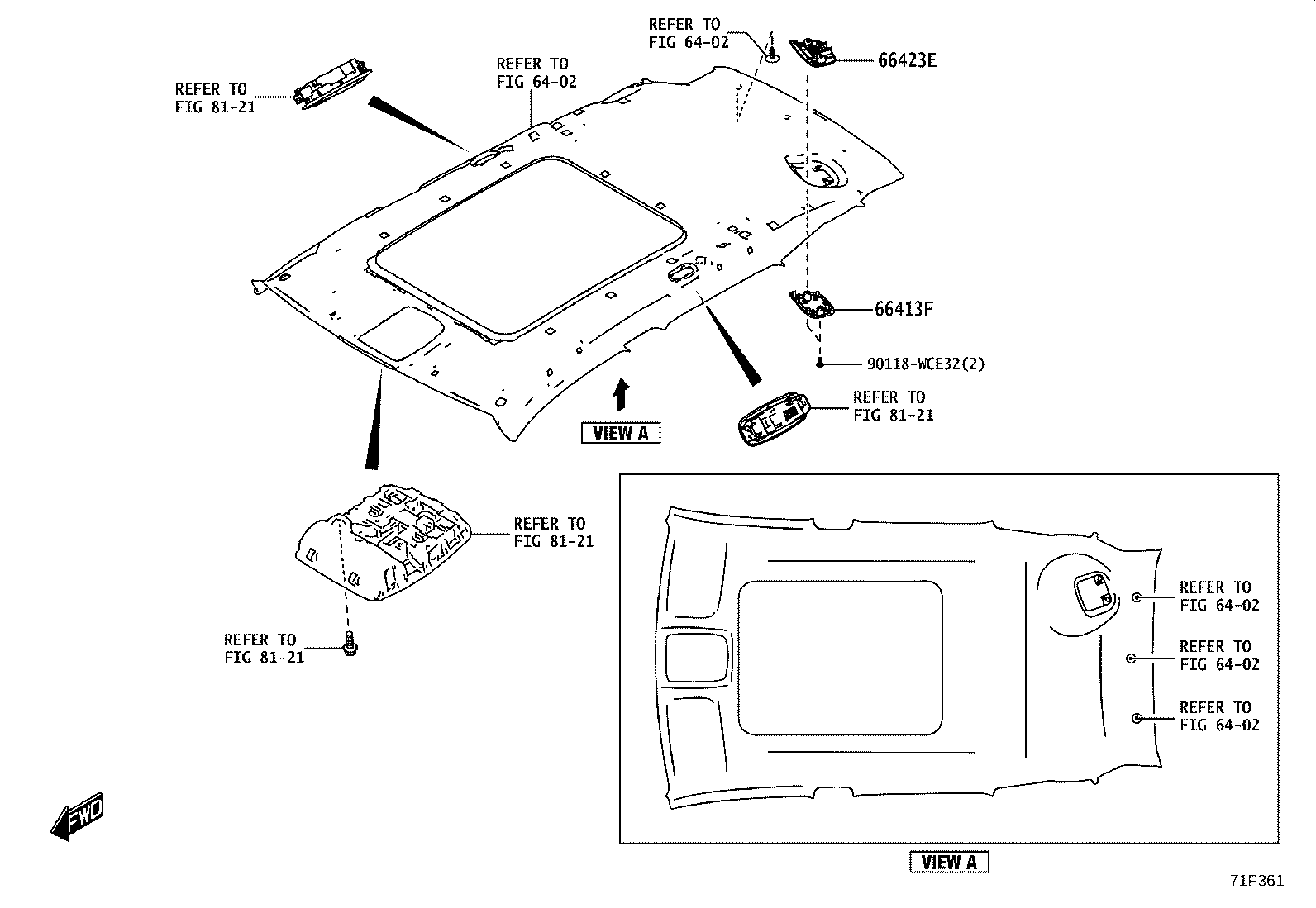

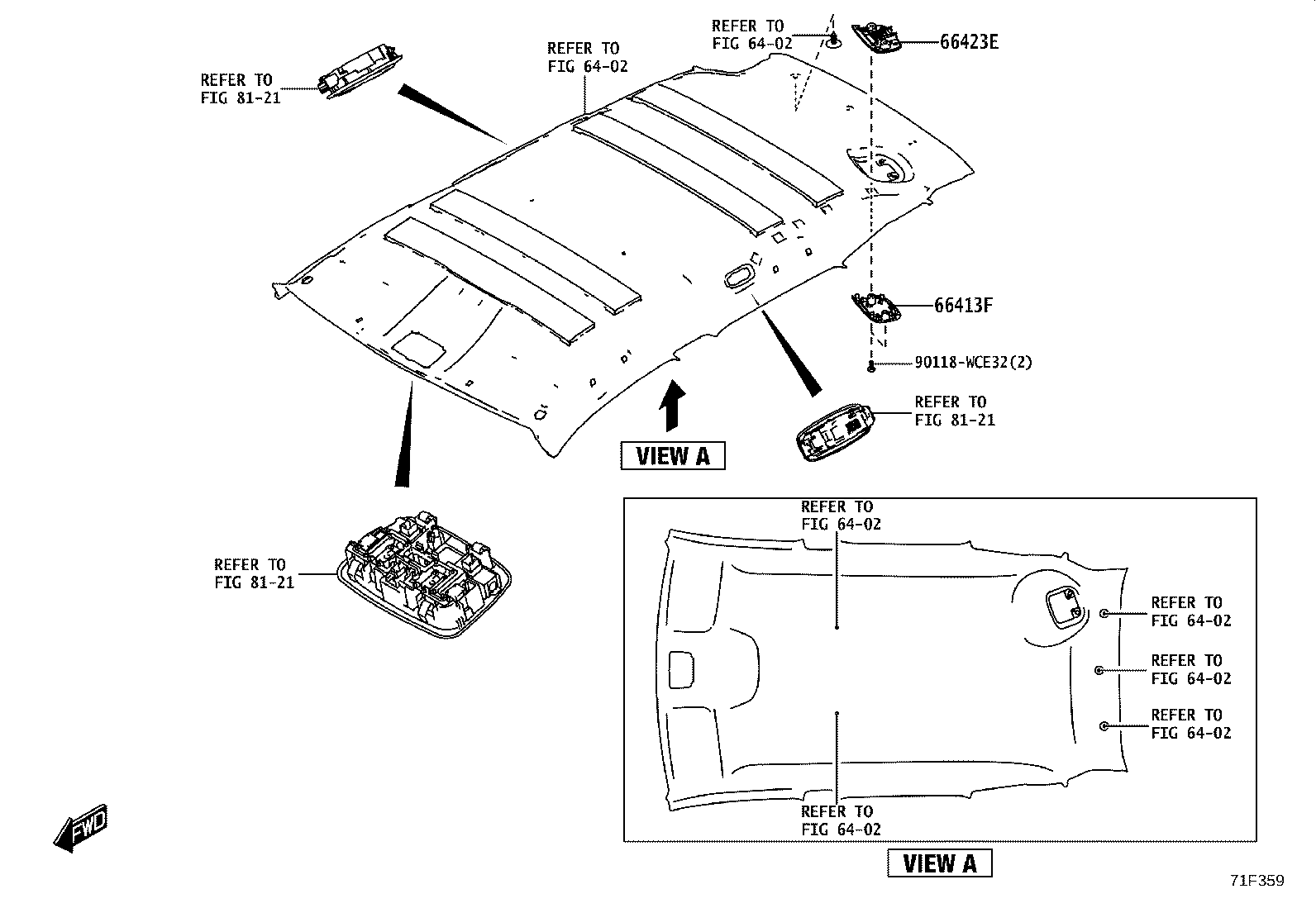

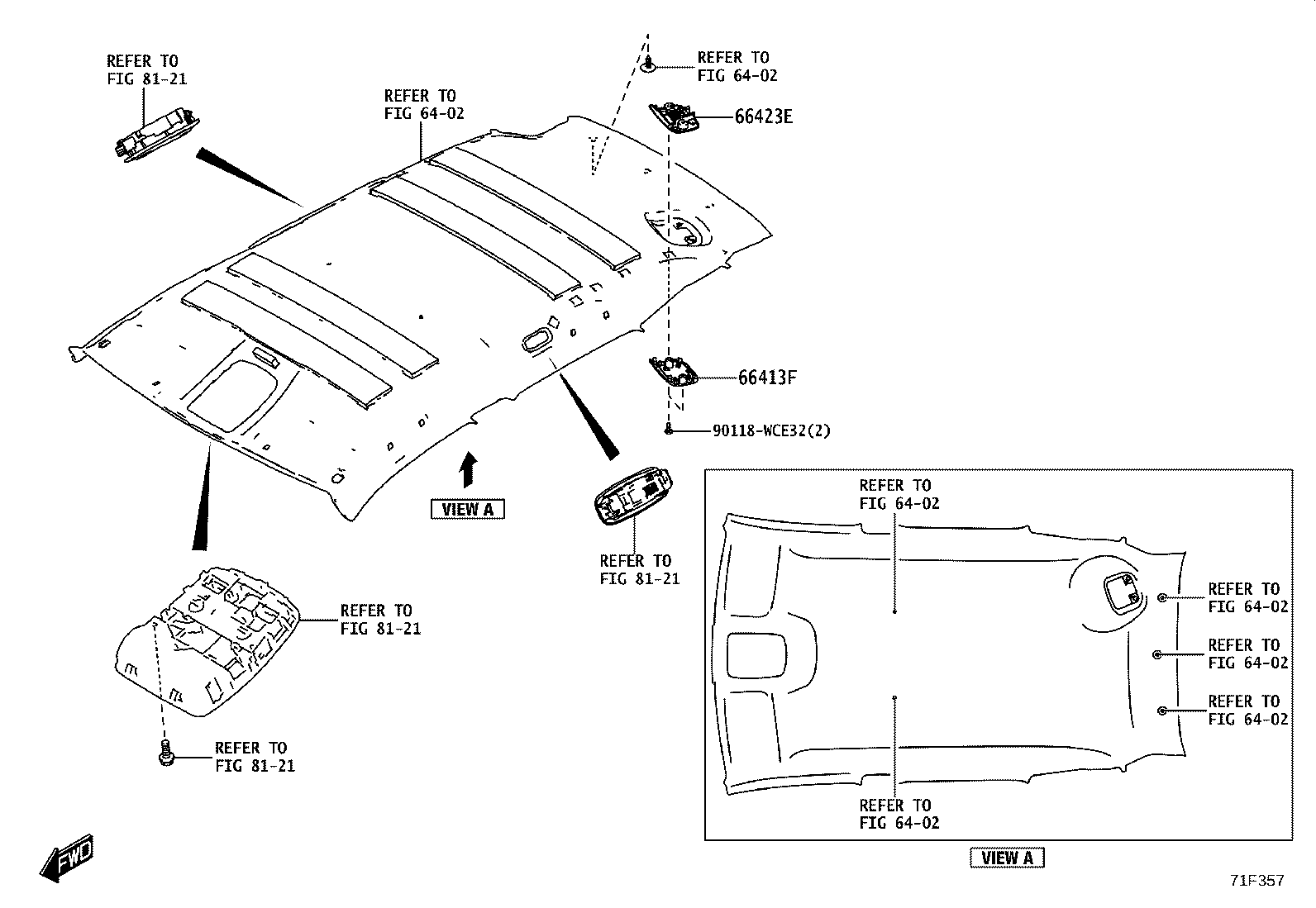

Figure 71F339 71F339 2022-11 → — Figure 71F340 71F340 2022-11 → — Figure 71F341 71F341 2022-11 → — Figure 71F356 71F356 2022-11 → — Figure 71F357 71F357 2022-11 → — Figure 71F358 71F358 2022-11 → — Figure 71F359 71F359 2022-11 → — Figure 71F360 71F360 2022-11 → — Figure 71F361 71F361 2022-11 → —

Part groups

PNCDescription
66413F Cover, Rear Center Seat Belt, NO.1
66423E Cover, Rear Center Seat Belt, NO.2
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73252 Cover, Shoulder Belt Anchor Adjust, RH
73350C Belt Assy, Rear Seat, Outer Center
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73450 Buckle Assy, Rear Center Seat Belt
73470B Belt Assy, Rear Seat Inner W/Center, RH
73480A Belt Assy, Rear Seat, Inner LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
