Toyota Urban Cruiser

2022-11 → present · chassis FG21###,22###,61###,62### · catalogue 138320 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

5 part groups · 7 illustrations

Illustrations

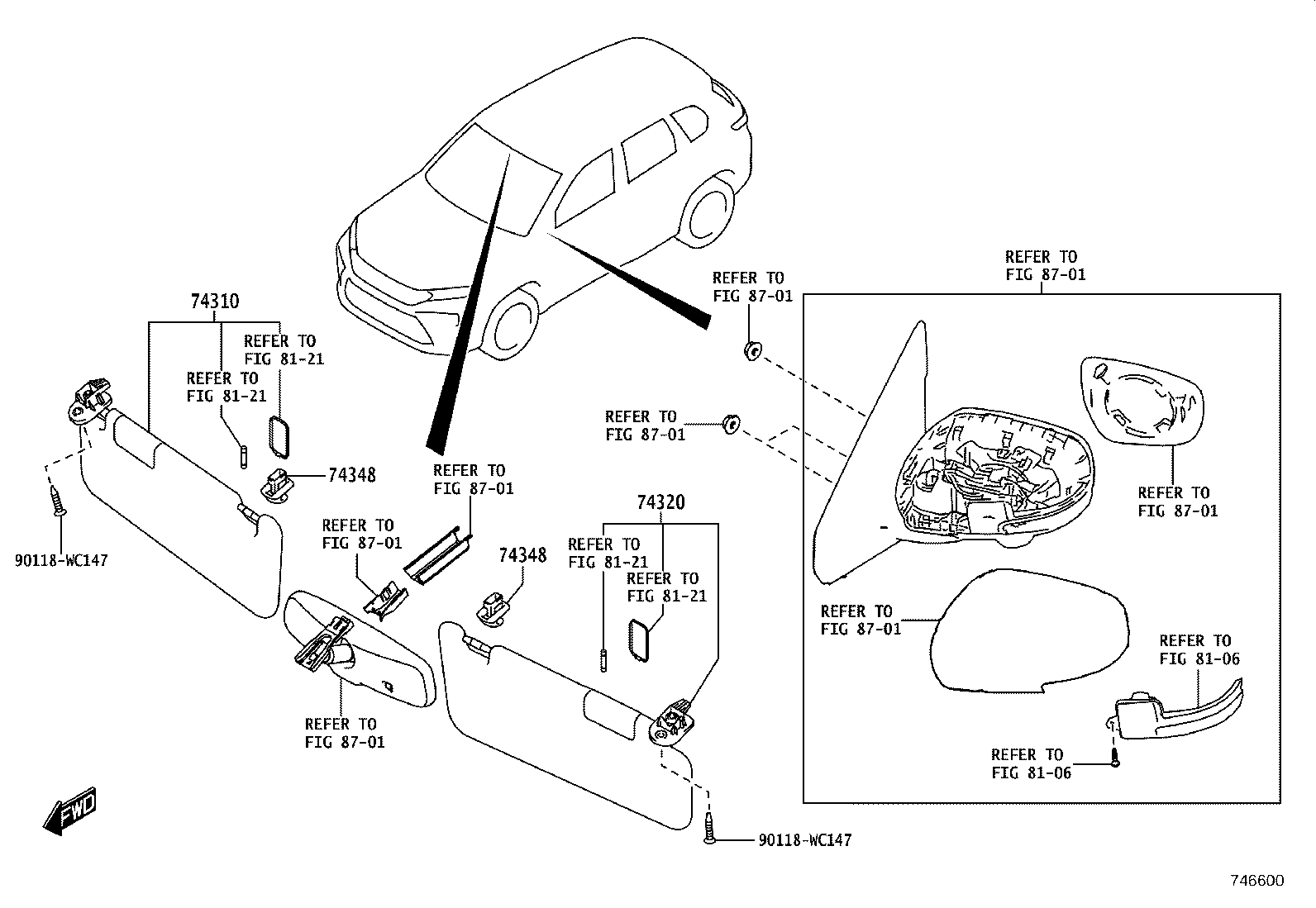

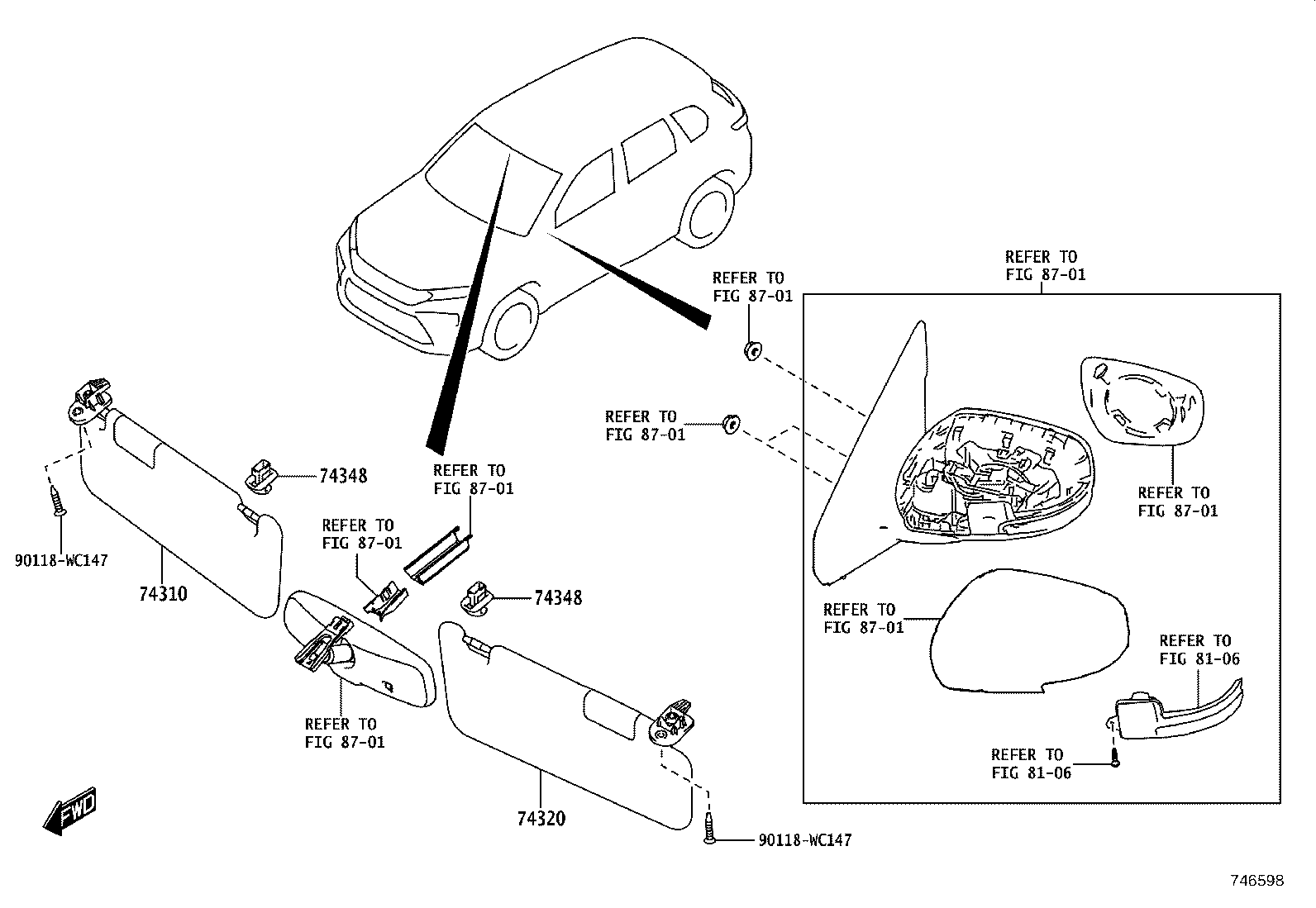

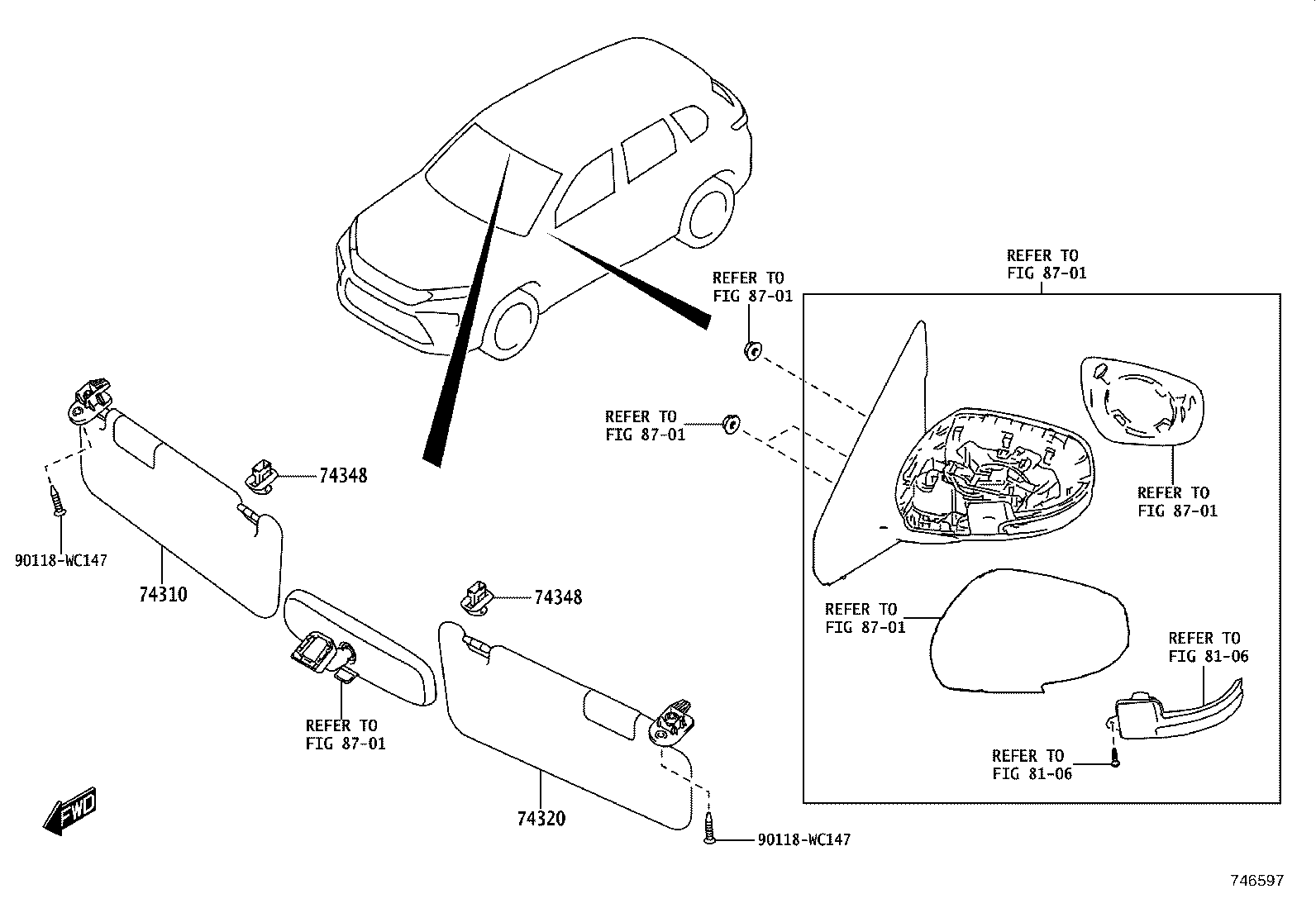

Figure 746601 746601 2022-11 → — Figure 746602 746602 2022-11 → — Figure 746602 746602 2022-11 → — Figure 746597 746597 2022-11 → — Figure 746598 746598 2022-11 → — Figure 746599 746599 2022-11 → — Figure 746600 746600 2022-11 → —

Part groups

PNCDescription
74310 Visor Assy, RH
74320 Visor Assy, LH
74348 Holder, Visor
74610A Grip Sub-assy, Assist
74610B Grip Assy, Assist, NO.2 RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
