Toyota Urban Cruiser

2022-11 → present · chassis FG21###,22###,61###,62### · catalogue 138320 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

4 part groups · 6 illustrations

Illustrations

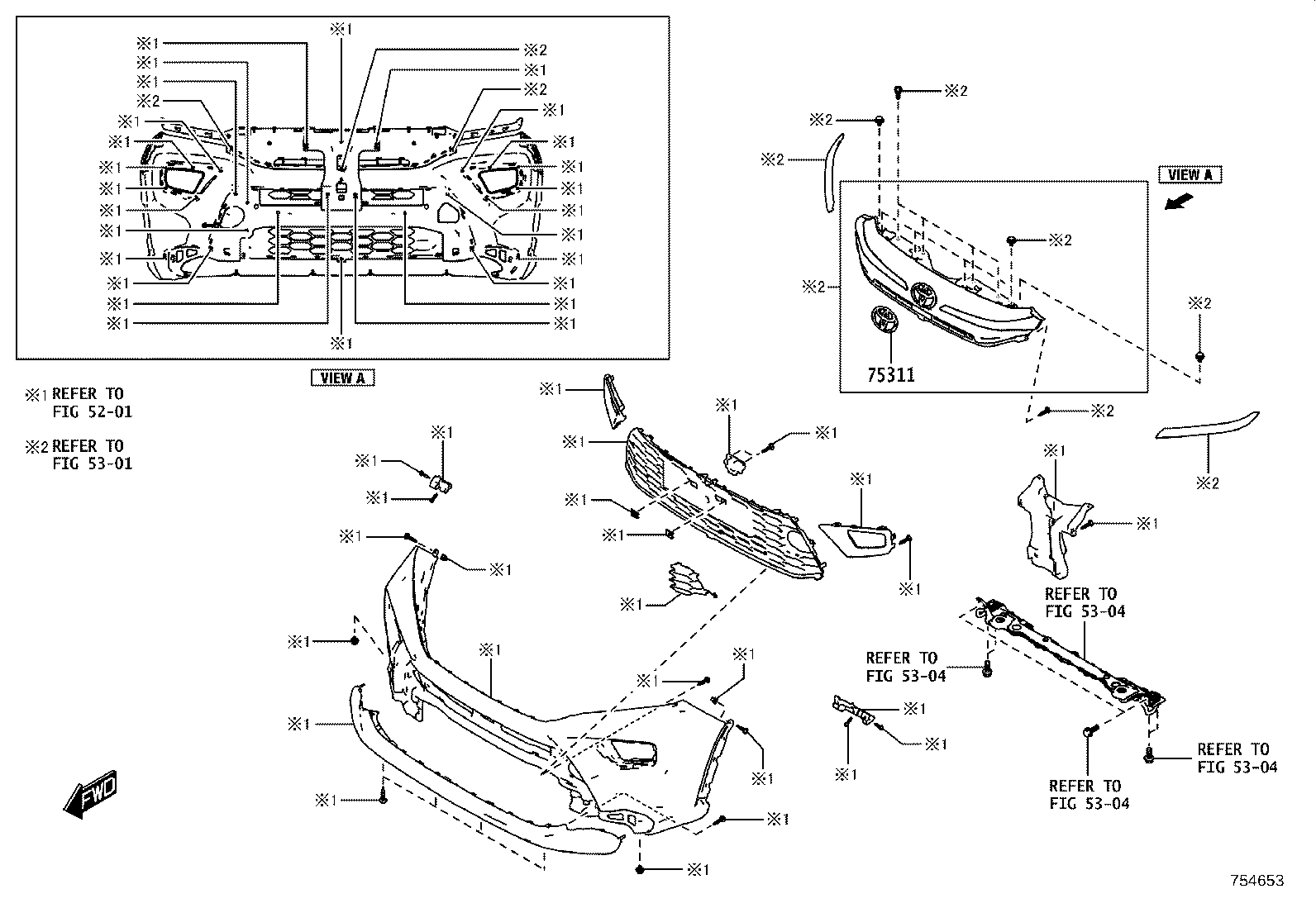

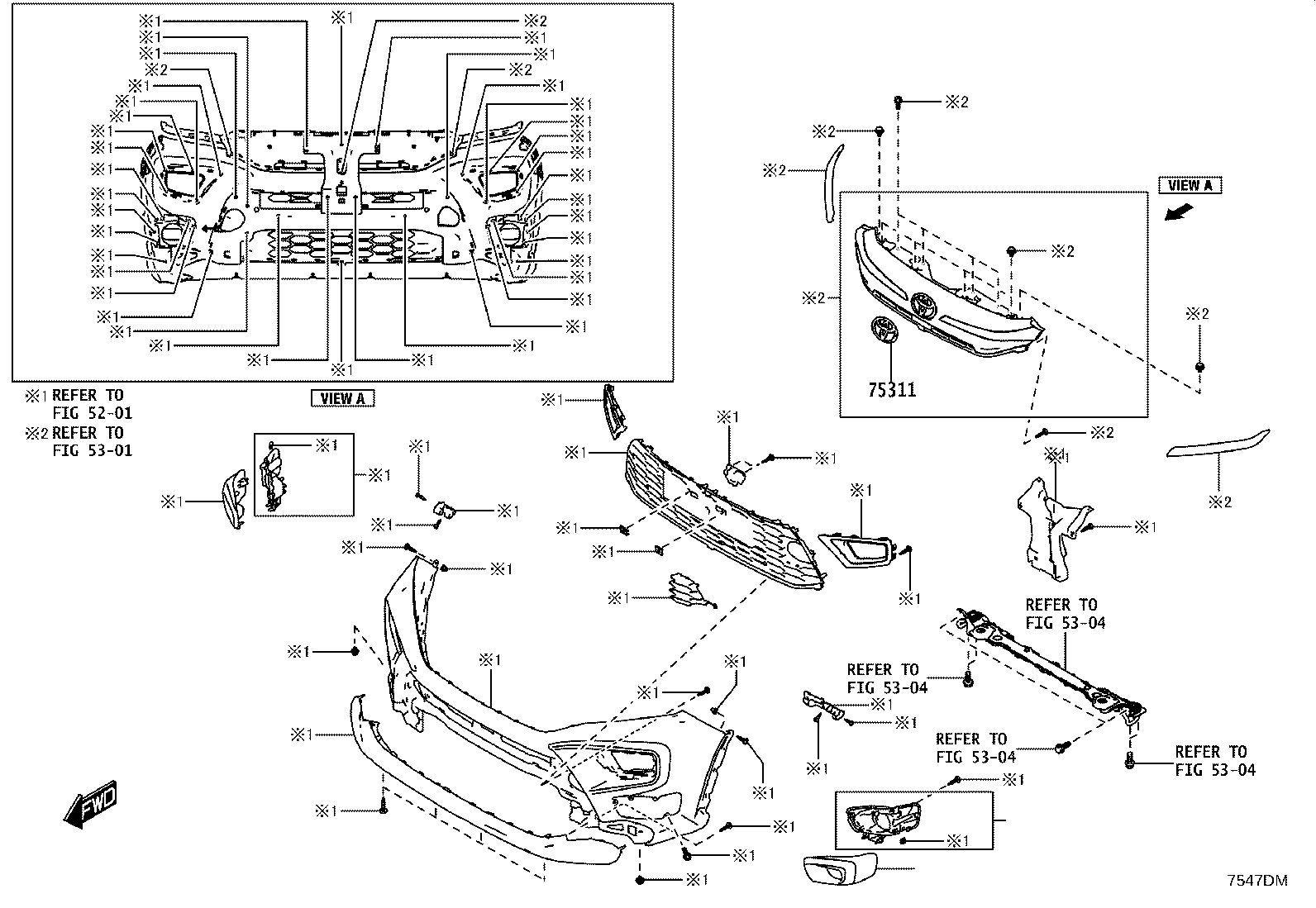

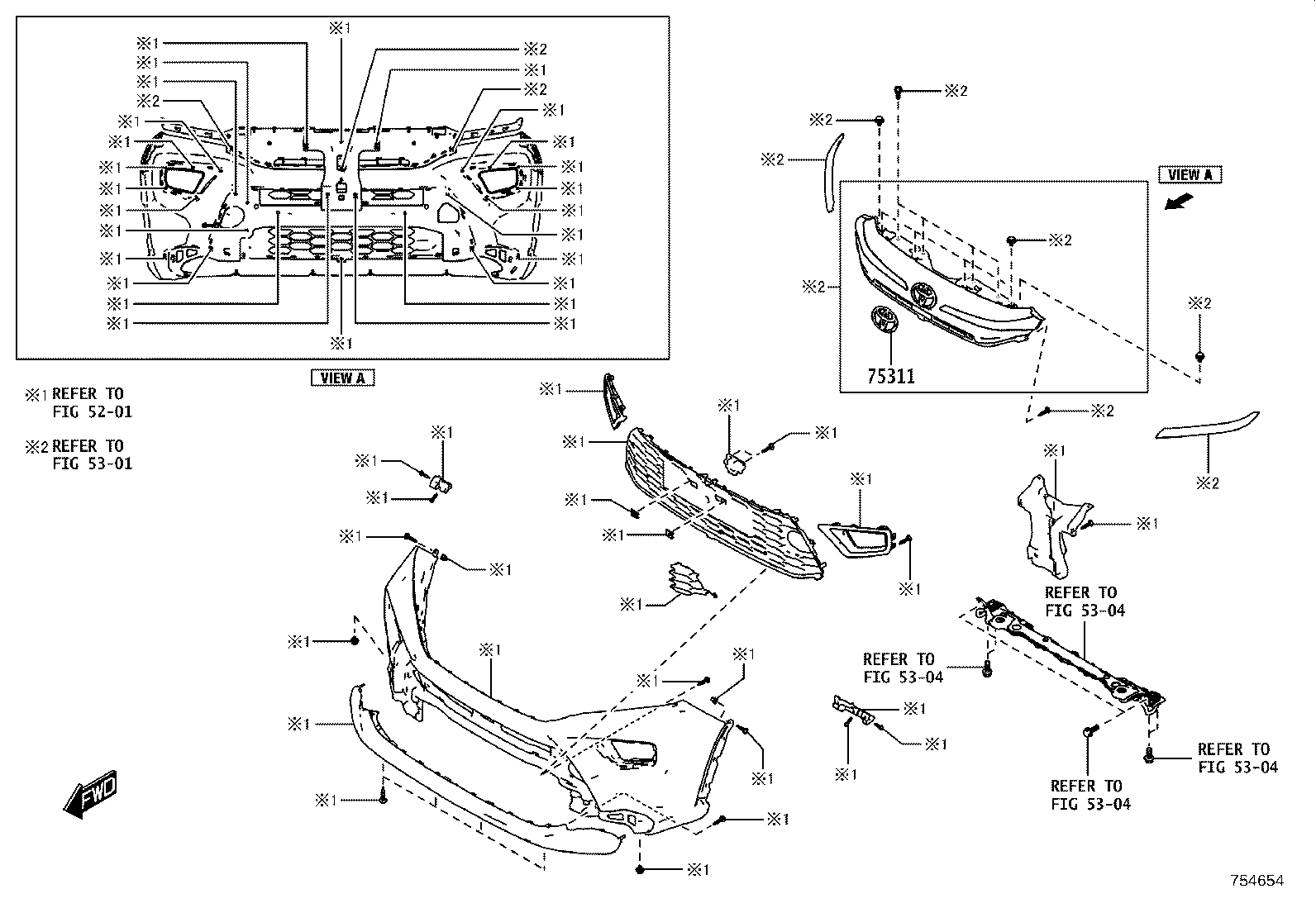

Figure 754659A 754659A 2022-11 → — Figure 754653 754653 2022-11 → — Figure 754654 754654 2022-11 → — Figure 754655 754655 2022-11 → — Figure 7547DM 7547DM 2024-04 → — Figure 7547DN 7547DN 2024-04 → —

Part groups

PNCDescription
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75431A Emblem, Back Door, NO.1
75442A Plate, Back Door Name, NO.2
75443 Plate, Back Door Name, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
