Toyota Urban Cruiser

2022-11 → present · chassis FG21###,22###,61###,62### · catalogue 138320 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Moulding

16 part groups · 4 illustrations

Illustrations

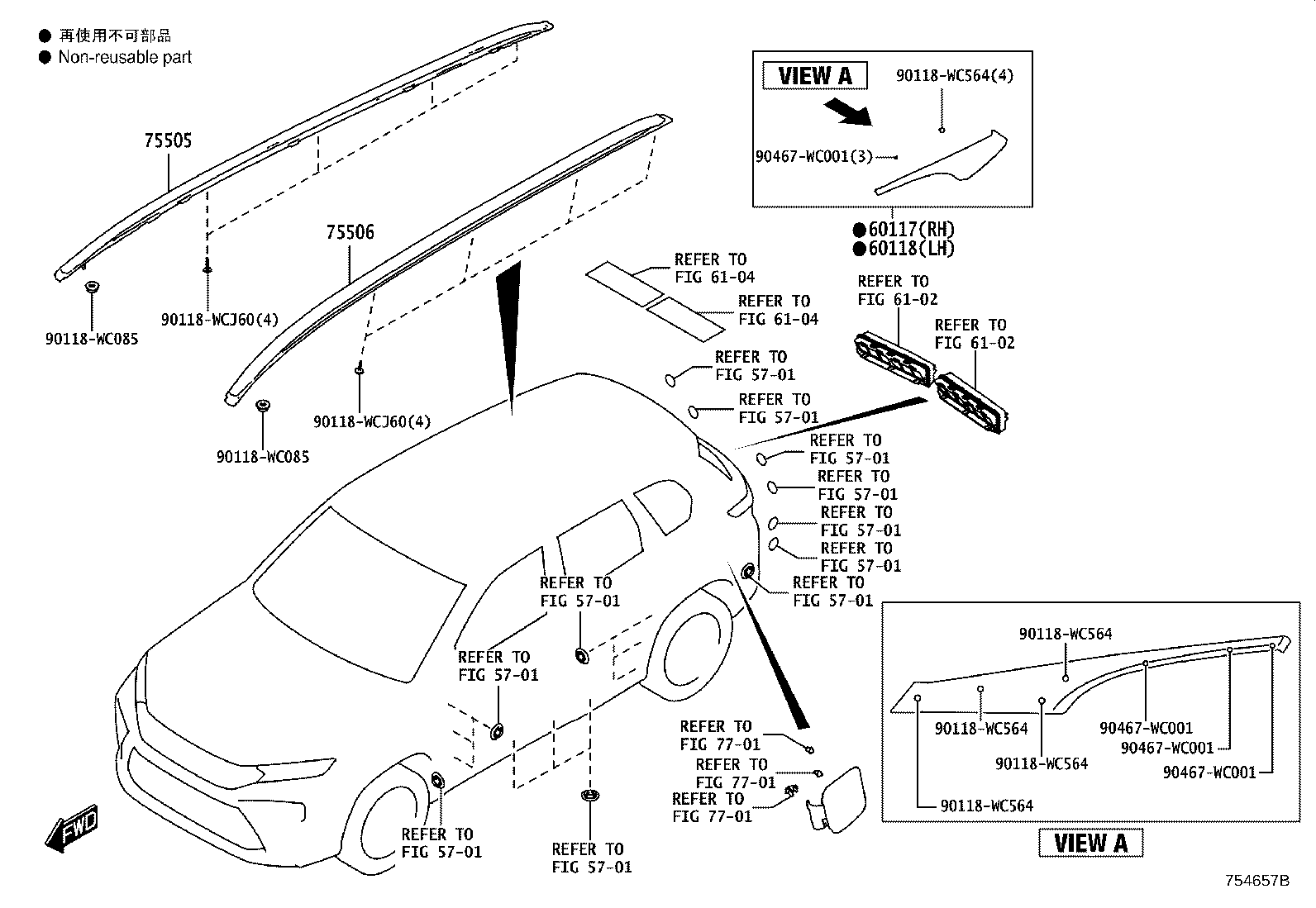

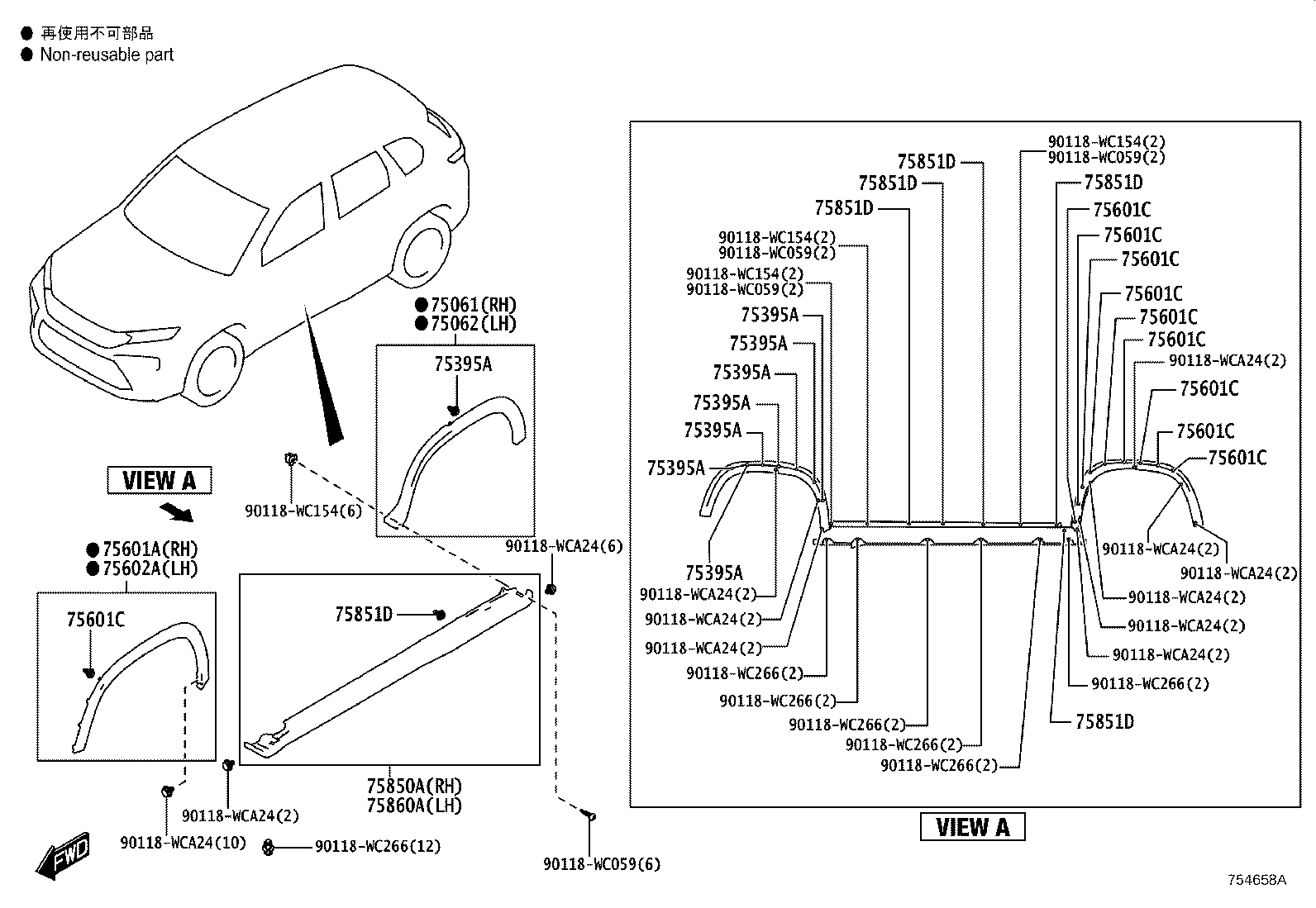

Figure 754656B 754656B 2022-11 → — Figure 754657B 754657B 2022-11 → — Figure 754657B 754657B 2022-11 → — Figure 754658A 754658A 2022-11 → —

Part groups

PNCDescription
60117 Cover Sub-assy, Front Pillar, Upr RH
60118 Cover Sub-assy, Front Pillar, Upr LH
75061 Moulding Set, Outside
75062 Moulding Set, Outside, LH
75395A Clip, Outside Moulding, NO.1
75505 Garnish Sub-assy, Roof Side, Front RH
75506 Garnish Sub-assy, Roof Side, Front LH
75551 Moulding, Roof Drip Side Finish, RH
75552 Moulding, Roof Drip Side Finish, LH
75561 Clip, Roof Drip Side Finish Moulding, NO.1
75601A Moulding Sub-assy, Front Fender, RH
75601C Clip, Front Fender Moulding
75602A Moulding Sub-assy, Front Fender, LH
75850A Moulding Assy, Body Rocker Panel, RH
75851D Clip(FOR ROCKER PANEL MOULDING SET)
75860A Moulding Assy, Body Rocker Panel, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
