Toyota Urban Cruiser

2022-11 → present · chassis FG21###,22###,61###,62### · catalogue 138320 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

2 part groups · 5 illustrations

Illustrations

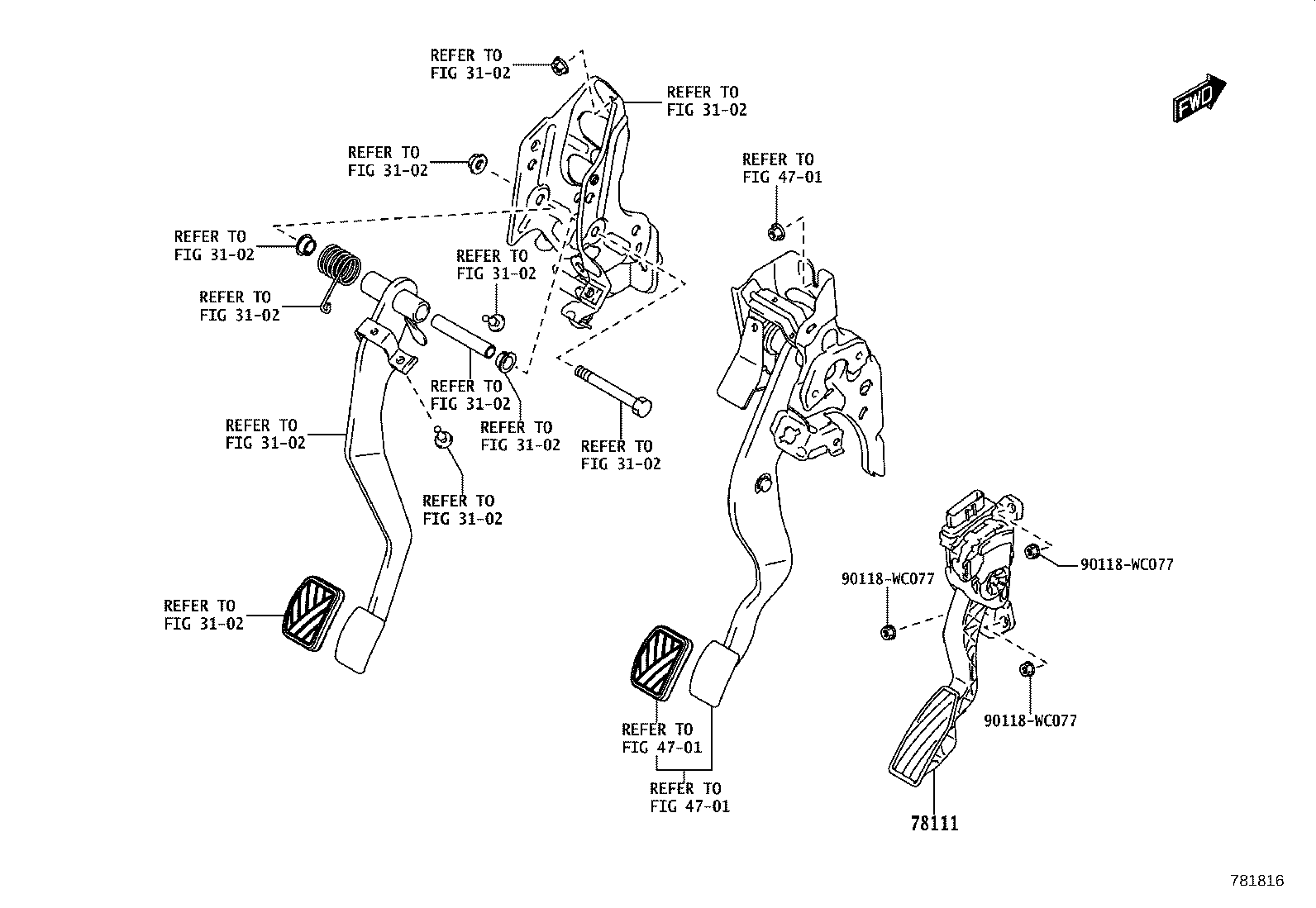

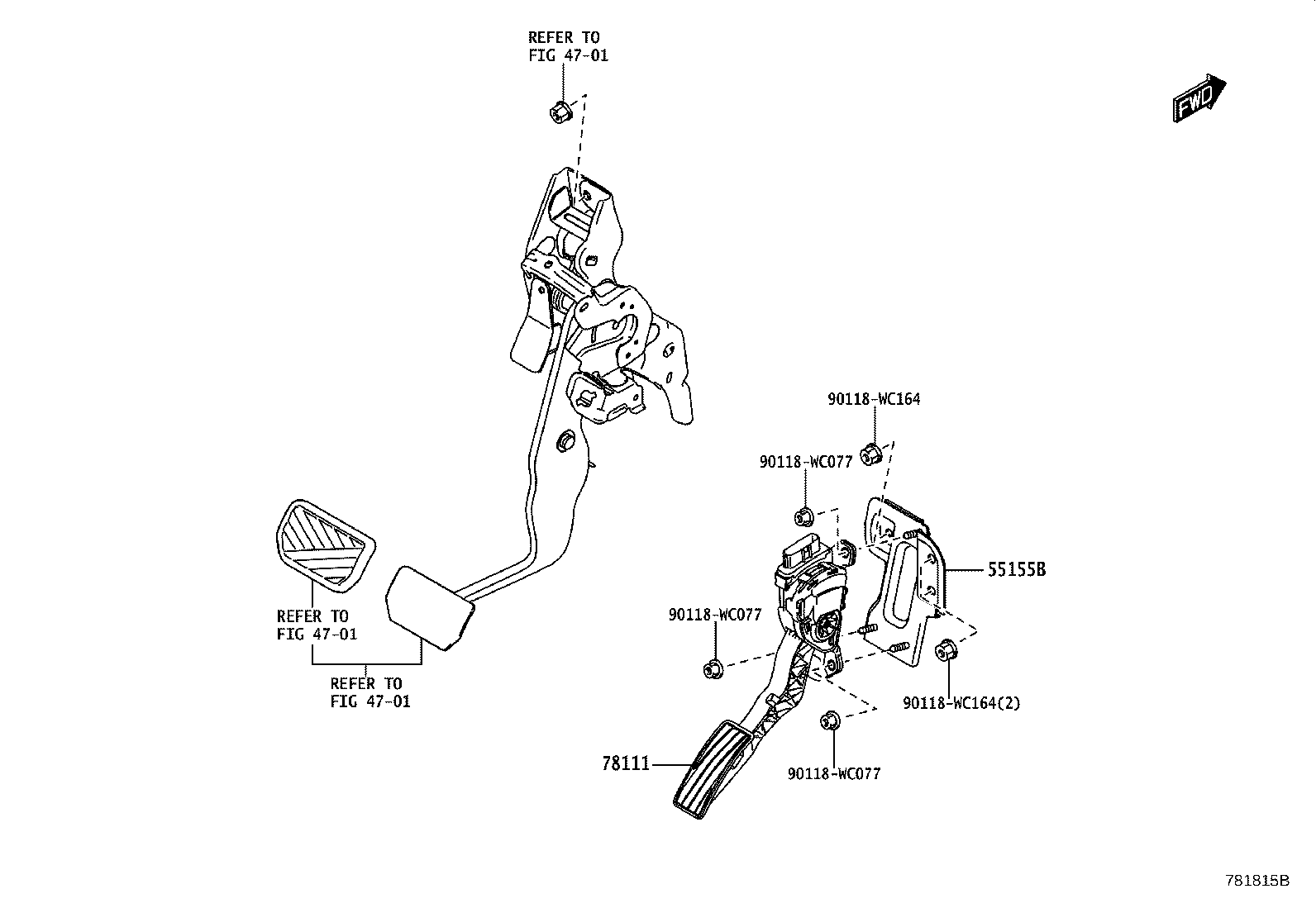

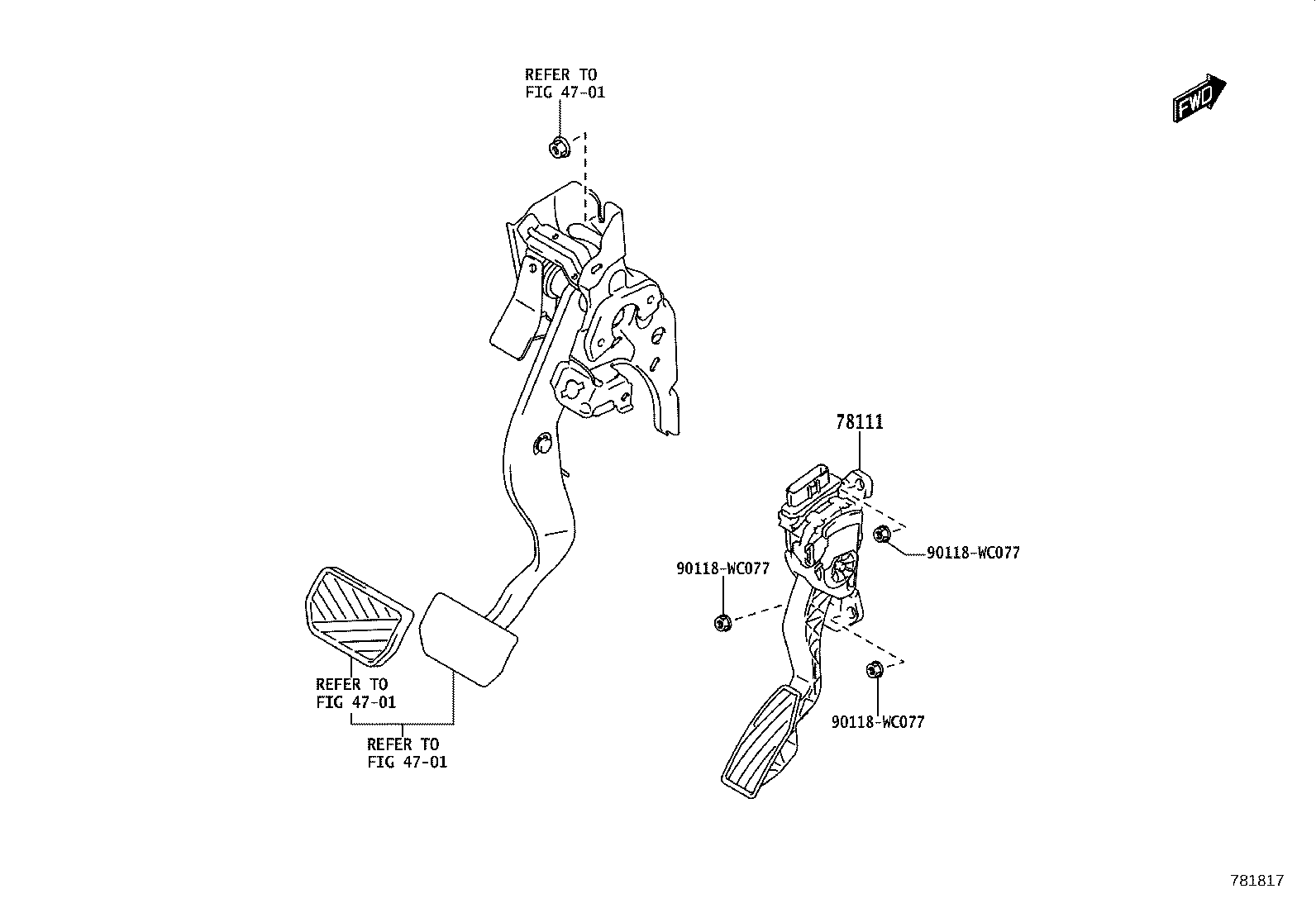

Figure 781814B 781814B 2022-11 → — Figure 781815B 781815B 2022-11 → — Figure 781815B 781815B 2022-11 → — Figure 781816 781816 2022-11 → — Figure 781817 781817 2022-11 → —

Part groups

PNCDescription
55155B Bracket, Accelerator Pedal
78111 Pedal, Accelerator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
