Toyota Urban Cruiser

2022-11 → present · chassis FG21###,22###,61###,62### · catalogue 138320 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

18 part groups · 15 illustrations

Illustrations

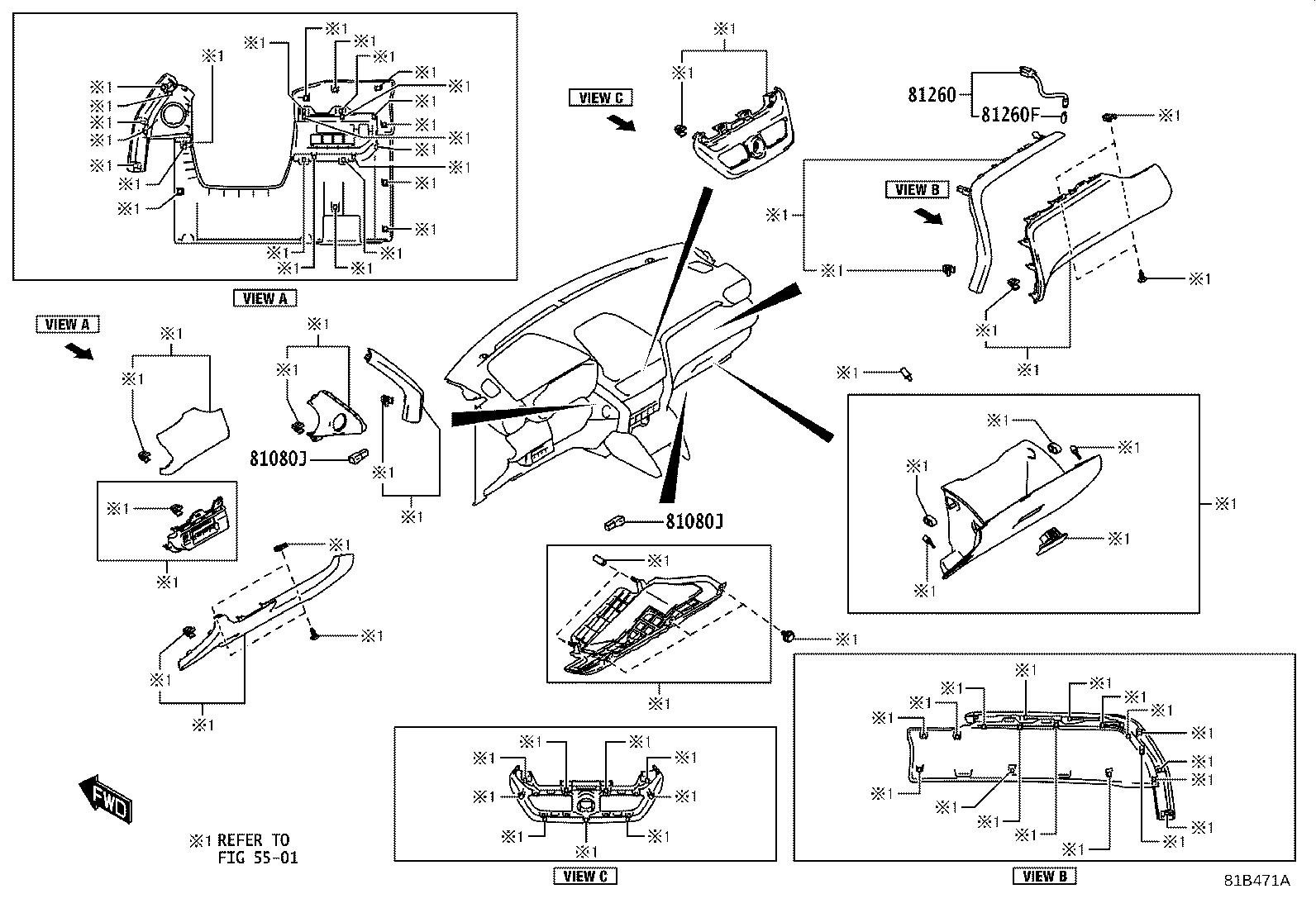

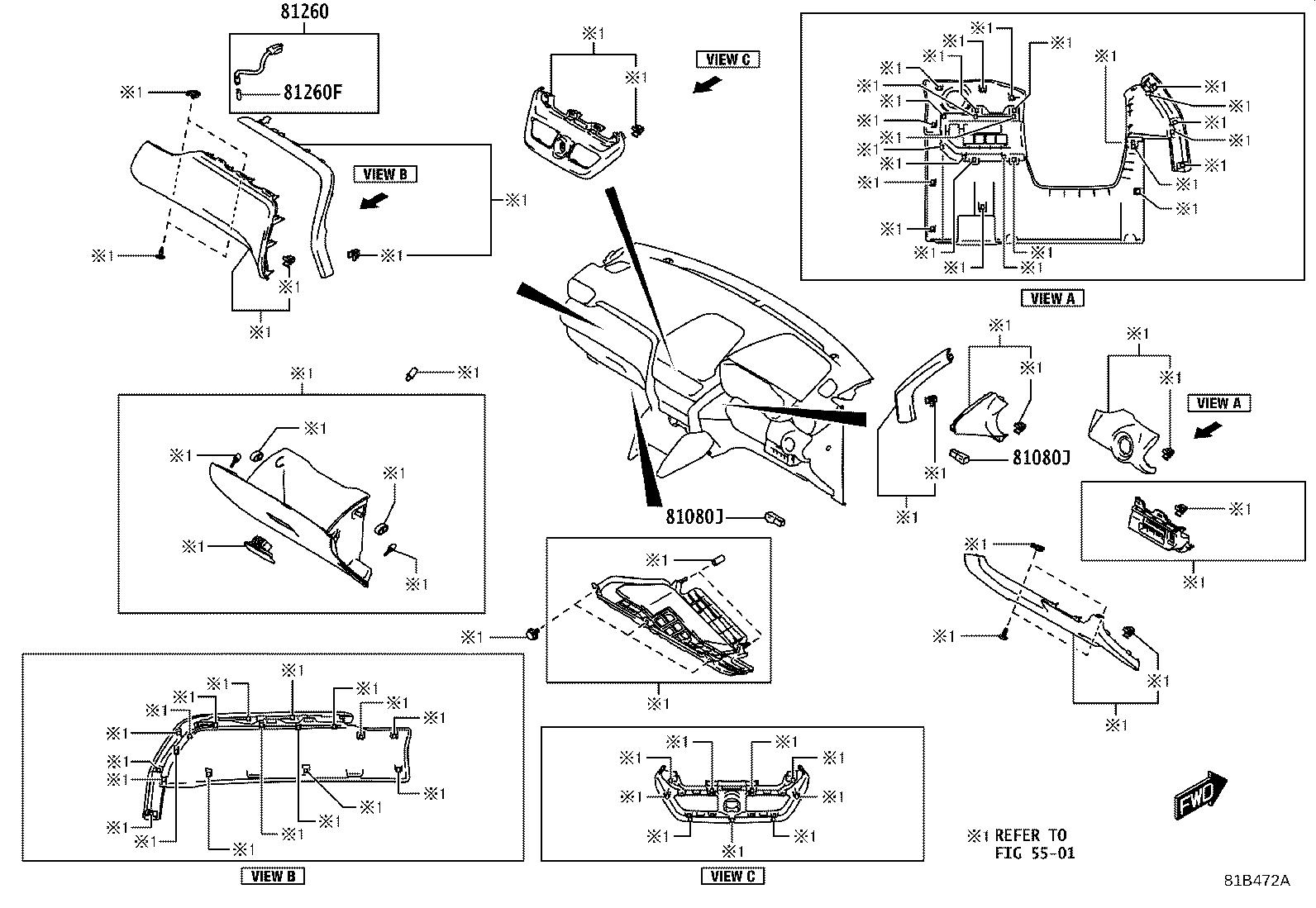

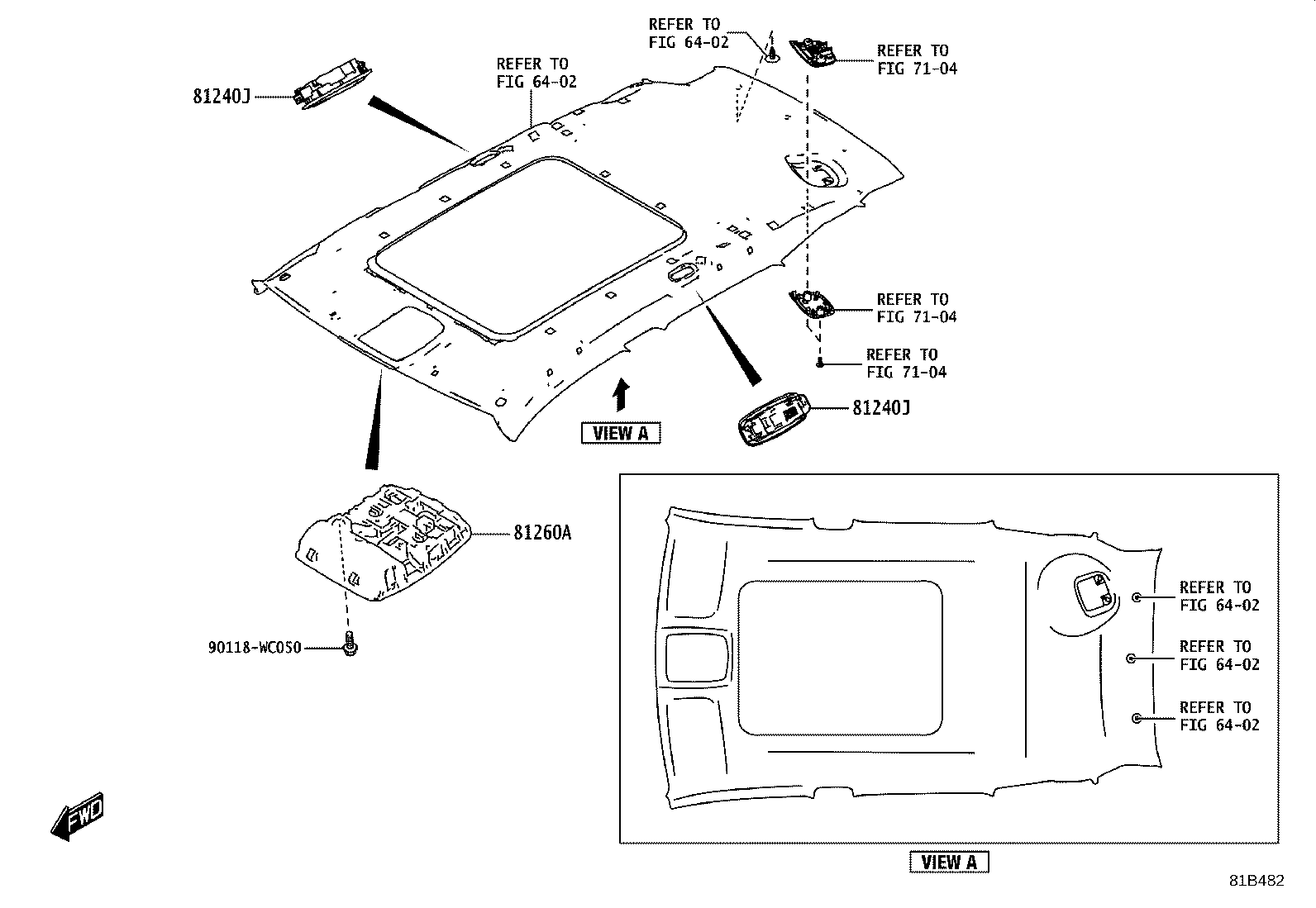

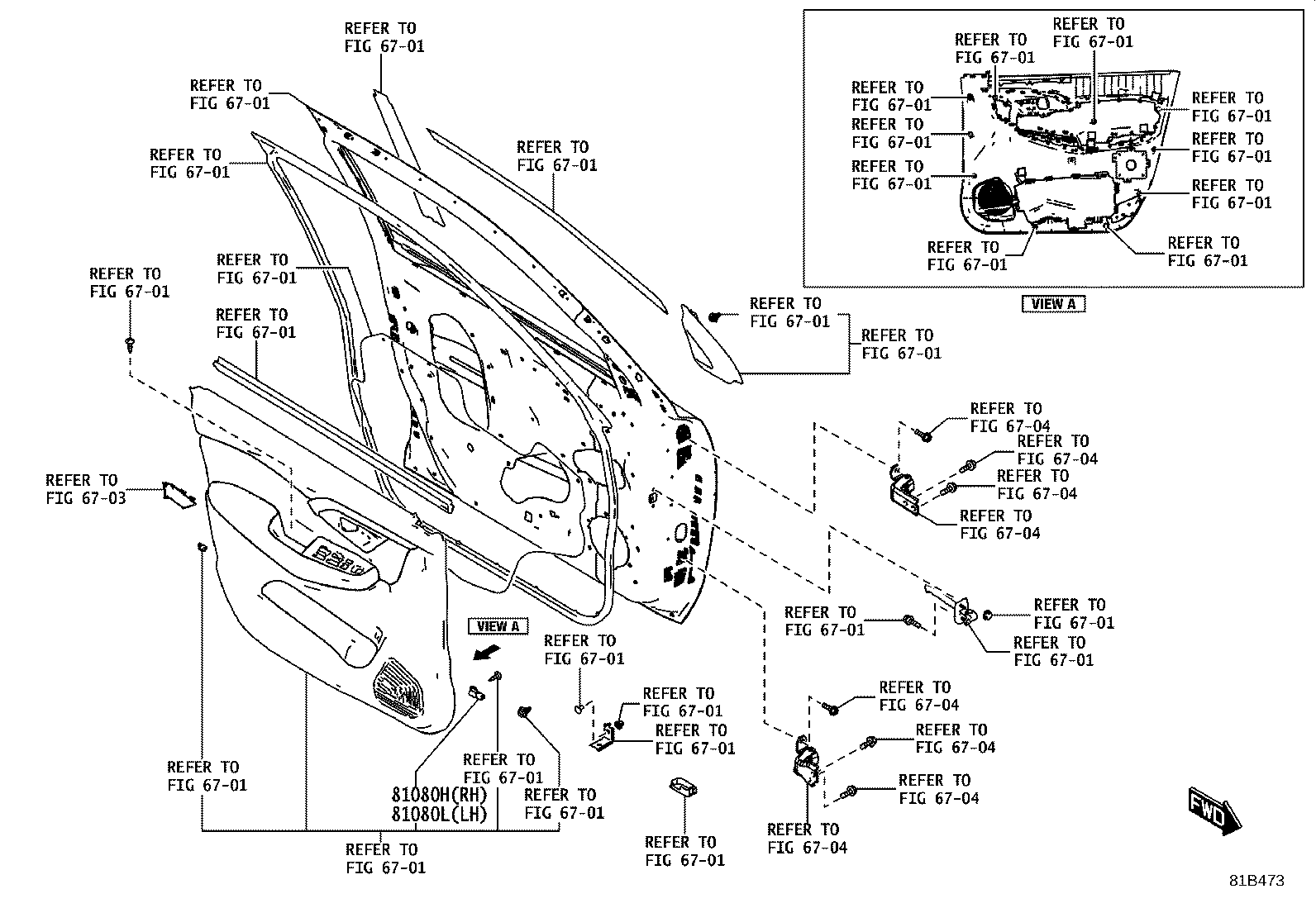

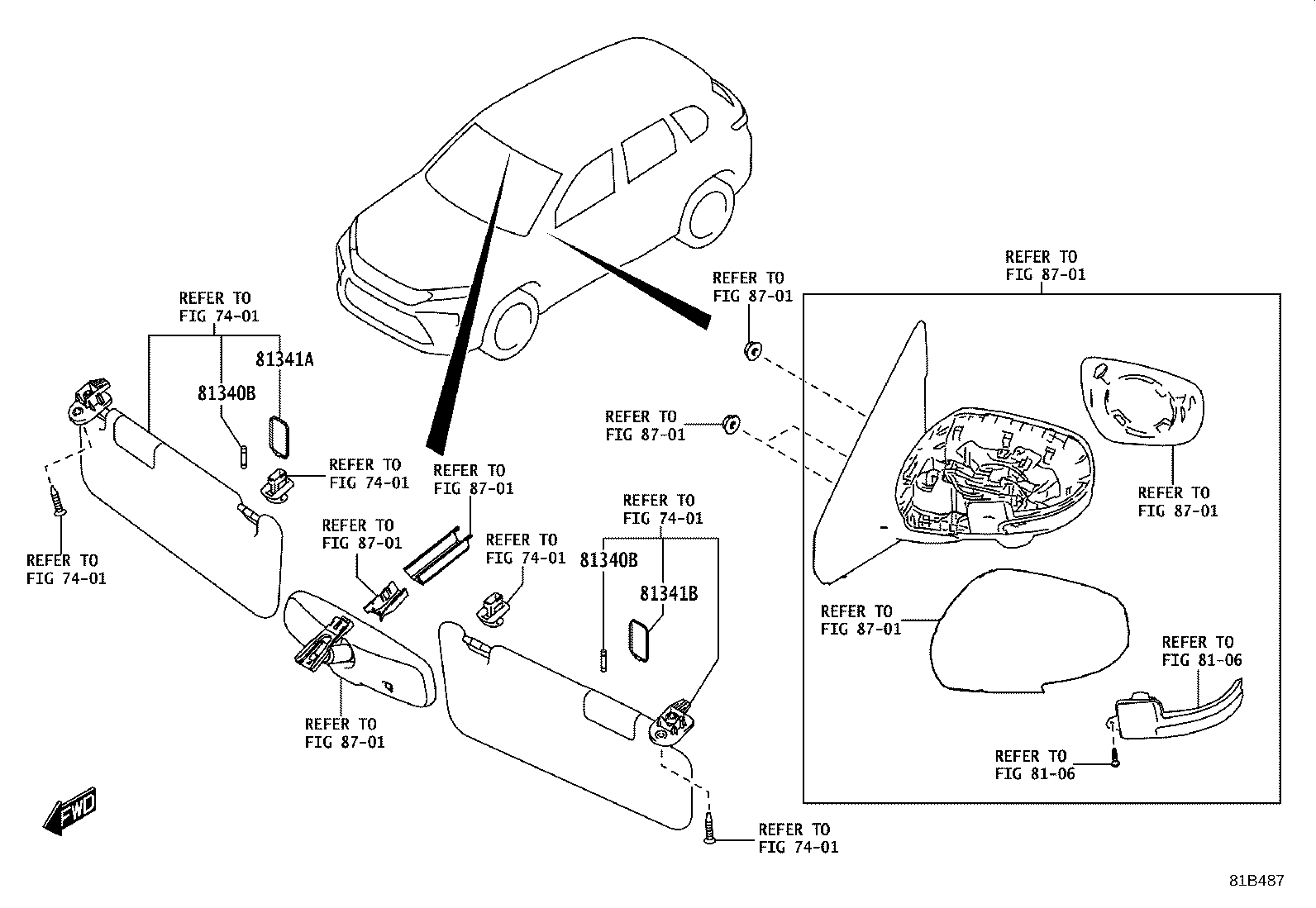

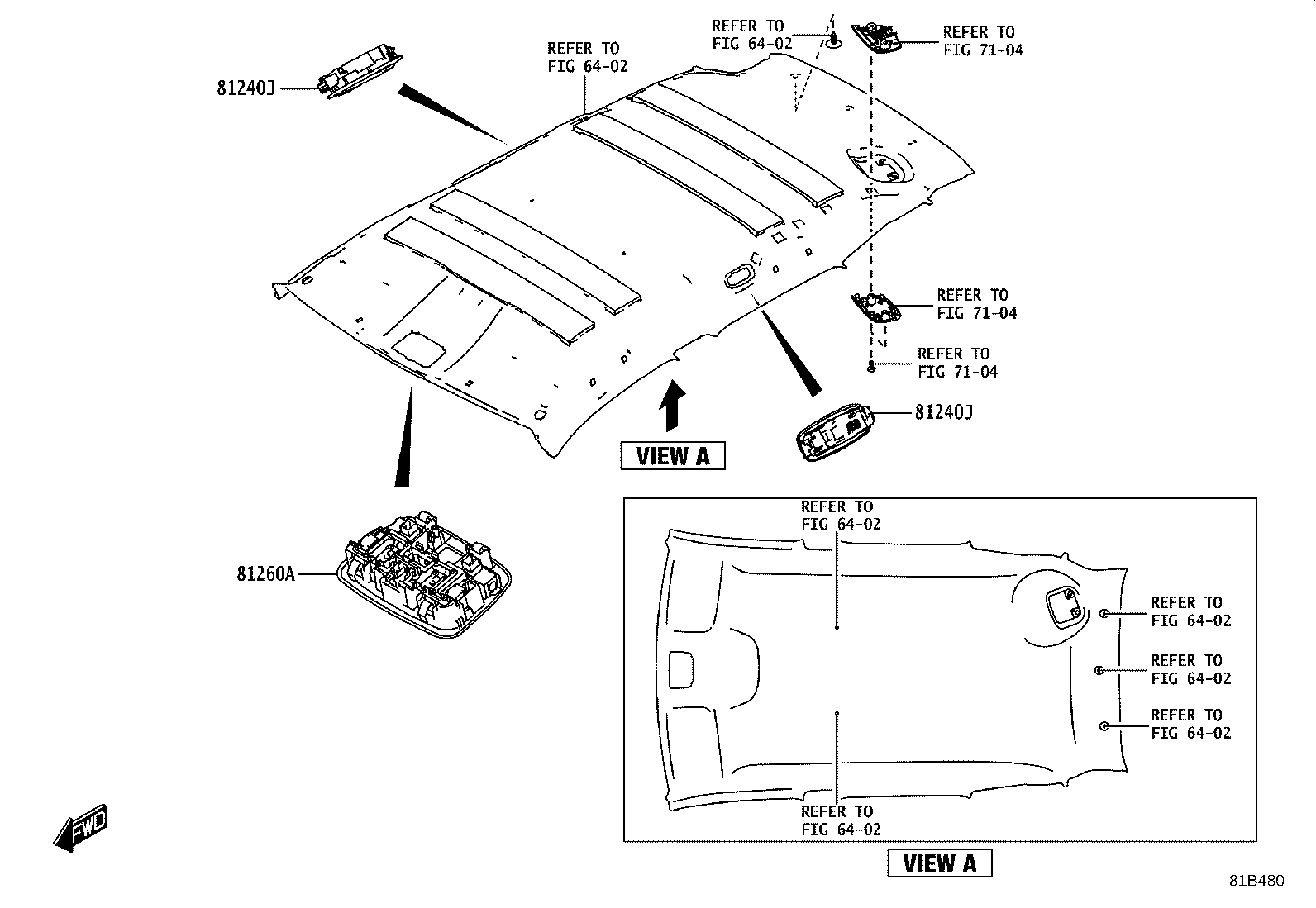

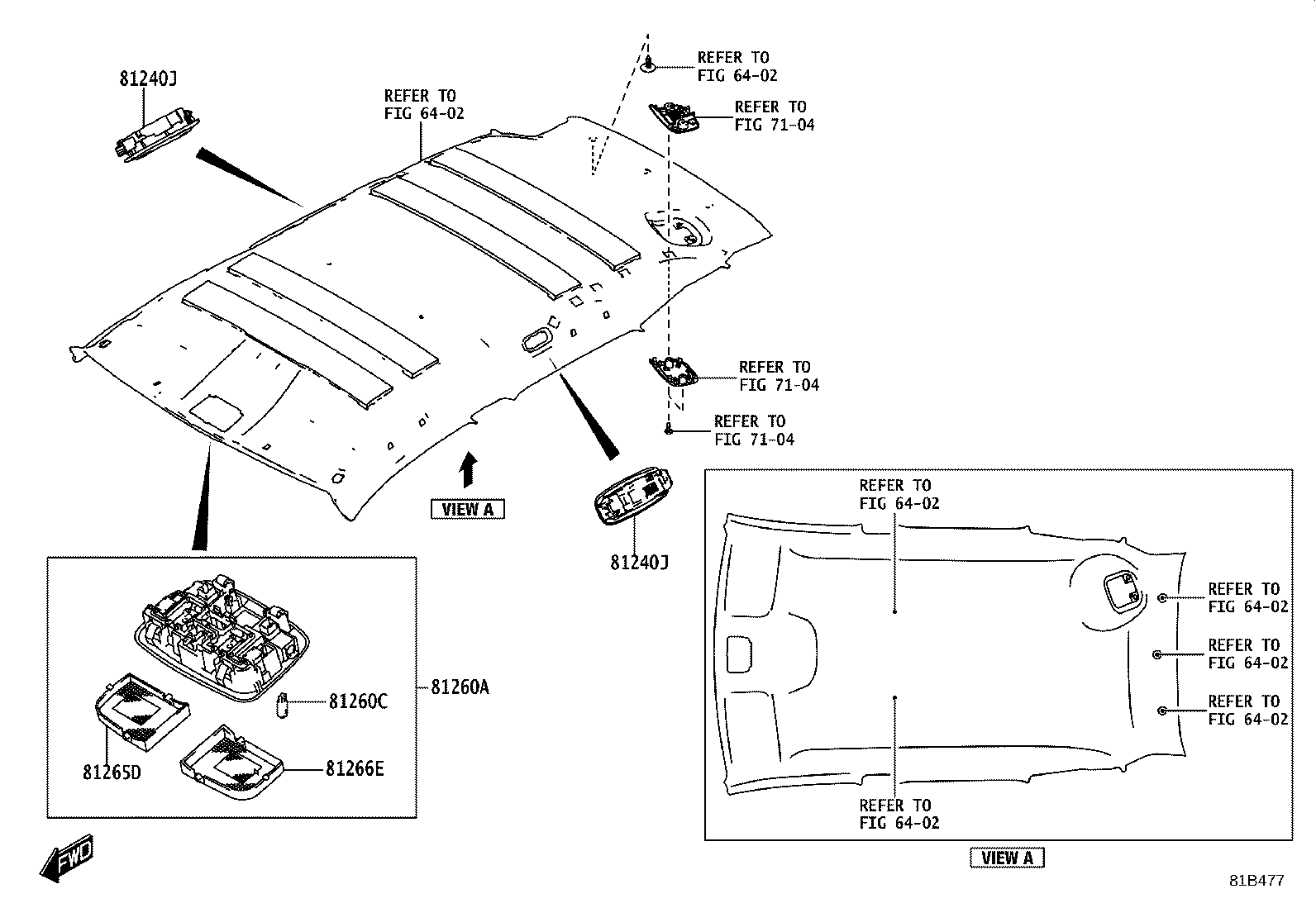

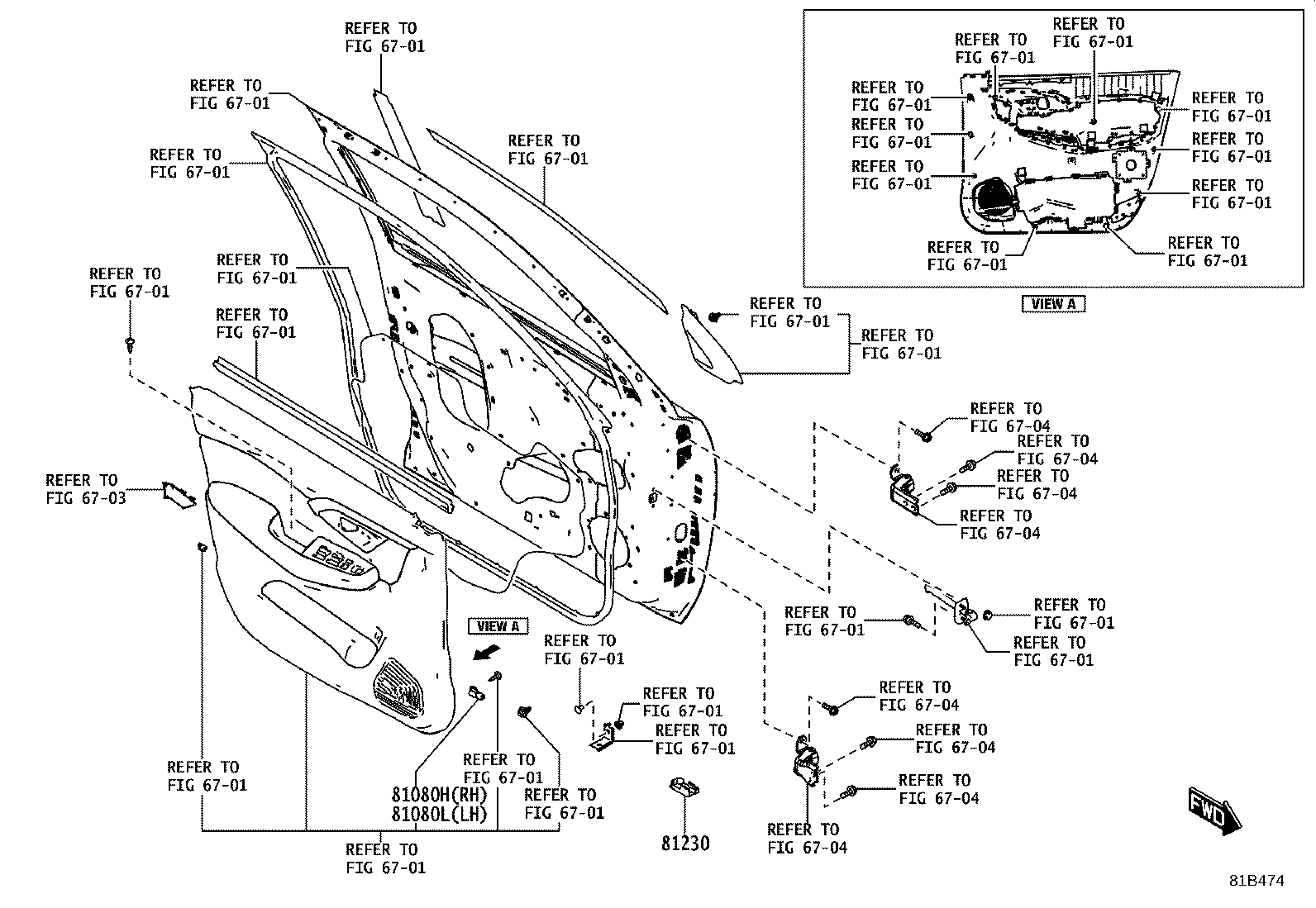

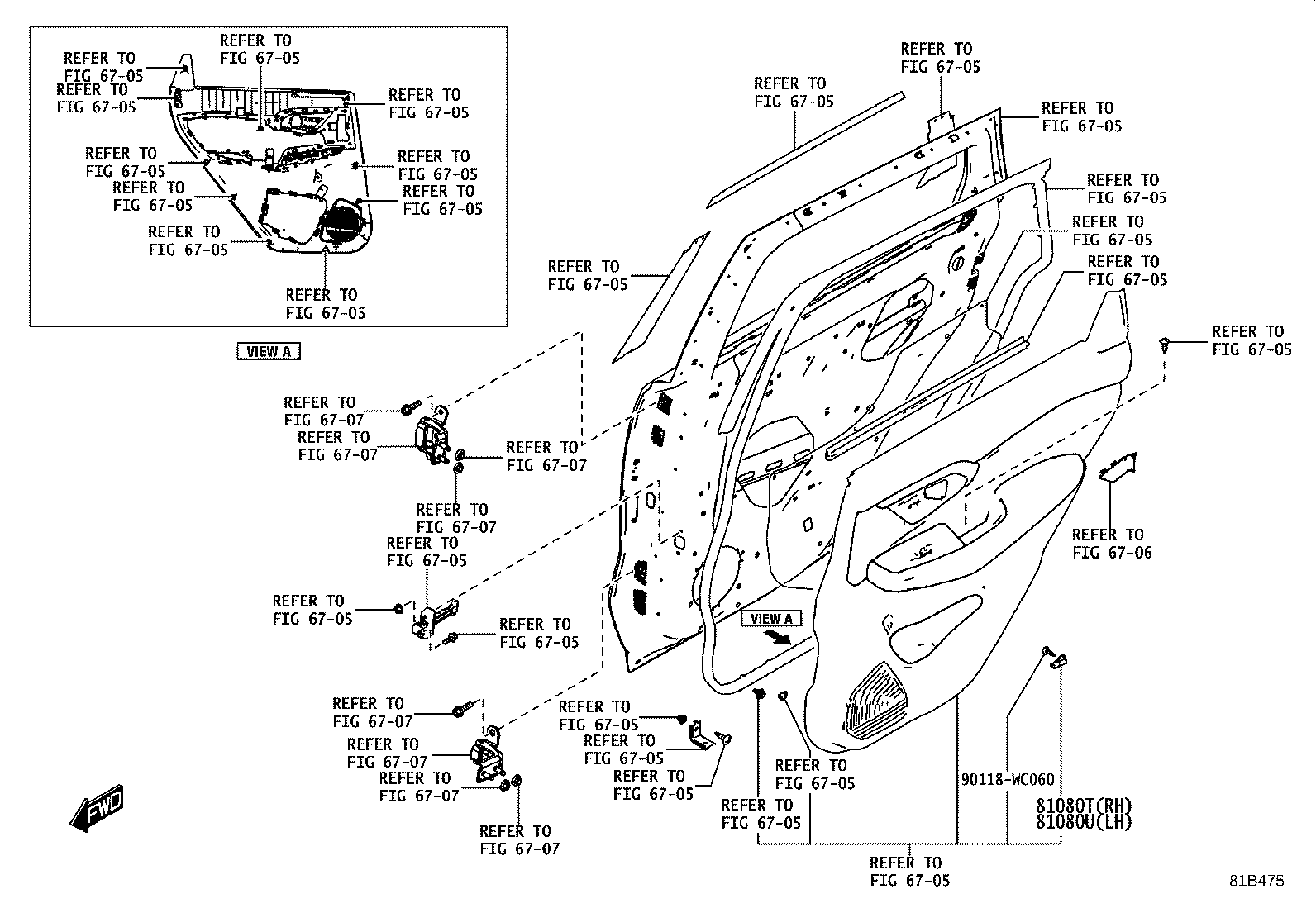

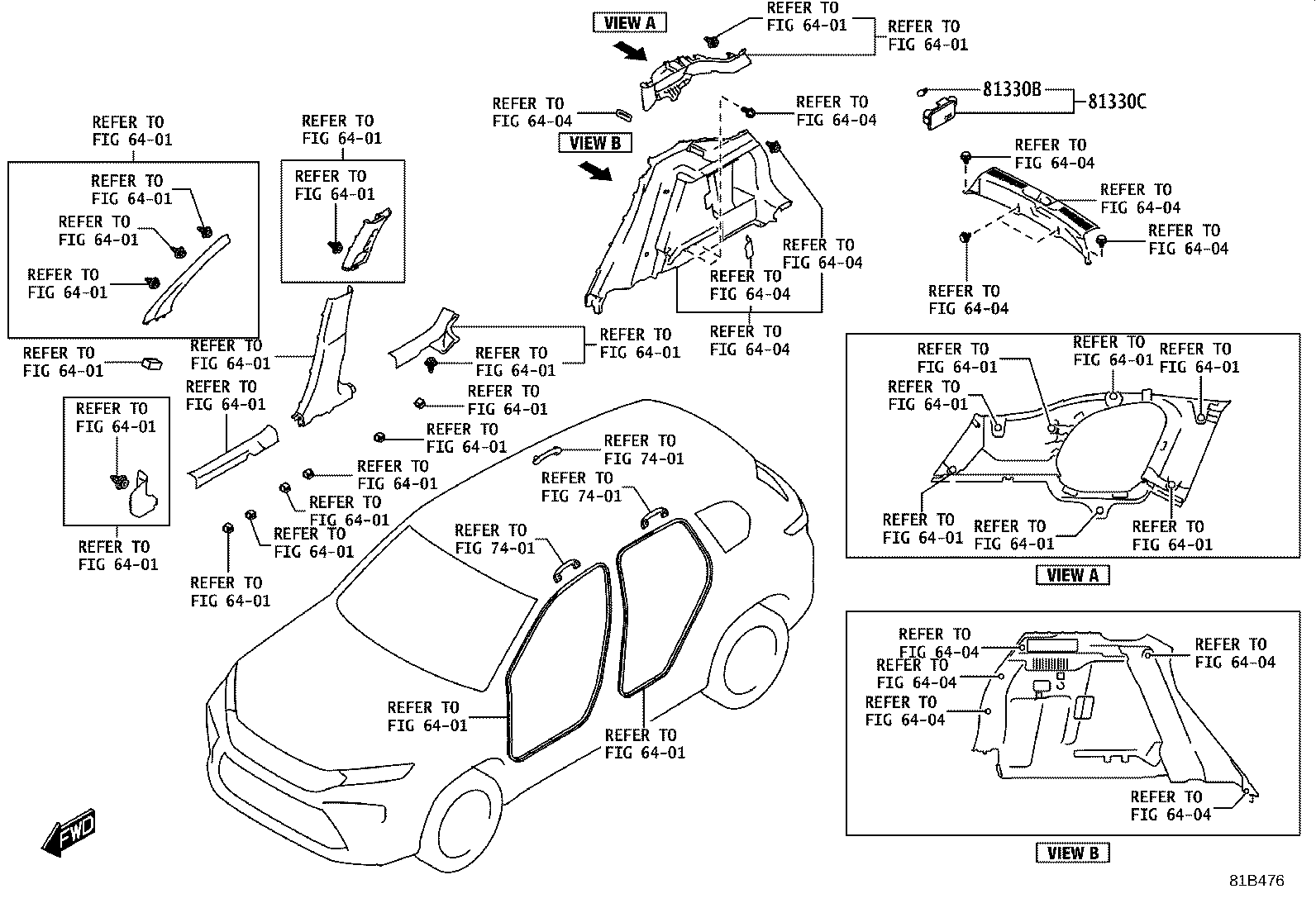

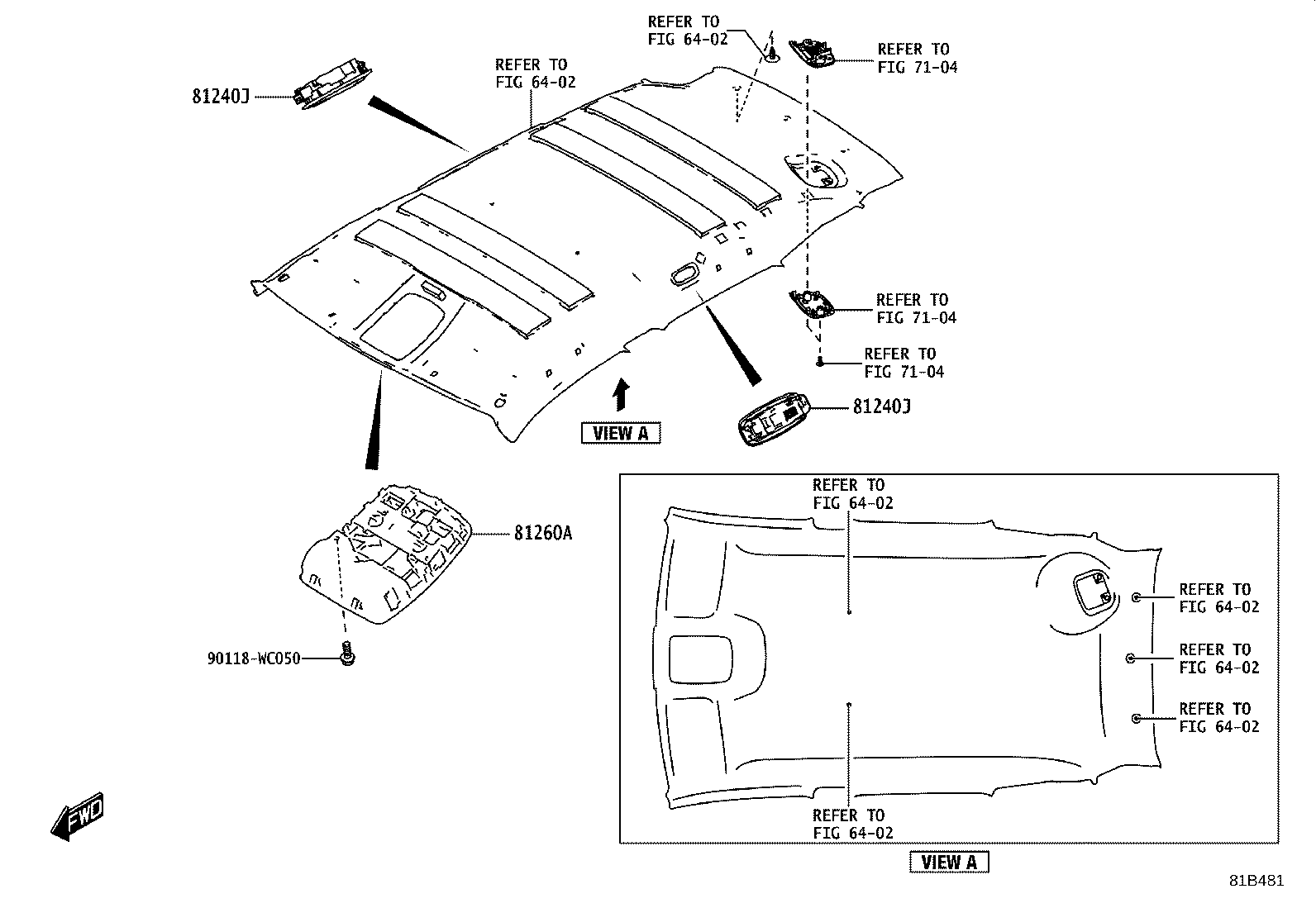

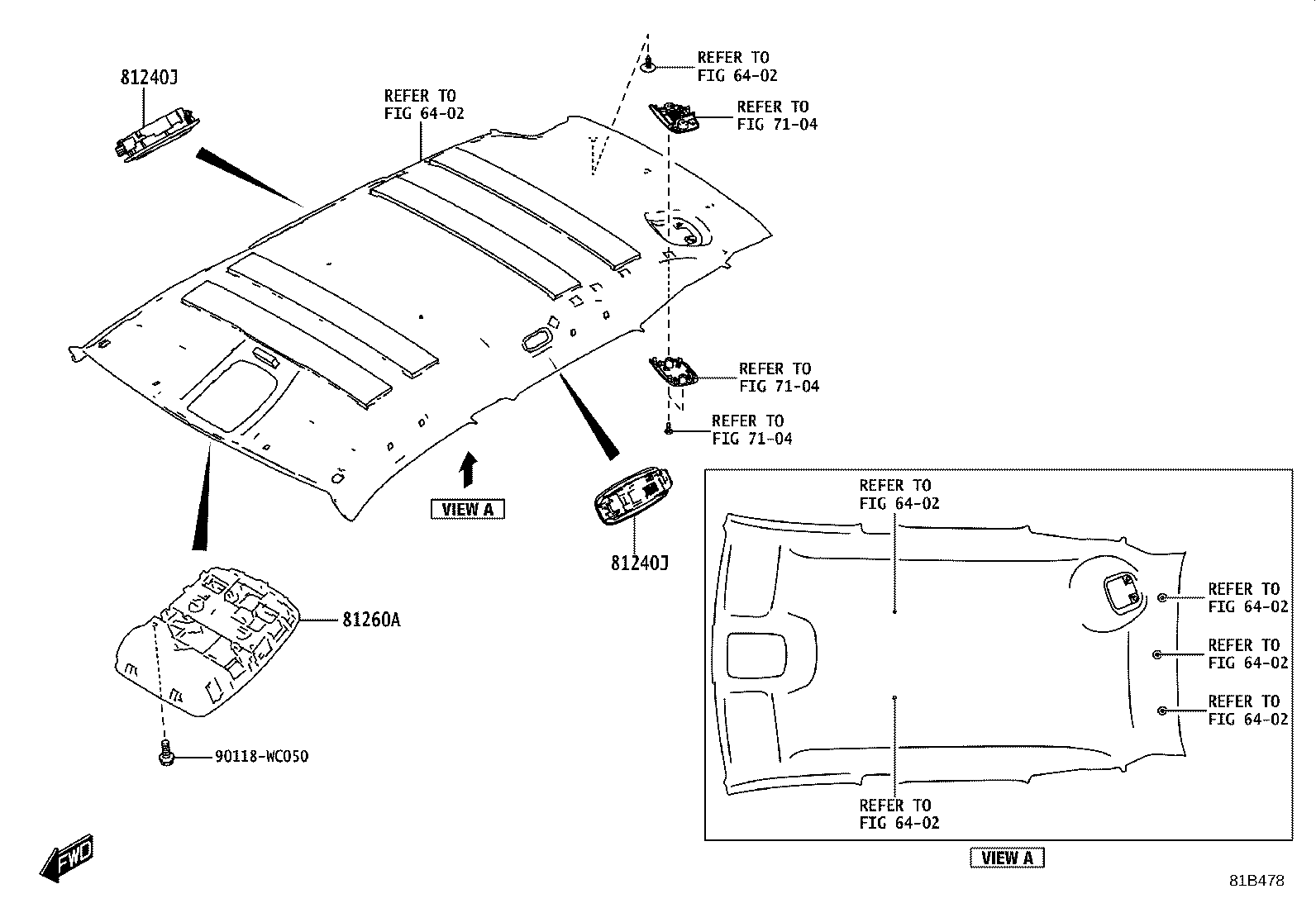

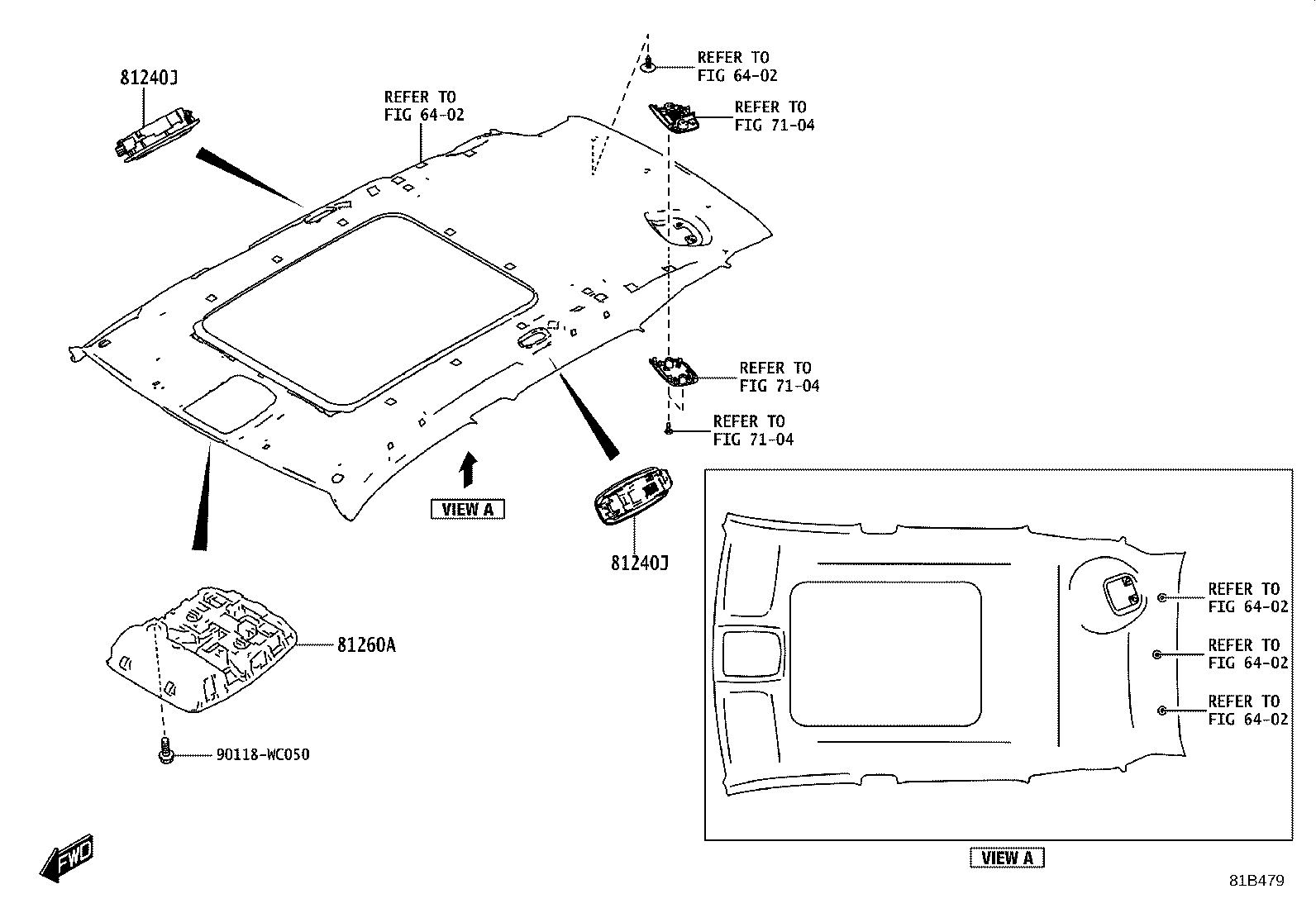

Figure 81B470A 81B470A 2022-11 → — Figure 81B472A 81B472A 2022-11 → — Figure 81B471A 81B471A 2023-02 → — Figure 81B476 81B476 2022-11 → — Figure 81B476 81B476 2022-11 → — Figure 81B477 81B477 2022-11 → — Figure 81B478 81B478 2022-11 → — Figure 81B479 81B479 2022-11 → — Figure 81B480 81B480 2022-11 → — Figure 81B481 81B481 2022-11 → — Figure 81B482 81B482 2022-11 → — Figure 81B473 81B473 2023-02 → — Figure 81B474 81B474 2023-02 → — Figure 81B475 81B475 2023-02 → — Figure 81B487 81B487 2023-02 → —

Part groups

PNCDescription
81080H Lamp Assy, Interior Illumination, NO.1 RH
81080J Lamp Assy, Interior Illumination, NO.1
81080L Lamp Assy, Interior Illumination, NO.1 LH
81080T Lamp Assy, Interior Illumination, NO.2 RH
81080U Lamp Assy, Interior Illumination, NO.2 LH
81230 Lamp Assy, Courtesy
81240J Lamp Assy, Room
81260 Lamp Assy, Glove Box
81260A Lamp Assy, Map
81260C Bulb(FOR MAP LAMP)
81260F Bulb(FOR GLOVE BOX LAMP)
81265D Lens, Map Lamp, RH
81266E Lens, Map Lamp, LH
81330B Bulb, Luggage Compartment Lamp
81330C Lamp Assy, Luggage Compartment
81340B Bulb (FOR VANITY LAMP)
81341A Lens, Vanity Lamp RH
81341B Lens, Vanity Lamp LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
