Toyota Urban Cruiser

2022-11 → present · chassis FG21###,22###,61###,62### · catalogue 138320 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery & Battery Cable

8 part groups · 10 illustrations

Illustrations

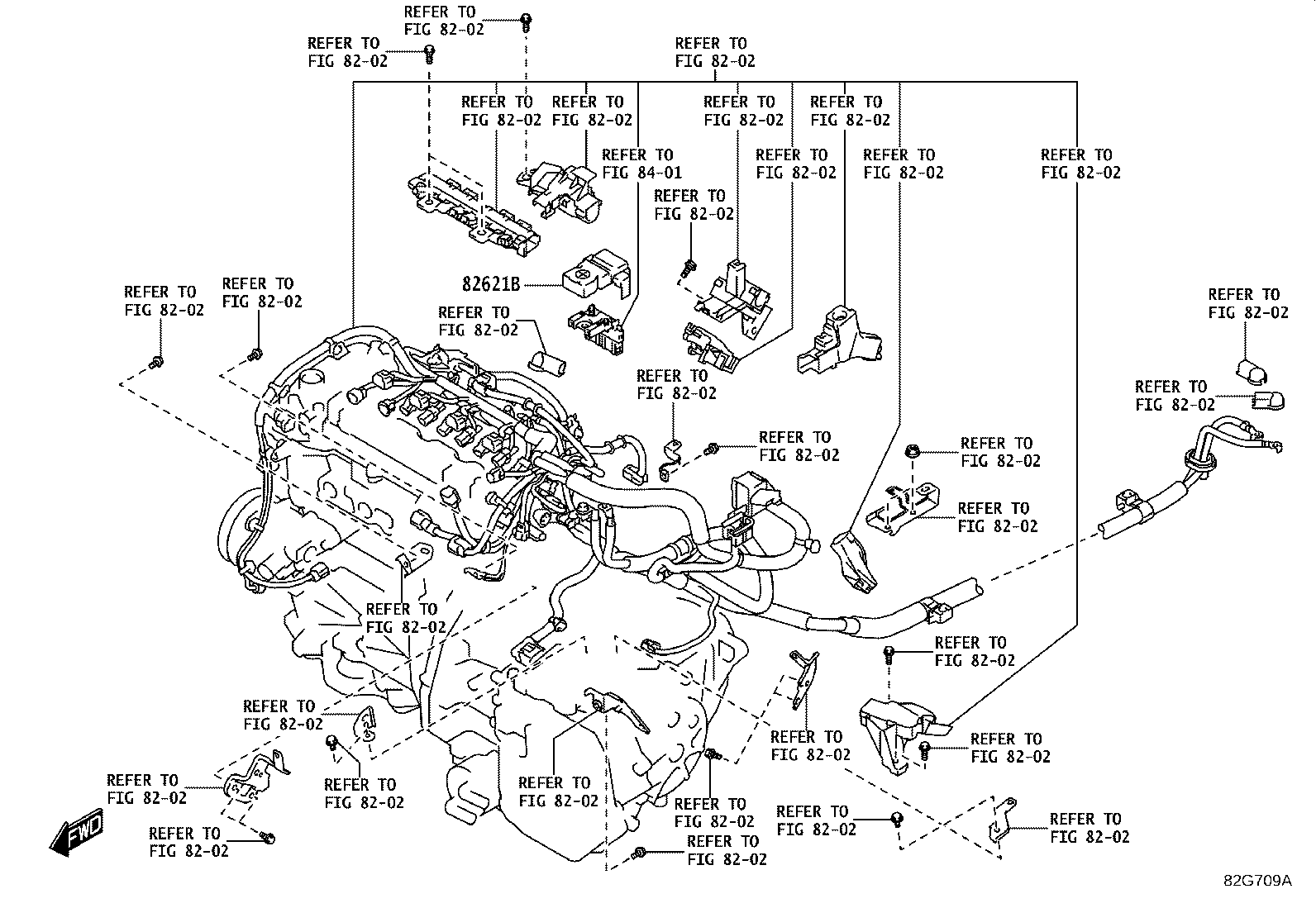

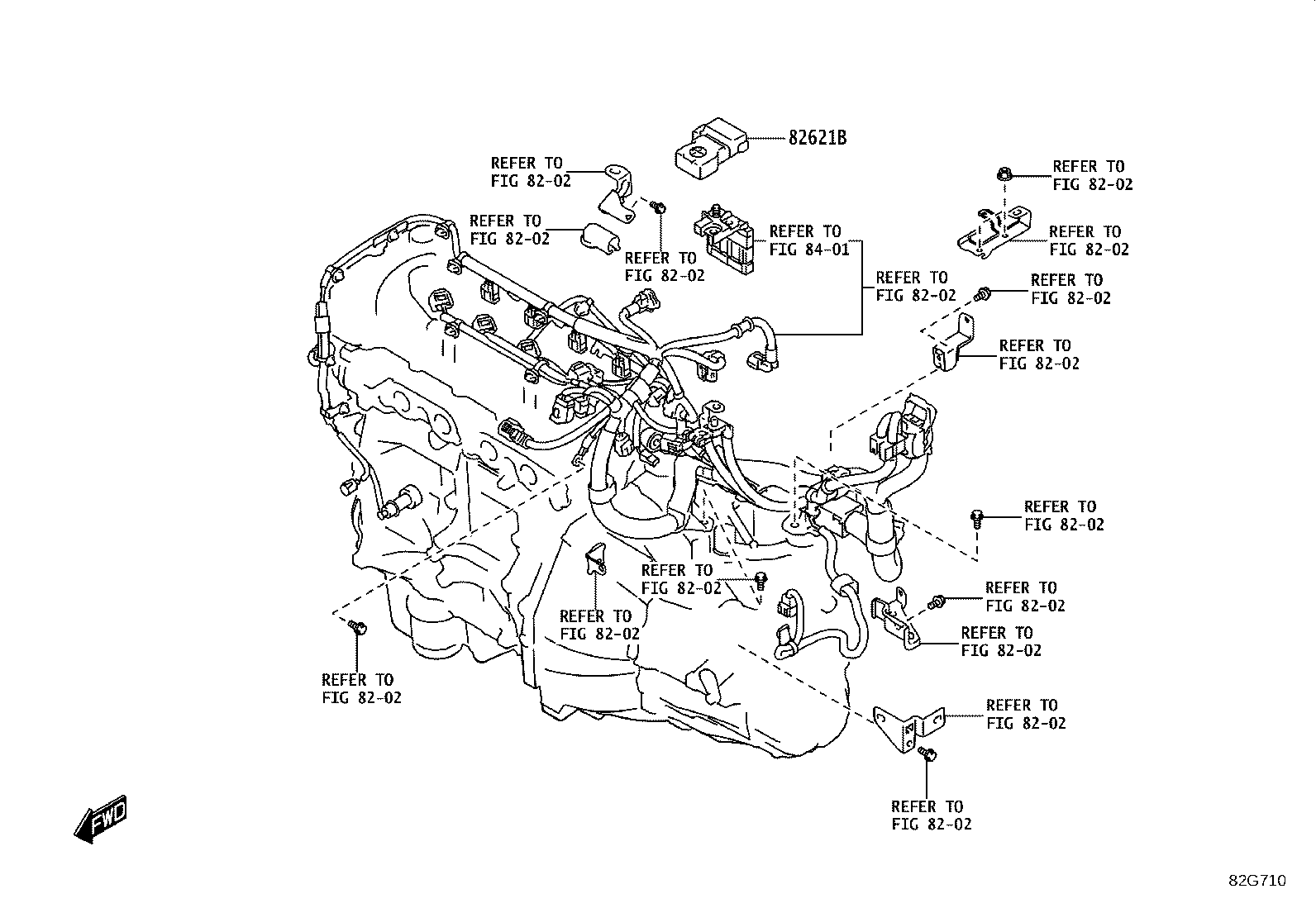

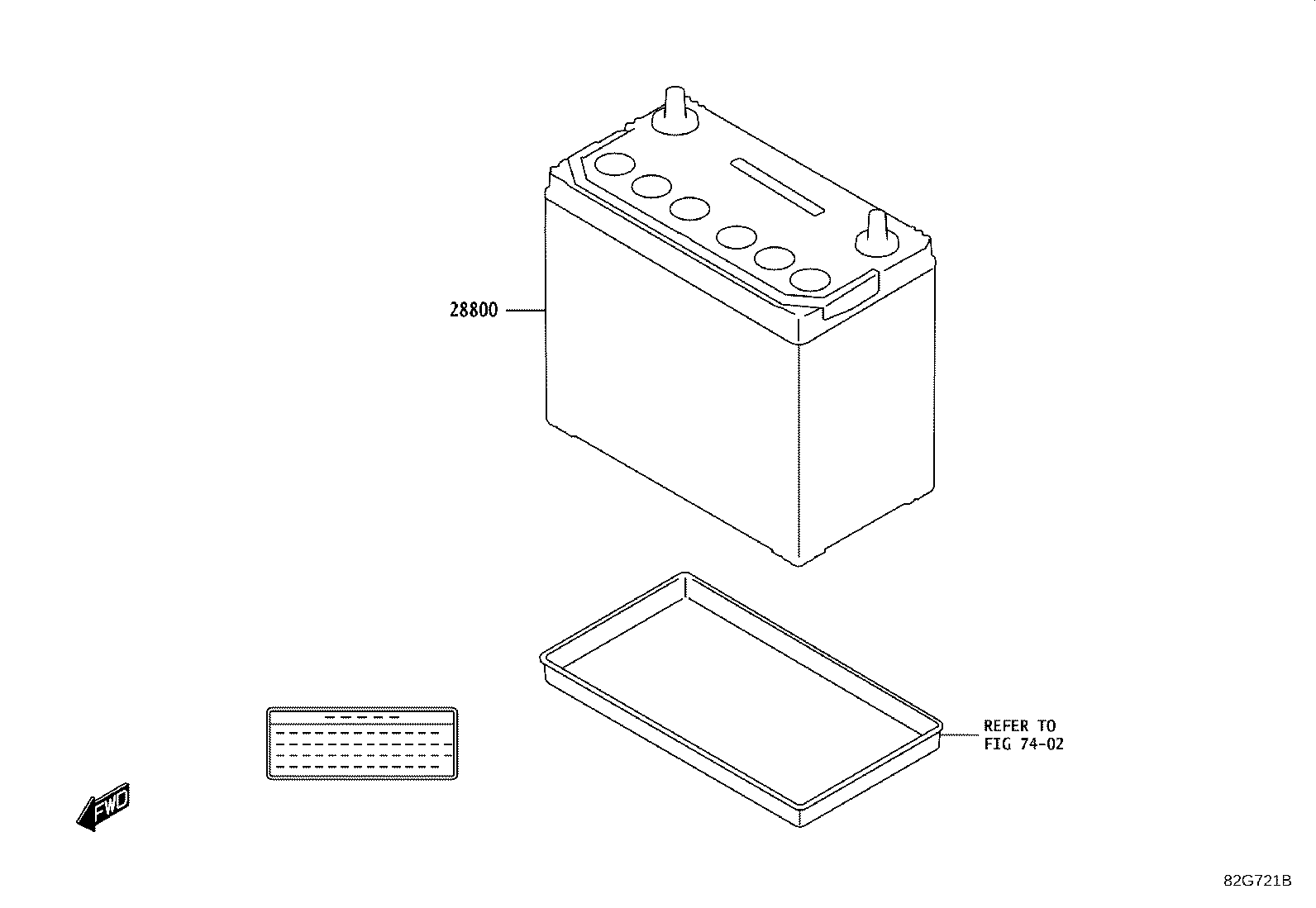

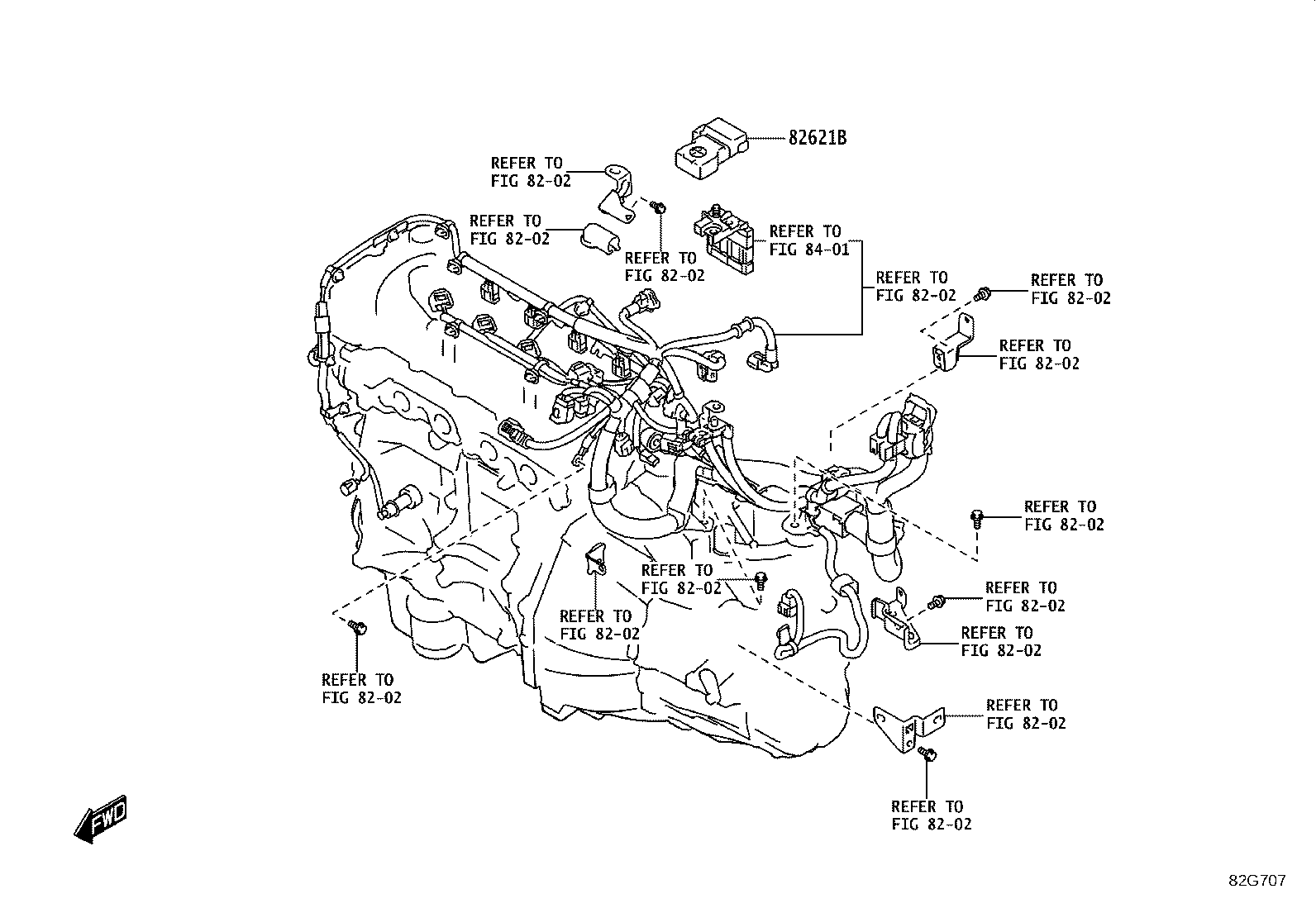

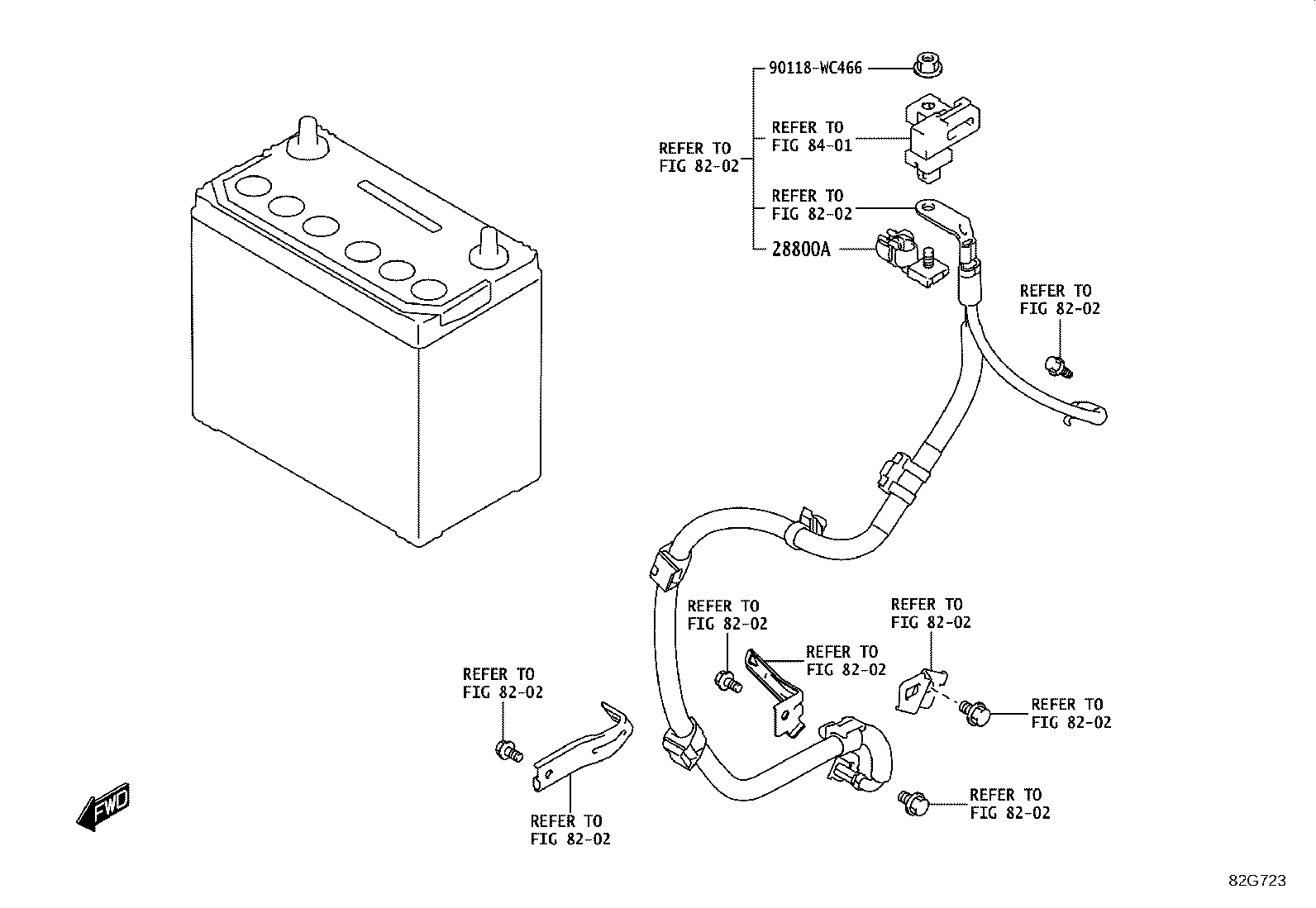

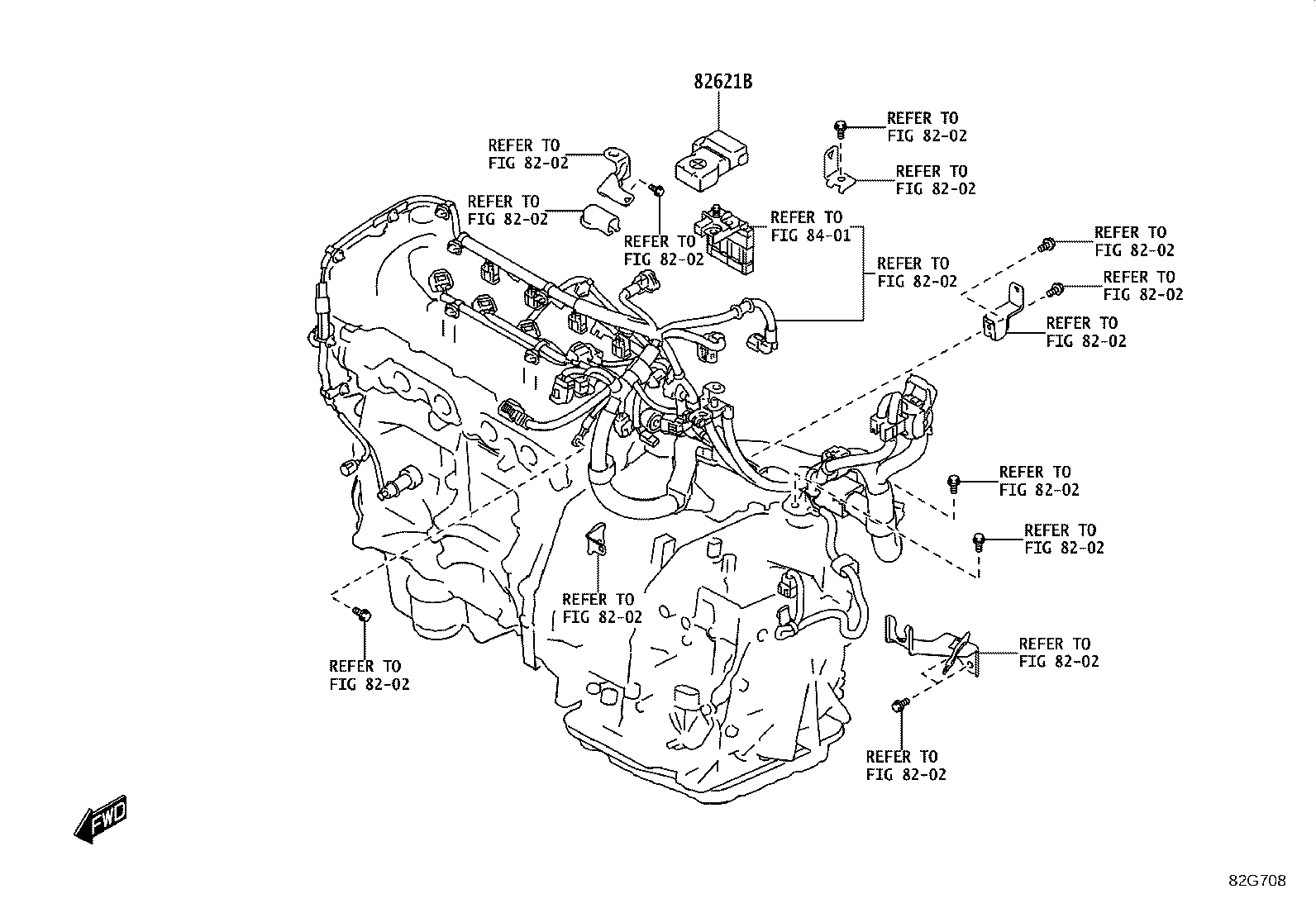

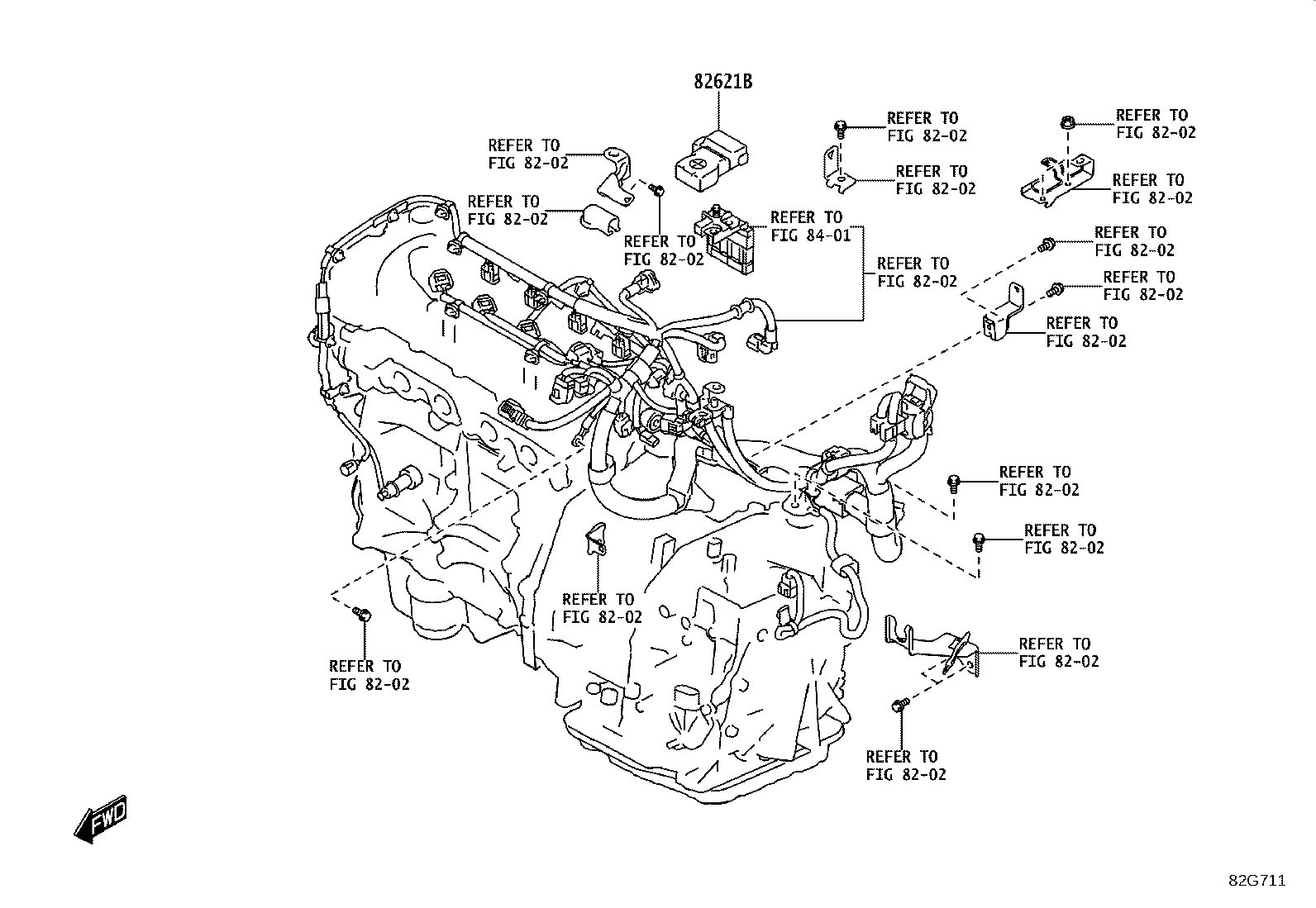

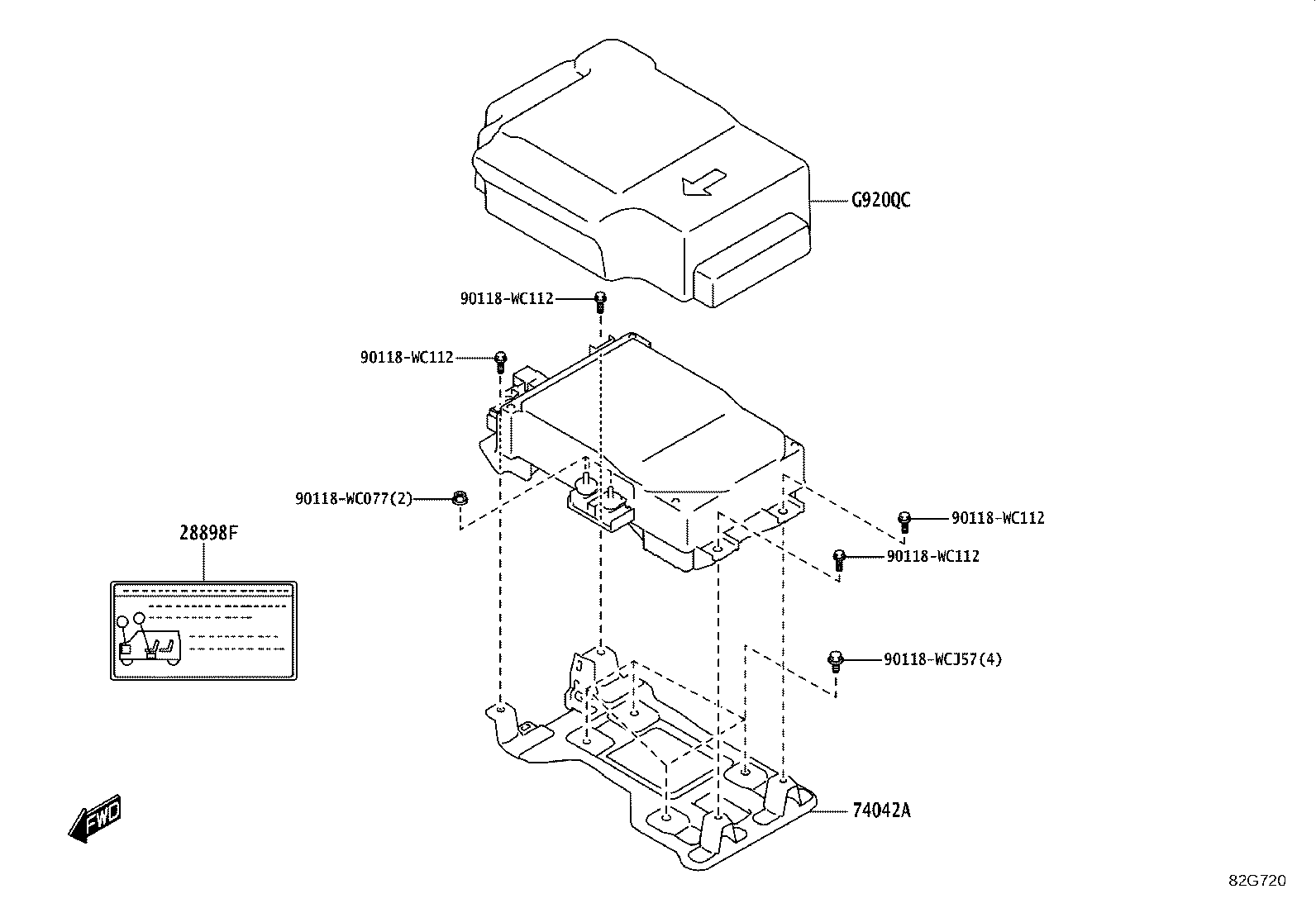

Figure 82G719 82G719 2023-02 → — Figure 82G720 82G720 2023-02 → — Figure 82G722 82G722 2022-11 → — Figure 82G721B 82G721B 2023-02 → — Figure 82G723 82G723 2023-02 → — Figure 82G707 82G707 2022-11 → — Figure 82G708 82G708 2022-11 → — Figure 82G710 82G710 2022-11 → — Figure 82G711 82G711 2022-11 → — Figure 82G709A 82G709A 2023-02 → —

Part groups

PNCDescription
28800 Battery
28800A Terminal, Battery Positive
28898F Label, Battery Information
28899 Insulator, Battery
74042A Bracket Sub-assy, Battery
82621B Cover, Fusible Link
G920QC Cover, Battery Pack
G9510 Battery Assy, HV Supply
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
