Toyota Urban Cruiser

2022-11 → present · chassis FG21###,22###,61###,62### · catalogue 138320 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

29 part groups · 61 illustrations

Illustrations

Figure 82G726 82G726 2022-11 → — Figure 82G725 82G725 2023-02 → — Figure 82G747 82G747 2023-02 → — Figure 82G737 82G737 2022-11 → — Figure 82G738 82G738 2022-11 → — Figure 82G739 82G739 2022-11 → — Figure 82G740 82G740 2022-11 → — Figure 82G741 82G741 2022-11 → — Figure 82G744 82G744 2022-11 → — Figure 82G745 82G745 2022-11 → — Figure 82G746 82G746 2022-11 → — Figure 82G742 82G742 2023-02 → — Figure 82G743 82G743 2023-02 → — Figure 82G702 82G702 2022-11 → — Figure 82G703 82G703 2022-11 → — Figure 82G705B 82G705B 2022-11 → — Figure 82G706B 82G706B 2022-11 → — Figure 82G704C 82G704C 2023-02 → — Figure 82G748 82G748 2022-11 → — Figure 82G749 82G749 2022-11 → — Figure 82G750 82G750 2022-11 → — Figure 82G712 82G712 2022-11 → — Figure 82G713 82G713 2022-11 → — Figure 82G714 82G714 2022-11 → — Figure 82G715 82G715 2023-02 → — Figure 82G716 82G716 2023-02 → — Figure 82G717 82G717 2023-02 → — Figure 82G718 82G718 2023-02 → — Figure 82G751 82G751 2022-11 → — Figure 82G752 82G752 2022-11 → — Figure 82G755 82G755 2022-11 → — Figure 82G753 82G753 2023-02 → — Figure 82G754 82G754 2023-02 → — Figure 82G756 82G756 2023-02 → — Figure 82G757 82G757 2022-11 → — Figure 82G758 82G758 2022-11 → — Figure 82G759 82G759 2022-11 → — Figure 82G762 82G762 2022-11 → — Figure 82G763 82G763 2022-11 → — Figure 82G764 82G764 2022-11 → — Figure 82G760 82G760 2023-02 → — Figure 82G761 82G761 2023-02 → — Figure 82G765 82G765 2023-02 → — Figure 82G766 82G766 2023-02 → — Figure 82G769 82G769 2022-11 → — Figure 82G767 82G767 2023-02 → — Figure 82G768 82G768 2023-02 → — Figure 82G770 82G770 2022-11 → — Figure 82G771 82G771 2022-11 → — Figure 82G776 82G776 2022-11 → — Figure 82G774 82G774 2023-02 → — Figure 82G775 82G775 2023-02 → — Figure 82G777 82G777 2023-02 → — Figure 82G781 82G781 2022-11 → — Figure 82G782 82G782 2022-11 → — Figure 82G778 82G778 2023-02 → — Figure 82G779 82G779 2023-02 → — Figure 82G780 82G780 2023-02 → — Figure 82G783 82G783 2023-02 → — Figure 82G784 82G784 2023-02 → — Figure 82G785 82G785 2022-11 → —

Part groups

PNCDescription

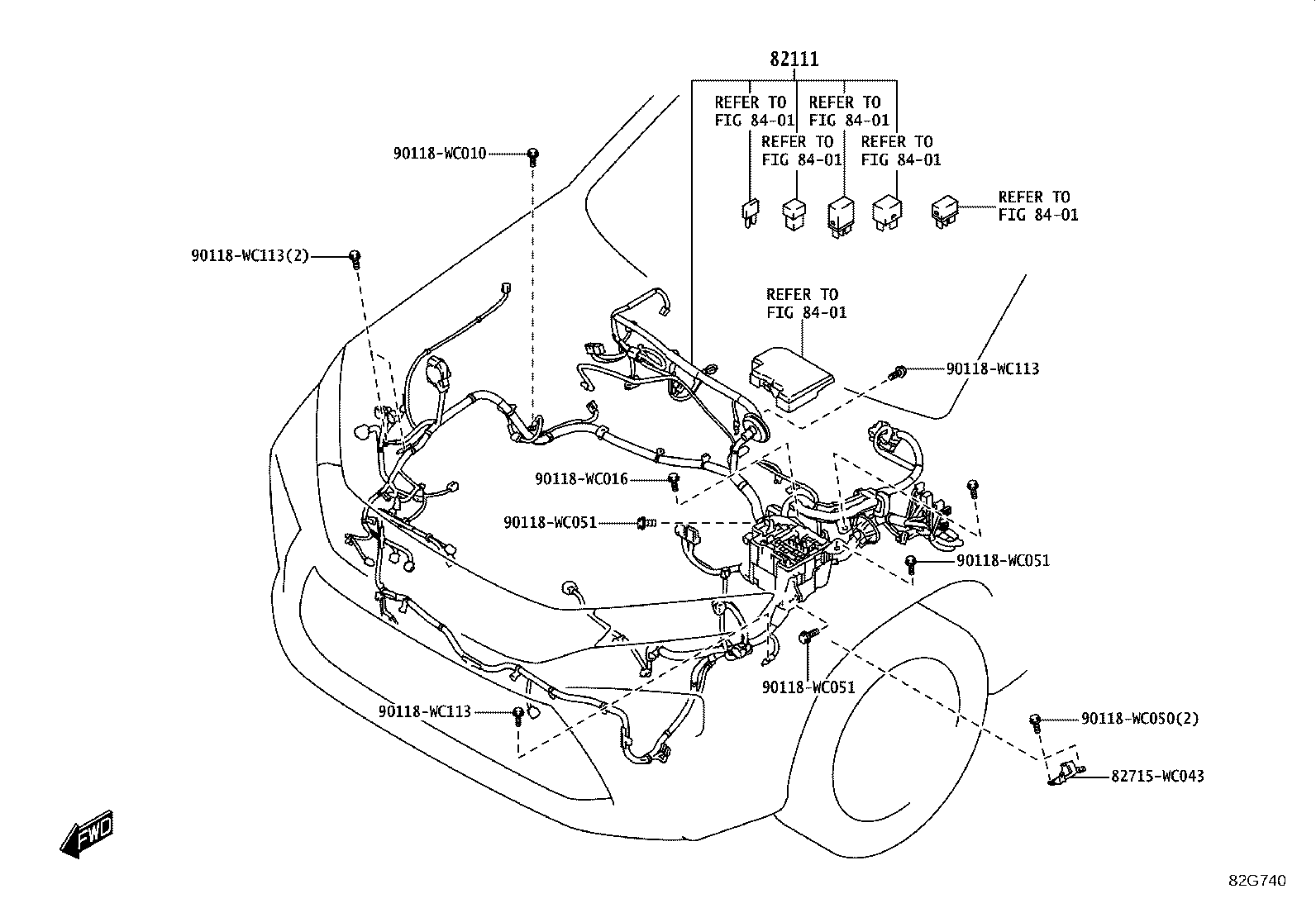

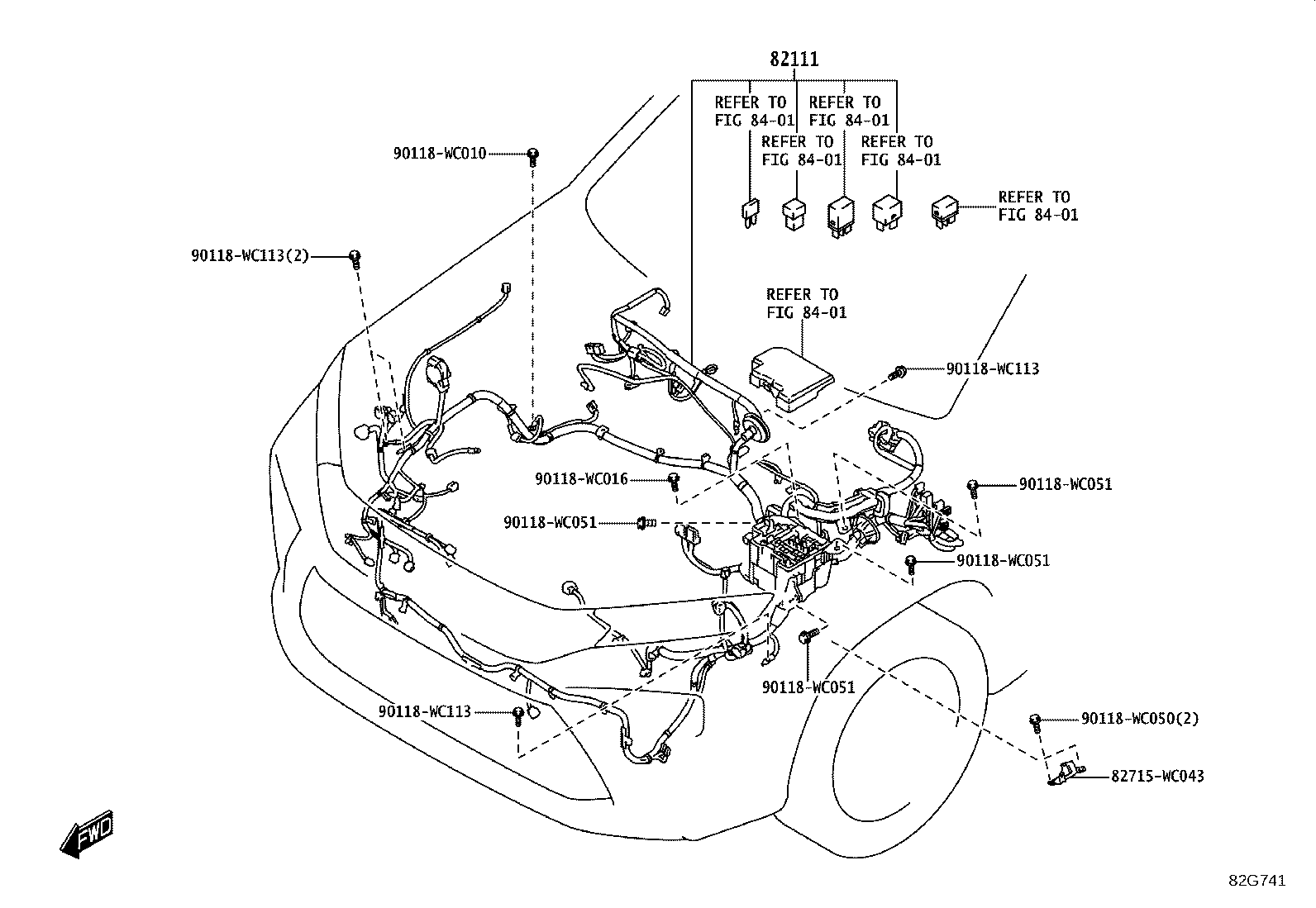

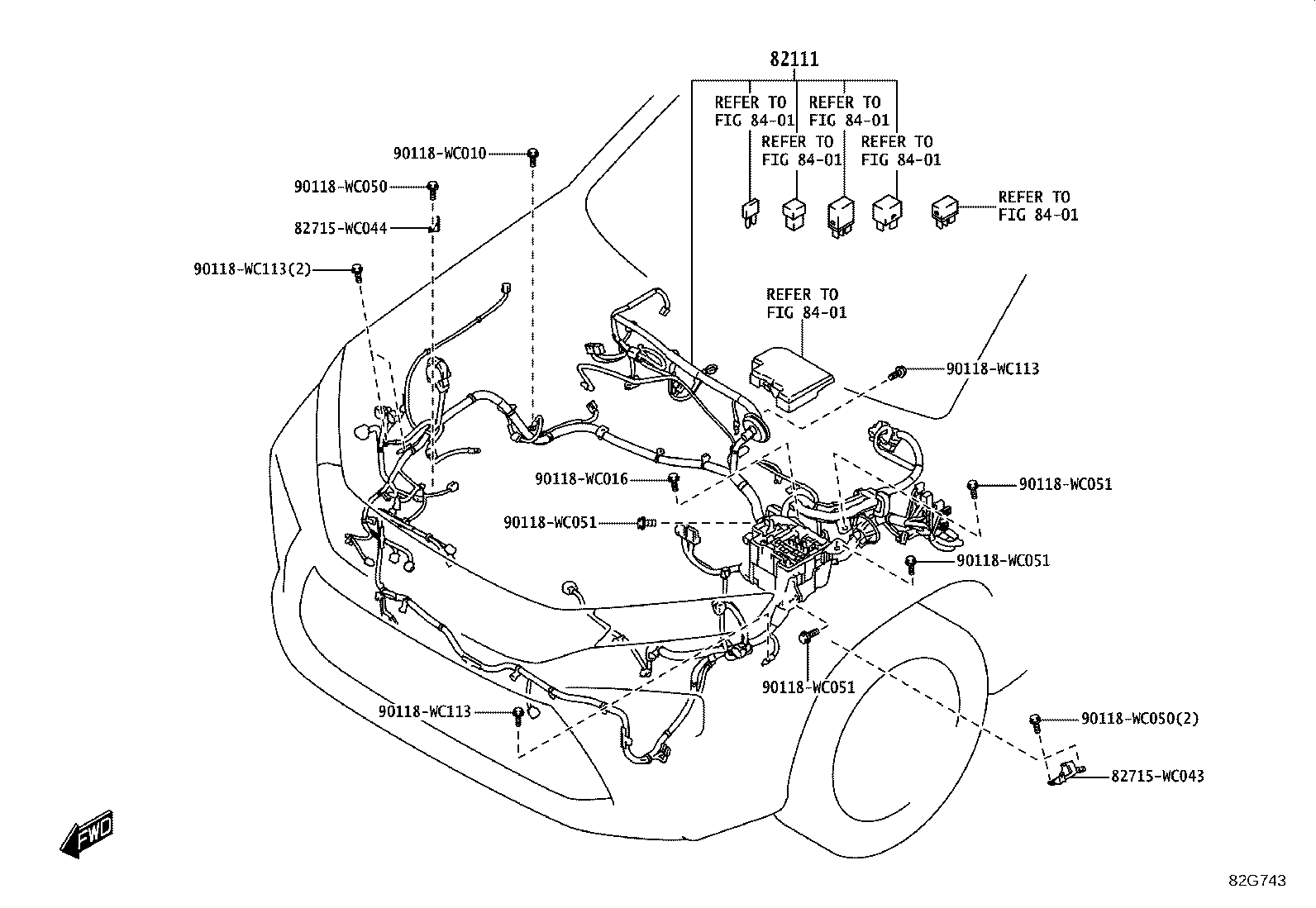

82111 Wire, Engine Room Main

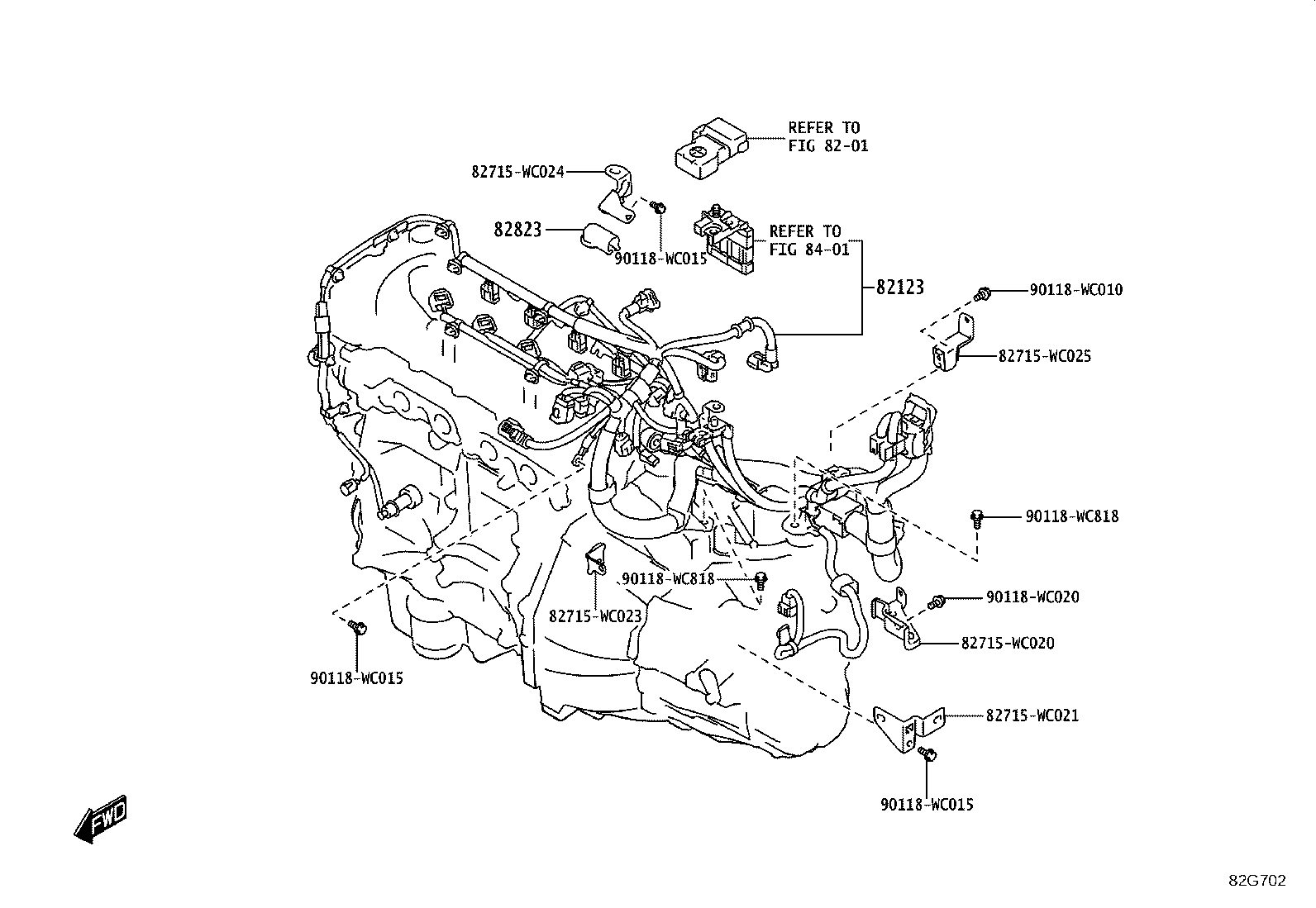

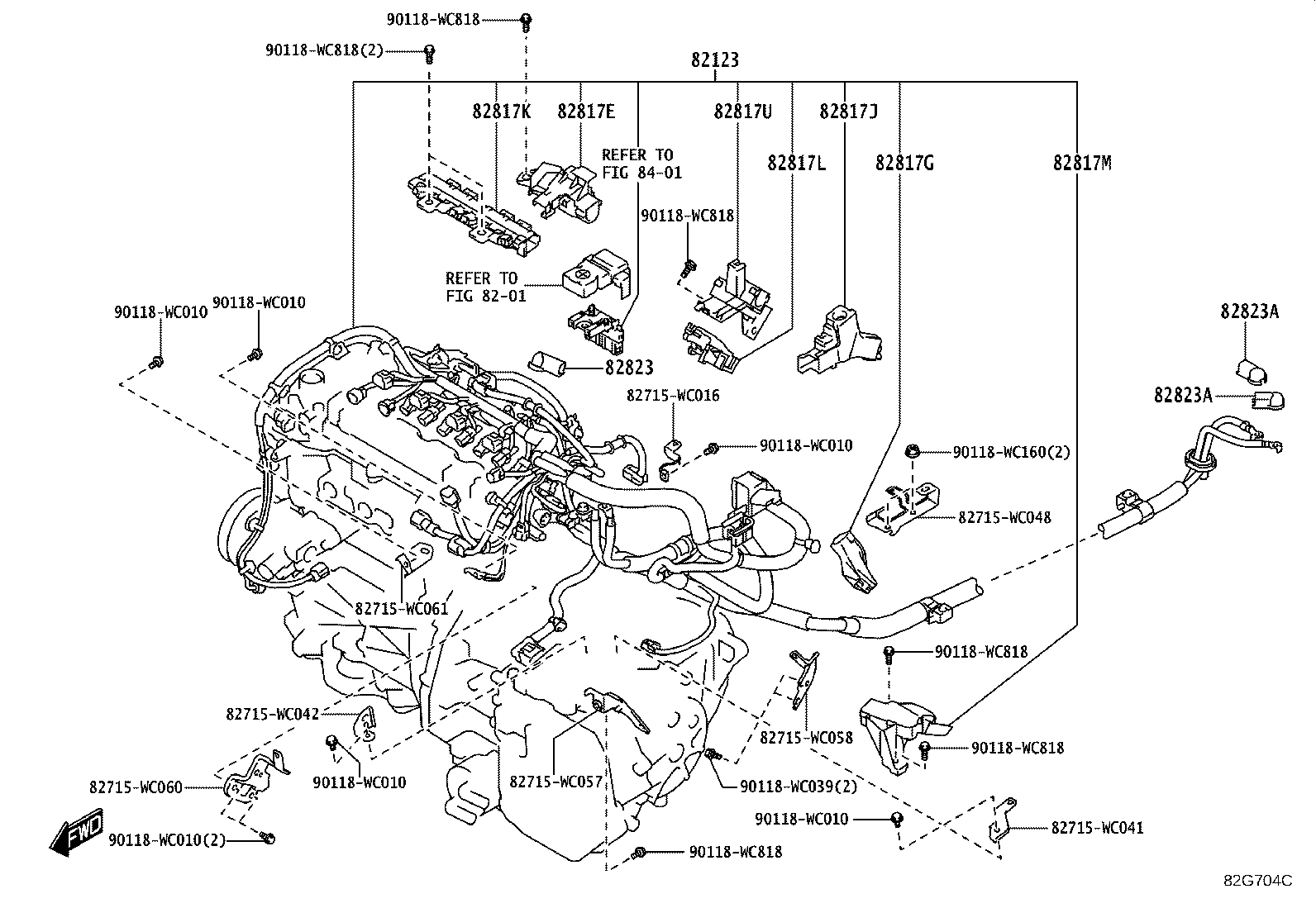

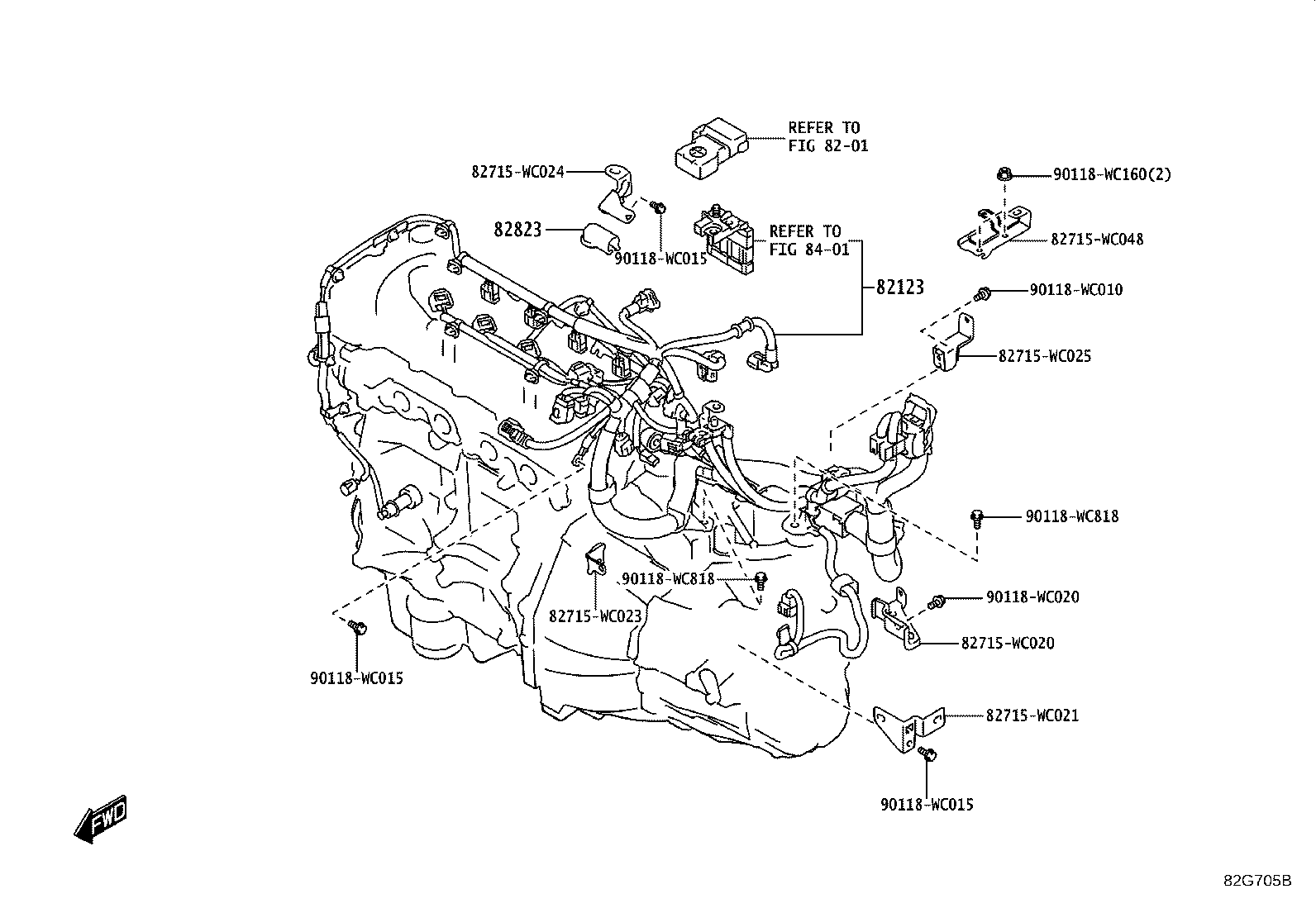

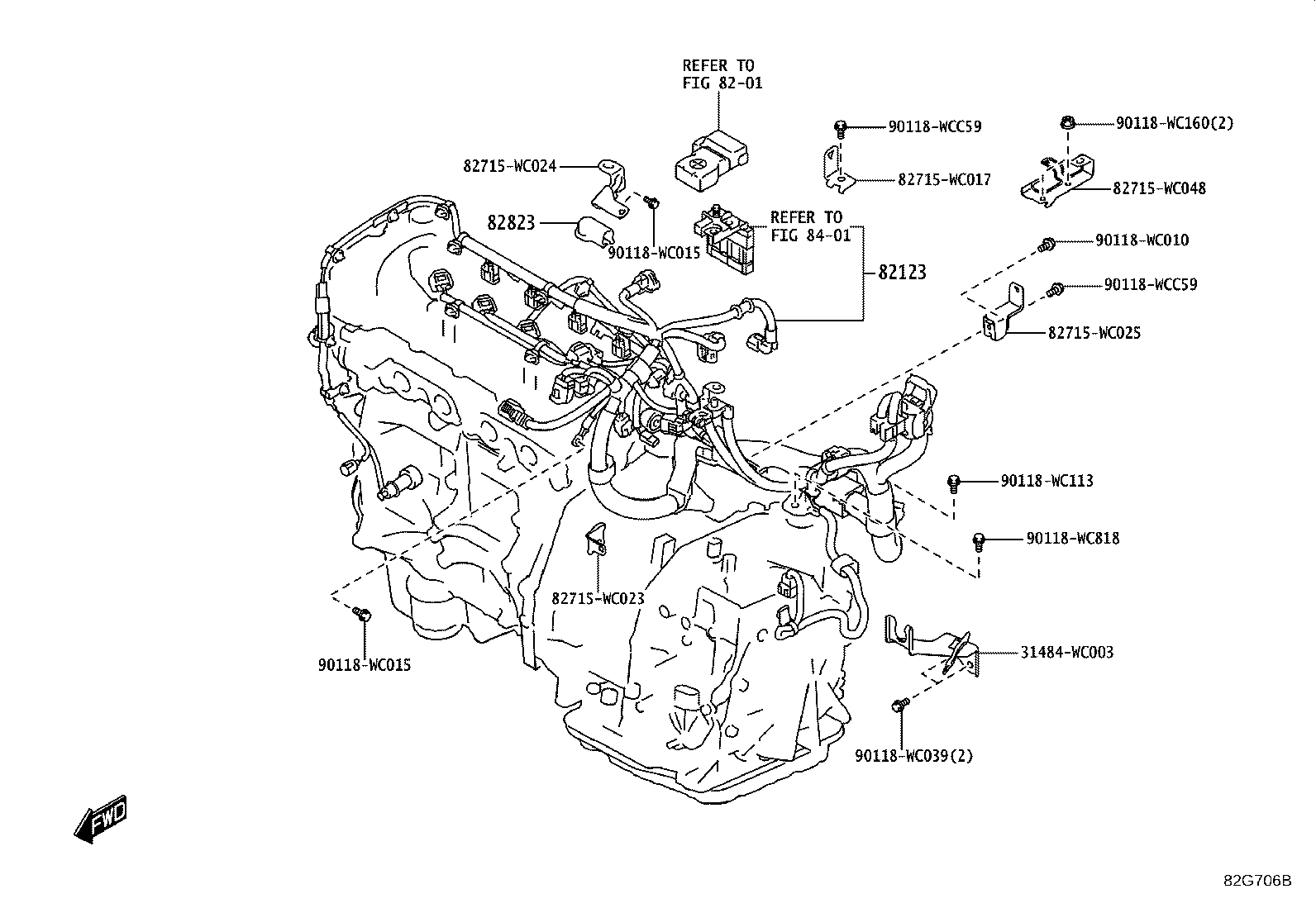

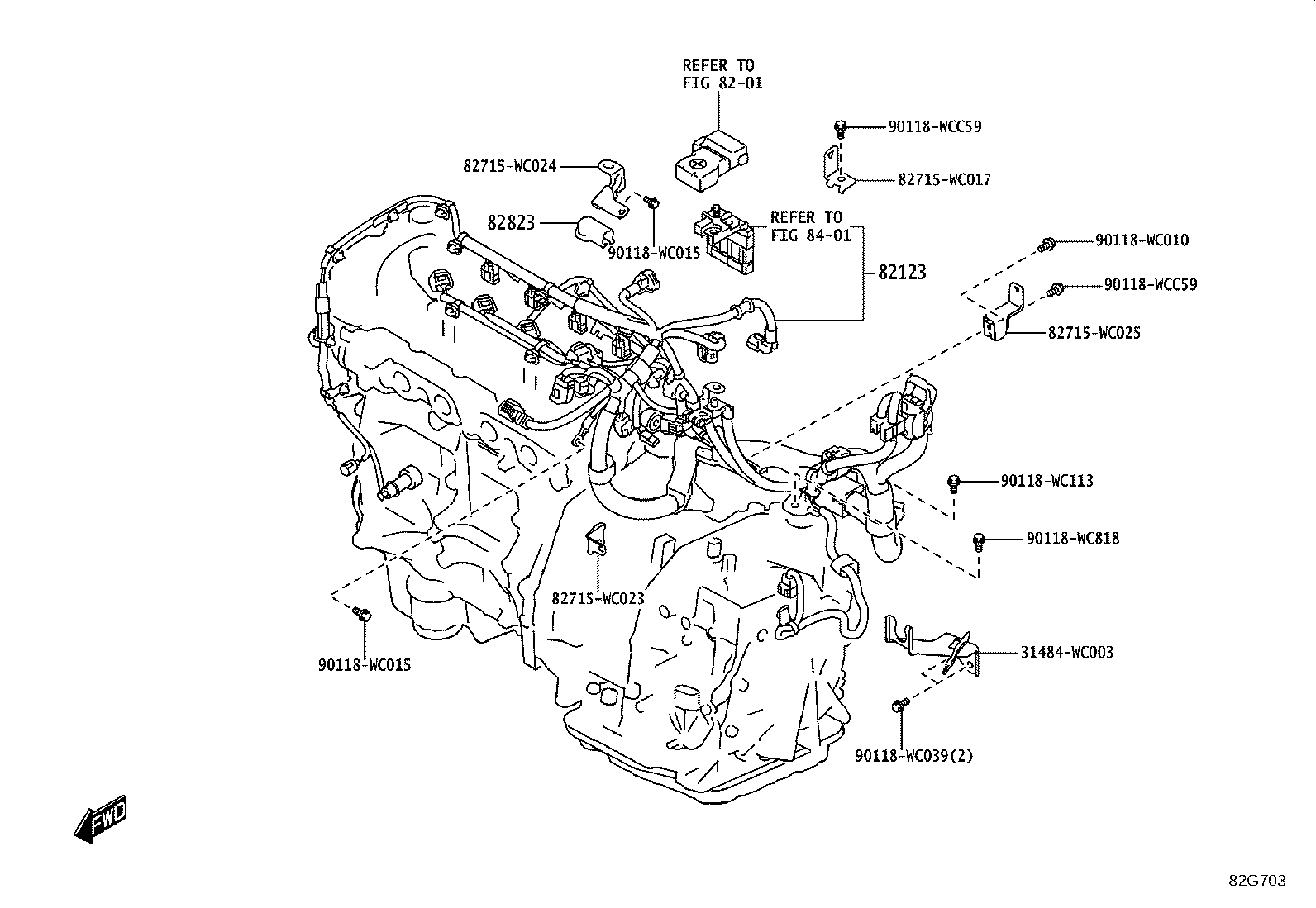

82123 Wire, Engine, NO.3

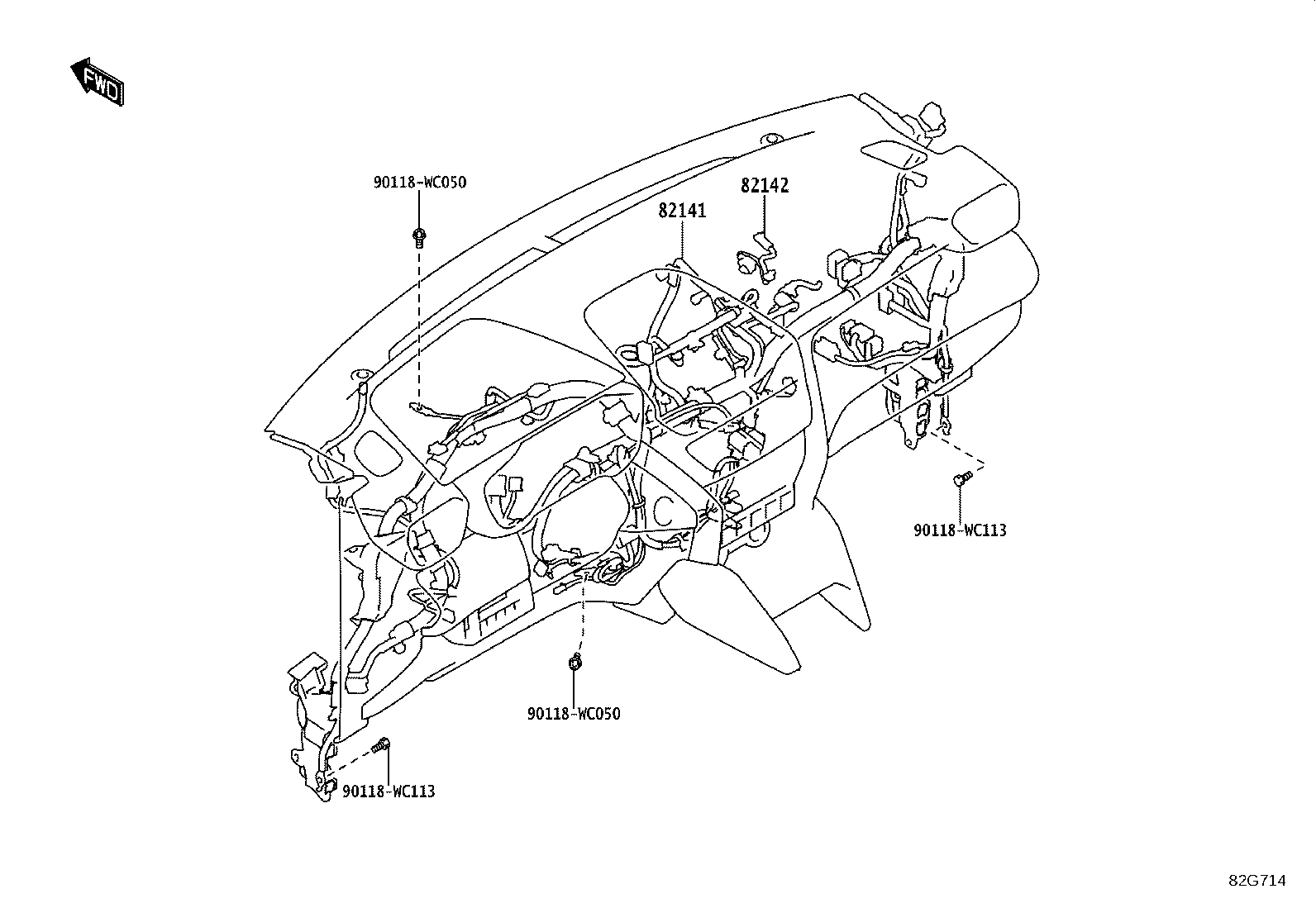

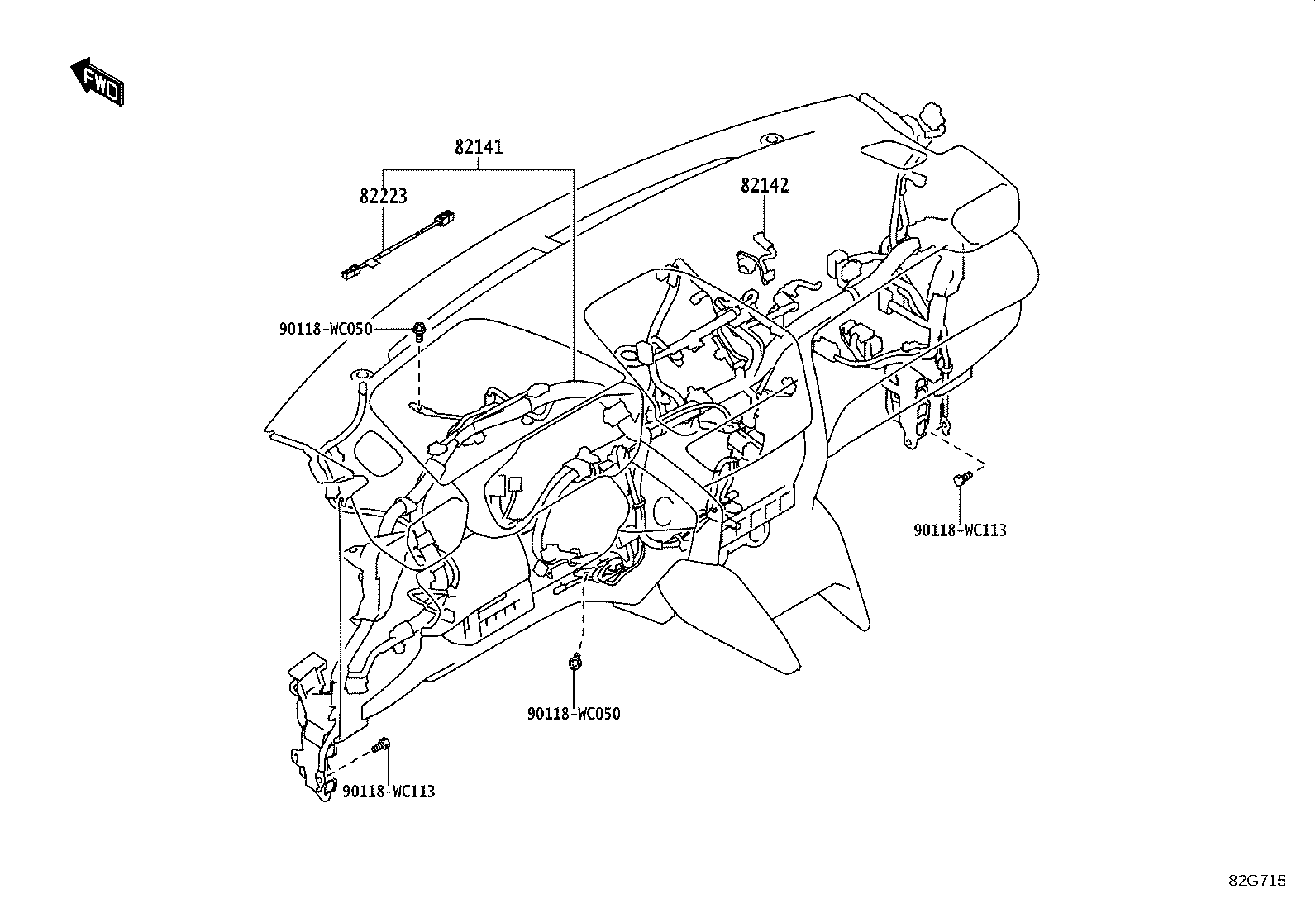

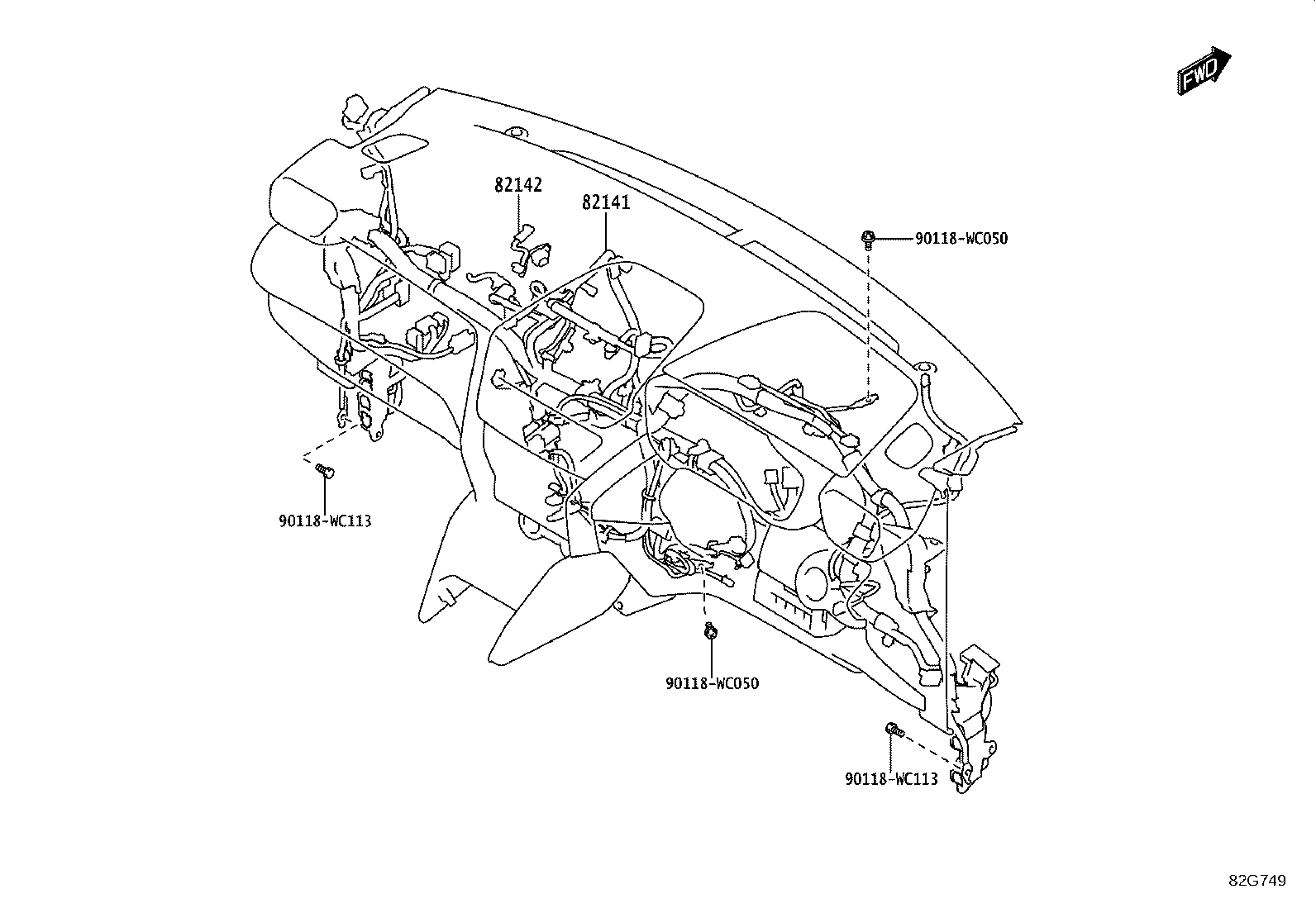

82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2

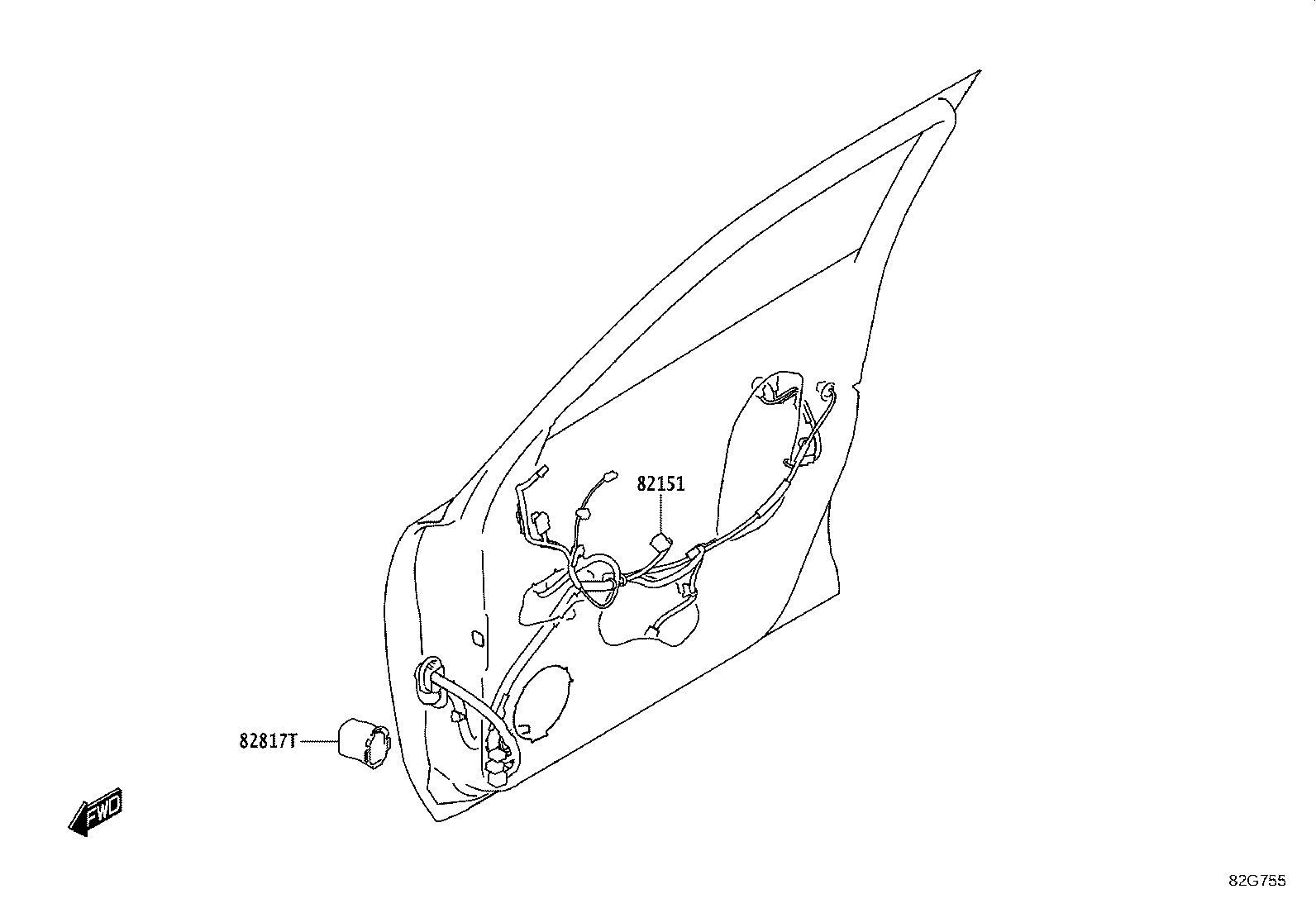

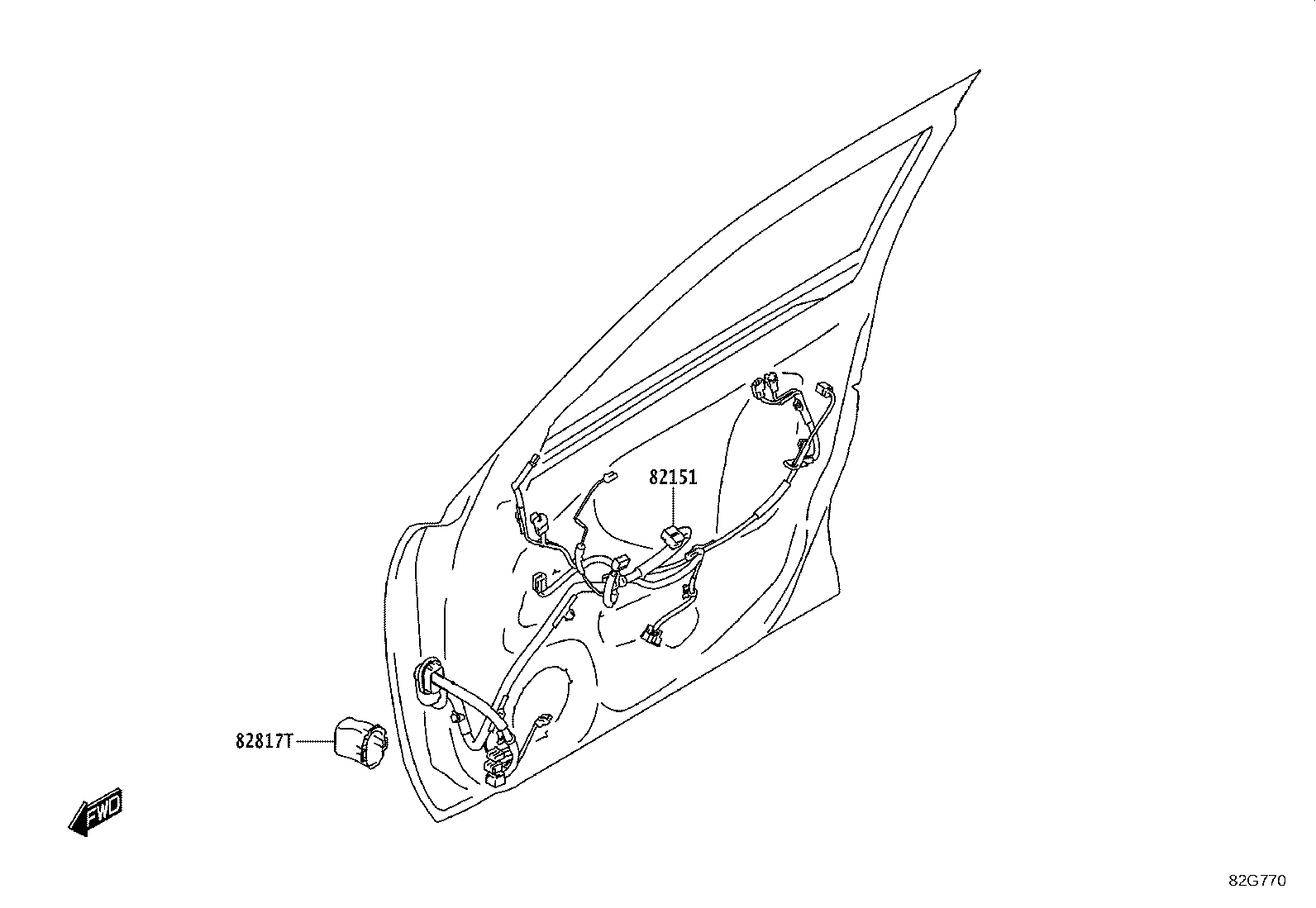

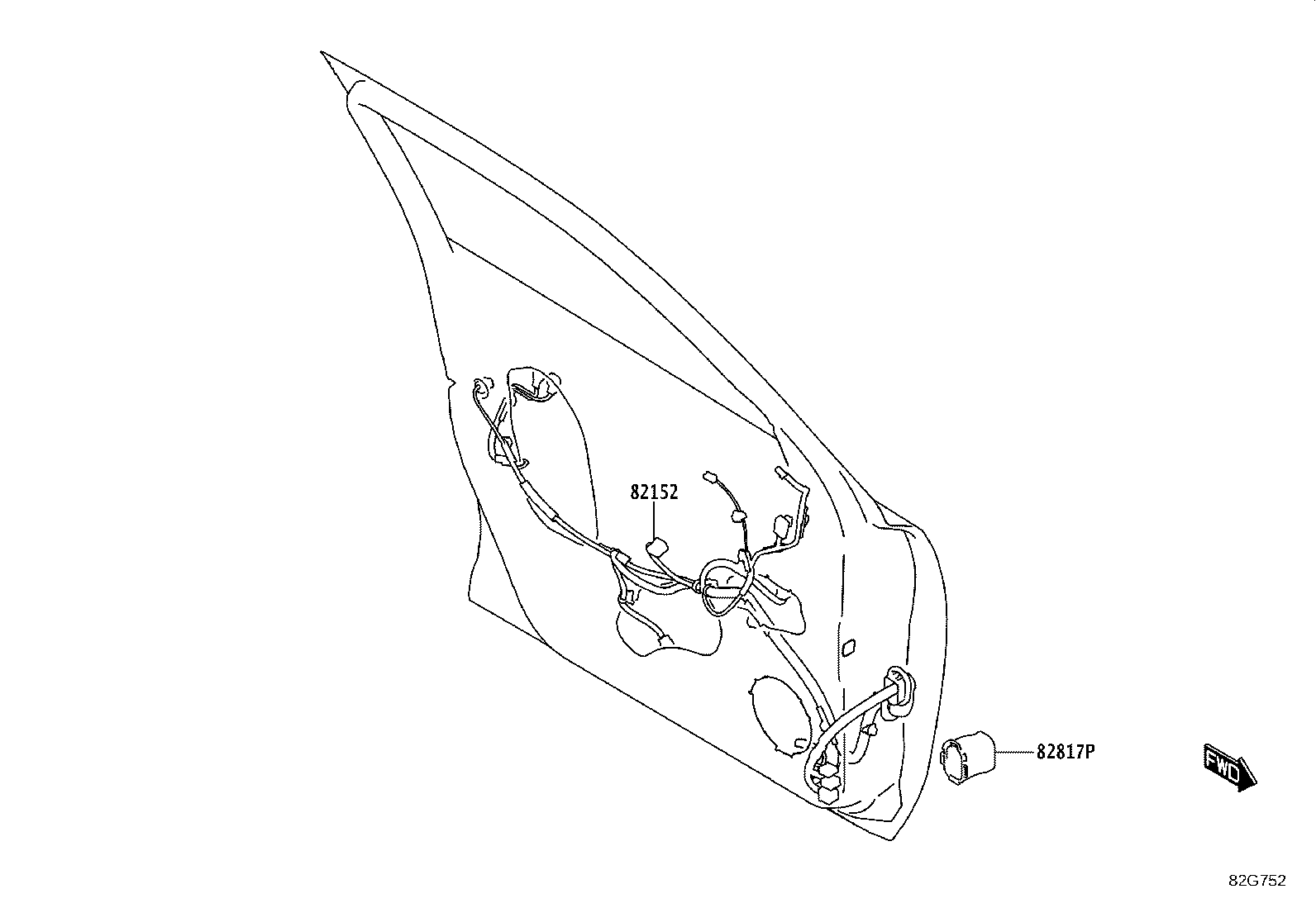

82151 Wire, Front Door, RH

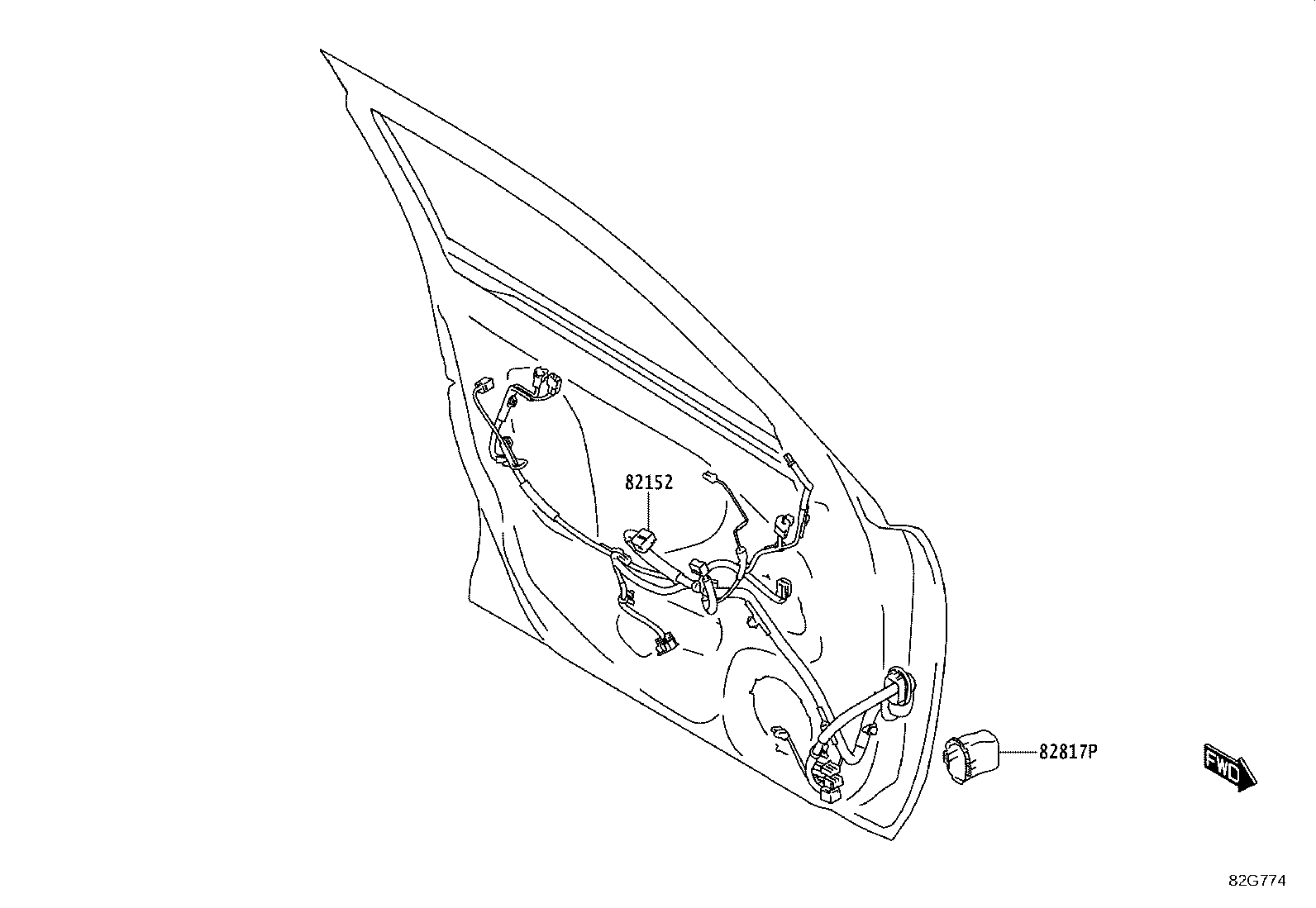

82152 Wire, Front Door, LH

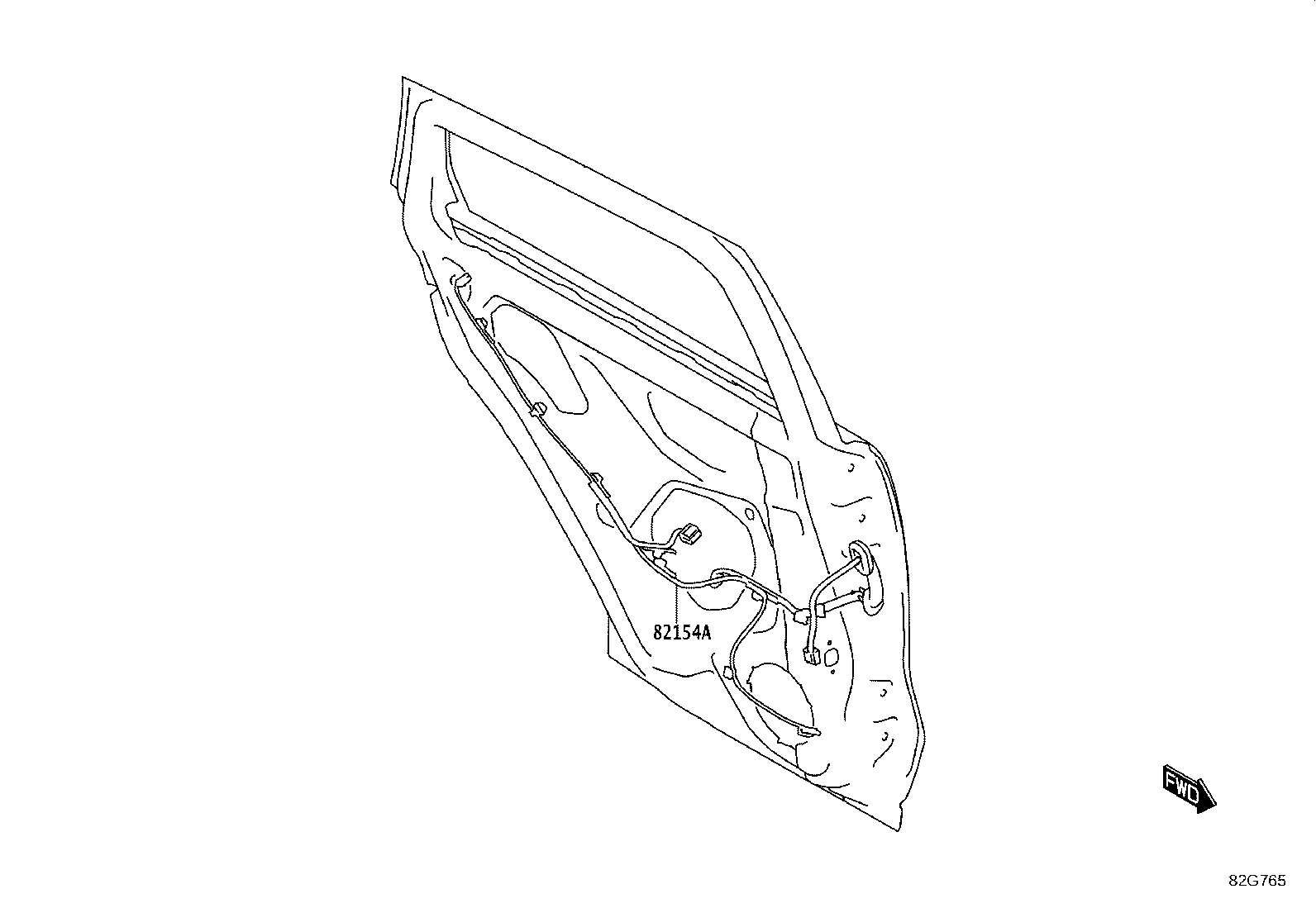

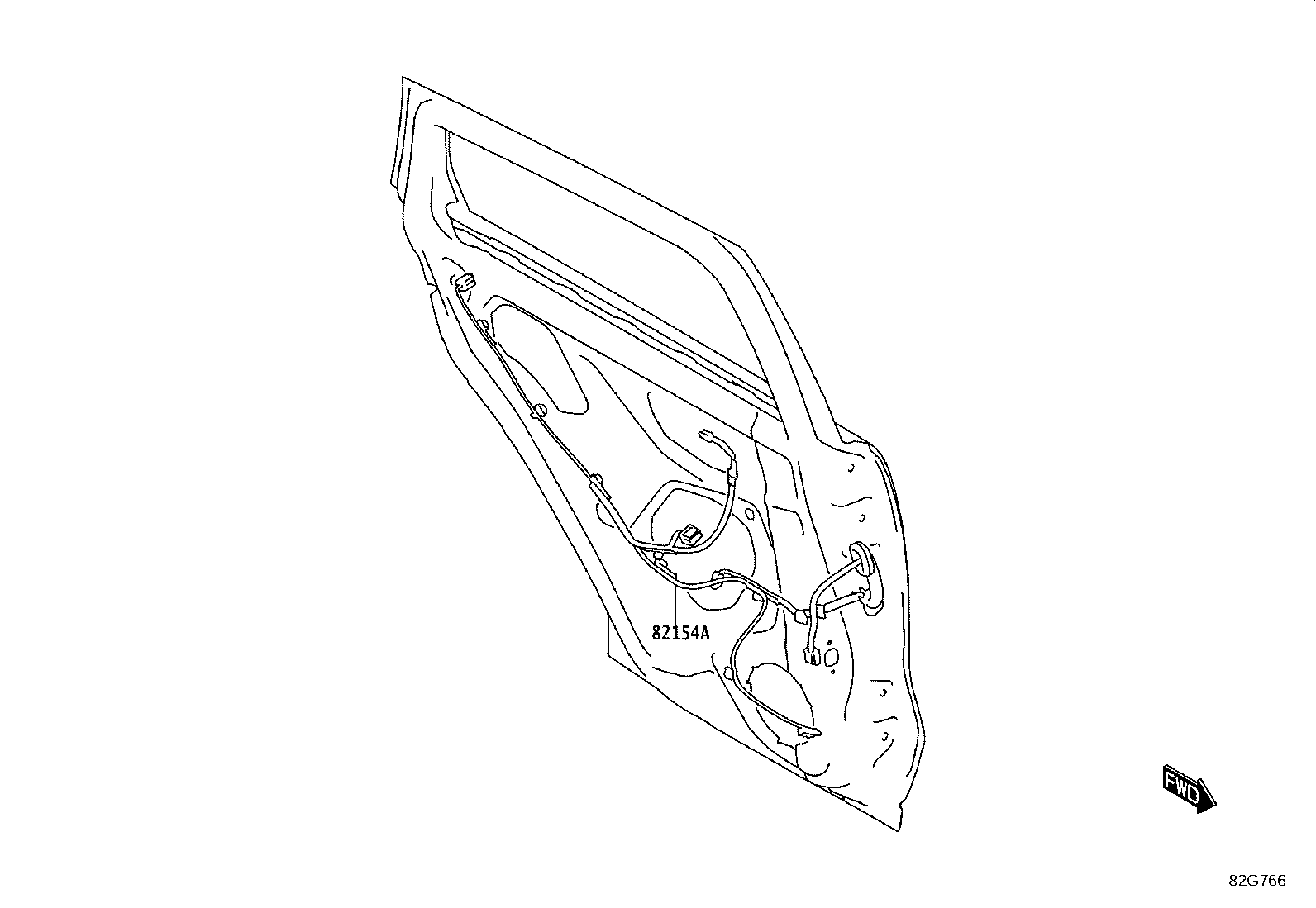

82154A Wire, Rear Door, LH

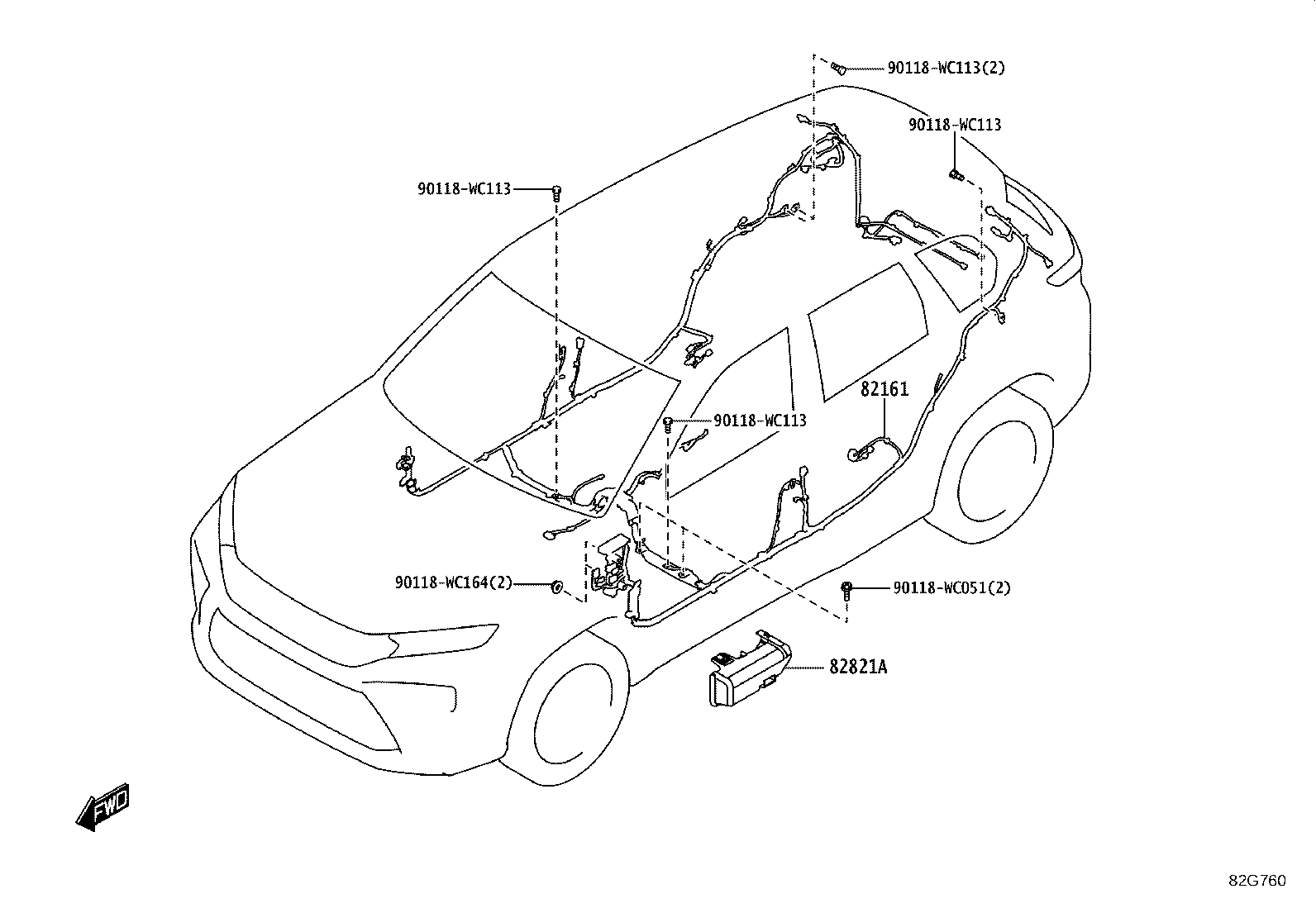

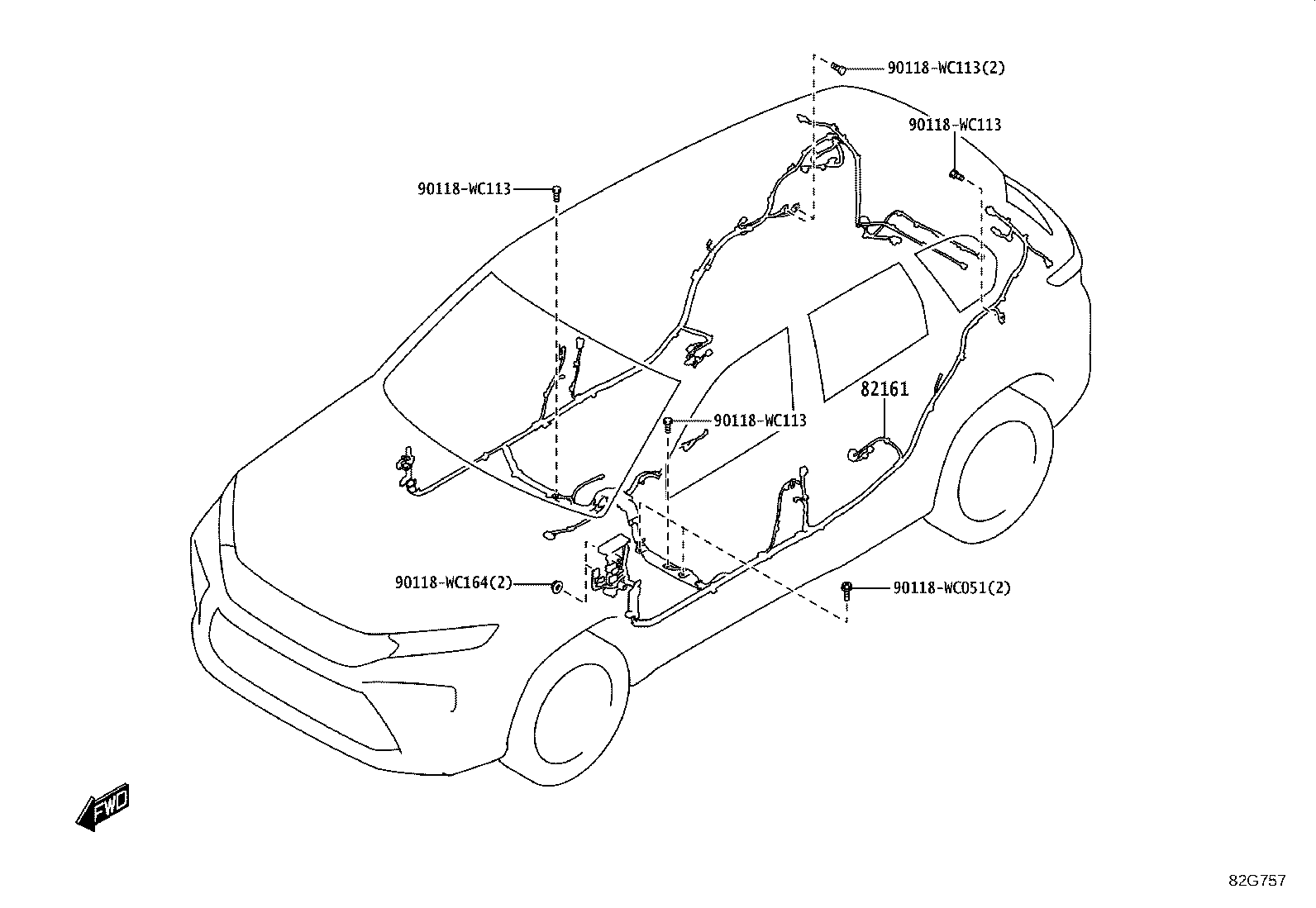

82161 Wire, Floor

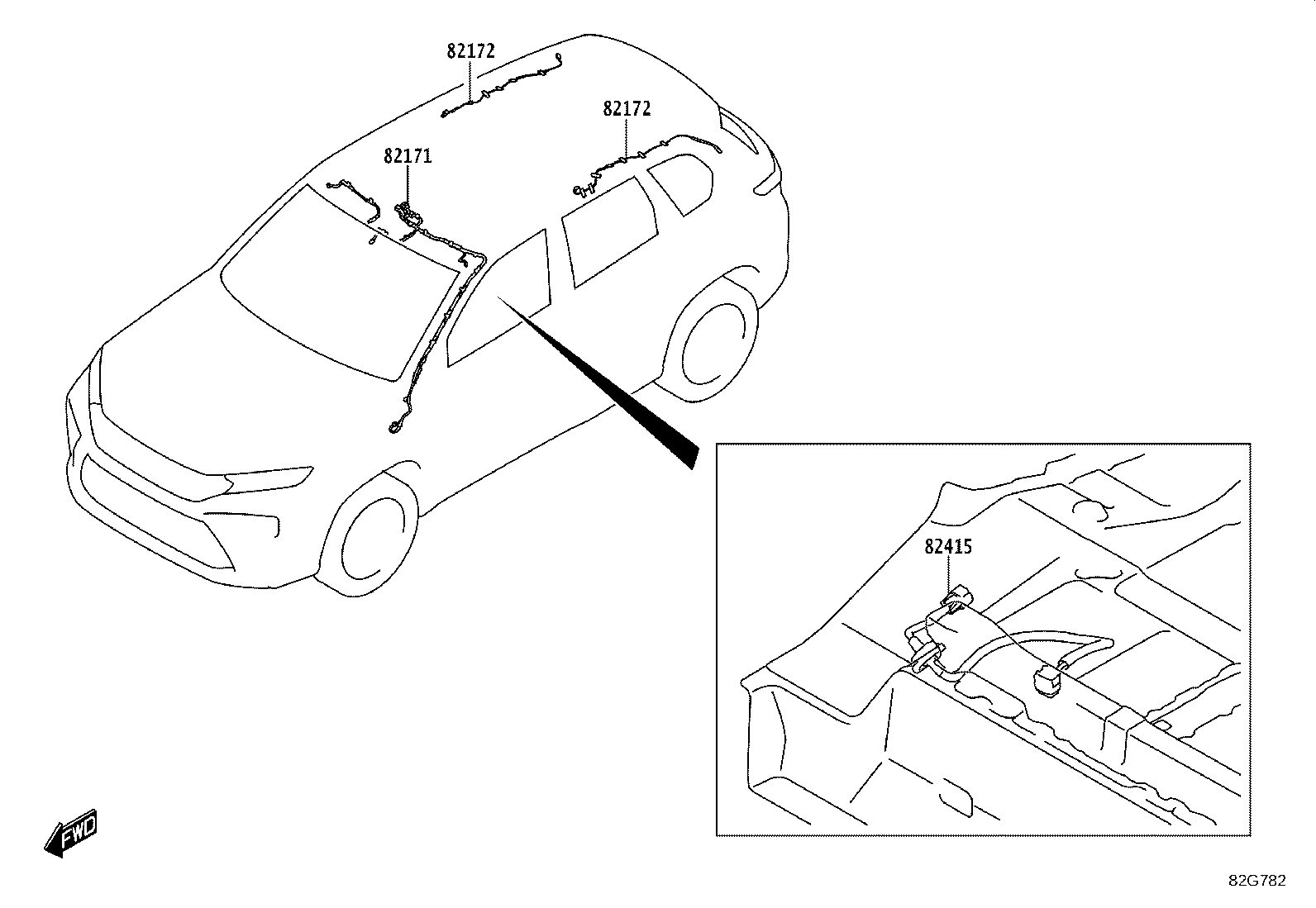

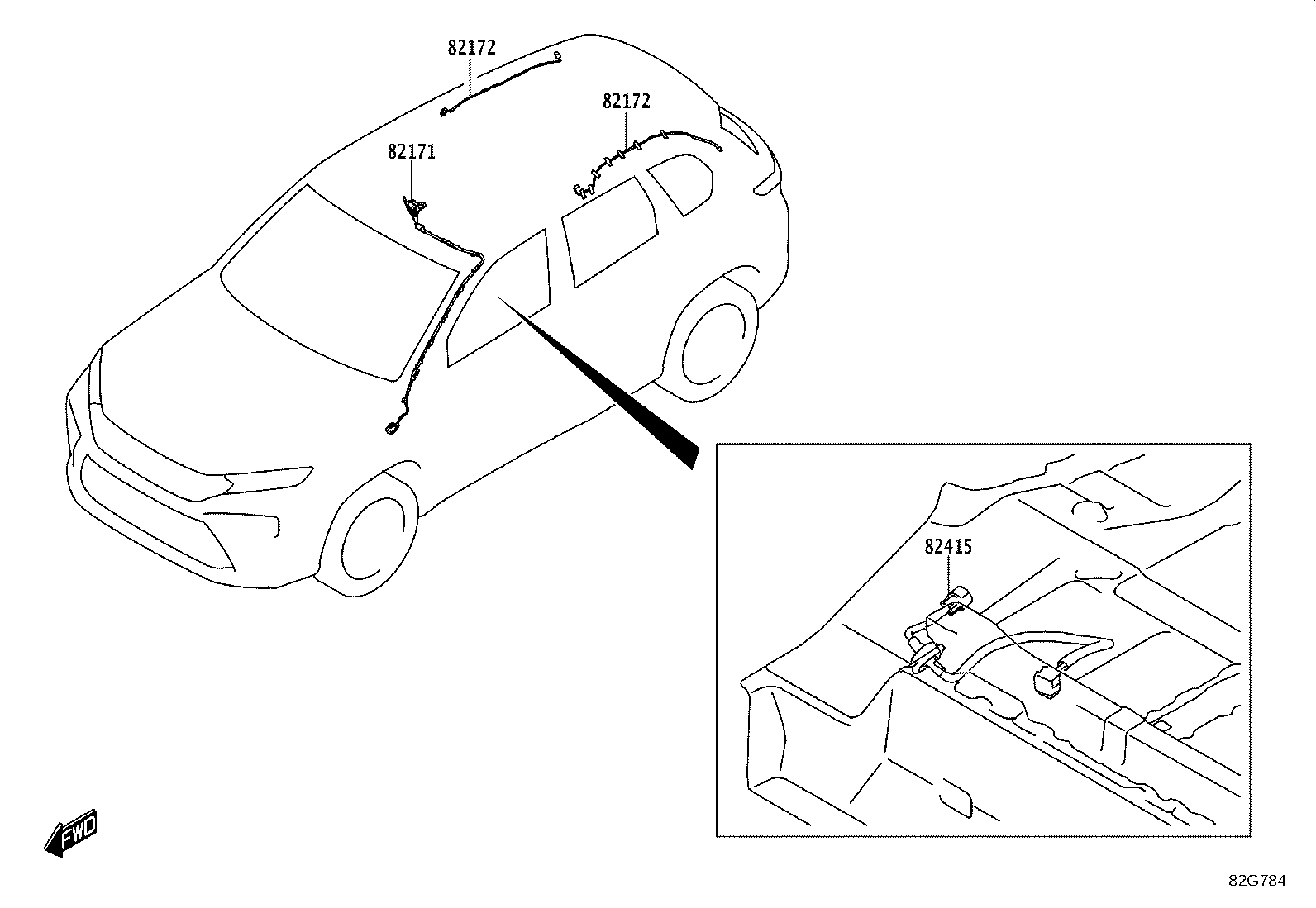

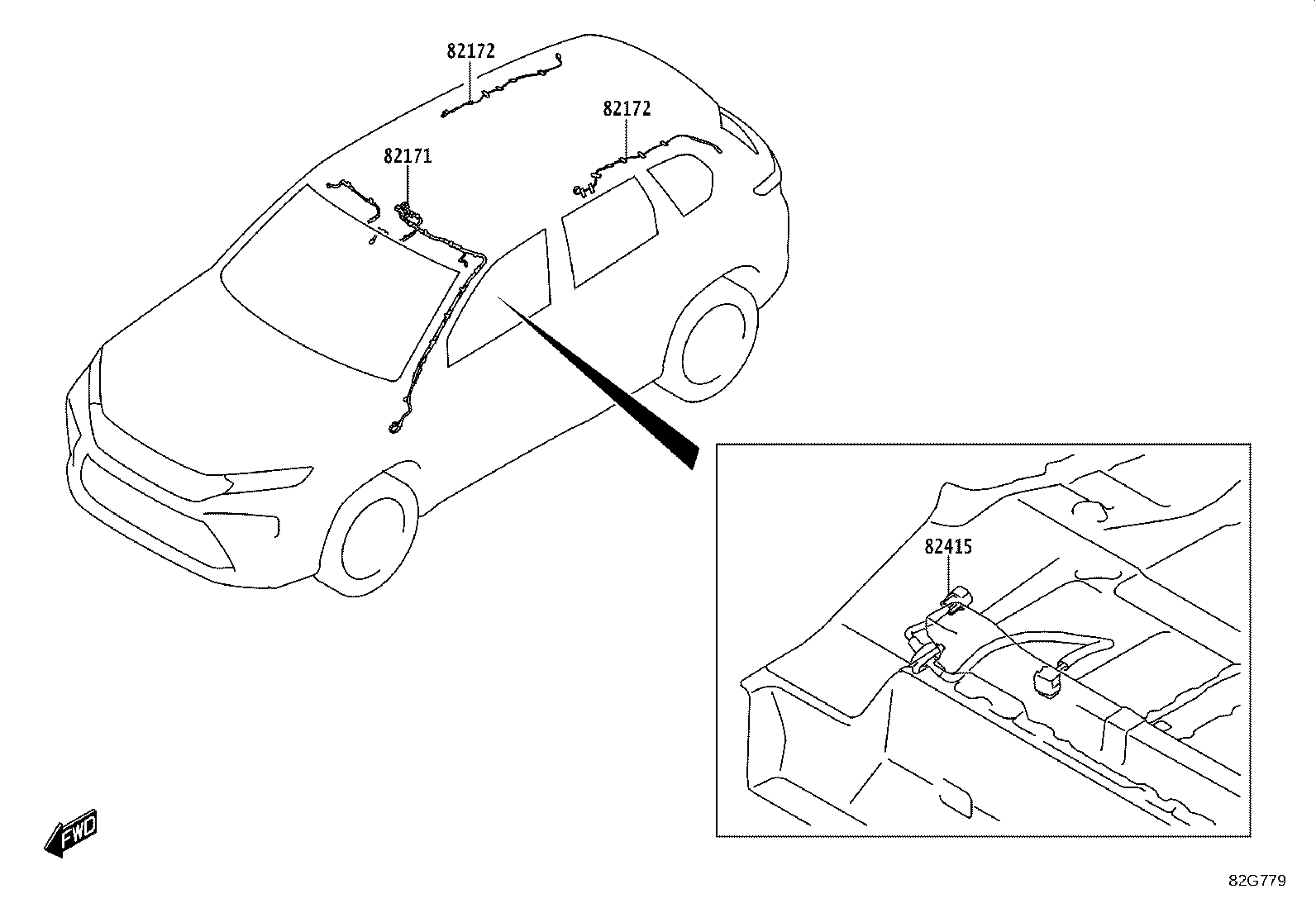

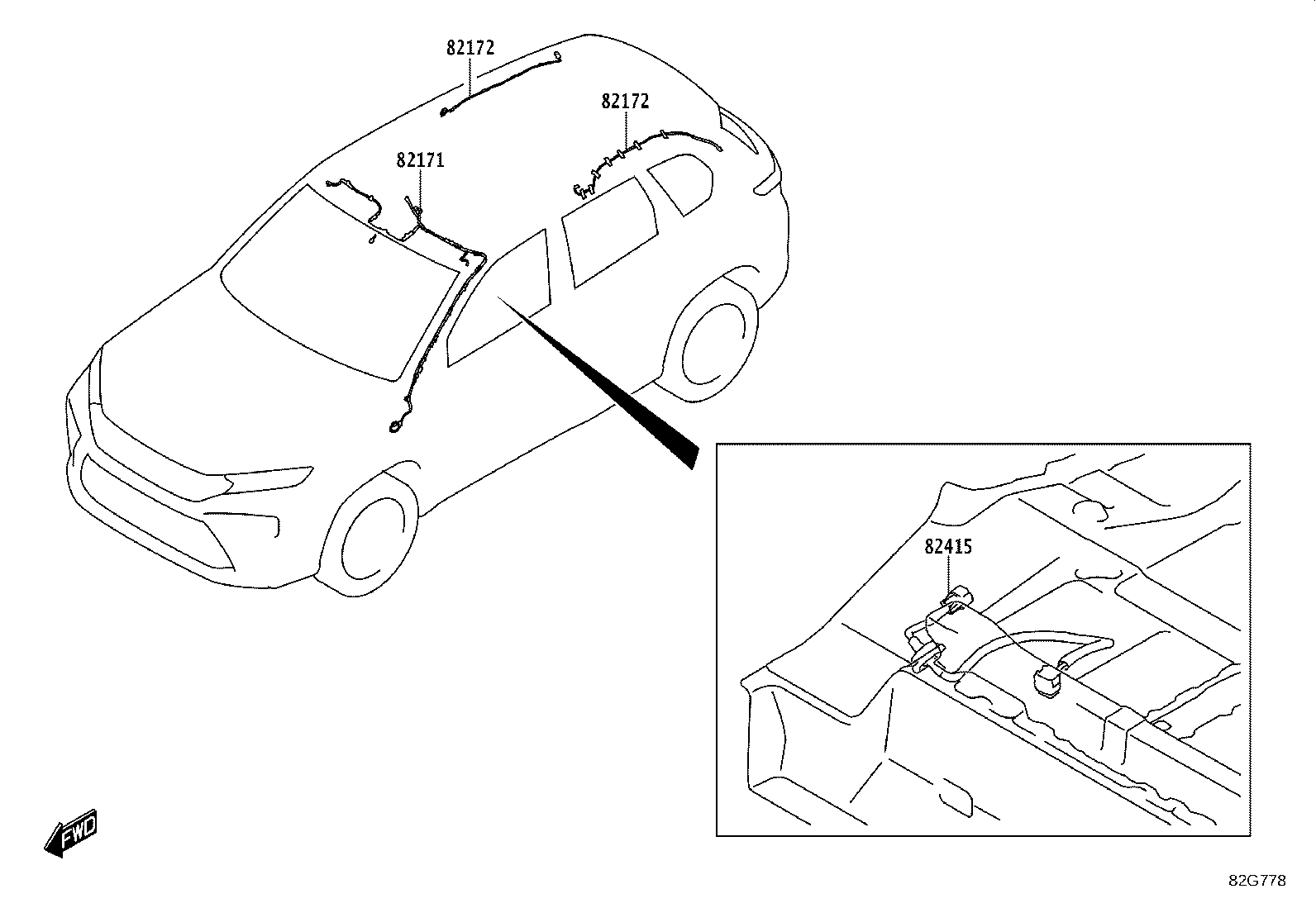

82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82183A Wire, Rear Bumper

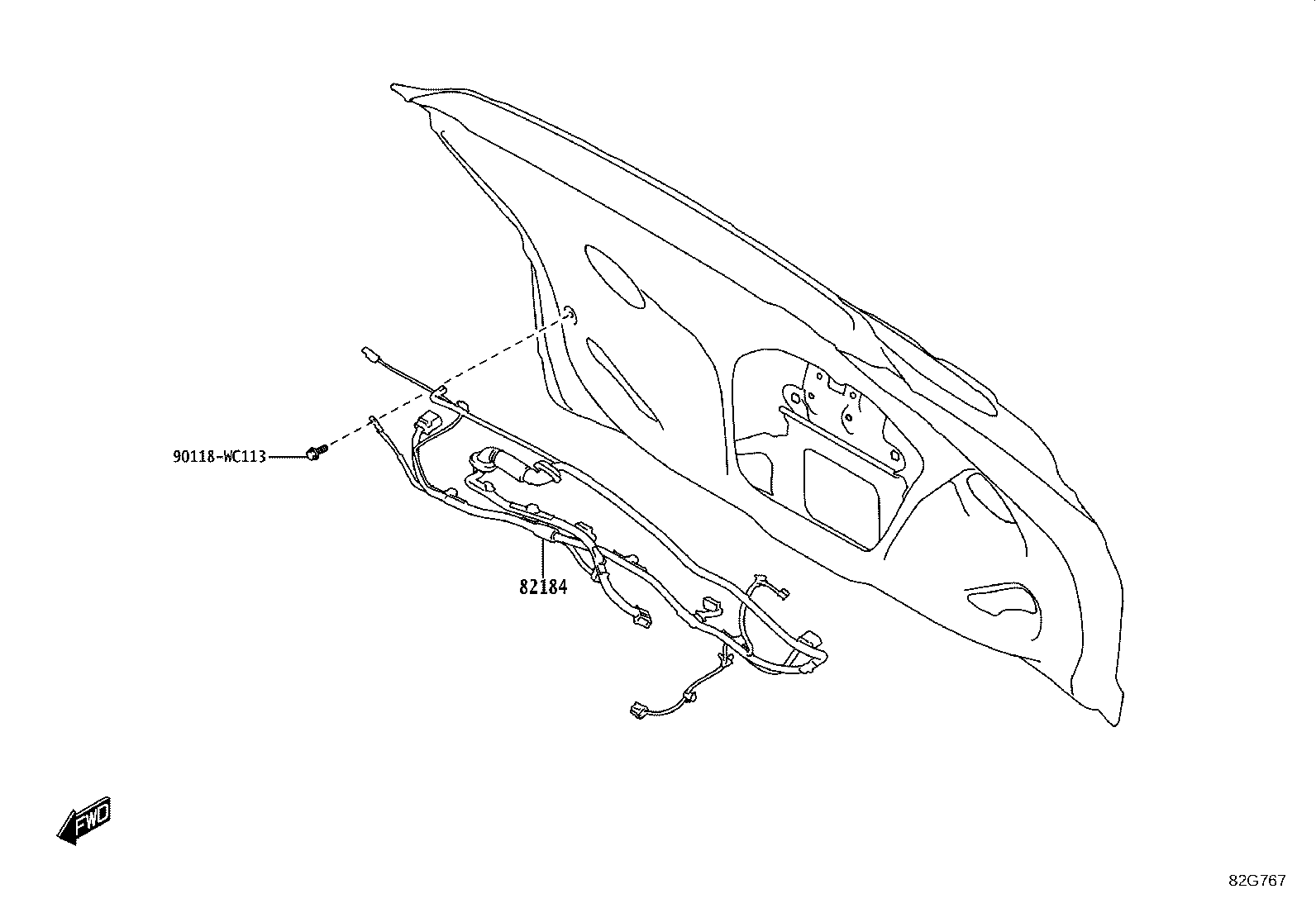

82184 Wire, Back Door, NO.1
82214A Wire, Lamp
82223 Wire, Switch
82415 Wire, Fuel Pump
82817E Protector, Wiring Harness, NO.6
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82817P Protector, Wiring Harness, NO.14
82817T Protector, Wiring Harness, NO.15
82817U Protector, Wiring Harness, NO.16
82821A Cover, Connector
82823 Cap, Terminal, NO.1
82823A Cap, Terminal, NO.2

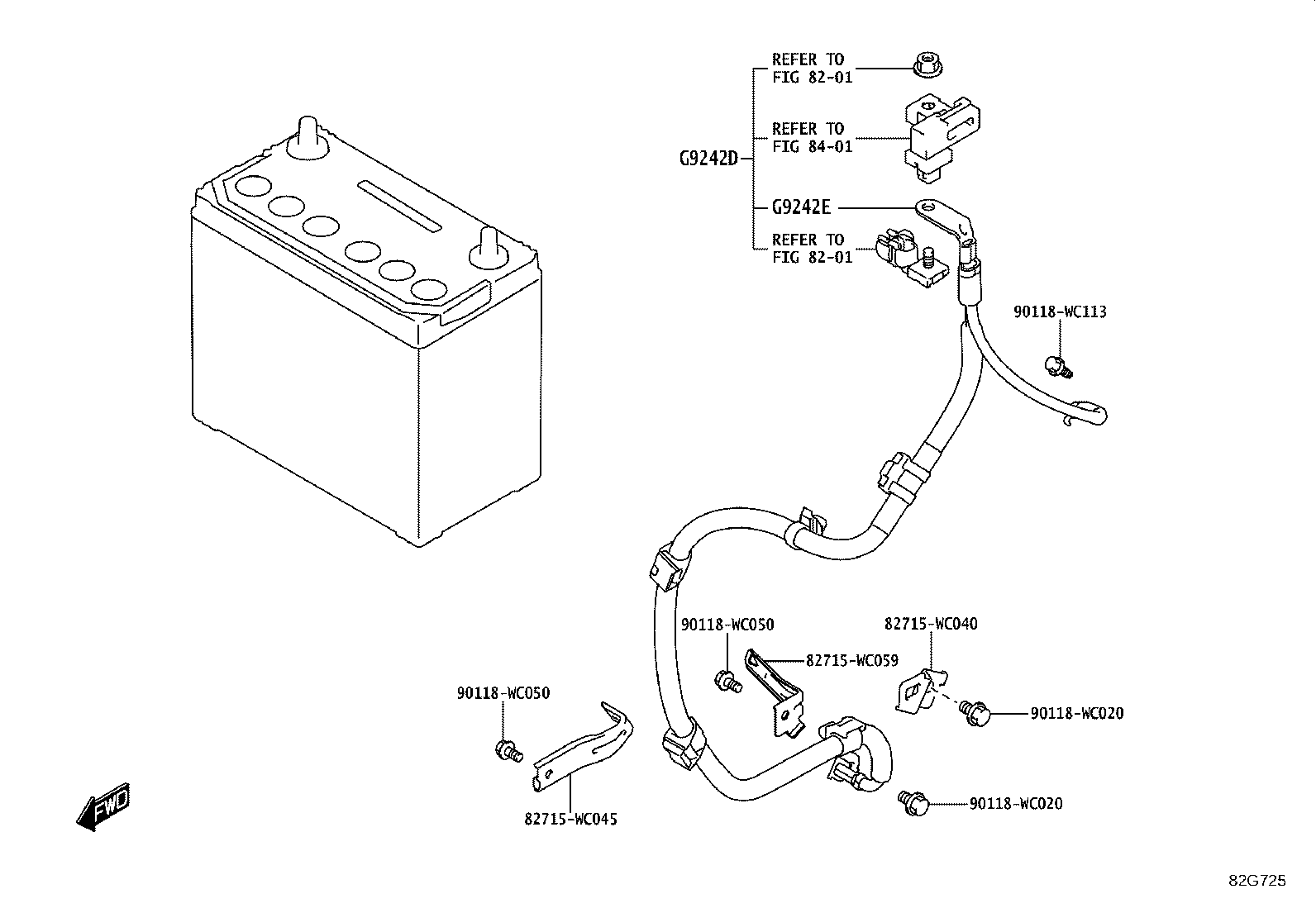

G9242D Cable, Main Battery, NO.1
G9242E Cable, Main Battery, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
