Toyota Urban Cruiser

2022-11 → present · chassis FG21###,22###,61###,62### · catalogue 138320 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

2 part groups · 6 illustrations

Illustrations

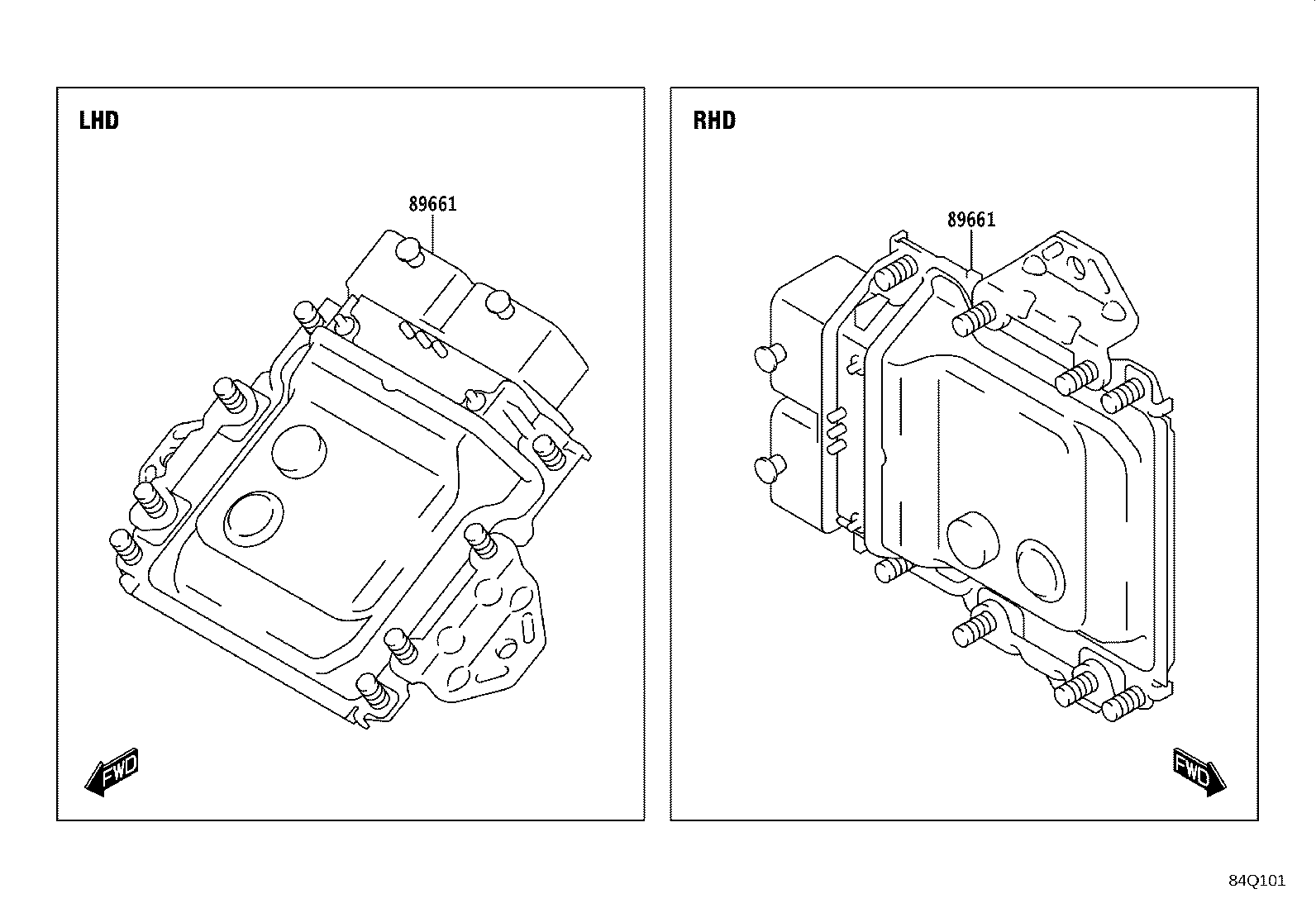

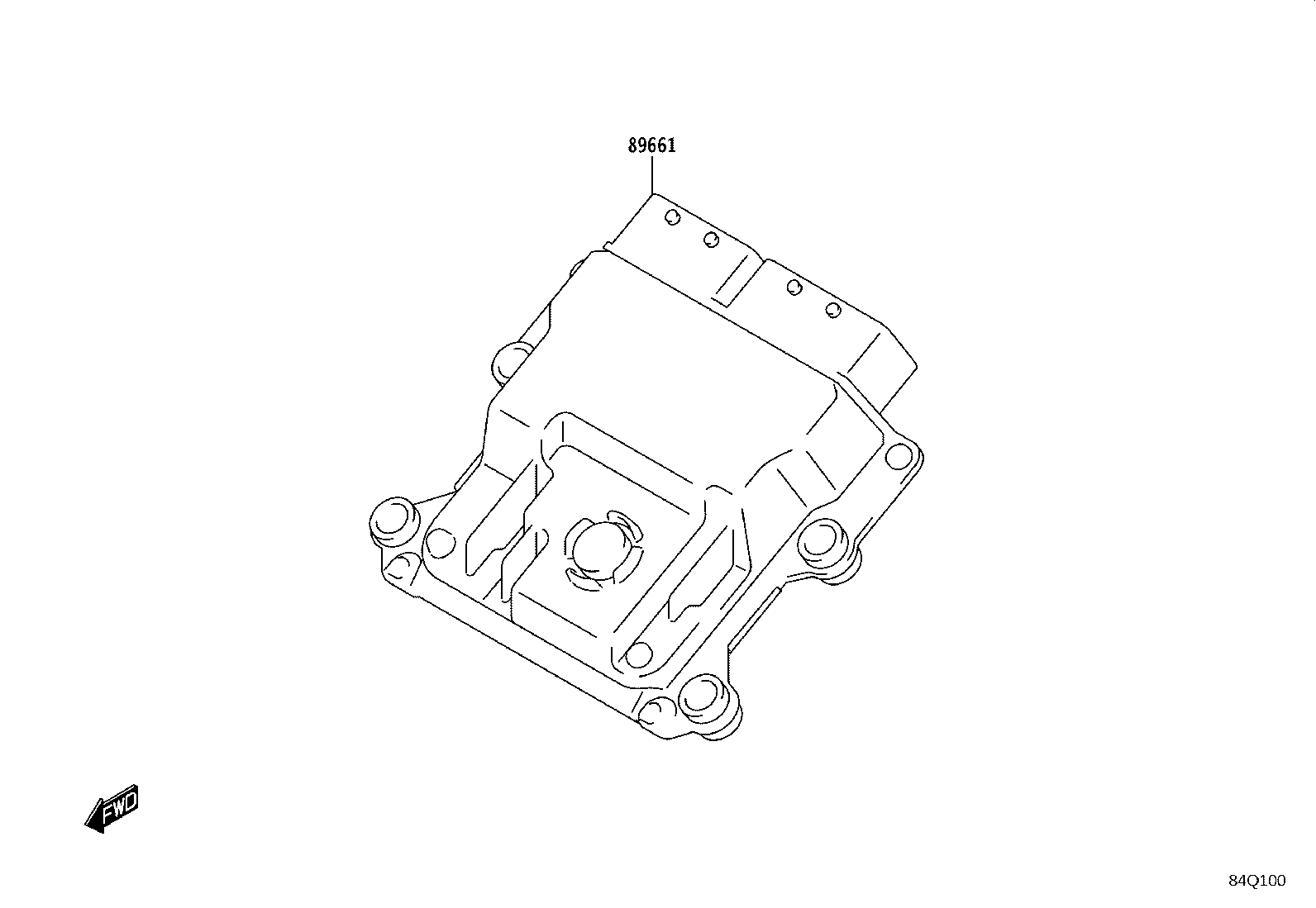

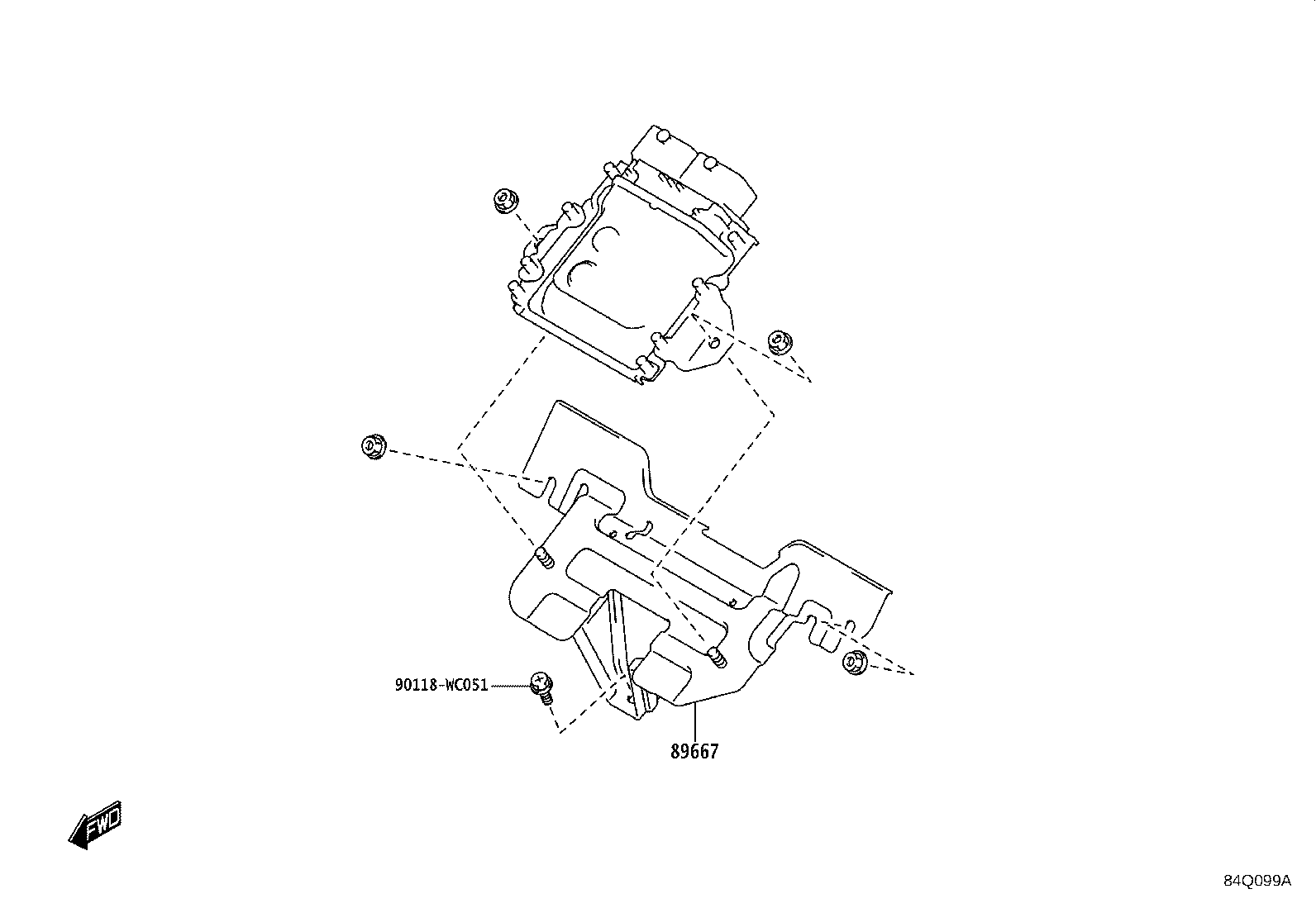

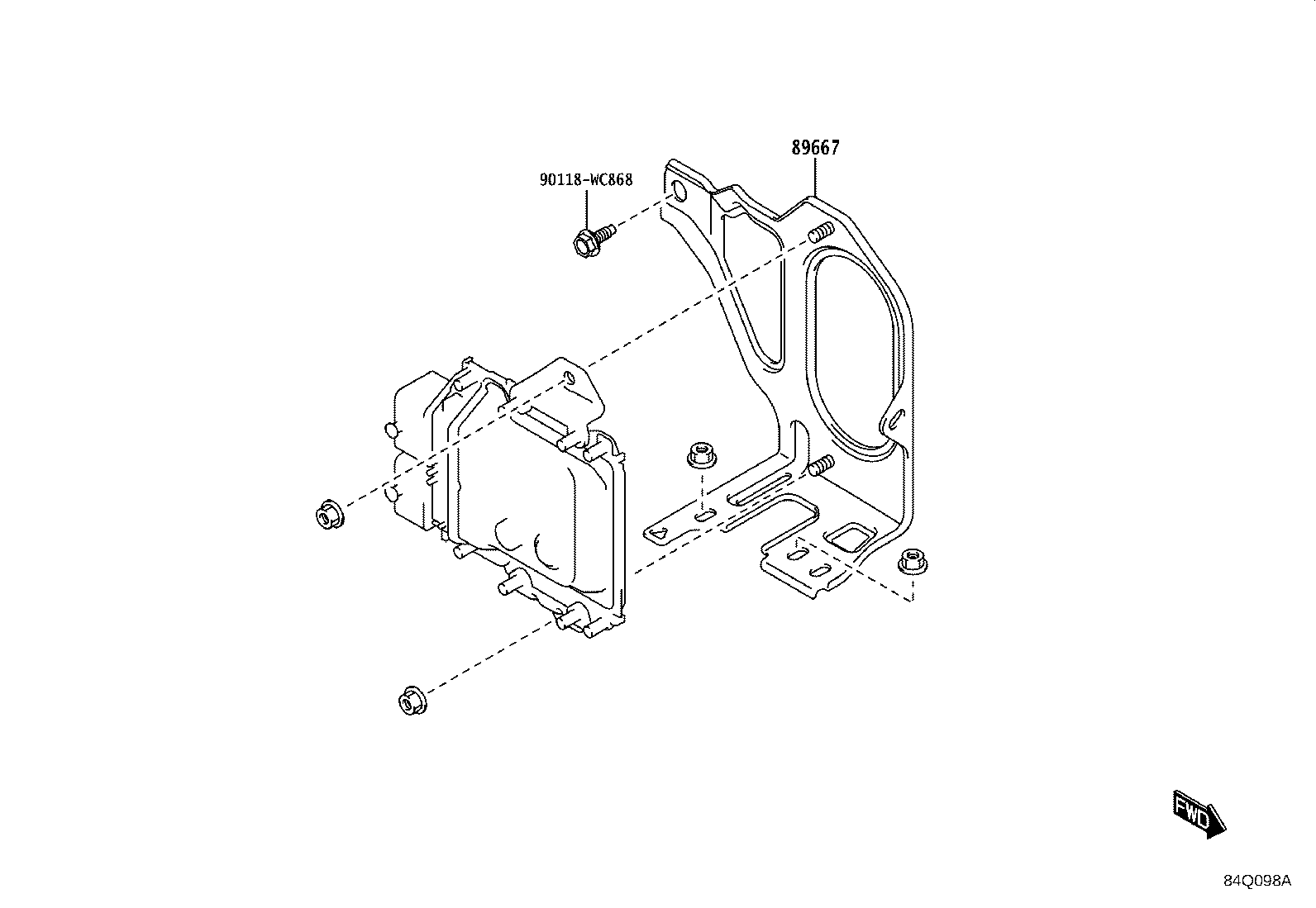

Figure 84Q097A 84Q097A 2022-11 → — Figure 84Q098A 84Q098A 2022-11 → — Figure 84Q099A 84Q099A 2022-11 → — Figure 84Q100 84Q100 2022-11 → — Figure 84Q101 84Q101 2022-11 → — Figure 84Q102 84Q102 2022-11 → —

Part groups

PNCDescription
89661 Computer, Engine Control
89667 Bracket, Engine Control Computer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
