Toyota Urban Cruiser

2022-11 → present · chassis FG21###,22###,61###,62### · catalogue 138320 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Bag

4 part groups · 8 illustrations

Illustrations

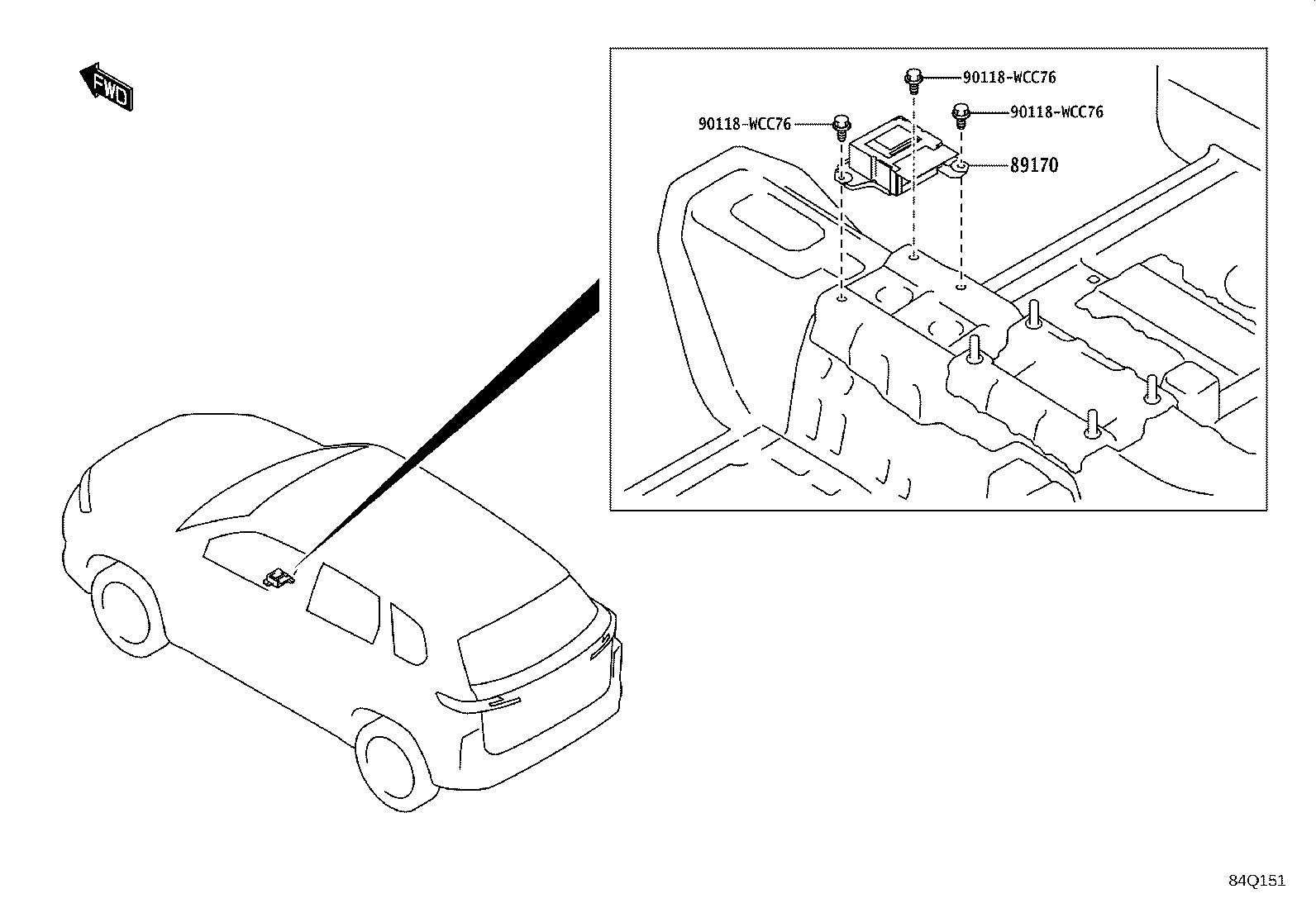

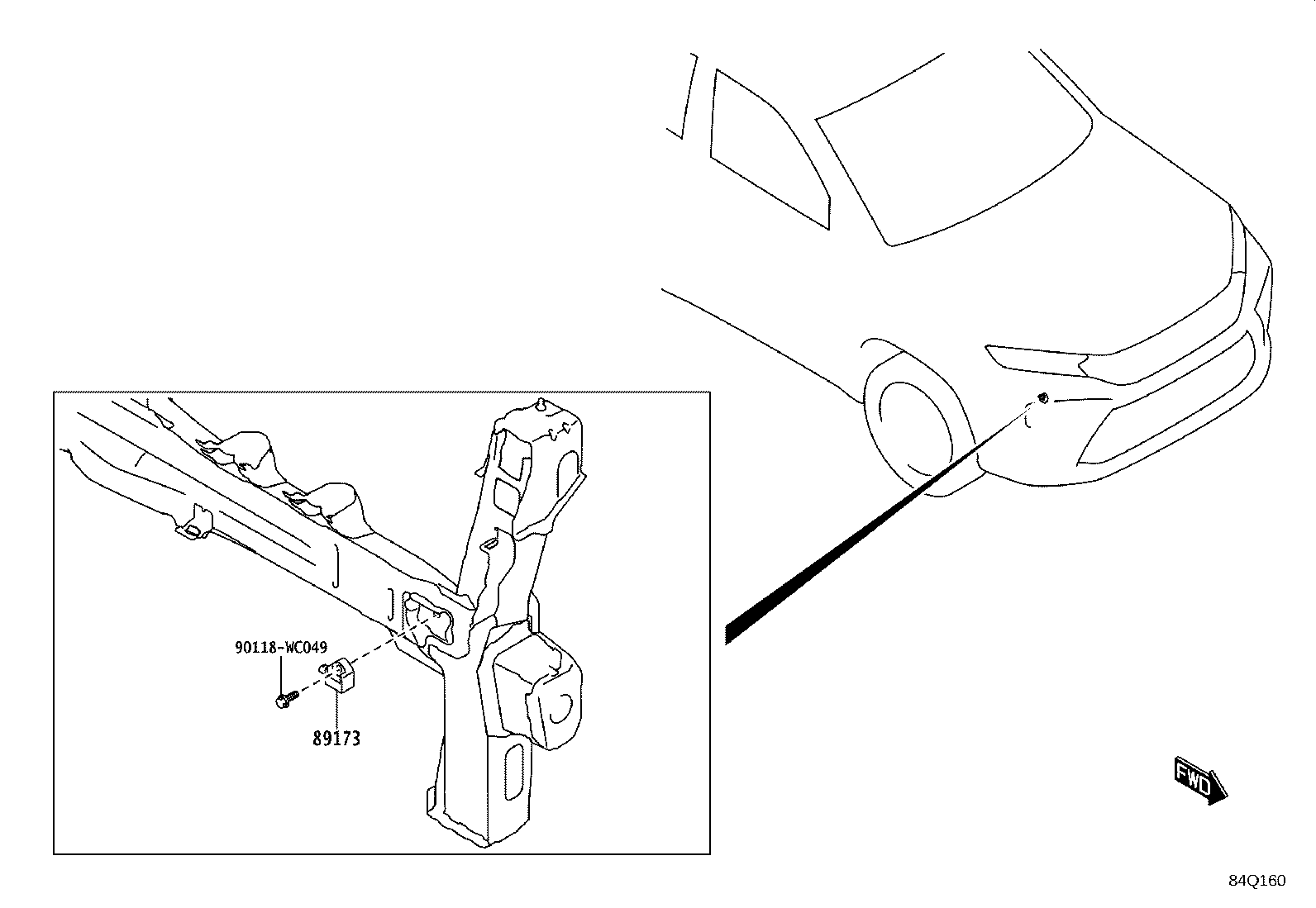

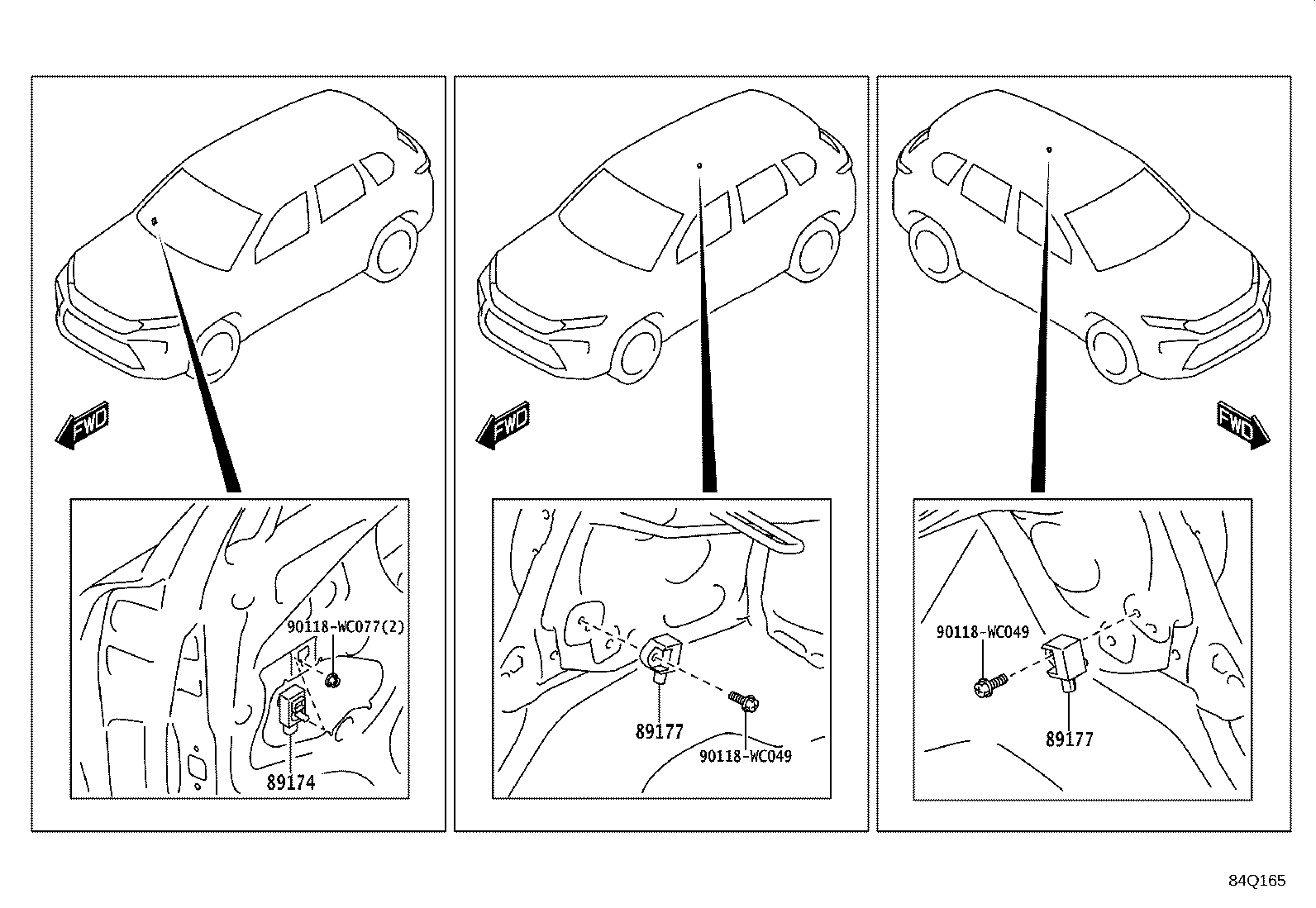

Figure 84Q150 84Q150 2022-11 → — Figure 84Q151 84Q151 2022-11 → — Figure 84Q151 84Q151 2022-11 → — Figure 84Q159 84Q159 2022-11 → — Figure 84Q160 84Q160 2022-11 → — Figure 84Q160 84Q160 2022-11 → — Figure 84Q165 84Q165 2022-11 → — Figure 84Q165 84Q165 2022-11 → —

Part groups

PNCDescription
89170 Sensor Assy, Airbag
89173 Sensor, Airbag, Front
89174 Sensor, Airbag
89177 Sensor, Airbag, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
