Toyota Urban Cruiser

2022-11 → present · chassis FG21###,22###,61###,62### · catalogue 138320 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Washer

13 part groups · 4 illustrations

Illustrations

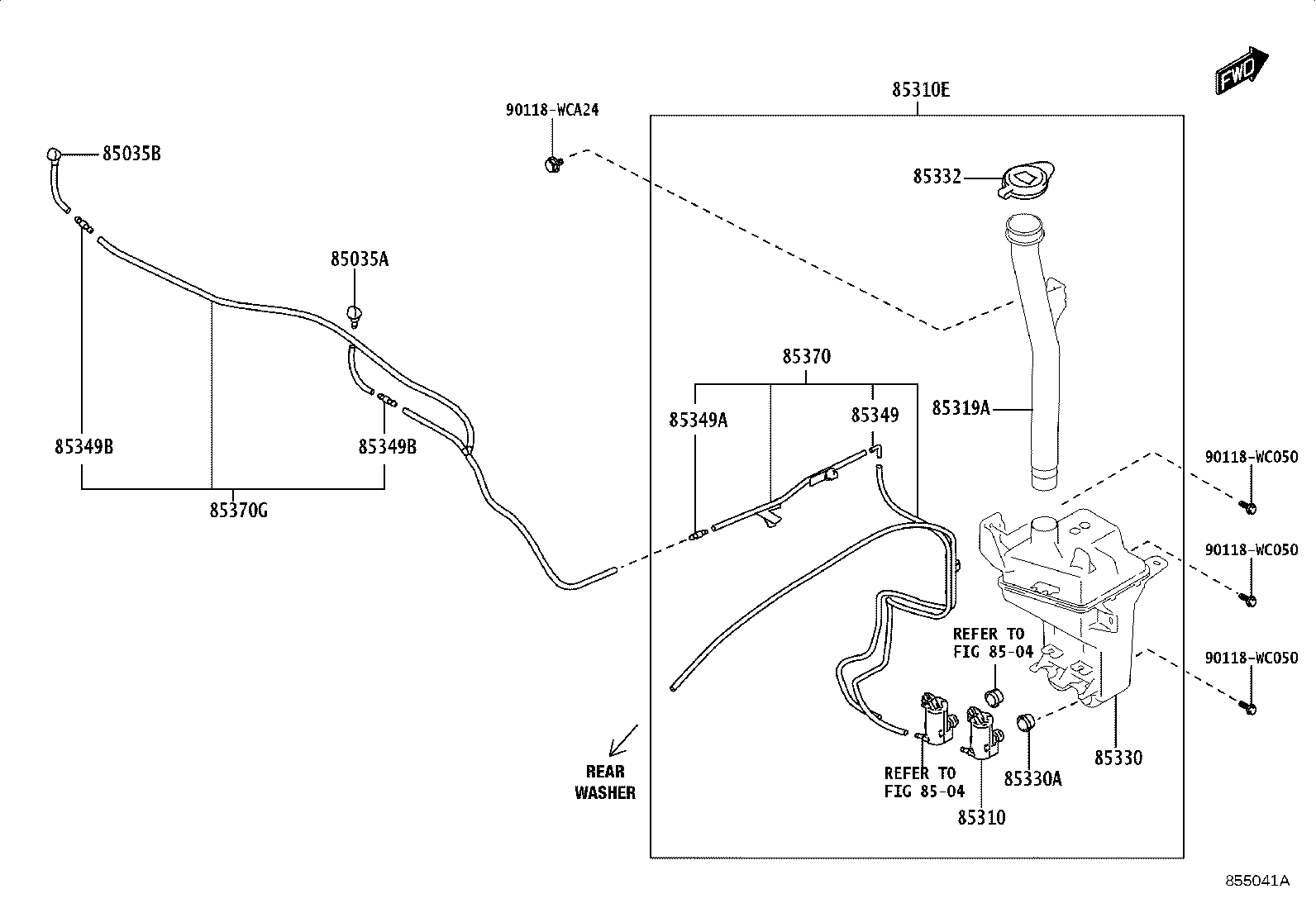

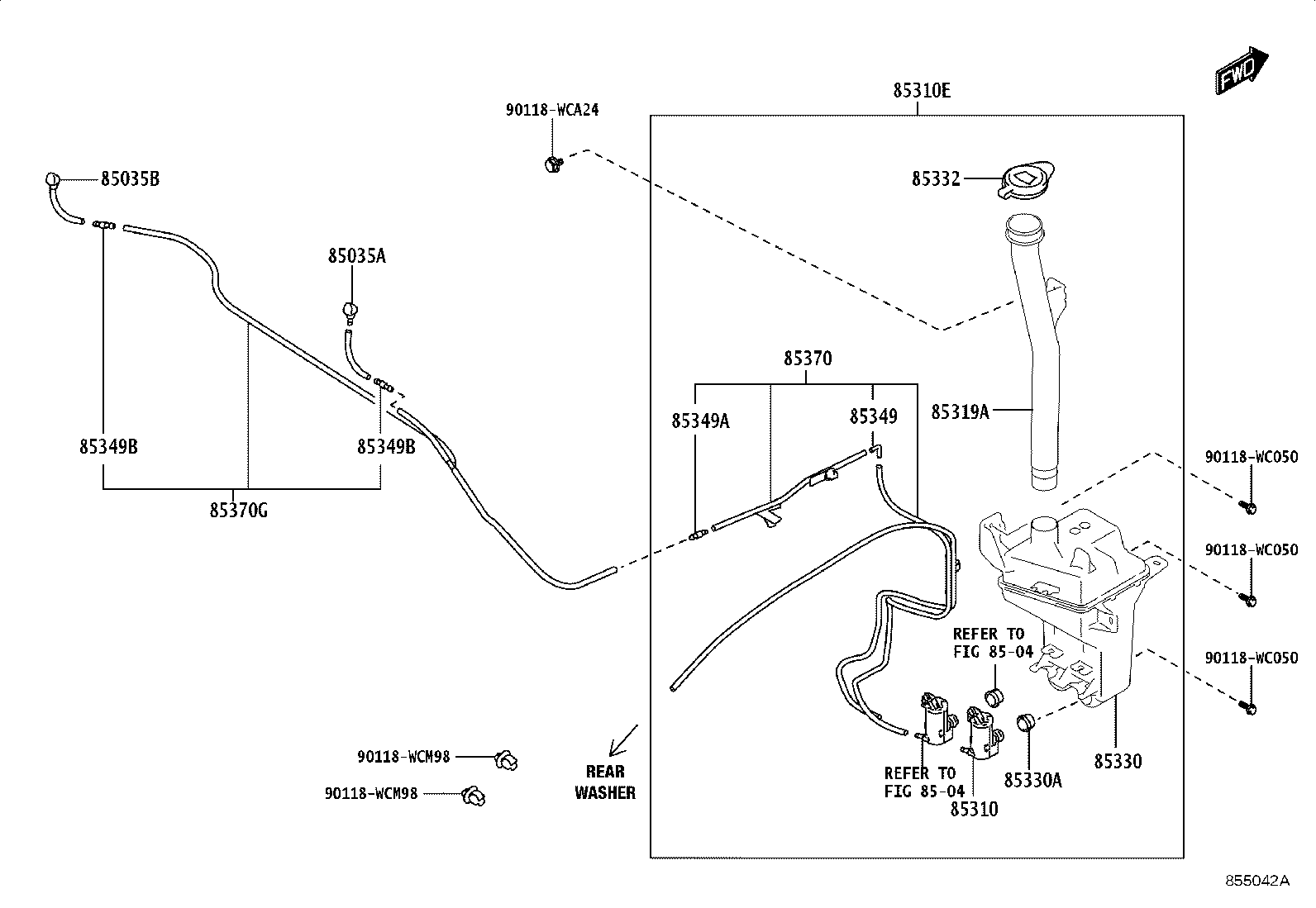

Figure 855040A 855040A 2022-11 → — Figure 855041A 855041A 2022-11 → — Figure 855042A 855042A 2022-11 → — Figure 855042A 855042A 2022-11 → —

Part groups

PNCDescription
85035A Nozzle, FR Washer, RH
85035B Nozzle, Front Washer, LH
85310 Motor And Pump Assy, Windshield Washer
85310E Jar & Pump Assy, Washer
85319A Hose, Inlet
85330 Jar Assy, Windshield Washer
85330A Bush, Windshield Washer Jar
85332 Cap, Windshield Washer Jar
85349 Joint, Windshield Washer Hose, NO.1
85349A Joint, Windshield Washer Hose, NO.2
85349B Joint, Windshield Washer Hose, NO.3
85370 Hose Assy, Windshield Washer
85370G Hose Assy, Windshield Washer, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
