Toyota Urban Cruiser

2022-11 → present · chassis FG21###,22###,61###,62### · catalogue 138320 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Washer

5 part groups · 5 illustrations

Illustrations

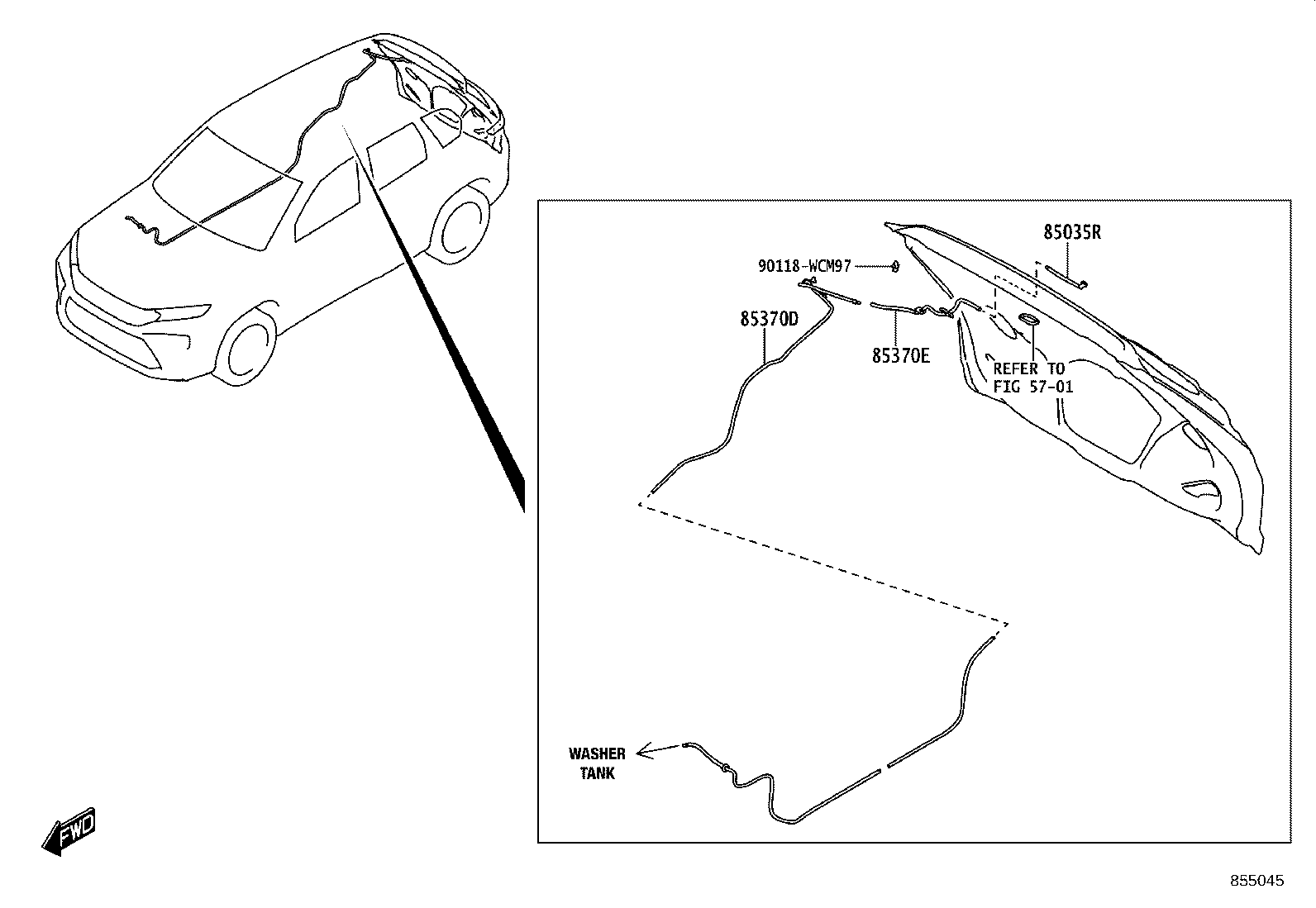

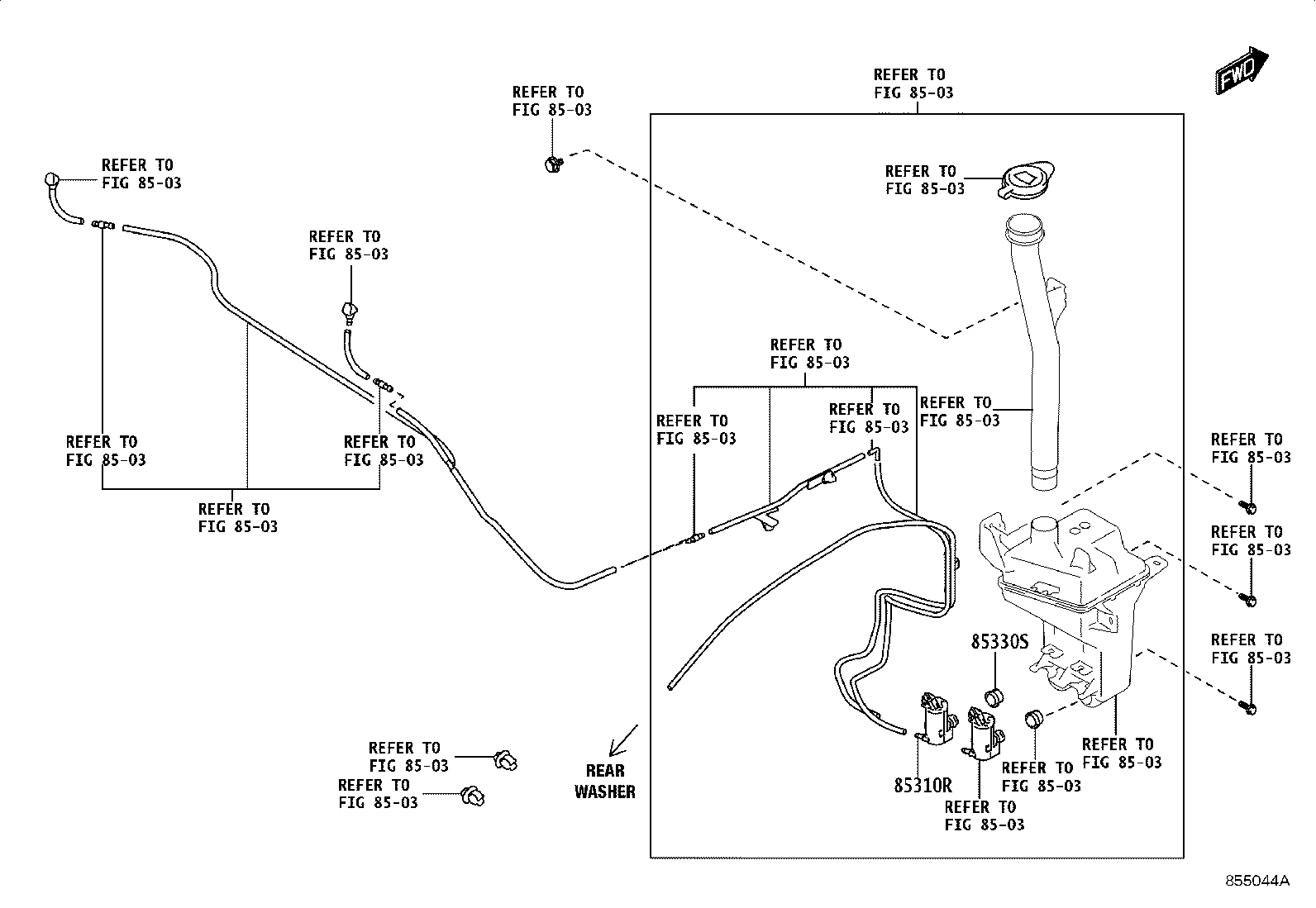

Figure 855043A 855043A 2022-11 → — Figure 855044A 855044A 2022-11 → — Figure 855044A 855044A 2022-11 → — Figure 855045 855045 2022-11 → — Figure 855045 855045 2022-11 → —

Part groups

PNCDescription
85035R Nozzle Sub-assy, Rear Washer
85310R Motor Assy, Rear Washer
85330S Bush, Rear Washer Jar
85370D Hose Assy, Rear Washer, NO.1
85370E Hose Assy, Rear Washer, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
