Toyota Urban Cruiser

2022-11 → present · chassis FG21###,22###,61###,62### · catalogue 138320 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

8 part groups · 11 illustrations

Illustrations

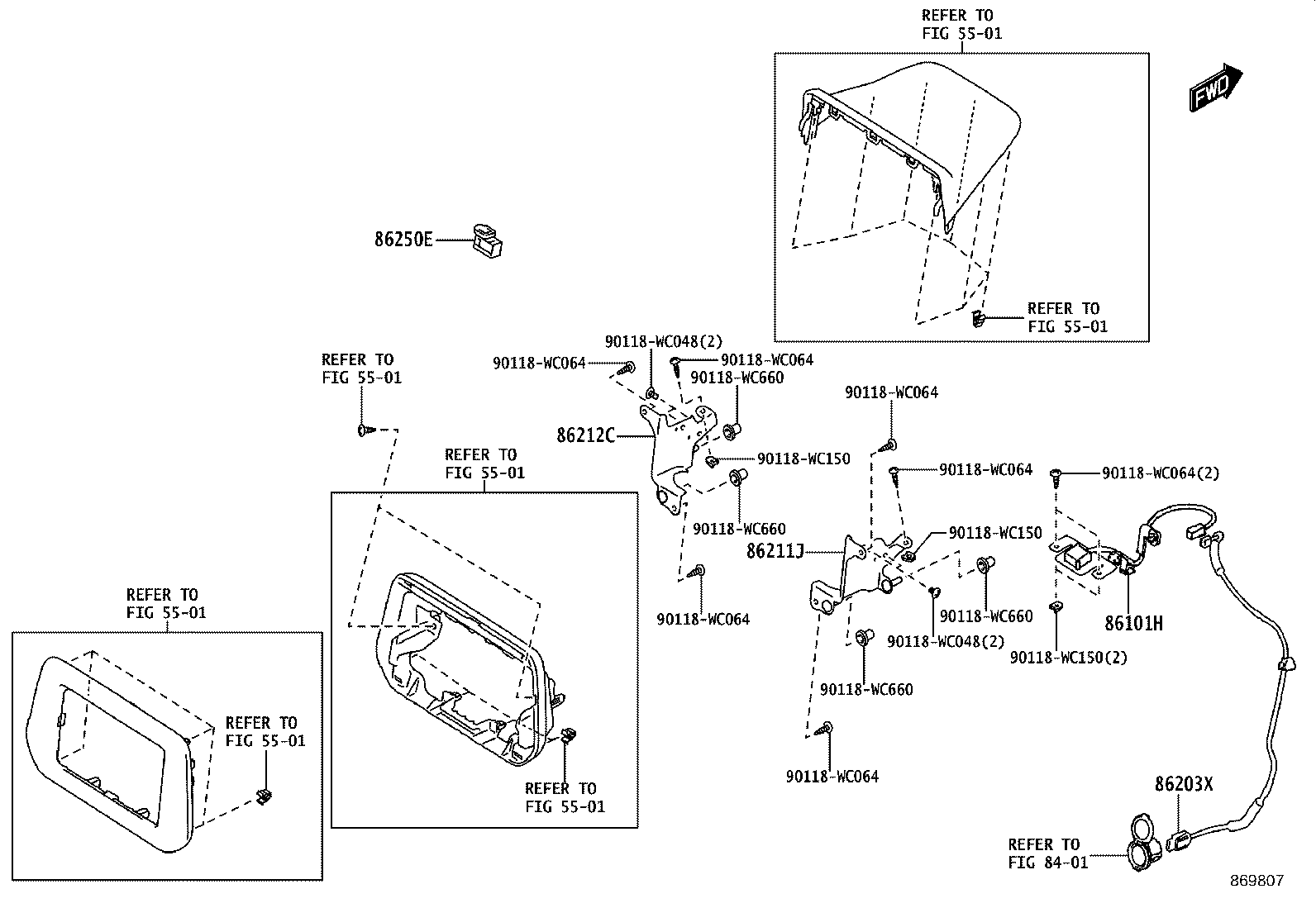

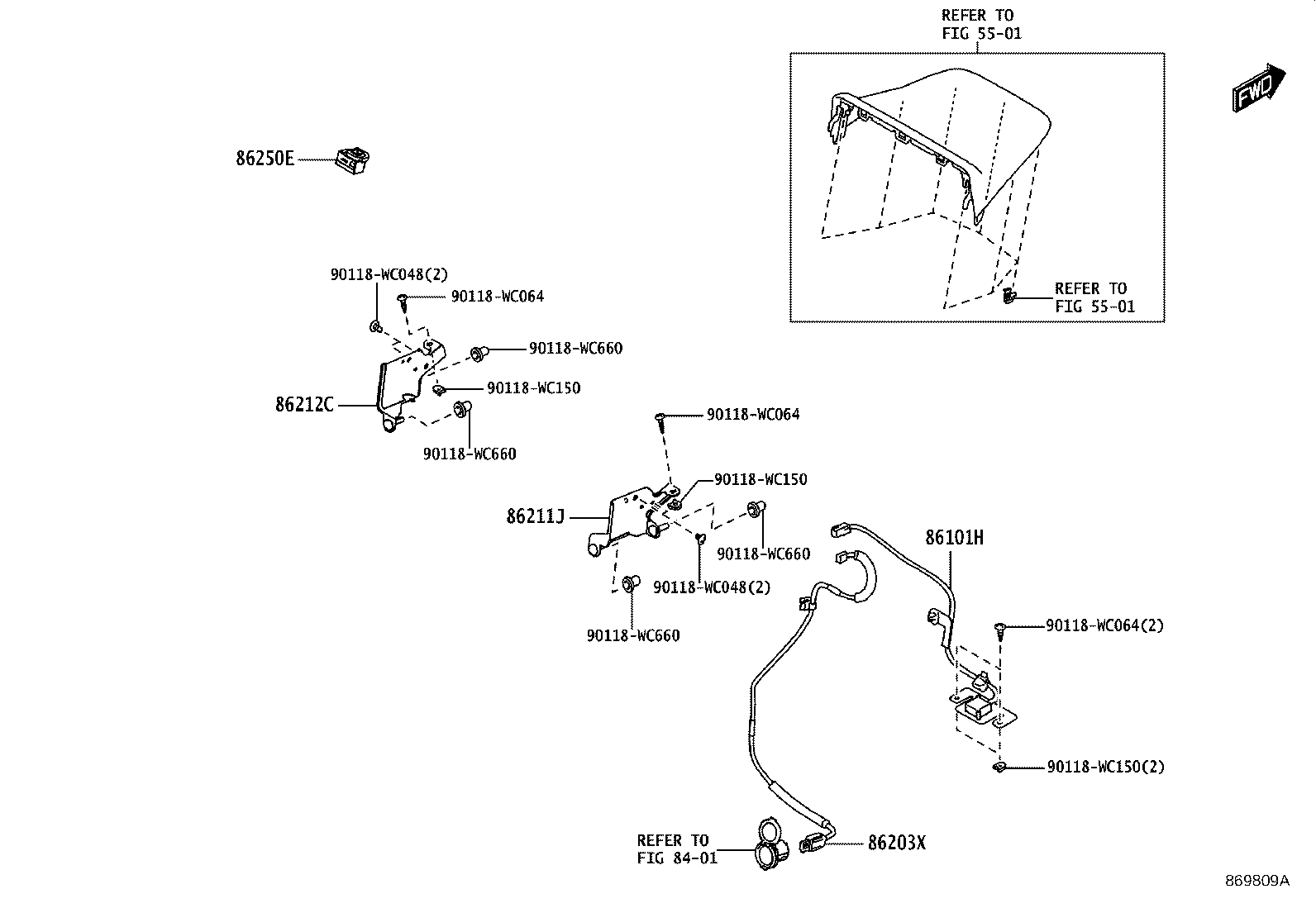

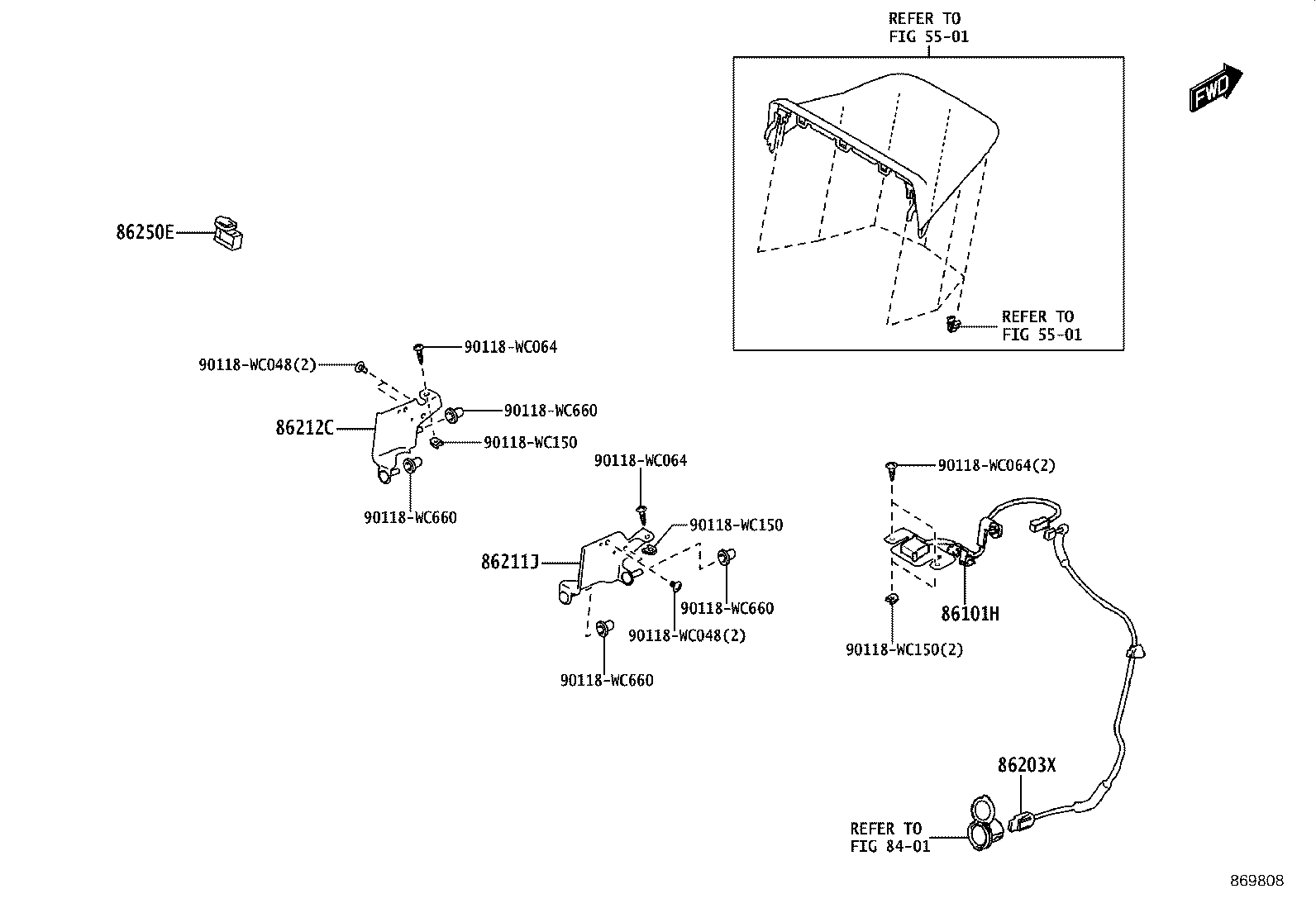

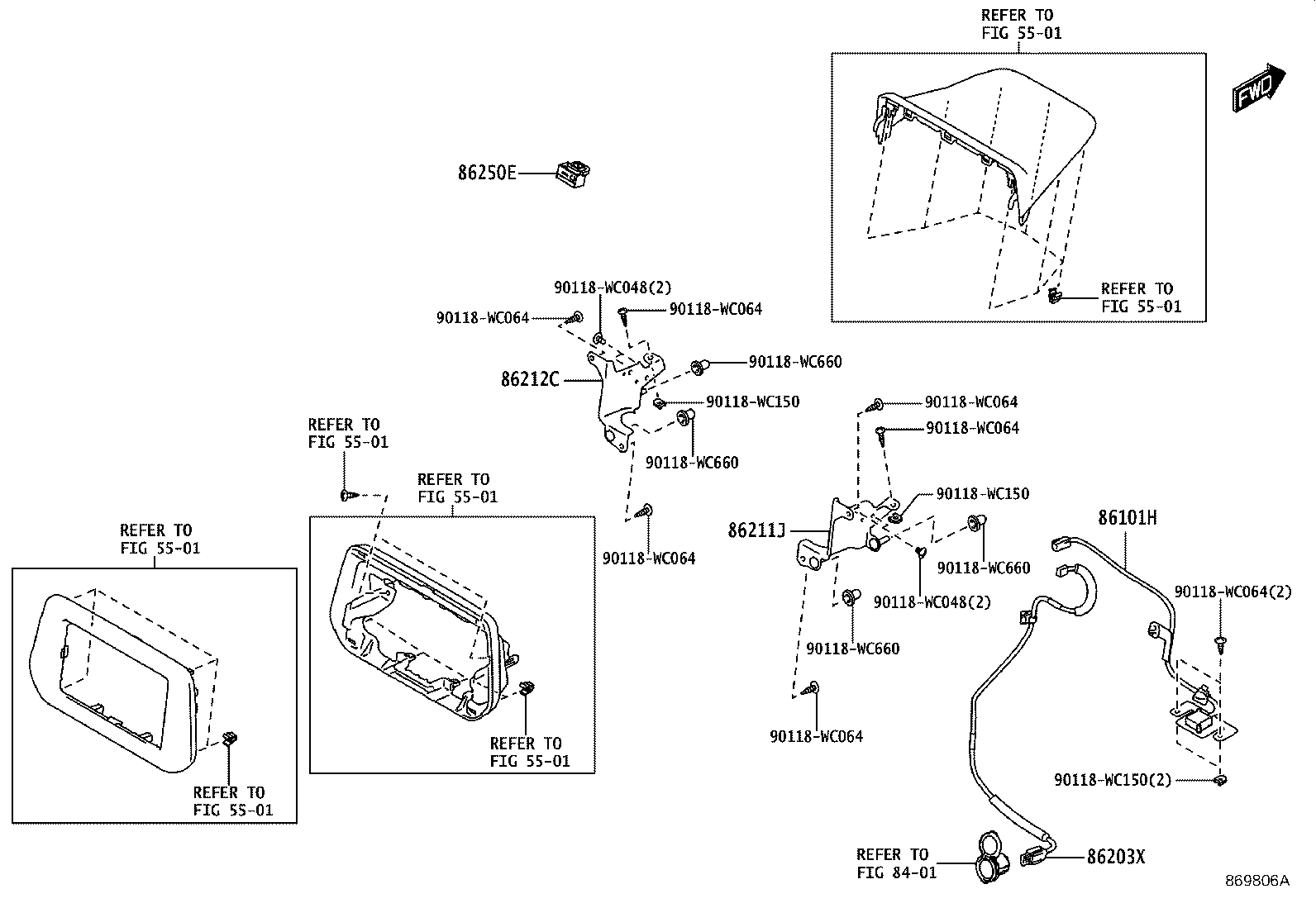

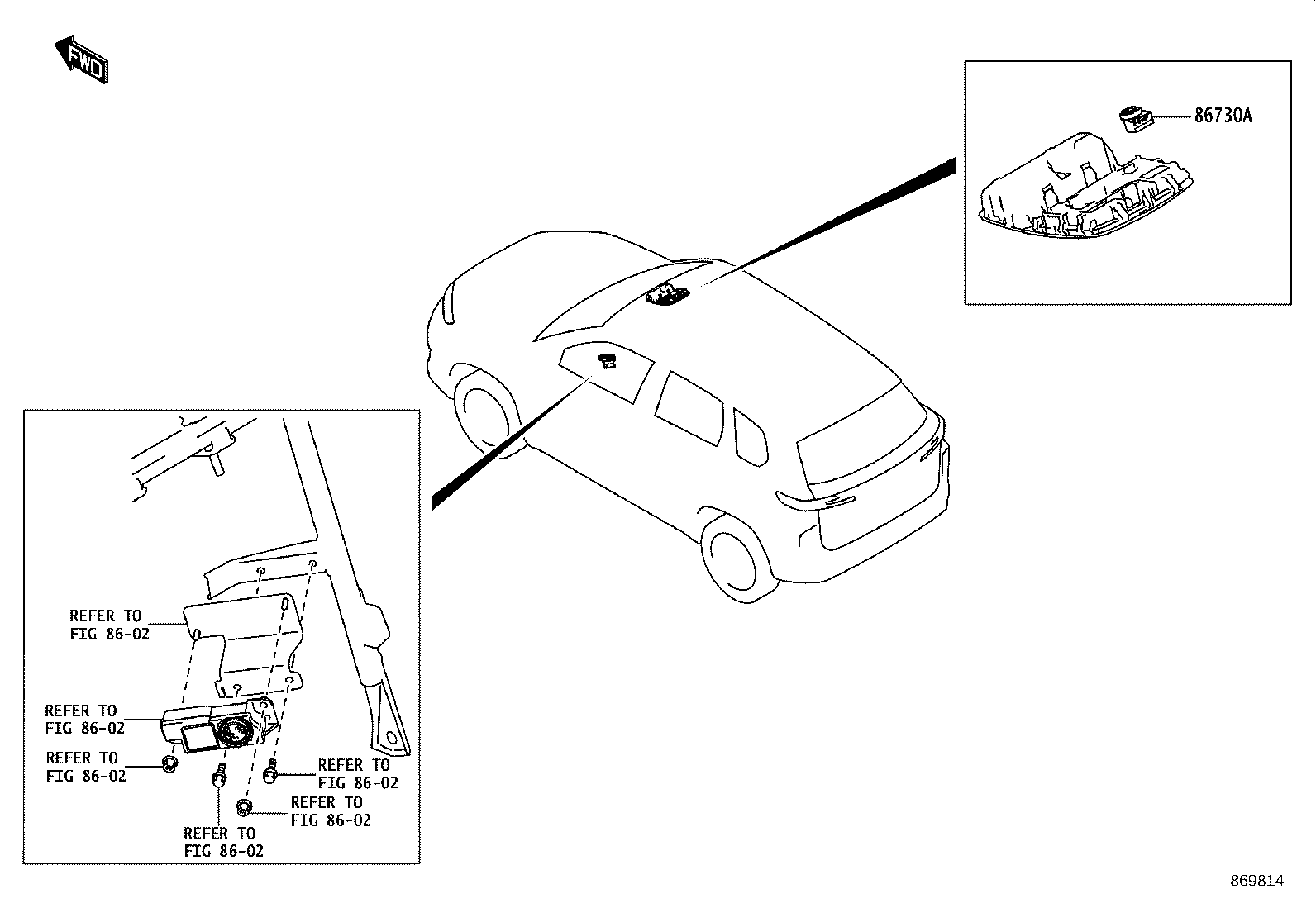

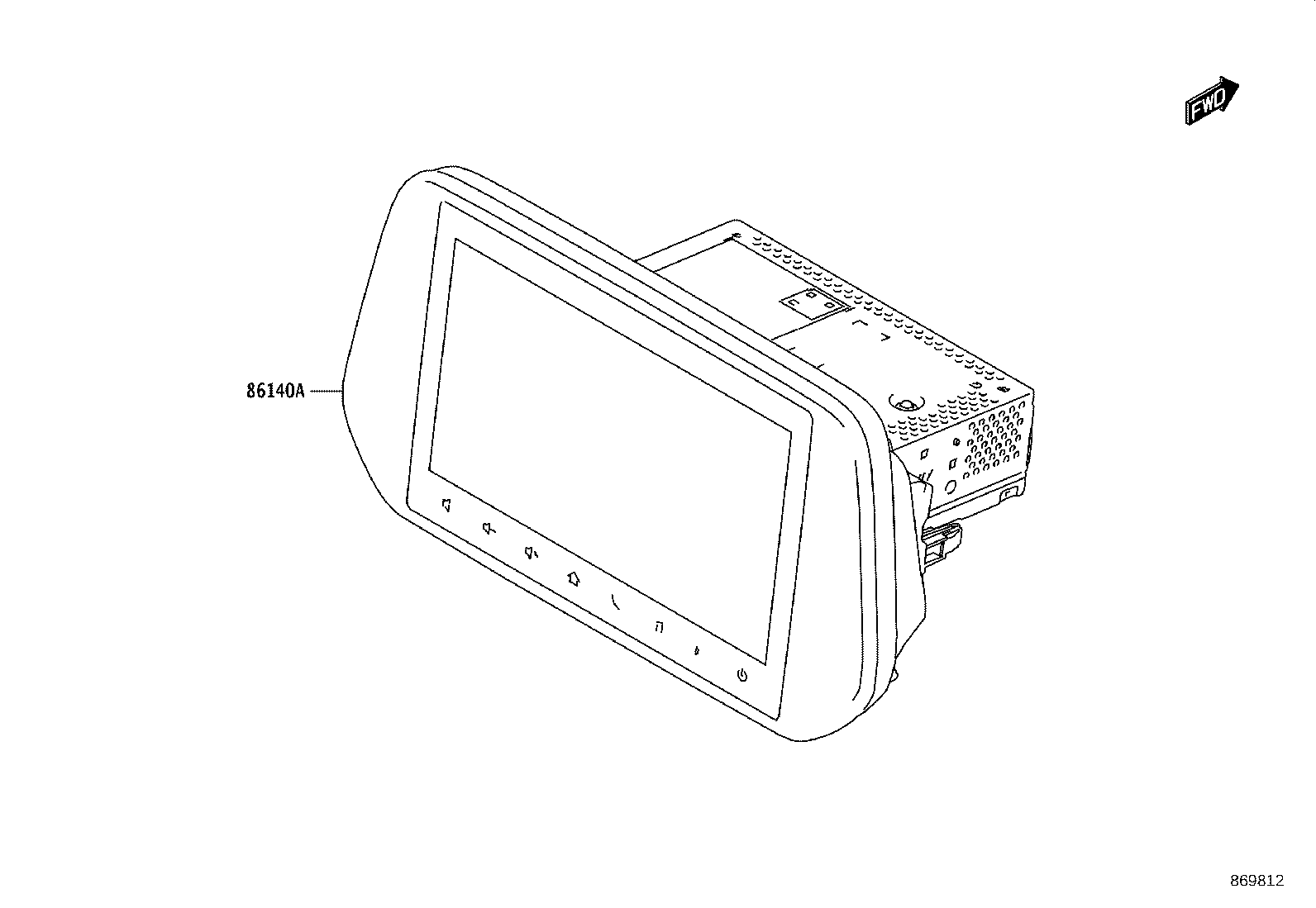

Figure 869805A 869805A 2022-11 → — Figure 869807 869807 2022-11 → — Figure 869806A 869806A 2022-11 → — Figure 869808 869808 2022-11 → — Figure 869809A 869809A 2022-11 → — Figure 869809A 869809A 2022-11 → — Figure 869810 869810 2022-11 → — Figure 869811 869811 2022-11 → — Figure 869812 869812 2022-11 → — Figure 869813 869813 2022-11 → — Figure 869814 869814 2022-11 → —

Part groups

PNCDescription
86101H Cord Sub-assy, Antenna
86140A Receiver Assy, Radio & Display
86203X Wiring Sub-assy, Radio
86211J Bracket, Radio Receiver, NO.1
86212C Bracket, Radio Receiver, NO.2
86250E Microphone Assy, Amplifier
86730A Microphone Assy, Telephone
86860 Antenna Assy, Navigation
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
