Toyota Urban Cruiser

2022-11 → present · chassis FG21###,22###,61###,62### · catalogue 138320 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

3 part groups · 6 illustrations

Illustrations

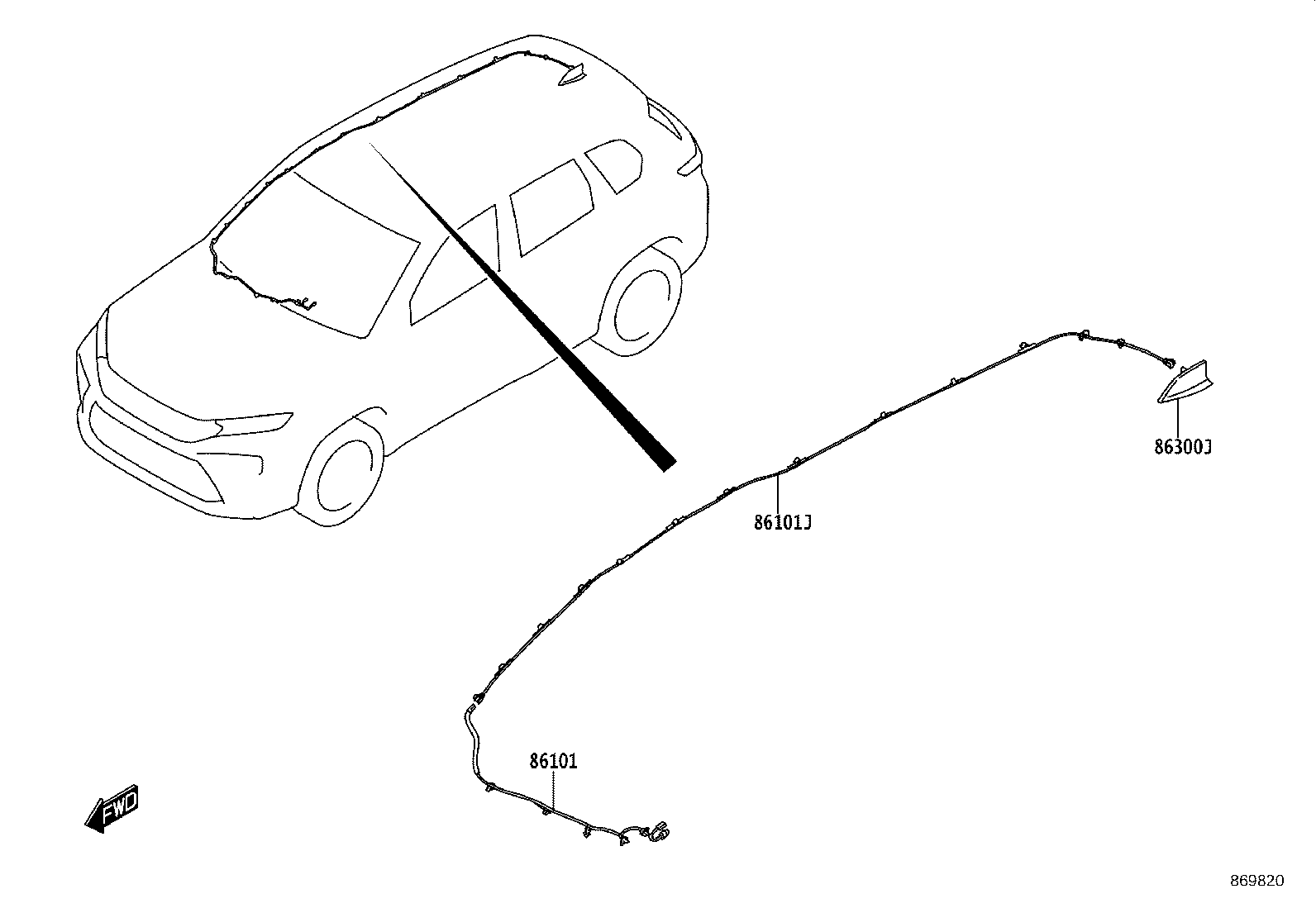

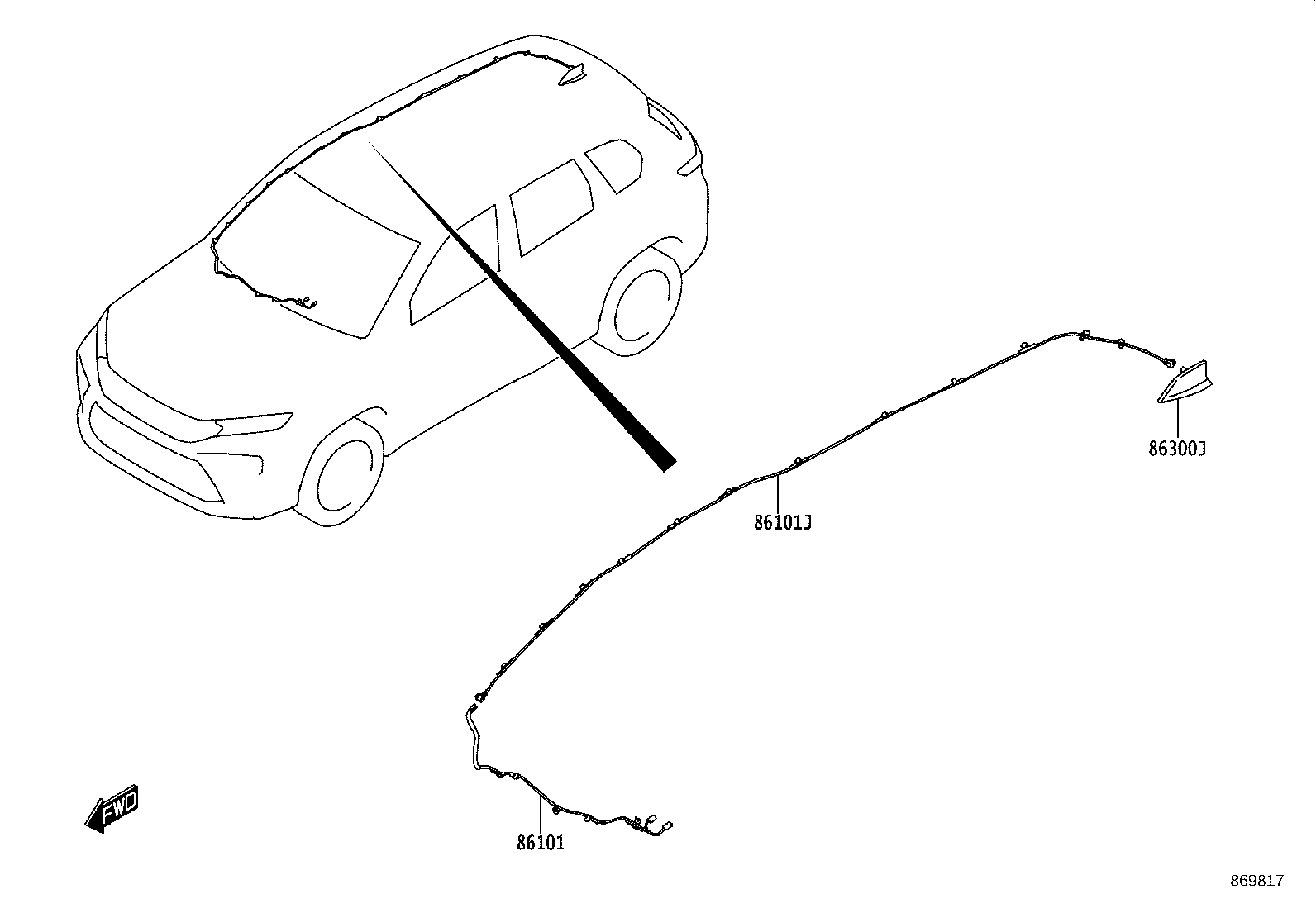

Figure 869815 869815 2022-11 → — Figure 869816 869816 2022-11 → — Figure 869817 869817 2022-11 → — Figure 869818 869818 2022-11 → — Figure 869819 869819 2022-11 → — Figure 869820 869820 2022-11 → —

Part groups

PNCDescription
86101 Cord Sub-assy, Antenna
86101J Cord Sub-assy, Antenna, NO.2
86300J Antenna Assy, Roof
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
