Toyota Urban Cruiser

2022-11 → present · chassis FG21###,22###,61###,62### · catalogue 138320 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camera & Rear Monitor Display

3 part groups · 2 illustrations

Illustrations

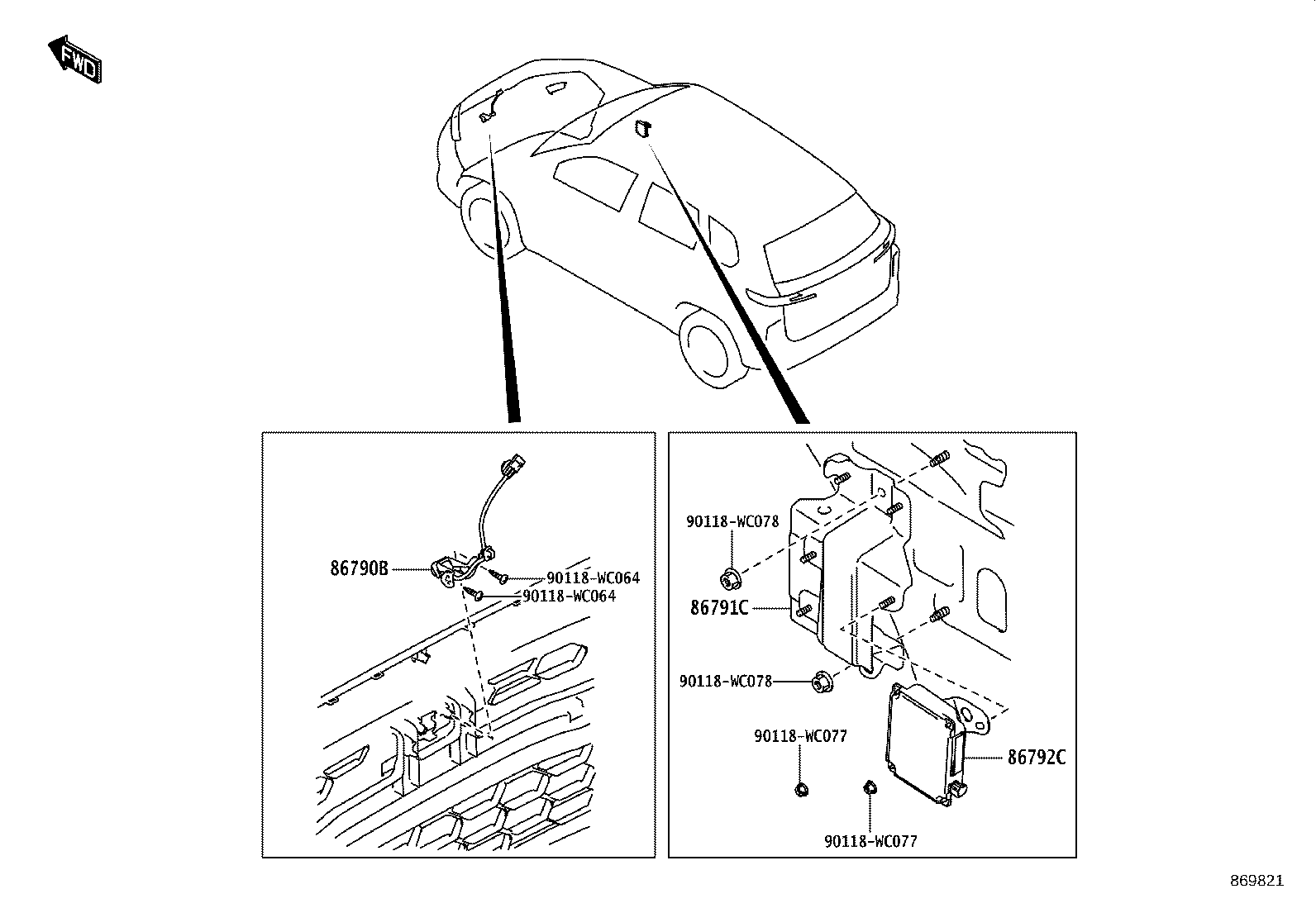

Figure 869822 869822 2022-11 → — Figure 869821 869821 2022-11 → —

Part groups

PNCDescription
86790B Camera Assy, Television, FR
86791C Bracket, Computer Parking Assist, NO.1
86792C Computer, Parking Assist
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
