Toyota Urban Cruiser

2022-11 → present · chassis FG21###,22###,61###,62### · catalogue 138320 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

17 part groups · 3 illustrations

Illustrations

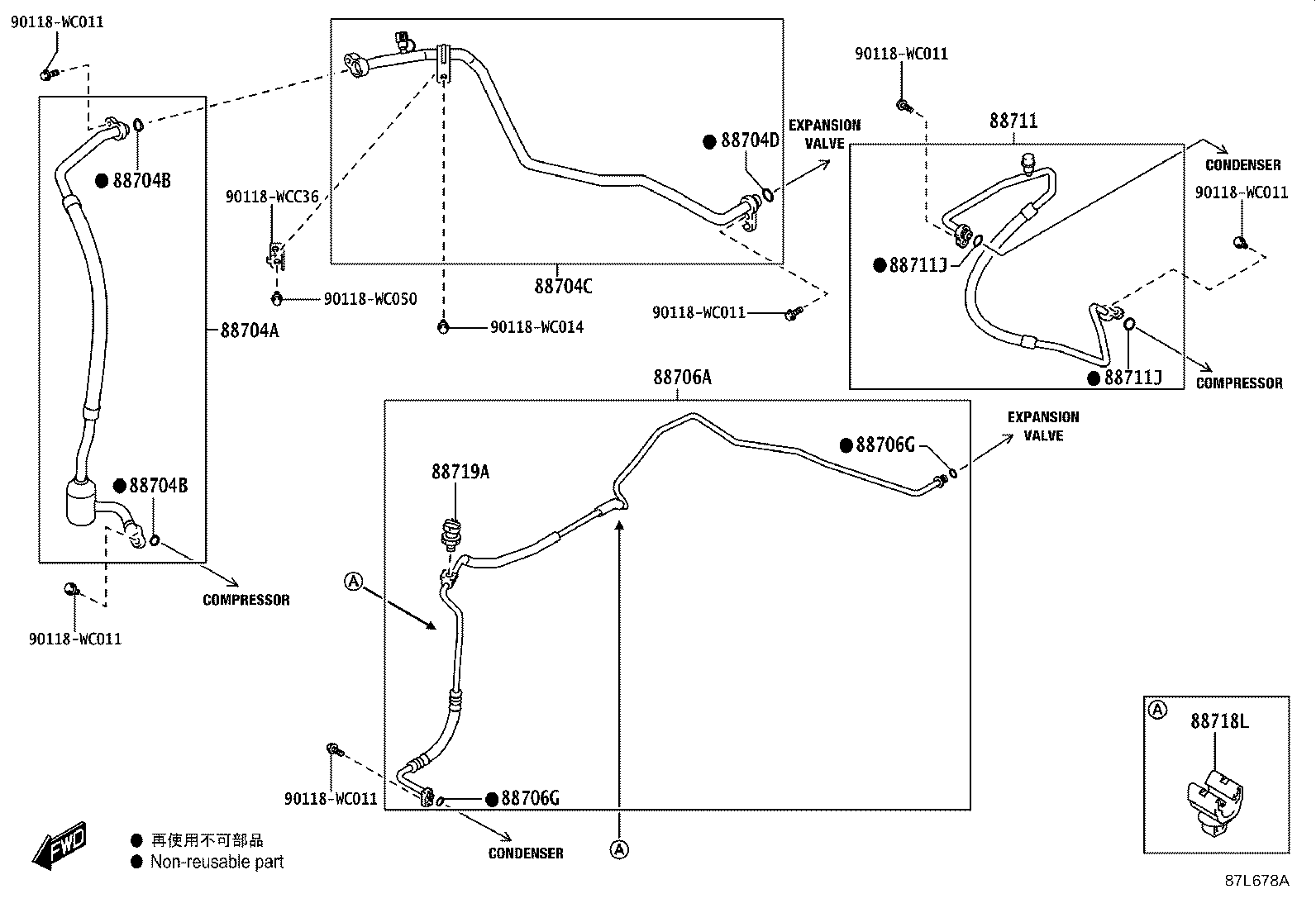

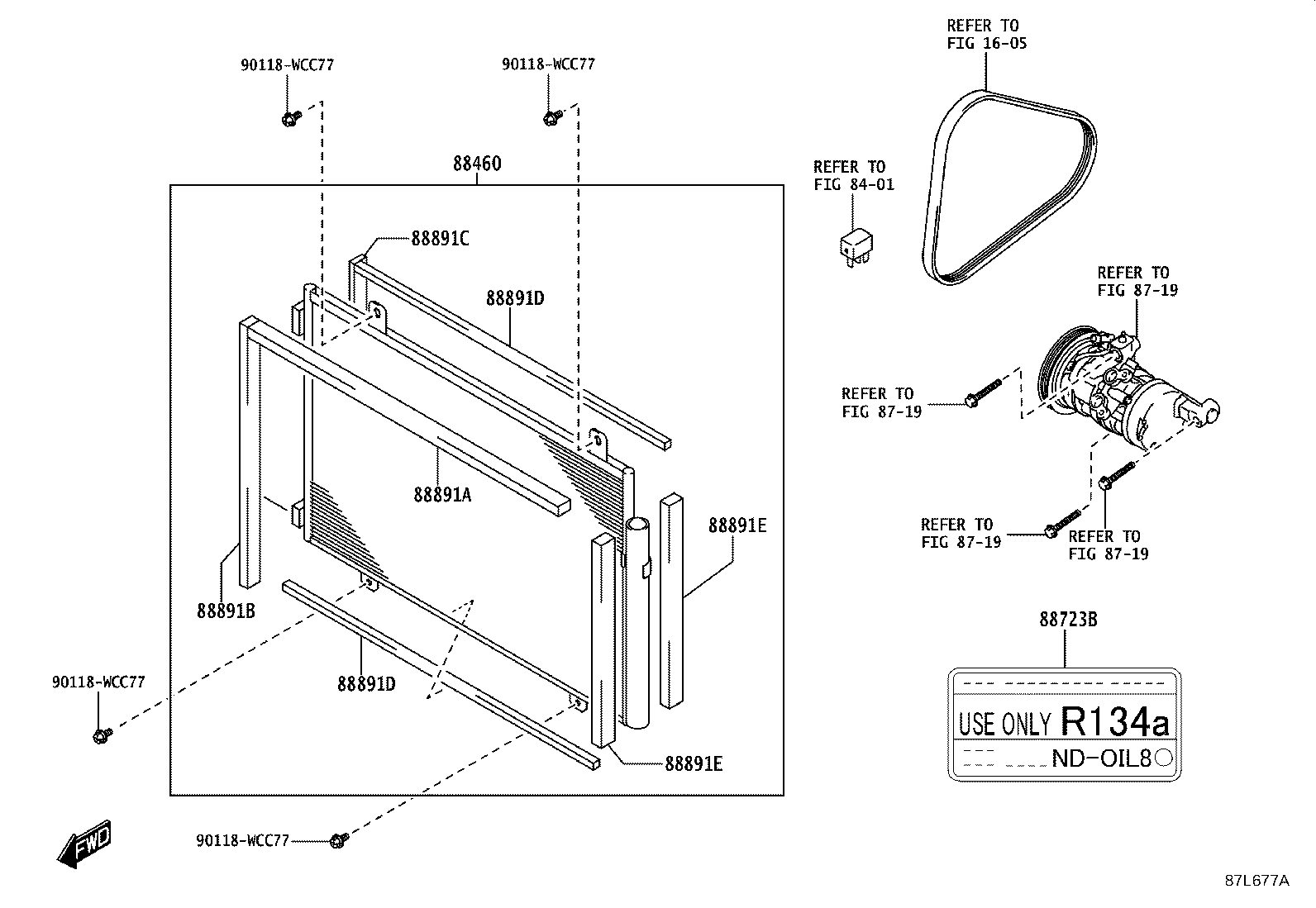

Figure 87L676A 87L676A 2022-11 → — Figure 87L677A 87L677A 2022-11 → — Figure 87L678A 87L678A 2022-11 → —

Part groups

PNCDescription
88460 Condenser Assy, Cooler
88704A Hose Sub-assy, Suction, A
88704B Ring, O(FOR SUCTION HOSE)
88704C Hose Sub-assy, Suction, B
88704D Ring, O, NO.2 (FOR SUCTION HOSE)
88706A Tube Sub-assy, Liquid, A
88706G Ring, O(FOR LIQUID TUBE)
88711 Hose, Cooler Refrigerant Discharge, NO.1
88711J Ring, O, NO.1(FOR DISCHARGE HOSE)
88718L Clamp, Piping
88719A Sensor, Air Conditioner Pressure
88723B Label, Cooler Service Caution
88891A Packing A (FOR COOLER)
88891B Packing B (FOR COOLER)
88891C Packing C (FOR COOLER)
88891D Packing D (FOR COOLER)
88891E Packing E (FOR COOLER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
