Toyota Urban Cruiser

2022-11 → present · chassis FG21###,22###,61###,62### · catalogue 138320 · General

Supported model Data version 2024-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

5 part groups · 4 illustrations

Illustrations

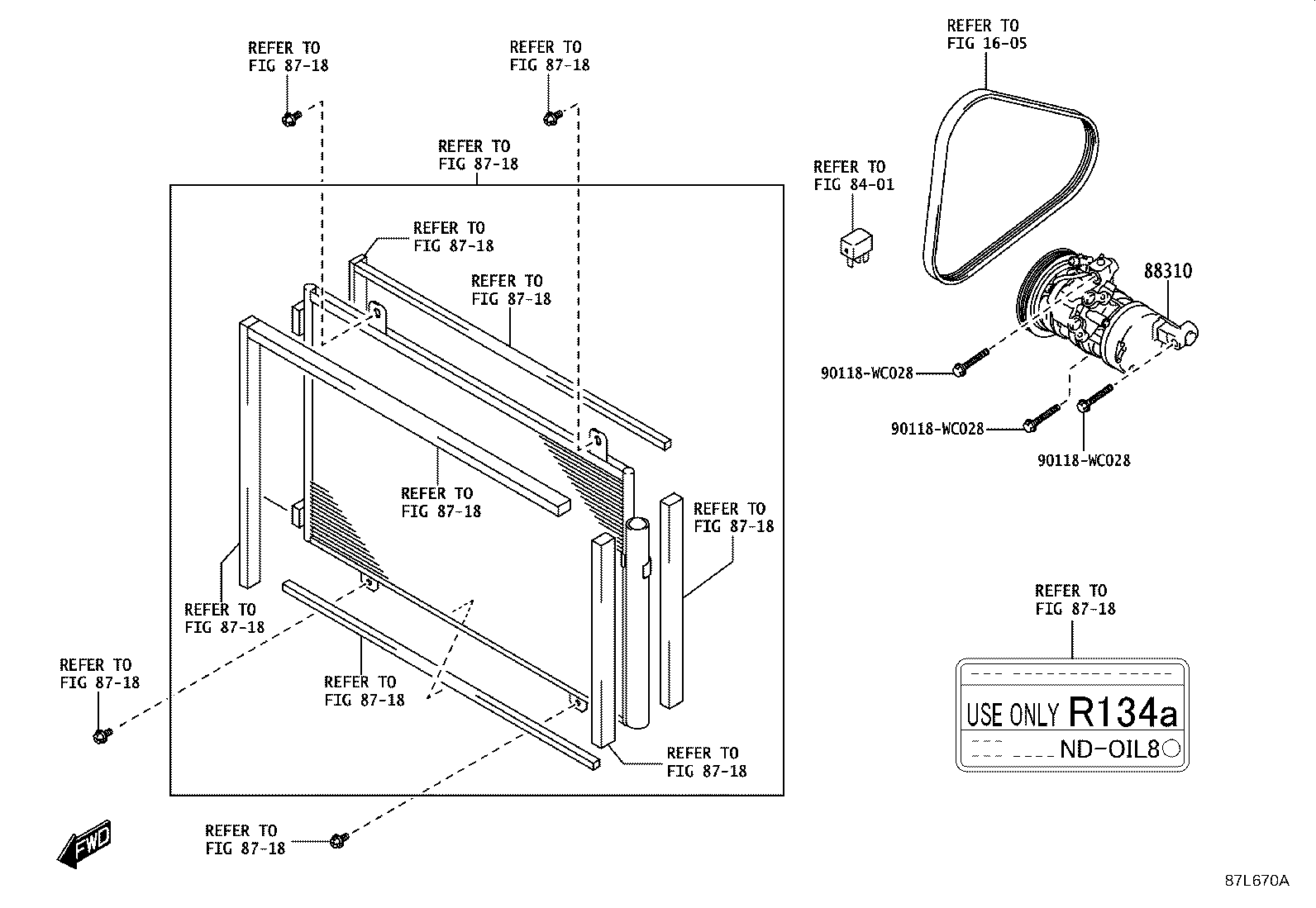

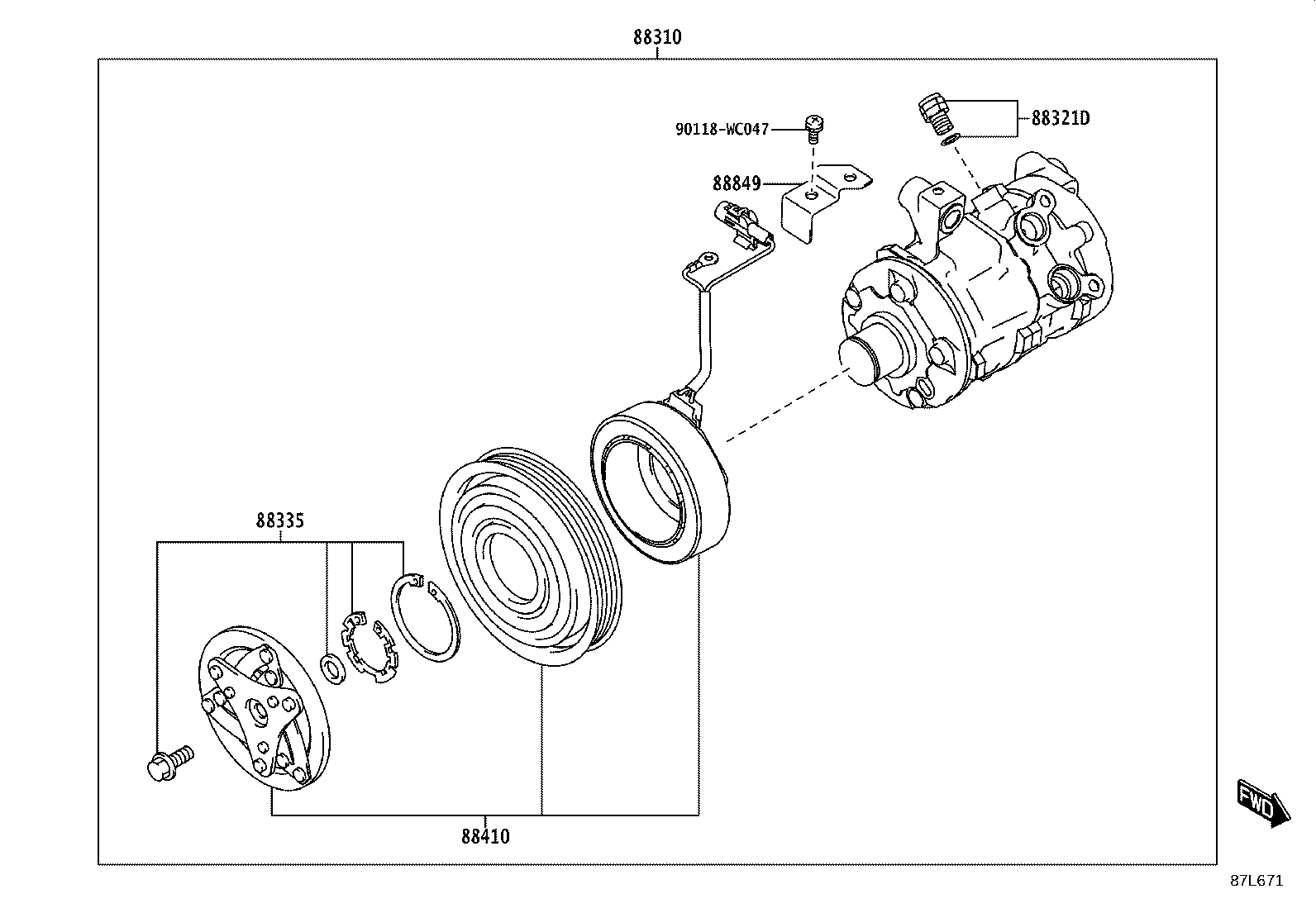

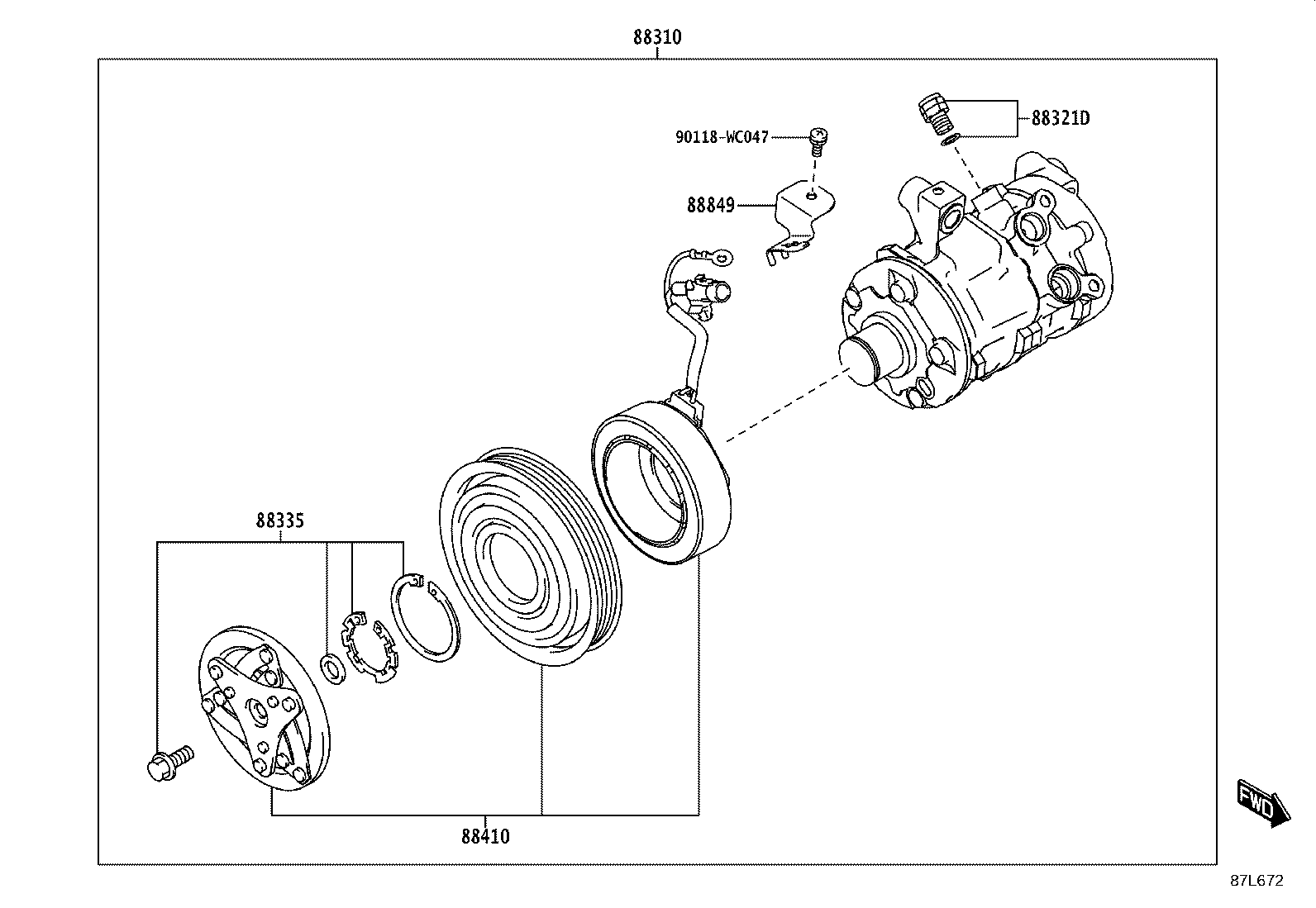

Figure 87L669A 87L669A 2022-11 → — Figure 87L670A 87L670A 2022-11 → — Figure 87L671 87L671 2022-11 → — Figure 87L672 87L672 2022-11 → —

Part groups

PNCDescription
88310 Compressor Assy, W/Pulley
88321D Valve, Pressure Relief
88335 Gasket Kit, Overhaul
88410 Clutch Assy, Magnet
88849 Bracket, Cooler Compressor, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
