Toyota Rumion
2023-08 → present · chassis K15C · catalogue 139210 · General
Supported model
Data version 2023-09

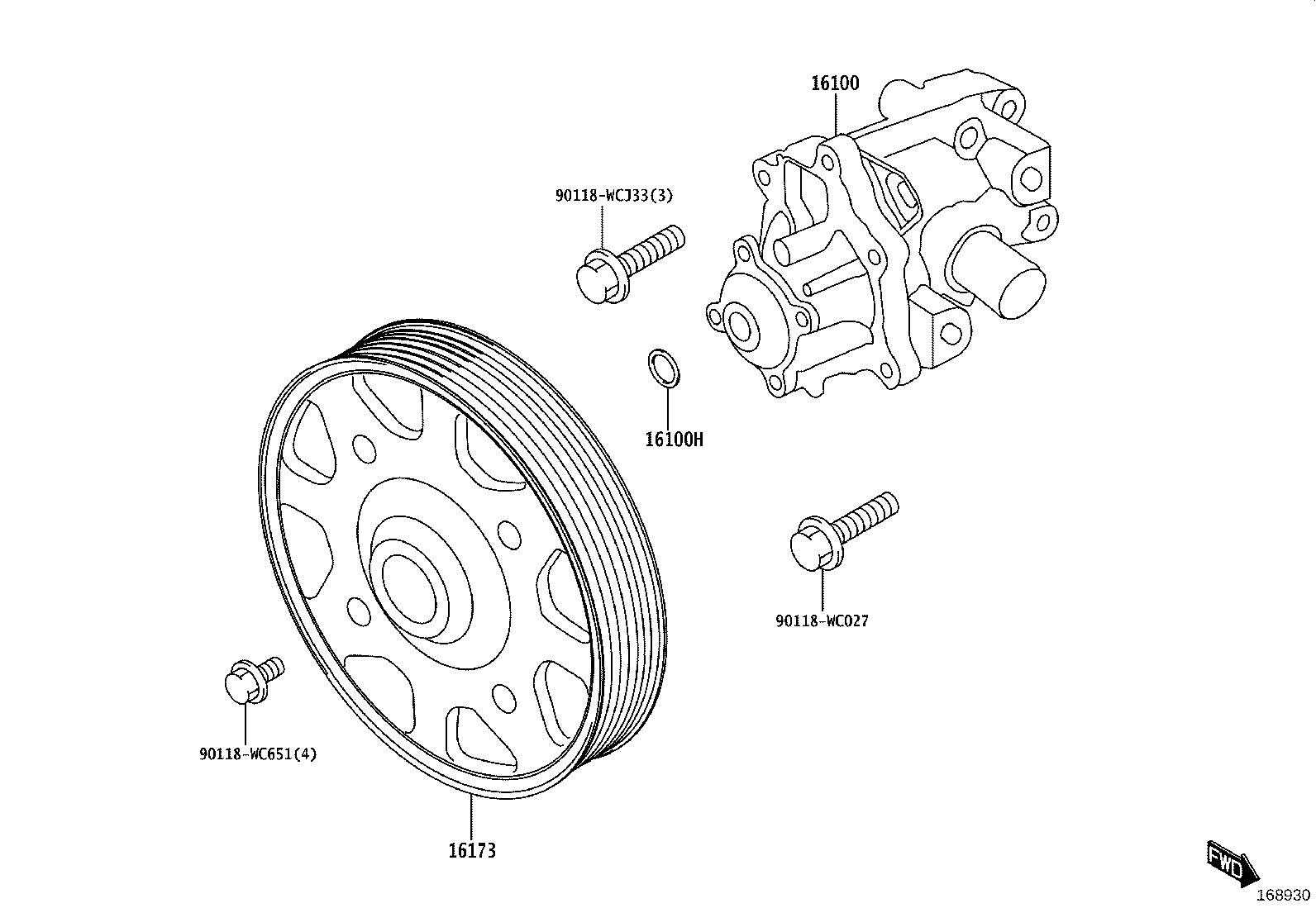

Water Pump
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 16100 | Pump Assy, Engine Water |
| 16100H | Ring, O(FOR WATER PUMP) |
| 16173 | Pulley, Water Pump |
| 16620 | Tensioner Assy, V-ribbed Belt |
| 16630G | Pulley Assy, Idler |
| 16631 | Bracket, Idler Pulley |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
