Toyota Rumion
2023-08 → present · chassis K15C · catalogue 139210 · General
Supported model
Data version 2023-09

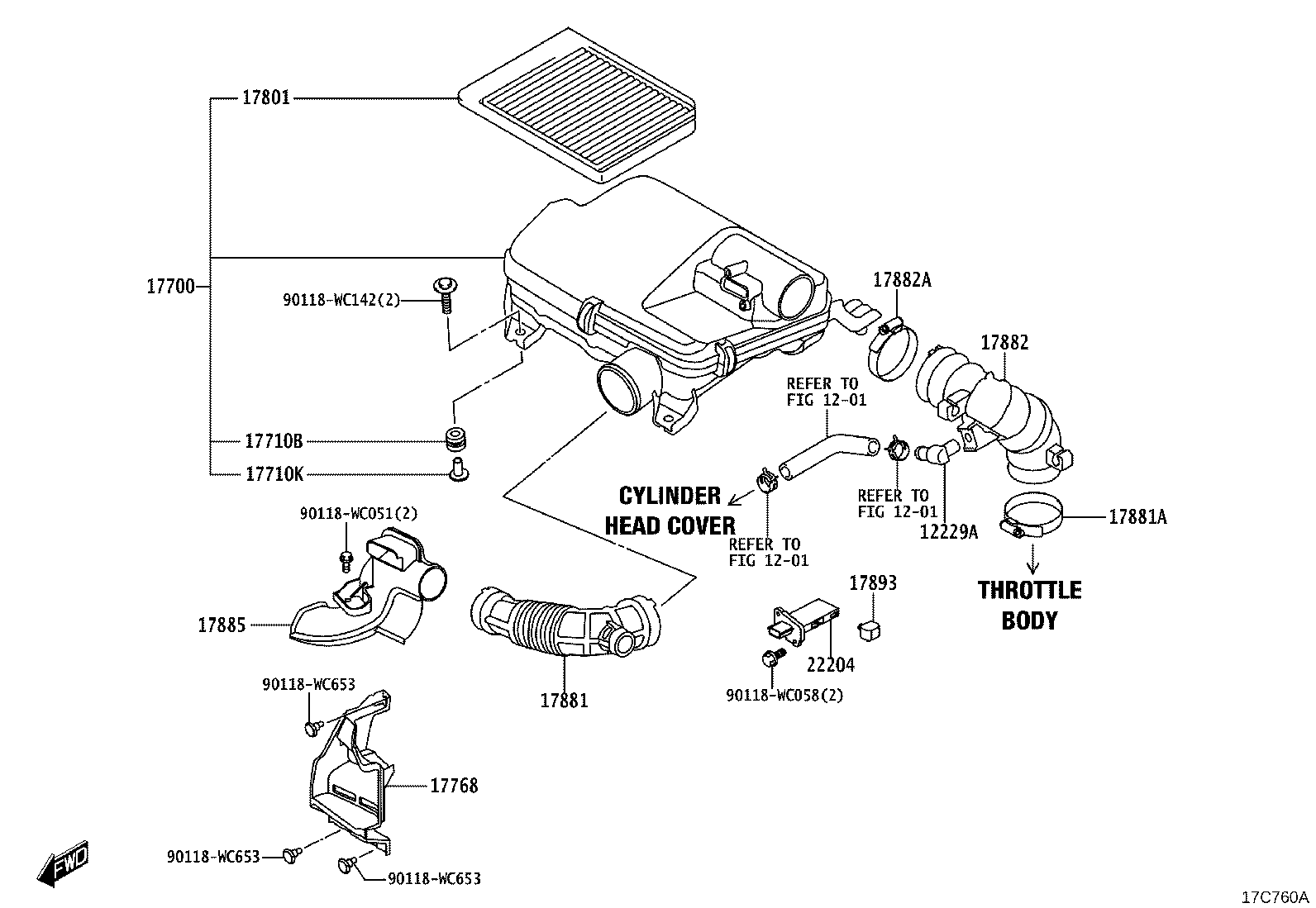

Air Cleaner
14 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 12229A | Pipe, Ventilation |
| 17700 | Cleaner Assy, Air |
| 17710B | Grommet |
| 17710K | Collar(FOR AIR CLEANER) |
| 17768 | Cover, Air Cleaner Inlet |

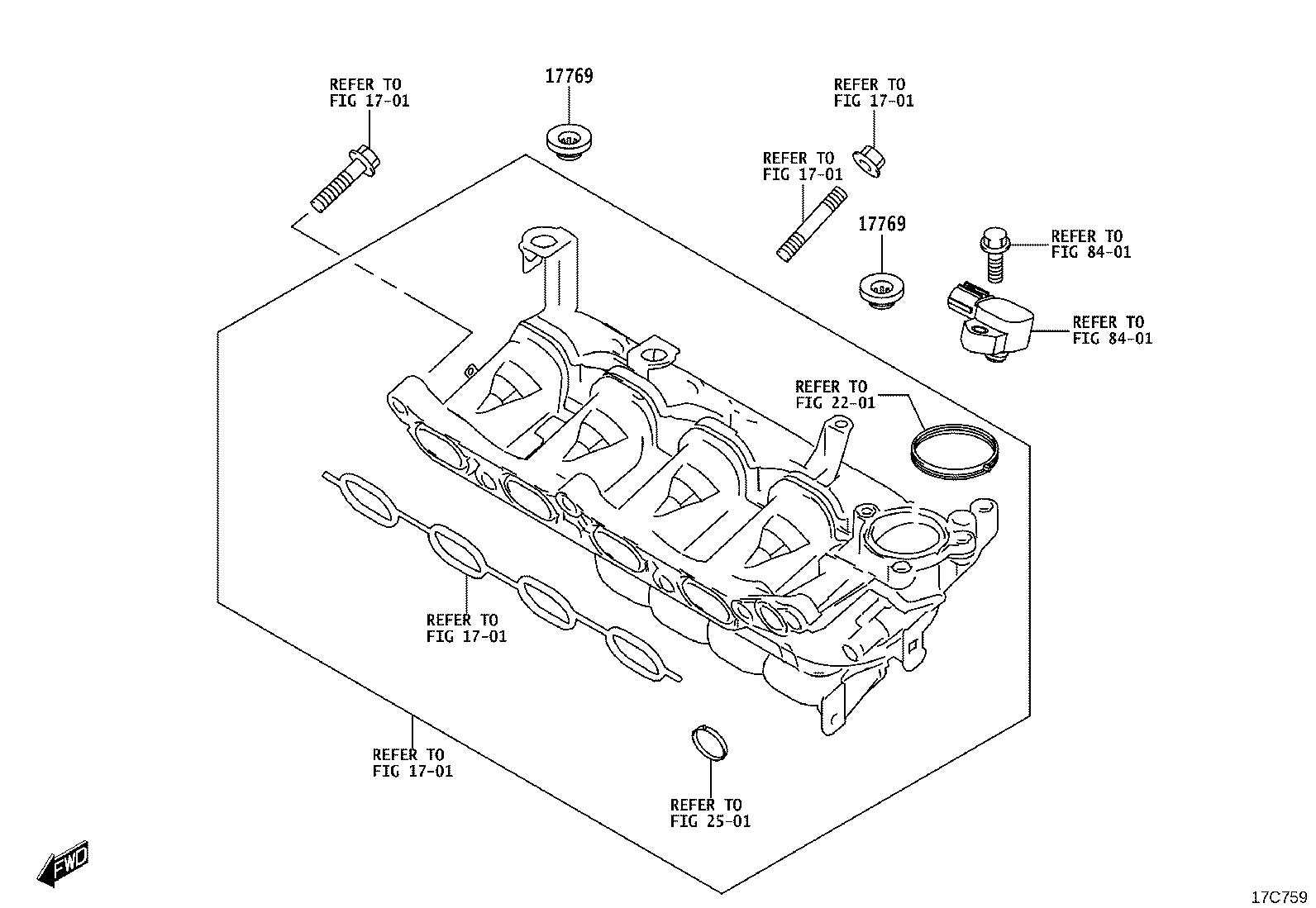

| 17769 | Support, Air Cleaner |
| 17801 | Element Sub-assy, Air Cleaner Filter |
| 17881 | Hose, Air Cleaner, NO.1 |
| 17881A | Clamp(FOR AIR CLEANER HOSE, NO.1) |
| 17882 | Hose, Air Cleaner, NO.2 |
| 17882A | Clamp(FOR AIR CLEANER HOSE, NO.2) |
| 17885 | Pipe, Air Cleaner |
| 17893 | Resonator, Intake Air |
| 22204 | Meter Sub-assy, Intake Air Flow |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
