Toyota Rumion
2023-08 → present · chassis K15C · catalogue 139210 · General
Supported model
Data version 2023-09
Alternator
12 part groups · 3 illustrations
Part groups

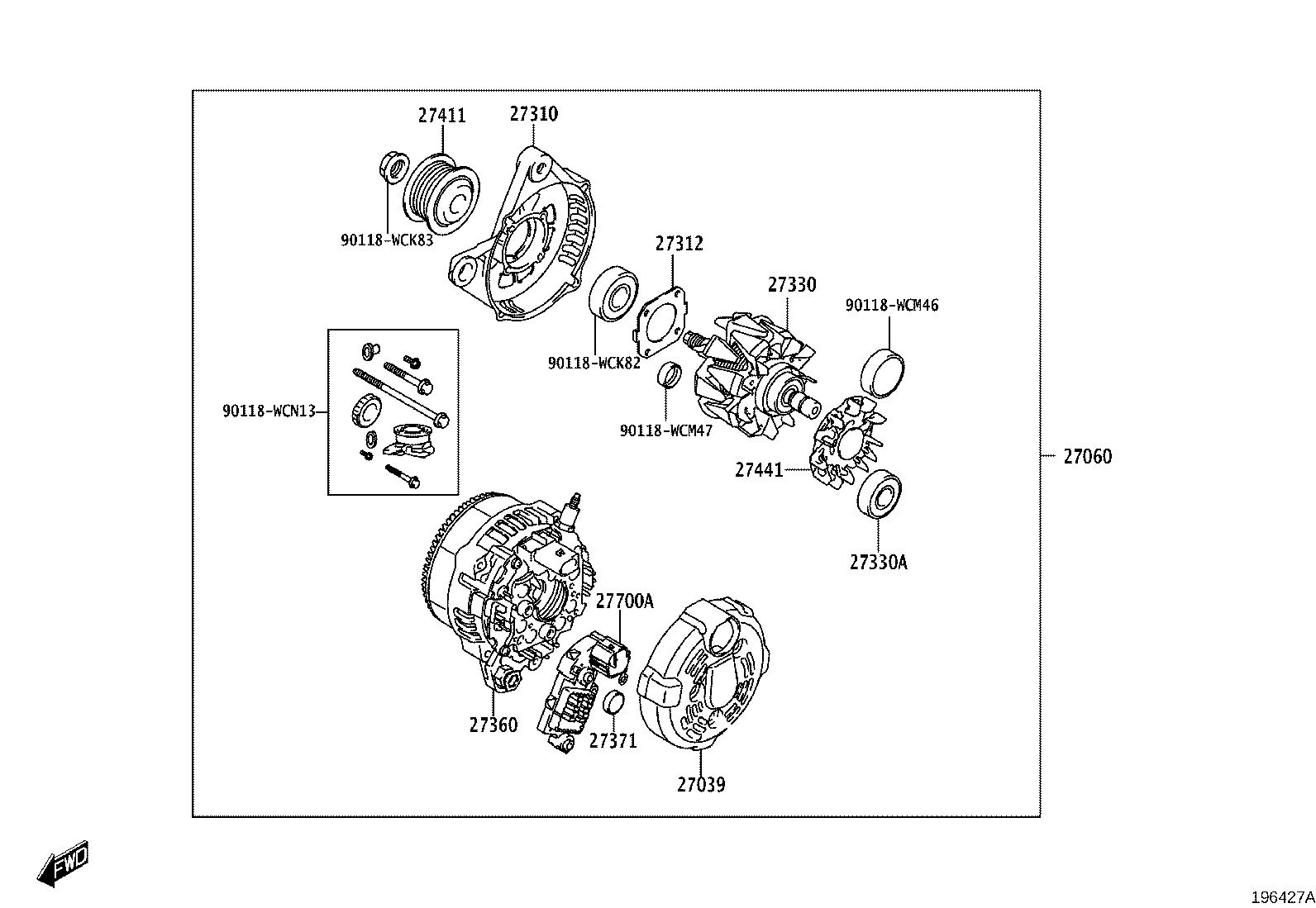

| PNC | Description |
|---|---|
| 27020 | Alternator Assy |
| 27039 | Cover, Alternator Rear End |

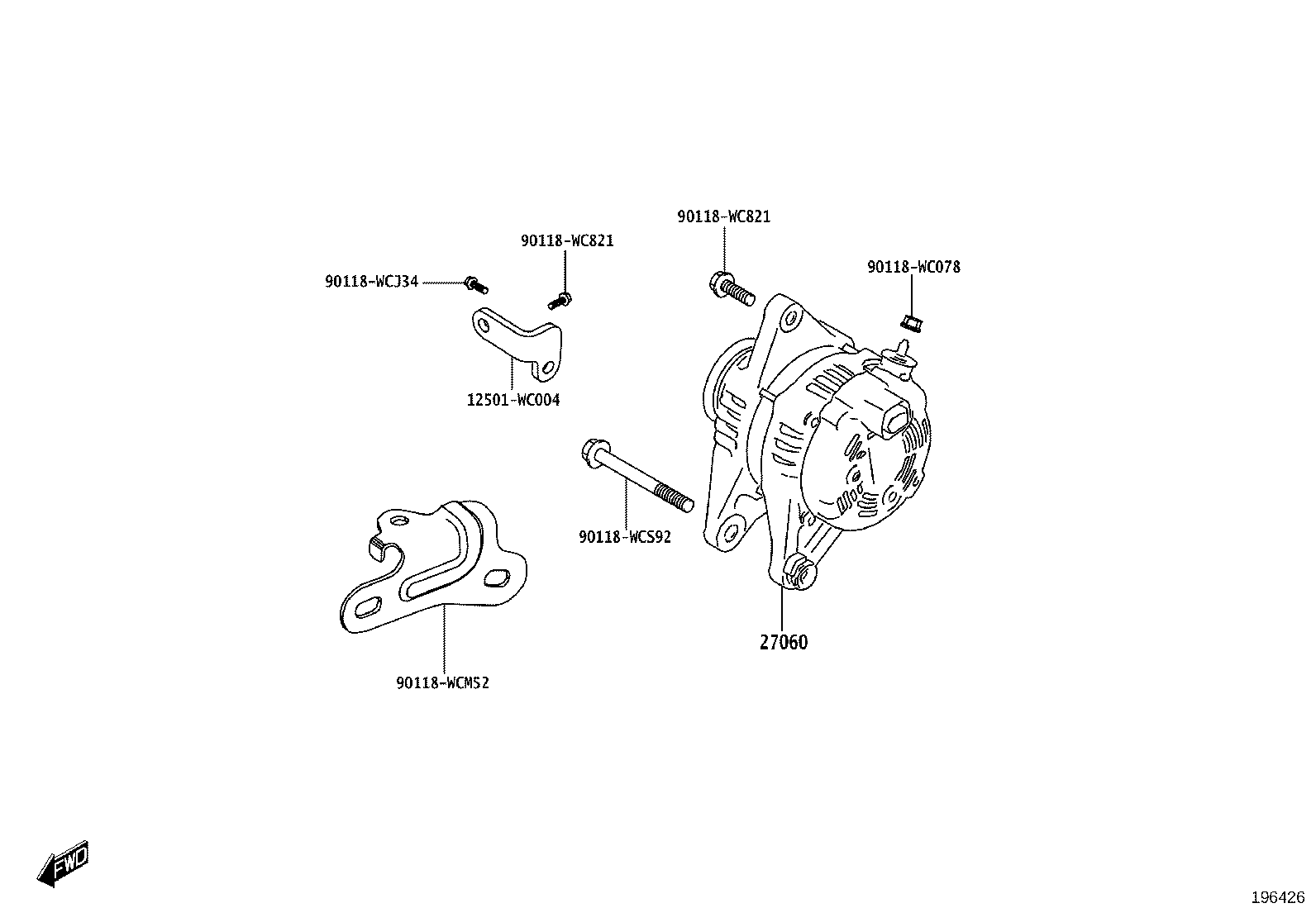

| 27060 | Alternator Assy, W/Regulator |
| 27310 | Frame Assy, Drive End, Alternator |
| 27312 | Plate, Retainer |
| 27330 | Rotor Assy, Alternator |
| 27330A | Bearing(FOR ALTERNATOR ROTOR) |
| 27360 | Coil Assy, Alternator |
| 27371 | Brush, Alternator |
| 27411 | Pulley, Alternator |
| 27441 | Fan, Alternator |
| 27700A | Regulator Assy, Generator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
