Toyota Rumion
2023-08 → present · chassis K15C · catalogue 139210 · General
Supported model
Data version 2023-09
Exhaust Gas Recirculation System
11 part groups · 3 illustrations
Part groups

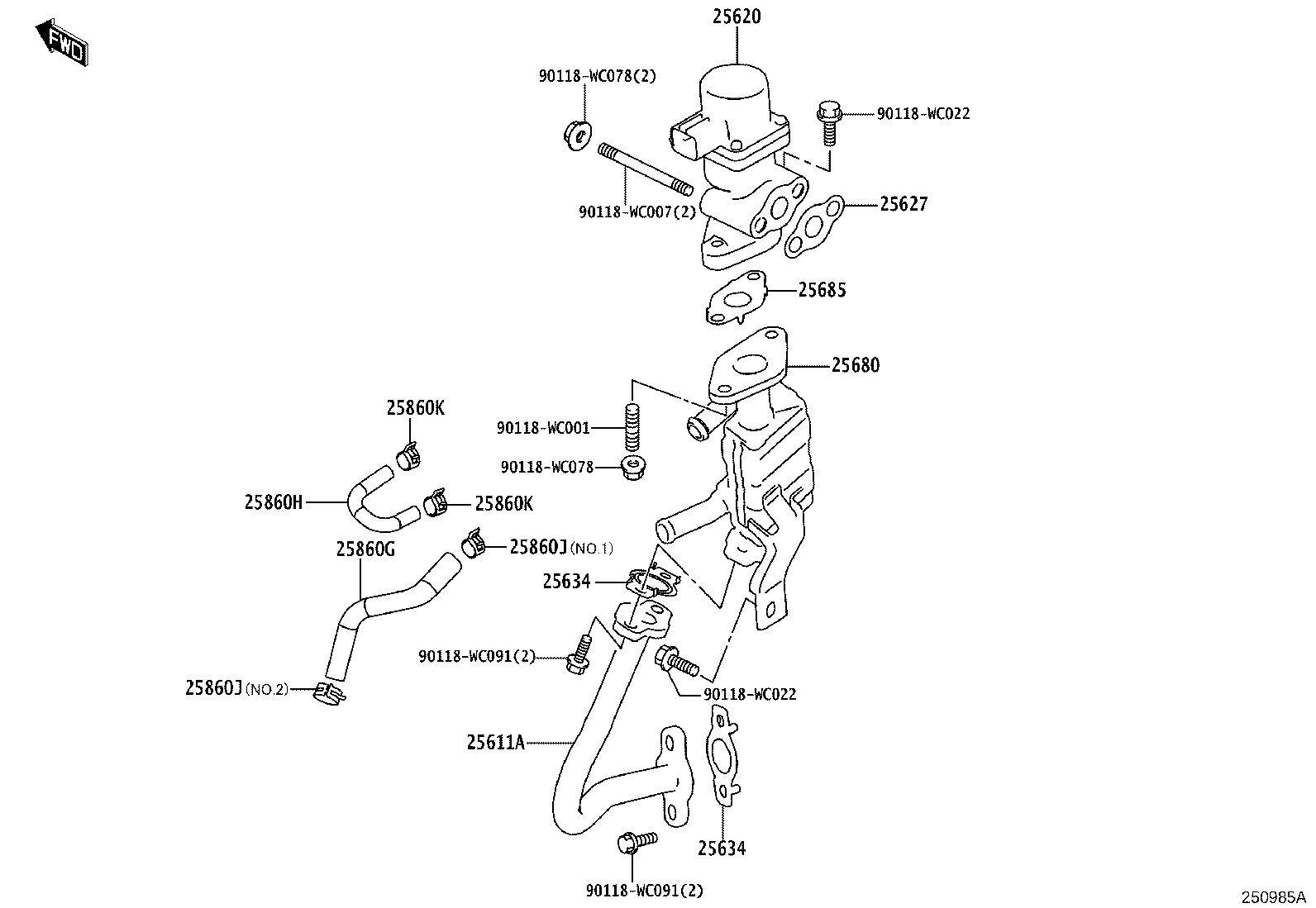

| PNC | Description |
|---|---|
| 25611A | Pipe, Egr, NO.1 |
| 25620 | Valve Assy, Egr |
| 25627 | Gasket, Egr Valve |
| 25628 | Gasket, Egr Inlet |
| 25634 | Gasket, Egr Pipe |
| 25680 | Cooler Assy, Egr |
| 25685 | Gasket, Egr Cooler, NO.1 |
| 25860G | Hose, Water By-pass Hose NO.1(FOR EGR COOLER) |
| 25860H | Hose, Water By-pass Hose NO.2(FOR EGR COOLER) |
| 25860J | Hose, Clip NO.1(FOR EGR COOLER) |
| 25860K | Hose, Clip NO.2(FOR EGR COOLER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
