Toyota Rumion
2023-08 → present · chassis K15C · catalogue 139210 · General
Supported model
Data version 2023-09
Transmission Case & Oil Pan (ATM)
20 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 33195B | Hanger, Transmission Case |
| 35104 | Case Sub-assy, Automatic Transmission |
| 35104B | Plug, Breather, NO.1 (ATM) |
| 35104F | Seal, Oil (FOR TRANSAXLE CASE) |
| 35104J | Bracket, Breather Plug Hose |
| 35104Q | Plug, NO.1 (FOR TRANSAXLE CASE) |
| 35104R | Plug, NO.2 (FOR TRANSAXLE CASE) |
| 35104S | Ring, O (FOR TRANSAXLE CASE PLUG NO.1) |
| 35104T | Ring, O (FOR TRANSAXLE CASE PLUG NO.2) |
| 35104X | Ring, O (FOR BREATHER PLUG) |

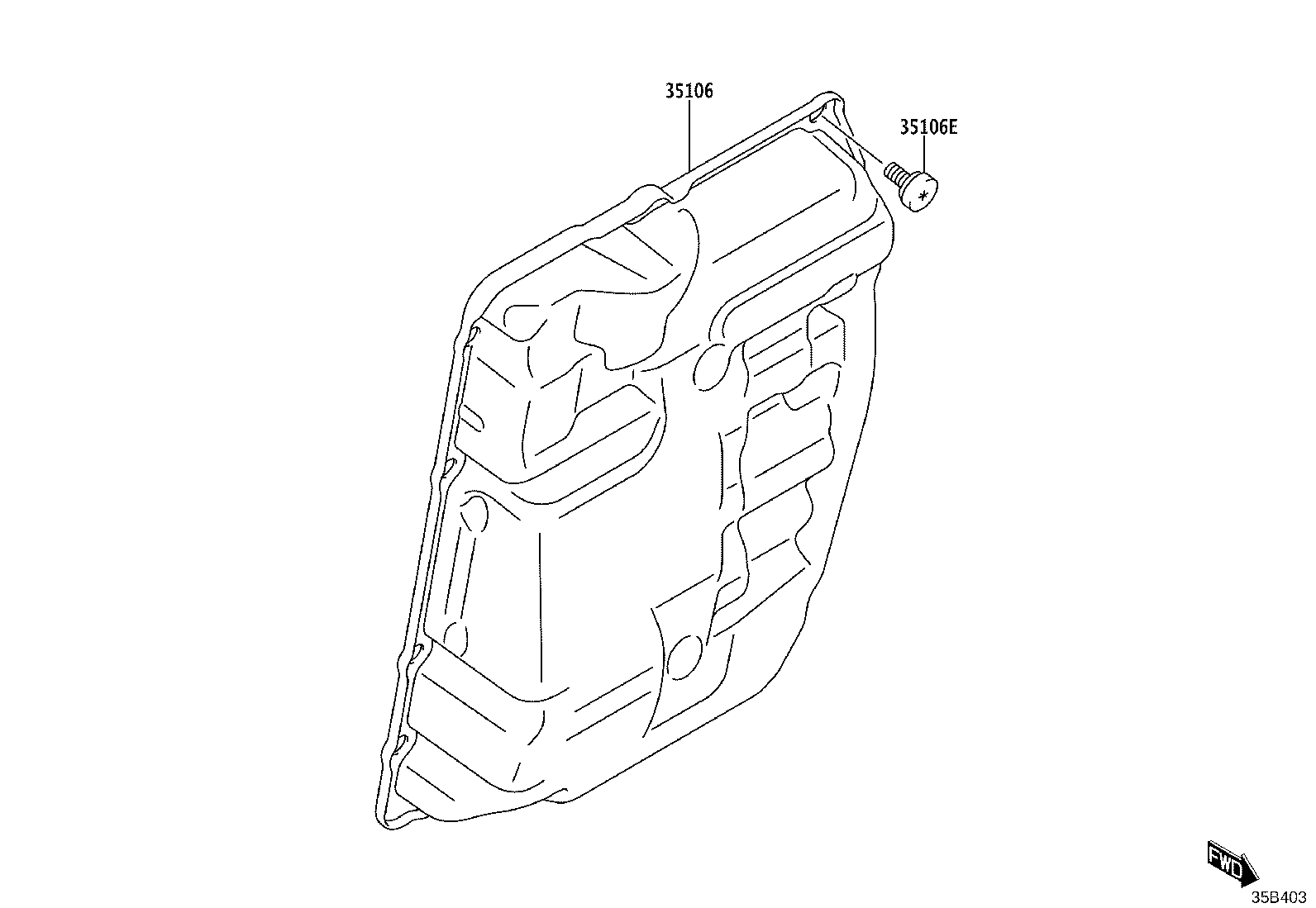

| 35106 | Pan Sub-assy, Automatic Transmission Oil |
| 35106E | Bolt (FOR TRANSAXLE OIL PAN) |
| 35111K | Bolt (FOR TRANSMISSION HOUSING & CASE SETTING) |
| 35122 | Tube, Breather (FOR AUTOMATIC TRANSAXLE) |
| 35165 | Plate, Transmission Case, NO.1 |
| 35166 | Plate, Transmission Case, NO.3 |
| 35394 | Magnet, Oil Cleaner (FOR TRANSMISSION) |
| 35653A | Ring, Direct Clutch Drum Oil Seal |
| 35847C | Tube, Transmission Lube Apply |
| 35882C | Tube, Differential Gear Lube Apply |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
