Toyota Rumion

2023-08 → present · chassis K15C · catalogue 139210 · General

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Band & Multiple Disc Clutch (ATM)

14 part groups · 3 illustrations

Illustrations

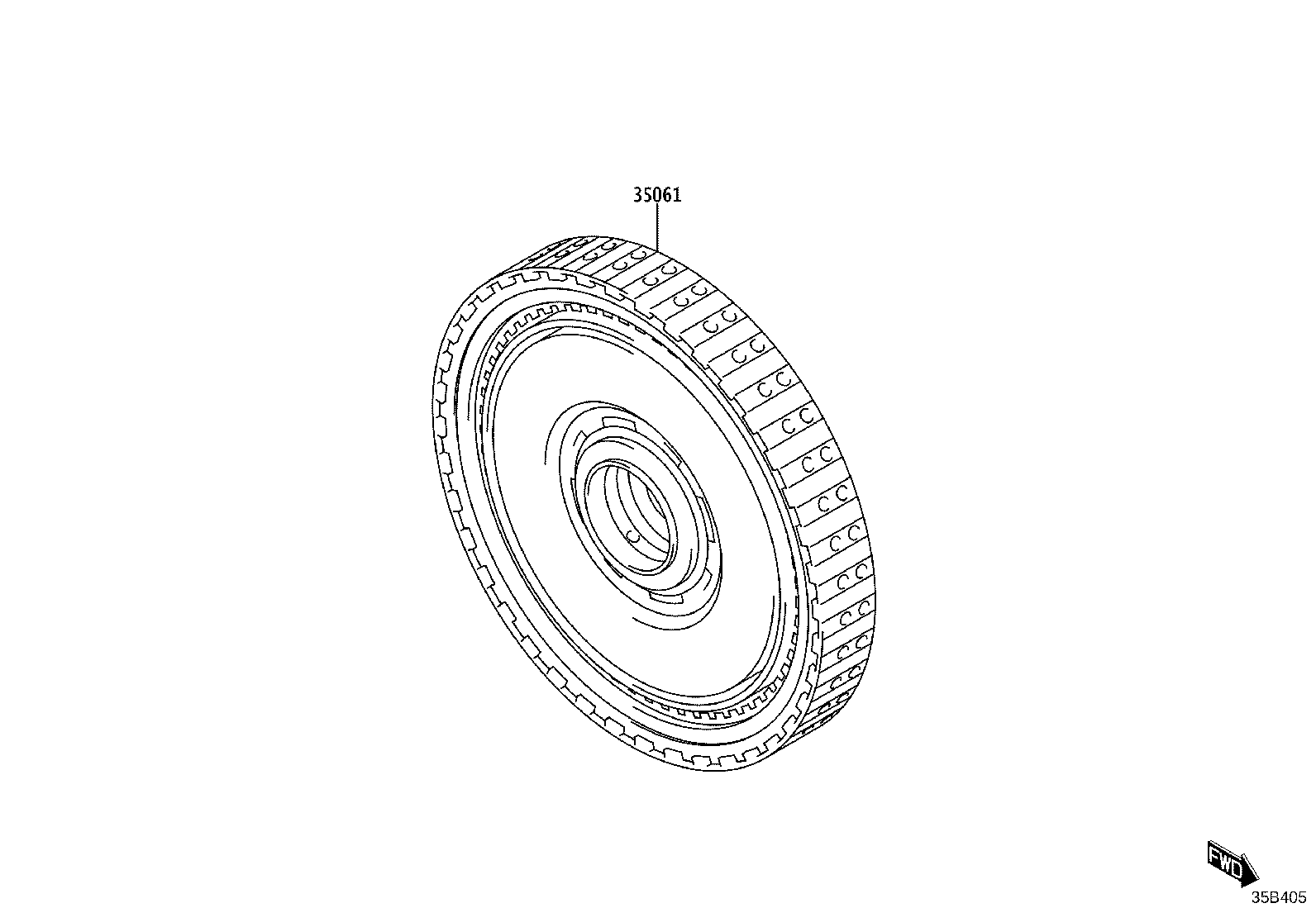

Figure 35B404 35B404 2023-08 → — Figure 35B405 35B405 2023-08 → — Figure 35B406 35B406 2023-08 → —

Part groups

PNCDescription
35061 Hub Sub-assy, Forward Clutch
35650 Clutch Assy, Rear Multiple Disc
35650J Bearing, Thrust Needle Roller (FOR DIRECT DISC CLUTCH)
35701 Shaft Sub-assy, Input
35701D Ring (FOR INPUT SHAFT)
35701H Bearing, Thrust Needle Roller (FOR INPUT SHAFT)
35712A Ring, Input Shaft Oil Seal
35789J Race, Thrust Bearing (FOR INPUT SHAFT FRONT)
35789S Race, Thrust Bearing (FOR INPUT SHAFT REAR)
35815C Cover, Brake Piston
35815D Ring, O(FOR BRAKE PISTON COVER)
35821J Piston, B-1 Brake
35821L Ring, O(FOR B-1 BRAKE PISTON)
35821M Spring, Compression(FOR B-1 BRAKE PISTON)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
