Toyota Rumion

2023-08 → present · chassis K15C · catalogue 139210 · General

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Valve Body & Oil Strainer (ATM)

5 part groups · 2 illustrations

Illustrations

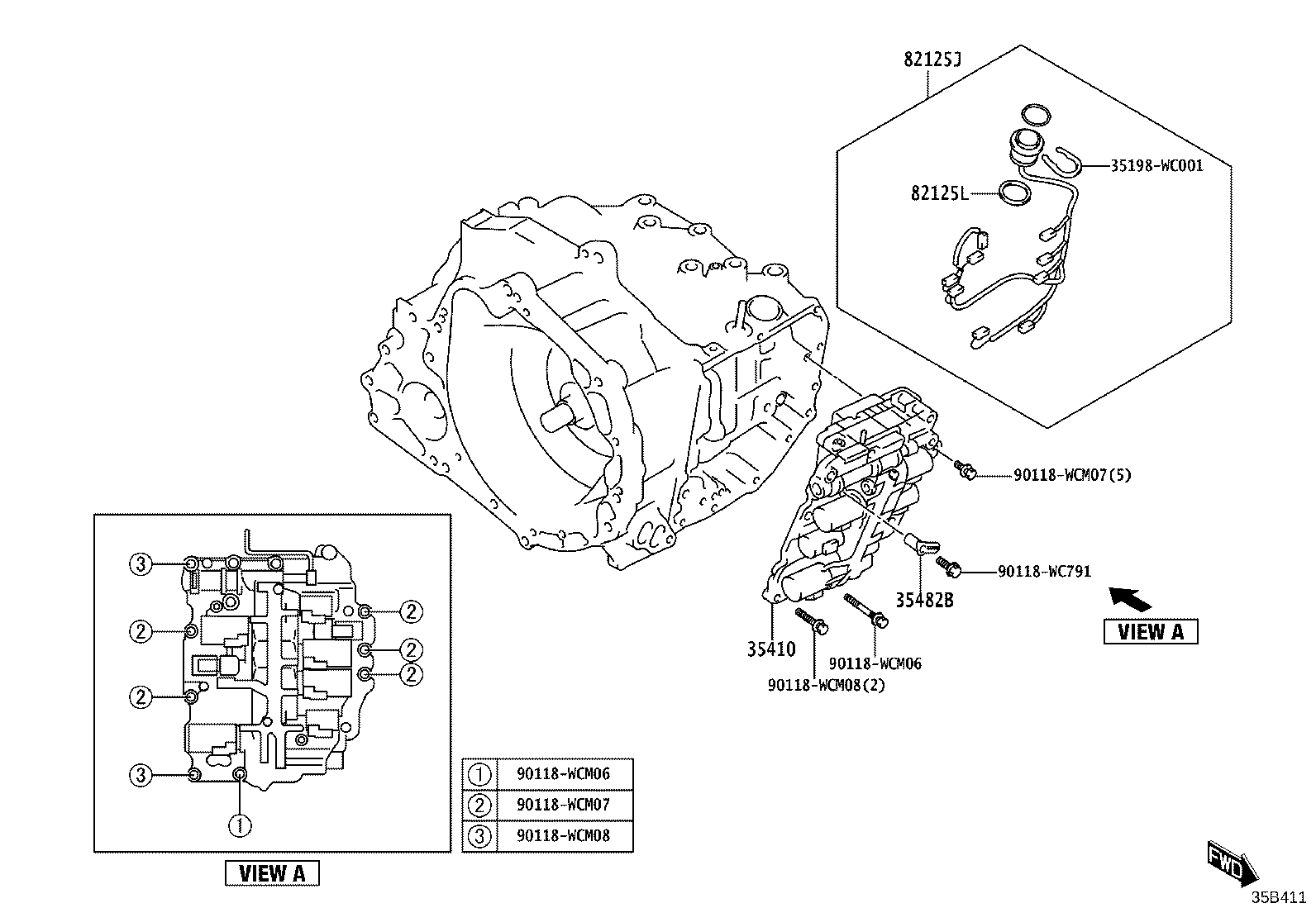

Figure 35B410 35B410 2023-08 → — Figure 35B411 35B411 2023-08 → —

Part groups

PNCDescription
35303 Strainer Sub-assy, Oil
35410 Body Assy, Transmission Valve
35482B Clamp, Temperature Sensor
82125J Wire, Transmission
82125L Ring, O(FOR TRANSMISSION WIRE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
