Toyota Rumion

2023-08 → present · chassis K15C · catalogue 139210 · General

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Throttle Link & Valve Lever (ATM)

11 part groups · 2 illustrations

Illustrations

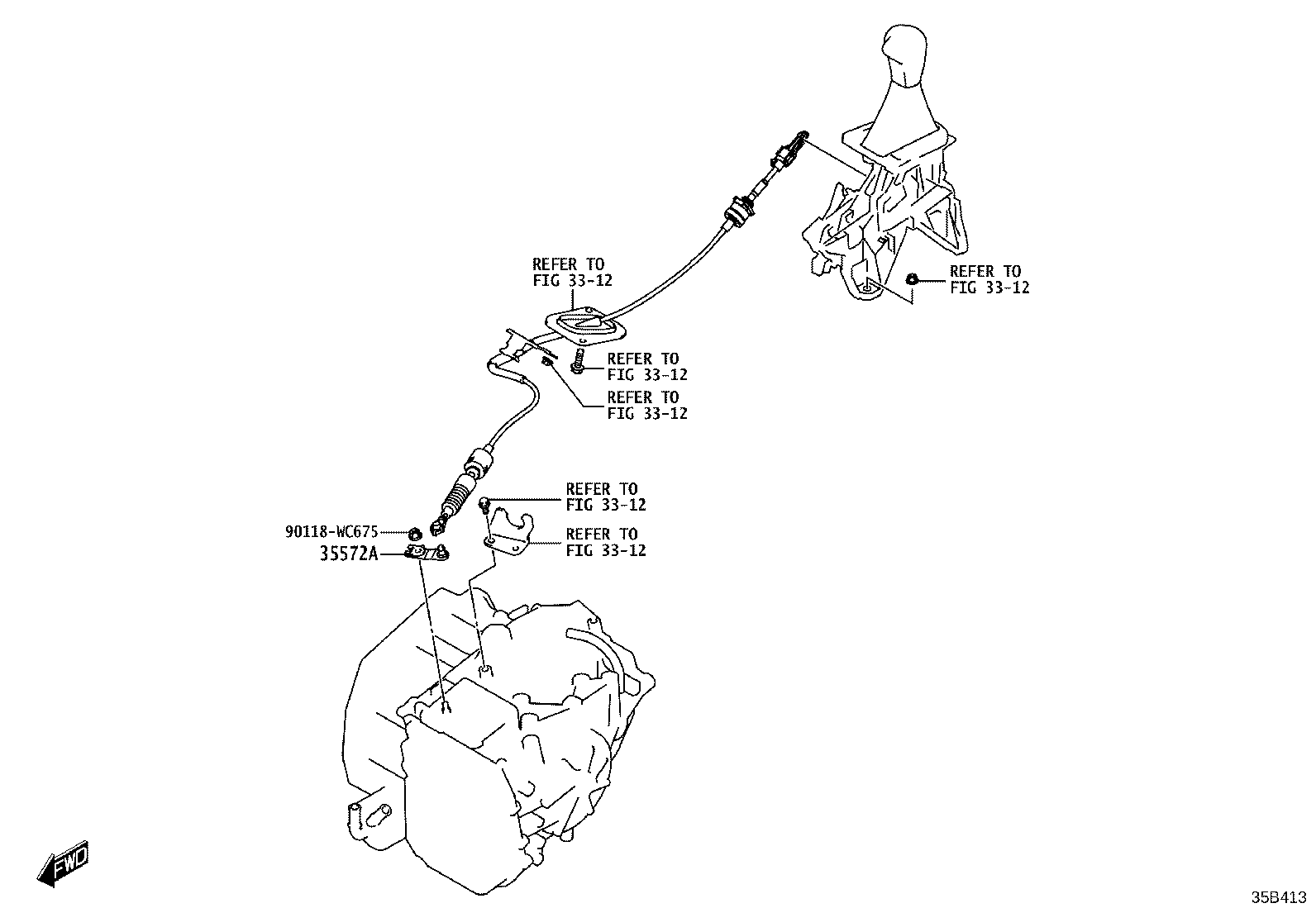

Figure 35B412 35B412 2023-08 → — Figure 35B413 35B413 2023-08 → —

Part groups

PNCDescription
35056A Spring, Parking Lock Lever
35409D Spring Sub-assy, Manual Detent
35501 Rod Sub-assy, Parking Lock
35505 Lever Sub-assy, Manual Valve
35556 Shaft, Parking Lock Pawl
35572A Lever, Transmission Control Shaft
35579 Pin, Parking Lock Pawl
35590 Pawl Assy, Parking Lock
35595 Bracket, Parking Lock Pawl
35597 Sleeve, Spring Guide
35599C Cover, Manual Detent Spring
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
