Toyota Rumion

2023-08 → present · chassis K15C · catalogue 139210 · General

Supported model Data version 2023-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

6 part groups · 2 illustrations

Illustrations

Figure 47E474A

47E474A 2023-08 → —

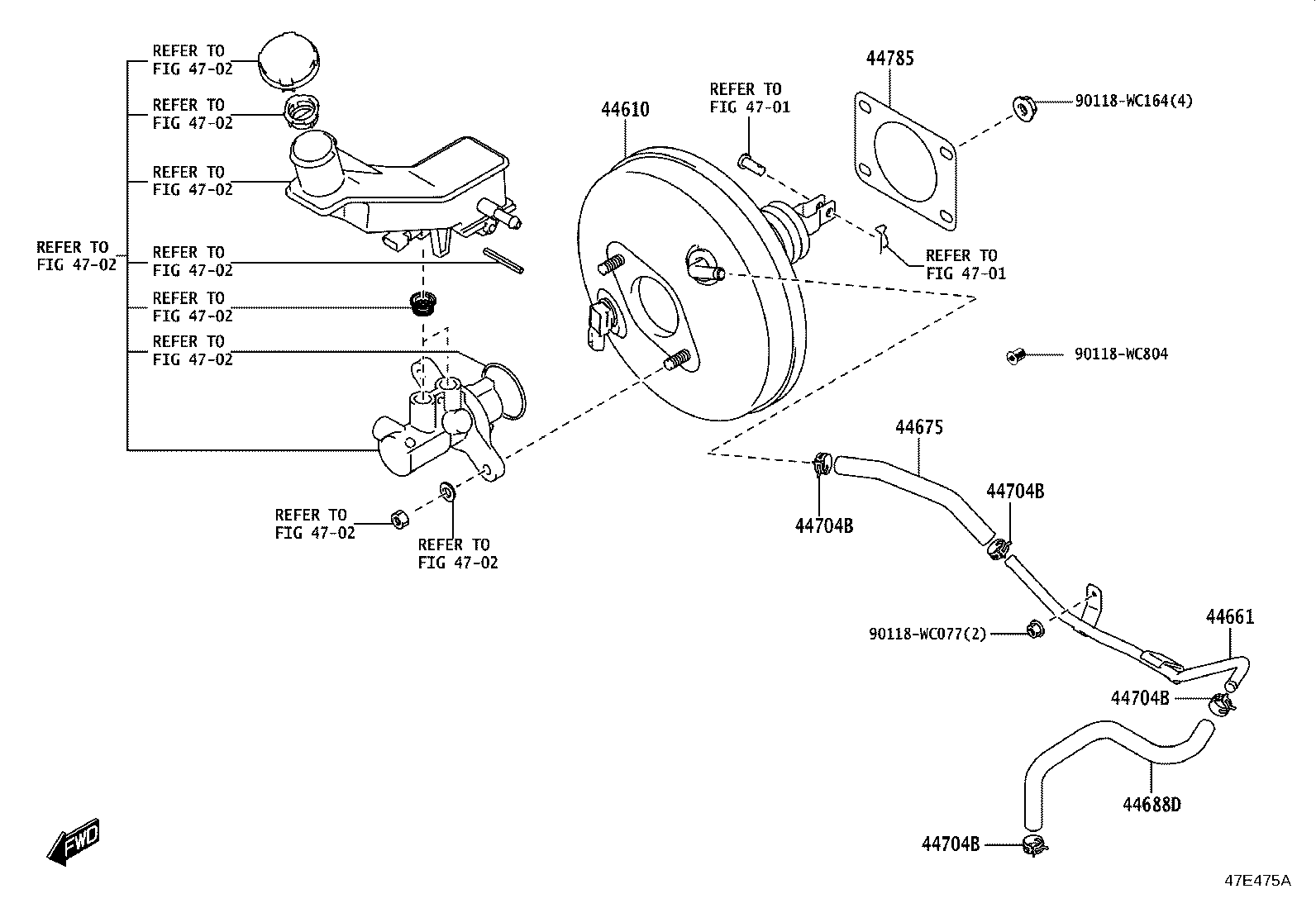

Figure 47E475A

47E475A 2023-08 → —

Part groups

PNC	Description
44610	Booster Assy, Brake
44661	Tube, Booster Vacuum
44675	Hose, Booster Vacuum
44688D	Hose, Booster Vacuum
44704B	Clip(FOR HOSE)
44785	Gasket, Brake Booster

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
