Toyota Rumion

2023-08 → present · chassis K15C · catalogue 139210 · General

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

8 part groups · 2 illustrations

Illustrations

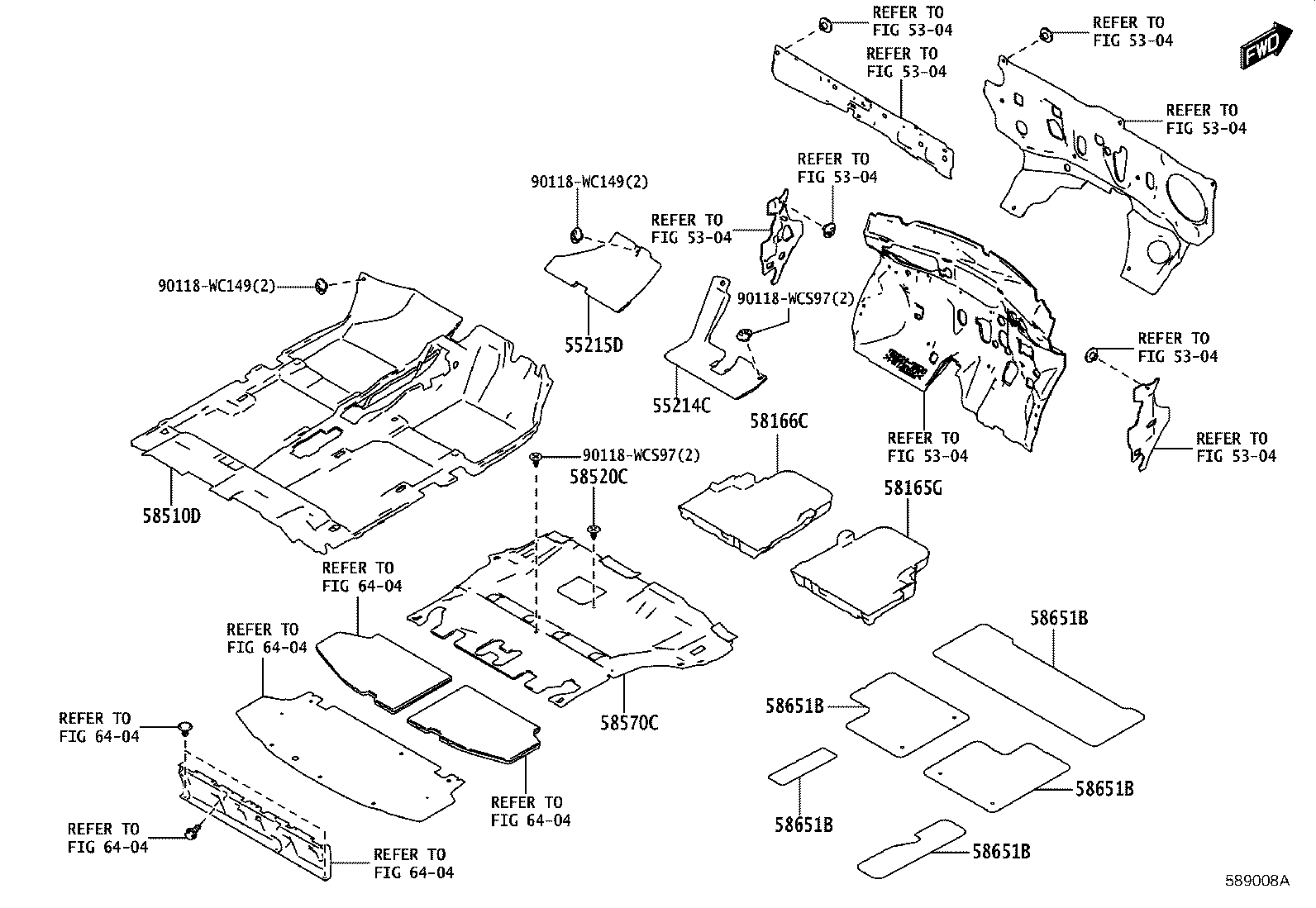

Figure 589009A 589009A 2023-08 → — Figure 589008A 589008A 2023-08 → —

Part groups

PNCDescription
55214C Pad, Dash Panel Insulator, NO.2
55215D Pad, Dash Panel Insulator, NO.3
58165G Cover, Front Floor, RH
58166C Cover, Front Floor, LH
58510D Carpet Assy, Floor, Front
58520C Clip(FOR FRONT FLOOR CARPET)
58570C Carpet Assy, Rear Floor
58651B Sheet, Rear Floor Silencer, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
