Toyota Rumion
2023-08 → present · chassis K15C · catalogue 139210 · General
Supported model
Data version 2023-09
Side Member
56 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 60131 | Pillar Sub-assy, Center Body, NO.2 RH |
| 60132 | Pillar Sub-assy, Center Body, NO.2 LH |
| 61021B | Pillar Sub-assy, Front Body, Upper RH |
| 61022B | Pillar Sub-assy, Front Body, Upper LH |
| 61031C | Extension Sub-assy, Quarter Panel, Rear RH |
| 61032C | Extension Sub-assy, Quarter Panel, Rear LH |
| 61037A | Reinforcement Sub-assy, Center Body Pillar, RH |
| 61038A | Reinforcement Sub-assy, Center Body Pillar, LH |
| 61108A | Reinforce Sub-assy, Front Body Pillar, Lower RH |
| 61109A | Reinforce Sub-assy, Front Body Pillar, Lower LH |
| 61131 | Pillar, Front Body, Upper Outer RH |
| 61132 | Pillar, Front Body, Upper Outer LH |
| 61159F | Bracket, Cowl Side Panel TO Fender Apron |
| 61159G | Bracket, Cowl Side Panel TO Fender Apron, RH |
| 61177B | Bracket, Door Check Arm |
| 61178B | Bracket, Door Check Arm |
| 61187 | Bracket, Front Pillar Door Hinge Cover, RH |
| 61188 | Bracket, Front Pillar Door Hinge Cover, LH |
| 61201 | Rail Sub-assy, Roof Side, RH |
| 61202 | Rail Sub-assy, Roof Side, LH |
| 61235B | Bracket, Assist Grip |
| 61343A | Pillar, Center Body, Inner RH |
| 61344A | Pillar, Center Body, Inner LH |
| 61401C | Panel Sub-assy, Rocker, Outer RH |
| 61402C | Panel Sub-assy, Rocker, Outer LH |
| 61403C | Reinforce Sub-assy, Rocker, Outer RH |
| 61404E | Reinforce Sub-assy, Rocker, Outer LH |
| 61503B | Reinforcement Sub-assy, Quarter Lock Pillar, RH |
| 61504B | Reinforcement Sub-assy, Quarter Lock Pillar, LH |
| 61527 | Reinforcement, Quarter Lock Piller, Lower RH |
| 61528 | Reinforcement, Quarter Lock Piller, Lower LH |
| 61531 | Panel, Back Corner, Inner RH |
| 61532 | Panel, Back Corner, Inner LH |
| 61607E | Panel, Quarter Wheel House, Inner RH |
| 61608D | Panel, Quarter Wheel House, Inner LH |
| 61611 | Panel, Quarter, RH |
| 61612 | Panel, Quarter, LH |
| 61613A | Extension, Quarter Panel Rear, RH |
| 61614A | Extension, Quarter Panel, Rear LH |
| 61621D | Trough, Back Door Opening, RH |
| 61622D | Trough, Back Door Opening, LH |
| 61631A | Panel, Quarter Wheel House, Outer RH |
| 61632A | Panel, Quarter Wheel House, Outer LH |
| 61647C | Reinforcement, Wheel House, RH |
| 61648F | Reinforcement, Quarter Panel, Lower LH |
| 61703F | Panel Sub-assy, Quarter, Inner Front RH |
| 61703H | Reinforcement Sub-assy, Roof Side, Inner RH |
| 61704F | Panel Sub-assy, Quarter, Inner Front LH |
| 61704J | Reinforcement Sub-assy, Roof Side, Inner LH |
| 61709 | Box Sub-assy, Fuel Inlet |
| 61721 | Panel, Rear Body Outside Corner, RH |
| 61722 | Panel, Rear Body Outside Corner, LH |
| 61731B | Panel, Roof Side, Inner RH |
| 61732B | Panel, Roof Side, Inner LH |

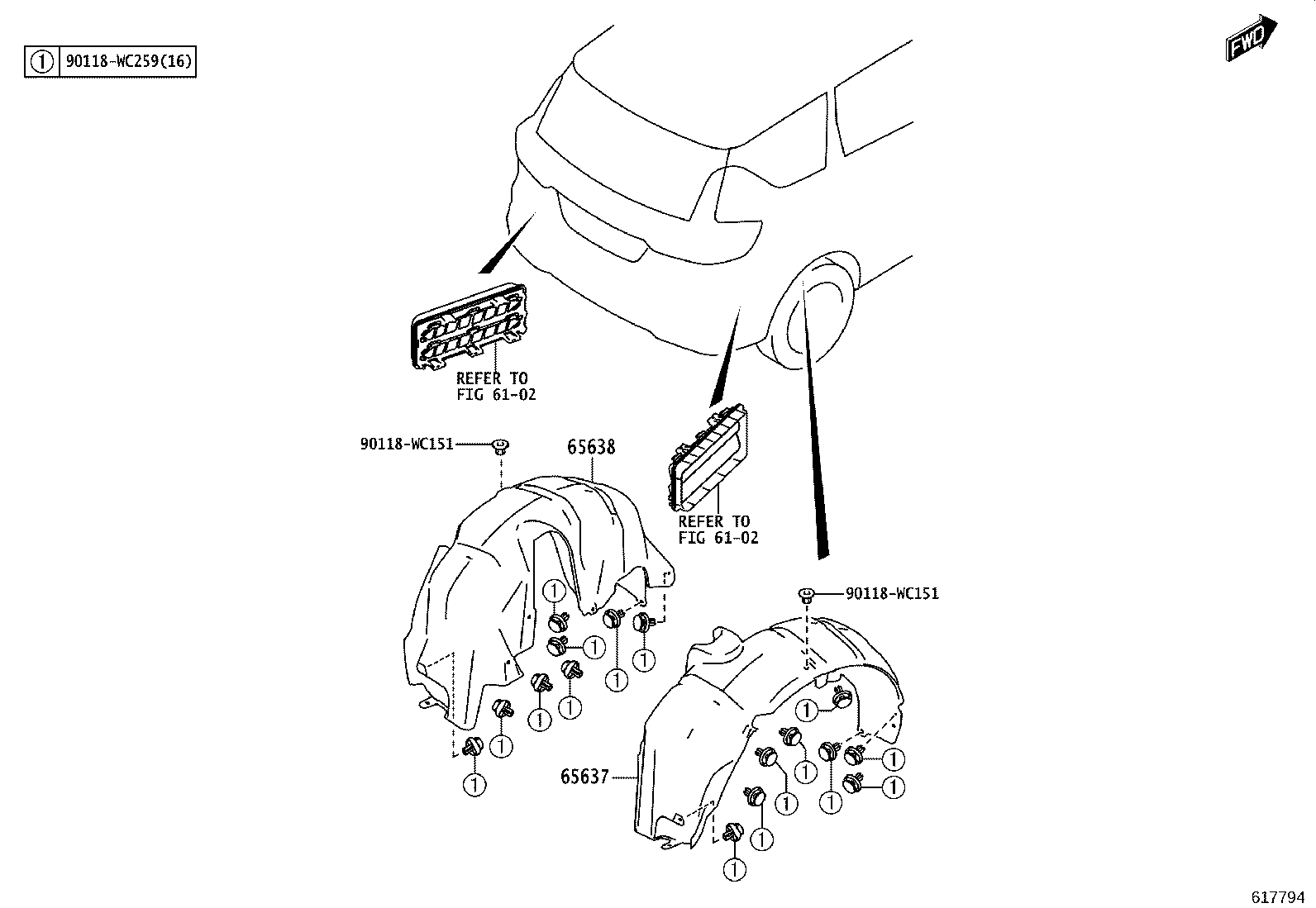

| 65637 | Liner, Rear Wheel House, RH |
| 65638 | Liner, Rear Wheel House, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
