Toyota Rumion

2023-08 → present · chassis K15C · catalogue 139210 · General

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Window Glass

8 part groups · 2 illustrations

Illustrations

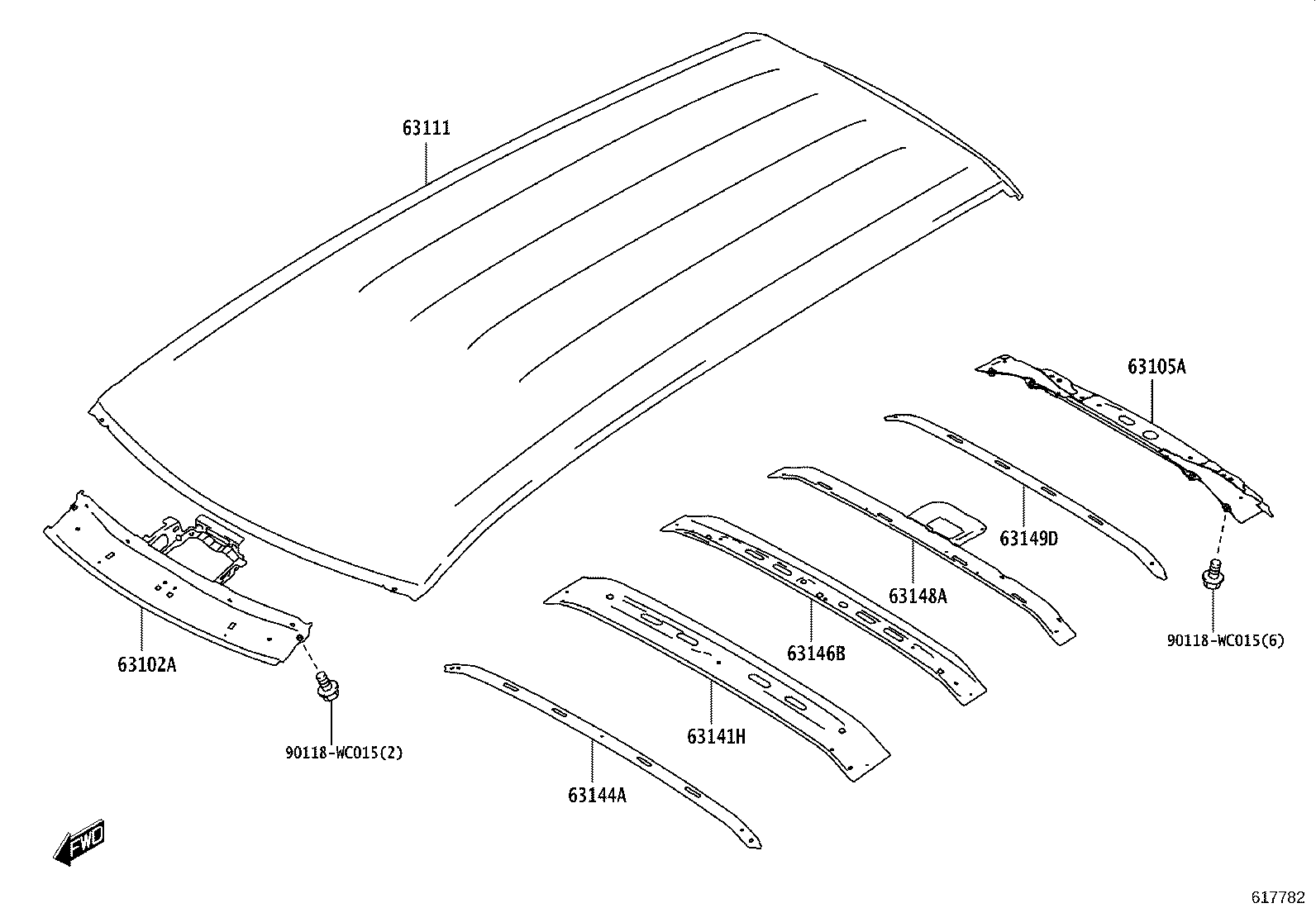

Figure 617781 617781 2023-08 → — Figure 617782 617782 2023-08 → —

Part groups

PNCDescription
63102A Panel Sub-assy, Windshield Header
63105A Frame Sub-assy, Back Door Opening
63111 Panel, Roof
63141H Reinforcement, Roof Panel, Center
63144A Reinforcement, Roof Panel, NO.4
63146B Reinforcement, Windshield Header Panel, NO.2
63148A Reinforcement, Roof Panel, NO.7
63149D Reinforcement, Roof Panel, NO.8
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
