Toyota Rumion
2023-08 → present · chassis K15C · catalogue 139210 · General
Supported model
Data version 2023-09

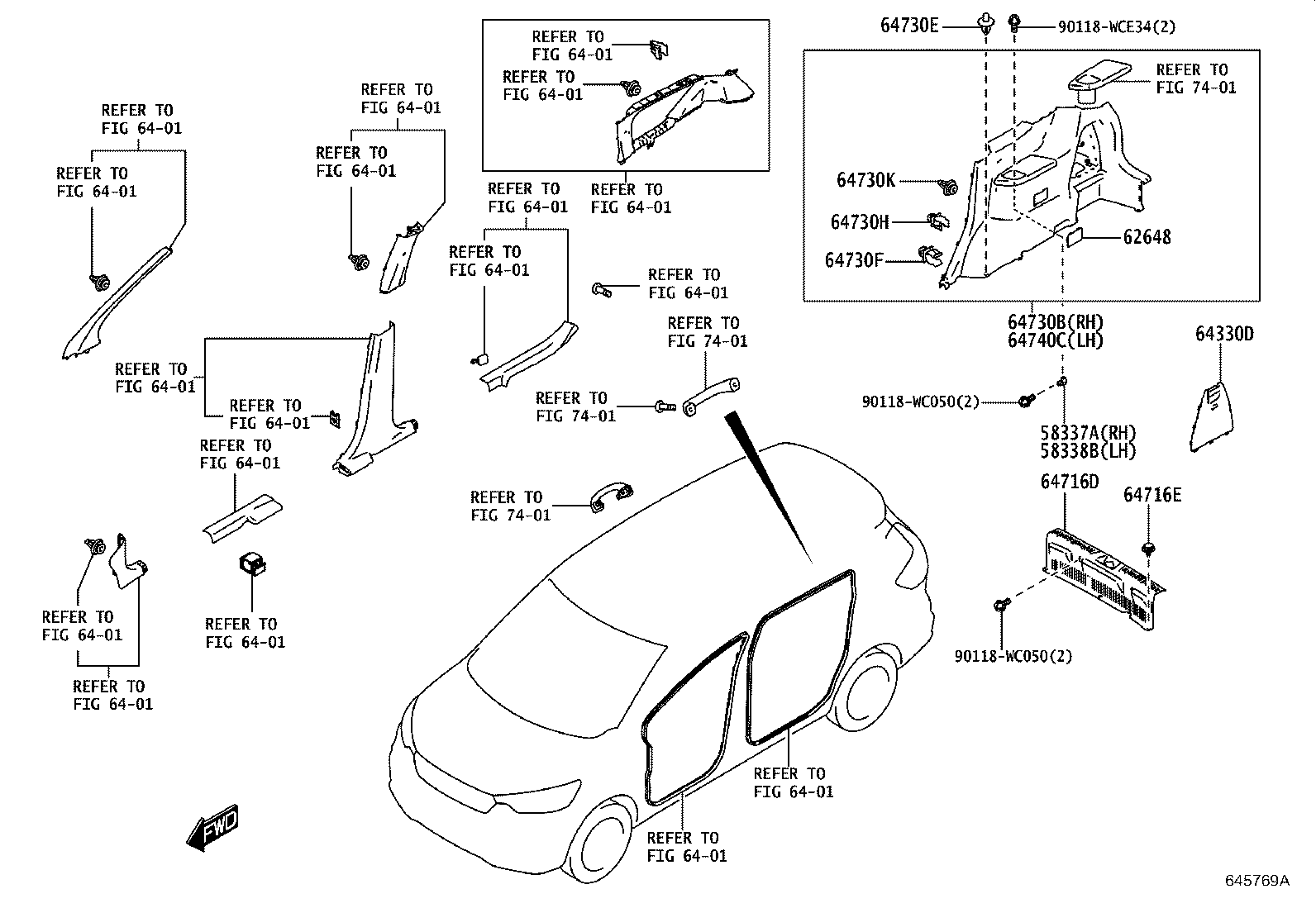

Deck Board & Deck Trim Cover
16 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 58337A | Bracket, Deck Side Trim, RH |
| 58338B | Bracket, Deck Side Trim, LH |
| 58470E | Board Assy, Rear Floor, NO.1 |
| 58480D | Board Assy, Rear Floor, NO.2 |
| 62648 | Cap, Side Trim |
| 64330D | Panel Assy, Package Tray Trim |
| 64711D | Carpet, Luggage Compartment Floor |
| 64716D | Cover, Deck Trim, Rear |
| 64716E | Clip(FOR DECK TRIM REAR COVER) |
| 64721G | Cover, Deck Trim, NO.1 |
| 64730B | Panel Assy, Deck Trim Side, RH |
| 64730E | Clip(FOR DECK TRIM SIDE BOARD) |
| 64730F | Clamp(FOR DECK TRIM SIDE BOARD) |
| 64730H | Clip(FOR DECK TRIM SIDE PANEL) |
| 64730K | Clip(FOR DECK SIDE TRIM PANEL) |
| 64740C | Panel Assy, Deck Trim Side, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
