Toyota Rumion
2023-08 → present · chassis K15C · catalogue 139210 · General
Supported model
Data version 2023-09

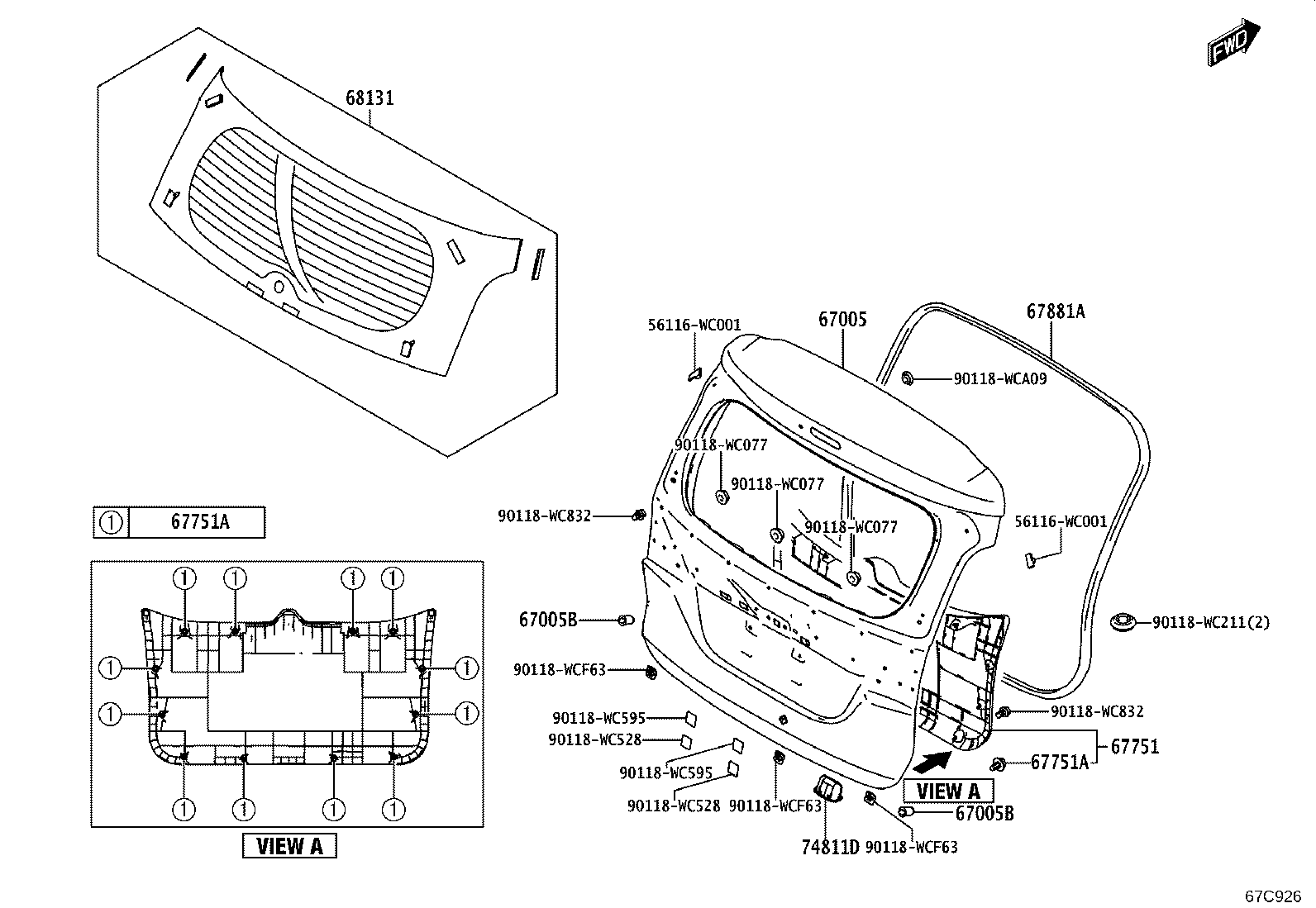

Back Door Panel & Glass
7 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 67005 | Panel Sub-assy, Back Door |
| 67005B | Cushion(FOR BACK DOOR PANEL) |
| 67751 | Board, Back Door Trim |
| 67751A | Clip(FOR BACK DOOR TRIM BOARD) |
| 67881A | Weatherstrip, Back Door |
| 68131 | Glass, Back Door |
| 74811D | Handle, Door Pull |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
