Toyota Rumion
2023-08 → present · chassis K15C · catalogue 139210 · General
Supported model
Data version 2023-09

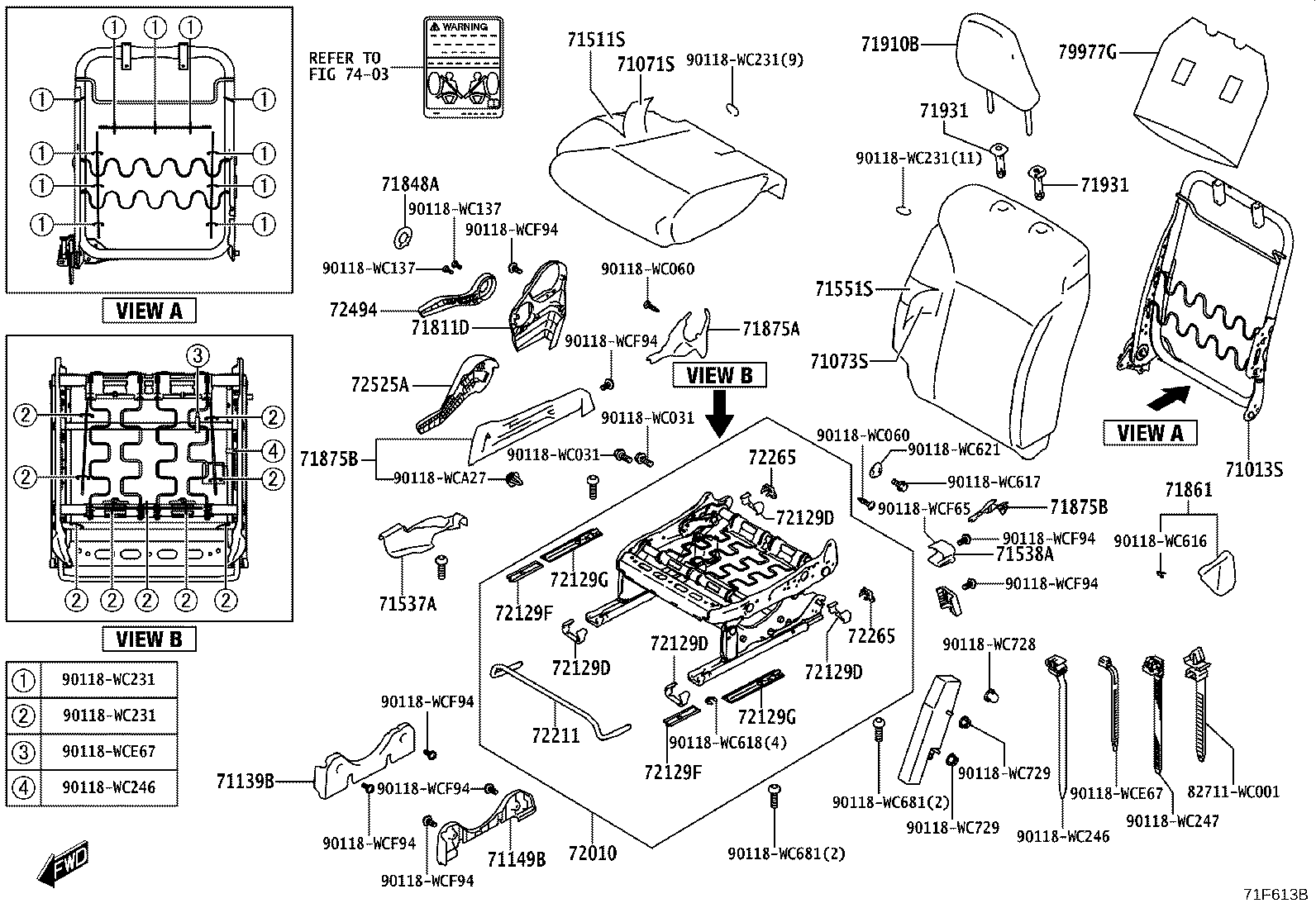

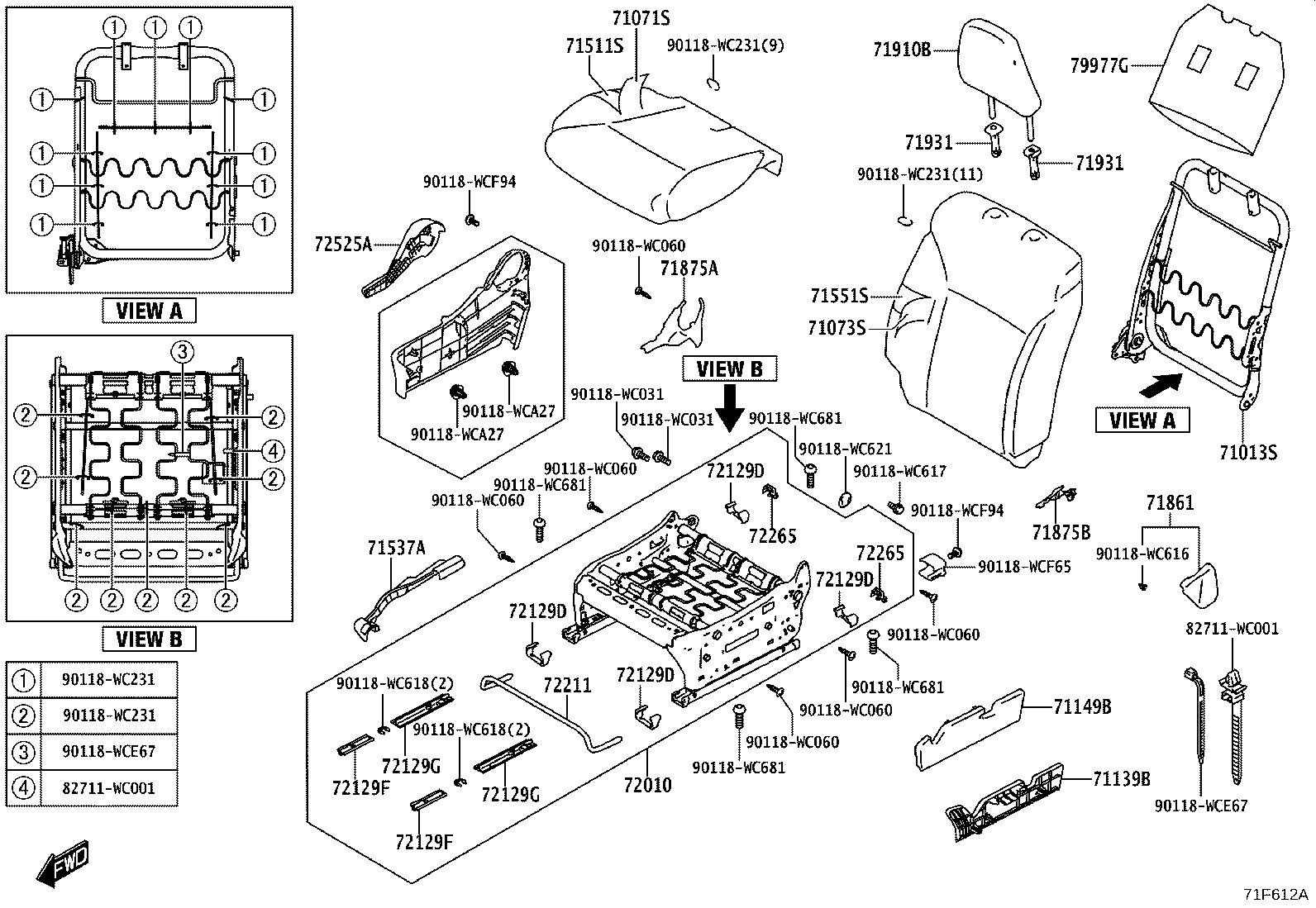

Front Seat & Seat Track
44 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 71013S | Frame Sub-assy, Front Seatback, RH |
| 71014S | Frame Sub-assy, Front Seatback, LH |
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71139A | Cover, Front Seat Leg, NO.1 |
| 71139B | Cover, Front Seat Leg, NO.2 |
| 71149A | Cover, Front Seat Leg, LH |
| 71149B | Cover, Front Seat Leg, LH (FOR RH SEAT) |
| 71420S | Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE) |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71537A | Protector, Front Seat Cushion |
| 71538A | Protector, Front Seat Cushion Edge, LH(FOR RH SEAT) |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812D | Shield, Front Seat Cushion, LH |
| 71848A | Cap, Seat Adjuster Cover, RH |
| 71861 | Shield, Front Seat Cushion, Inner RH |
| 71862 | Shield, Front Seat Cushion, Inner LH |
| 71875A | Cover, Reclining Adjuster Inside, RH |
| 71875B | Cover, Reclining Adjuster Inside, RH |
| 71876 | Cover, Reclining Adjuster Inside, LH |
| 71876A | Cover, Reclining Adjuster Inside, LH |
| 71910A | Headrest Assy, Front Seat |
| 71910B | Headrest Assy, Front Seat |
| 71931 | Support, Front Seat Headrest |
| 72010 | Adjuster Assy, Front Seat, RH |
| 72129 | Protector, Seat Track Lower Rail, NO.1 |
| 72129A | Protector, Seat Track Lower Rail, NO.2 |
| 72129C | Protector, Seat Track Lower Rail, NO.3 |
| 72129D | Protector, Seat Track Lower Rail, NO.4 |
| 72129F | Protector, Seat Track Lower Rail, NO.5 |
| 72129G | Protector, Seat Track Lower Rail, NO.6 |
| 72211 | Handle, Seat Track Adjusting |
| 72211C | Handle, Seat Track Adjusting |
| 72265 | Cover, Seat Track Upper Rail, RH |
| 72266 | Cover, Seat Track Upper Rail, LH |
| 72494 | Handle, Vertical Adjusting, RH |
| 72525A | Handle, Reclining Adjuster Release, RH |
| 72526 | Handle, Reclining Adjuster Release, LH |
| 73920A | Airbag Assy, Front Seat, LH |
| 79977G | Felt, Front Seatback, RH |
| 79977H | Felt, Front Seatback, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
