Toyota Rumion

2023-08 → present · chassis K15C · catalogue 139210 · General

Supported model Data version 2023-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

90 part groups · 4 illustrations

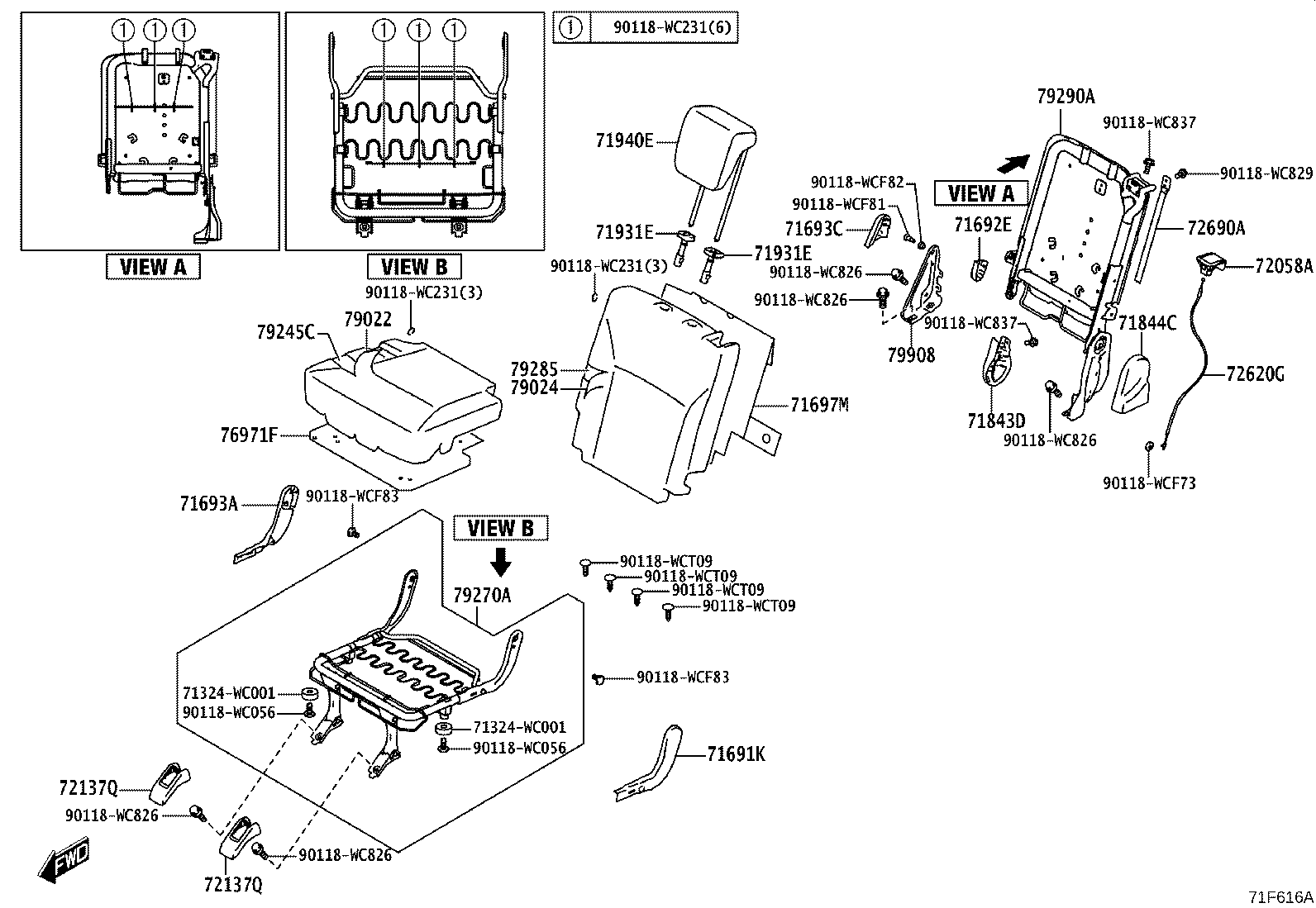

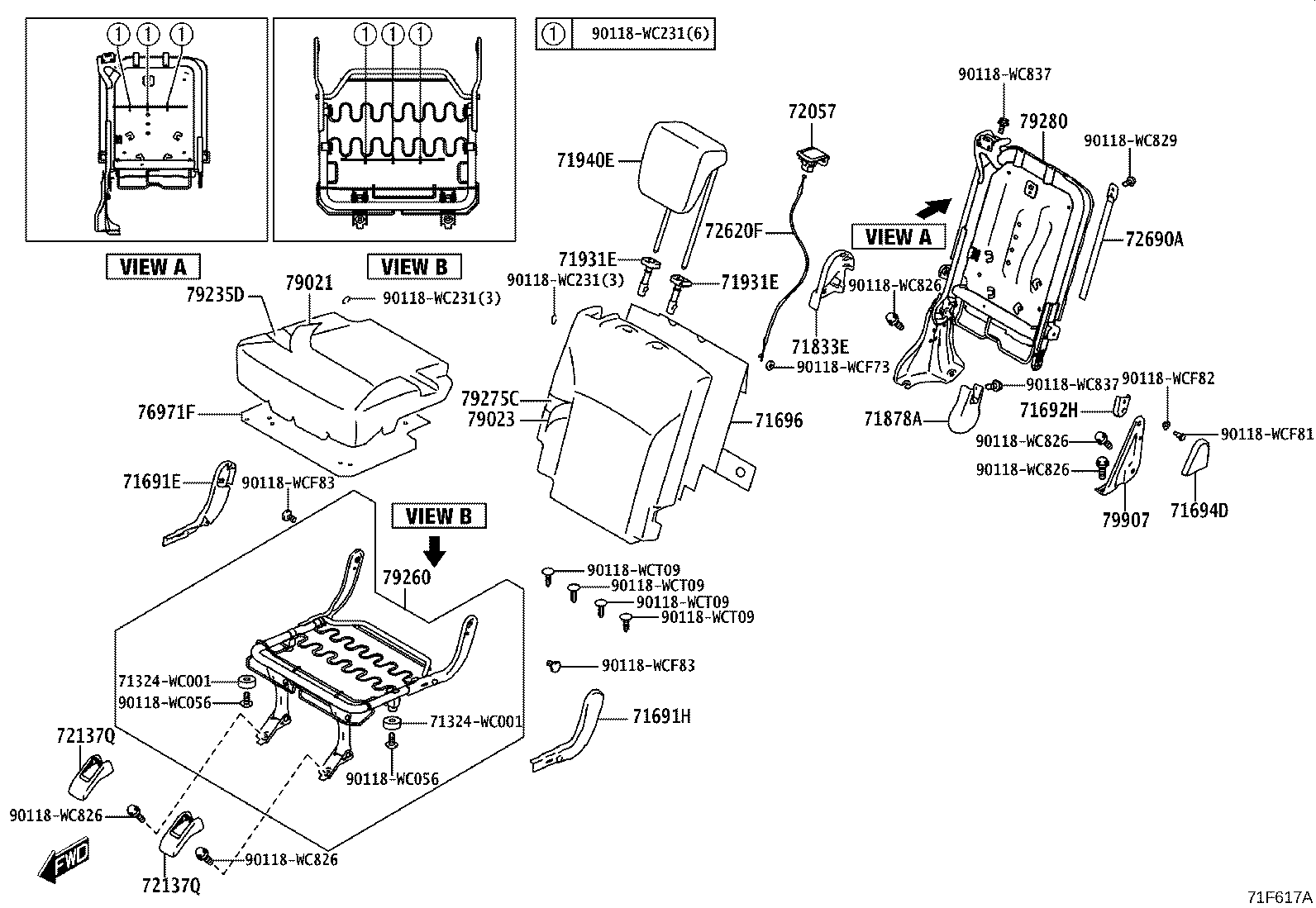

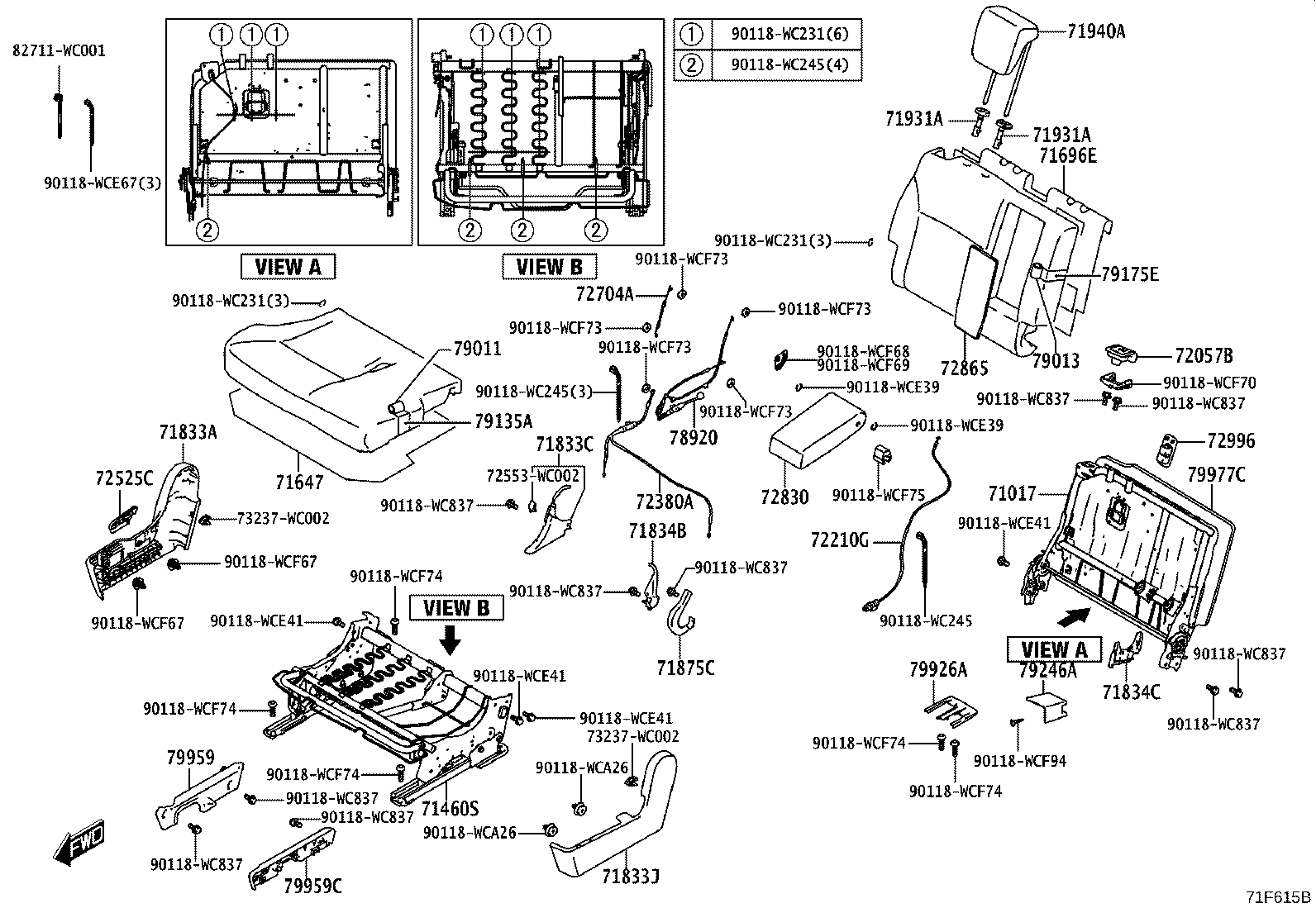

Illustrations

Part groups

PNC	Description
71017	Frame Sub-assy, Rear Seatback, RH
71018	Frame Sub-assy, Rear Seatback, LH
71460S	Cushion Assy, Rear Seat, RH(FOR SEPARATE TYPE)
71470S	Cushion Assy, Rear Seat, LH (FOR SEPARATE TYPE)
71647	Protector, Rear Seat Cushion Edge
71647G	Protector, Rear Seat Cushion Edge
71691E	Cover, Rear Seat Cushion Hinge, NO.1
71691H	Cover, Rear Seat Cushion Hinge, NO.2
71691K	Cover, Rear Seat Cushion Hinge, NO.4
71692E	Cover, Rear Seat Cushion Hinge, NO.2
71692H	Cover, Rear Seat Cushion Hinge, NO.3
71693A	Cover, Rear Seat Cushion Hinge, NO.3
71693C	Cover, Rear Seat Cushion Hinge, Outer RH
71694D	Cover, Rear Seat Cushion Hinge, Outer LH
71696	Protector, Rear Seat, NO.2
71696E	Protector, Rear Seat, NO.2 RH
71697	Protector, Rear Seatback Edge
71697M	Protector, Rear Seatback
71826B	Moulding, Rear Seat Cushion, LH
71829B	Moulding, Rear Seat Cushion, Rear LH
71833A	Cover, Rear Seat Reclining, NO.1 RH
71833C	Cover, Rear Seat Reclining, NO.2 RH
71833E	Cover, Rear Seat Reclining, NO.3 RH
71833J	Cover, Rear Seat Reclining, NO.1 RH
71834A	Cover, Rear Seat Reclining, NO.1 LH
71834B	Cover, Rear Seat Reclining, NO.2 LH
71834C	Cover, Rear Seat Reclining, NO.3 LH
71834D	Cover, Rear Seat Reclining, LH
71843D	Cover, Rear Seat Reclining, NO.2 RH
71844C	Cover, Rear Seat Reclining, NO.2 LH
71875C	Cover, Reclining Adjuster Inside, RH
71876B	Cover, Reclining Adjuster Inside, LH
71878A	Cover, Rear Seat Reclining, Inner RH
71931A	Support, Rear Seat Headrest
71931E	Support Assy, Rear NO.3 Seat Headrest
71940A	Headrest Assy, Rear Seat
71940E	Headrest Assy, NO.2 Seat
72057	Lever Sub-assy, Rear Seat Lock Control, RH
72057B	Lever Sub-assy, Rear Seat Lock Control
72057G	Lever Sub-assy, Rear Seat Lock Control, LH NO.1
72058A	Lever Sub-assy, Rear Seat Lock Control, LH
72137Q	Cover, Rear Seat Track, NO.2
72210G	Cable Assy, Rear NO.1 Seat Track Control, RH
72210H	Cable Assy, Rear NO.1 Seat Track Control, LH
72380A	Cable Assy, Seat Adjuster Control, NO.2
72430	Cable Assy, Seat Adjust Drive, NO.3
72525C	Handle, Reclining Adjuster Release, NO.1 RH
72526B	Handle, Reclining Adjuster Release, NO.1 LH
72620F	Cable Assy, Rear Seat Lock, RH
72620G	Cable Assy, Rear Seat Lock, LH
72690A	Strap Assy, Rear Seat Lock Release
72704A	Cable, Rear Seat Reclining Control
72704B	Cable, Rear Seat Reclining Control, NO.2
72830	Armrest Assy, Rear Seat, Center
72865	Board, Center Armrest, NO.1
72996	Cover, Rear Seatback, RH
72996A	Cover, Rear Seatback
76971F	Cover, Rear Under
78920	Cable Assy, Fold Seat Lock Control, NO.2
78920B	Cable Assy, Fold Seat Lock Control, NO.1 LH
79011	Cover Sub-assy, NO.1 Seat Cushion, RH
79012	Cover Sub-assy, NO.1 Seat Cushion, LH
79013	Cover Sub-assy, NO.1 Seatback, RH
79014	Cover Sub-assy, NO.1 Seatback, LH
79021	Cover Sub-assy, NO.2 Seat Cushion, RH
79022	Cover Sub-assy, NO.2 Seat Cushion, LH
79023	Cover Sub-assy, NO.2 Seatback, RH
79024	Cover Sub-assy, NO.2 Seatback, LH
79076H	Cover Sub-assy, NO.1 Seat Leg, RH
79076J	Cover Sub-assy, NO.1 Seat Leg, LH
79135A	Pad, NO.1 Seat Cushion, RH
79136B	Pad, NO.1 Seat Cushion, LH
79175E	Pad, NO.1 Seatback, RH
79185	Pad, NO.1 Seatback, LH
79235D	Pad, NO.2 Seat Cushion, RH
79245C	Pad, NO.2 Seat Cushion, LH
79246A	Cover, NO.2 Seat Leg, NO.2
79260	Spring Assy, NO.2 Seat Cushion
79270A	Spring Assy, NO.2 Seat Cushion, LH
79275C	Pad, NO.2 Seatback, RH
79280	Spring Assy, NO.2 Seatback
79285	Pad, NO.2 Seatback, LH
79290A	Spring Assy, NO.2 Seatback, LH
79907	Plate Sub-assy, Seat Hinge, RH
79908	Plate Sub-assy, Seat Hinge, LH
79926A	Cover, Rear Seat Leg Garnish
79959	Cover, RR Seat Leg
79959C	Cover, Rear Seat Leg
79977C	Felt, Seat Cushion, RH
79977D	Felt, Seat Cushion, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
