Toyota Rumion
2023-08 → present · chassis K15C · catalogue 139210 · General
Supported model
Data version 2023-09
Armrest & Visor
8 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 74250 | Armrest Assy, Rear RH |
| 74260 | Armrest Assy, Rear LH |

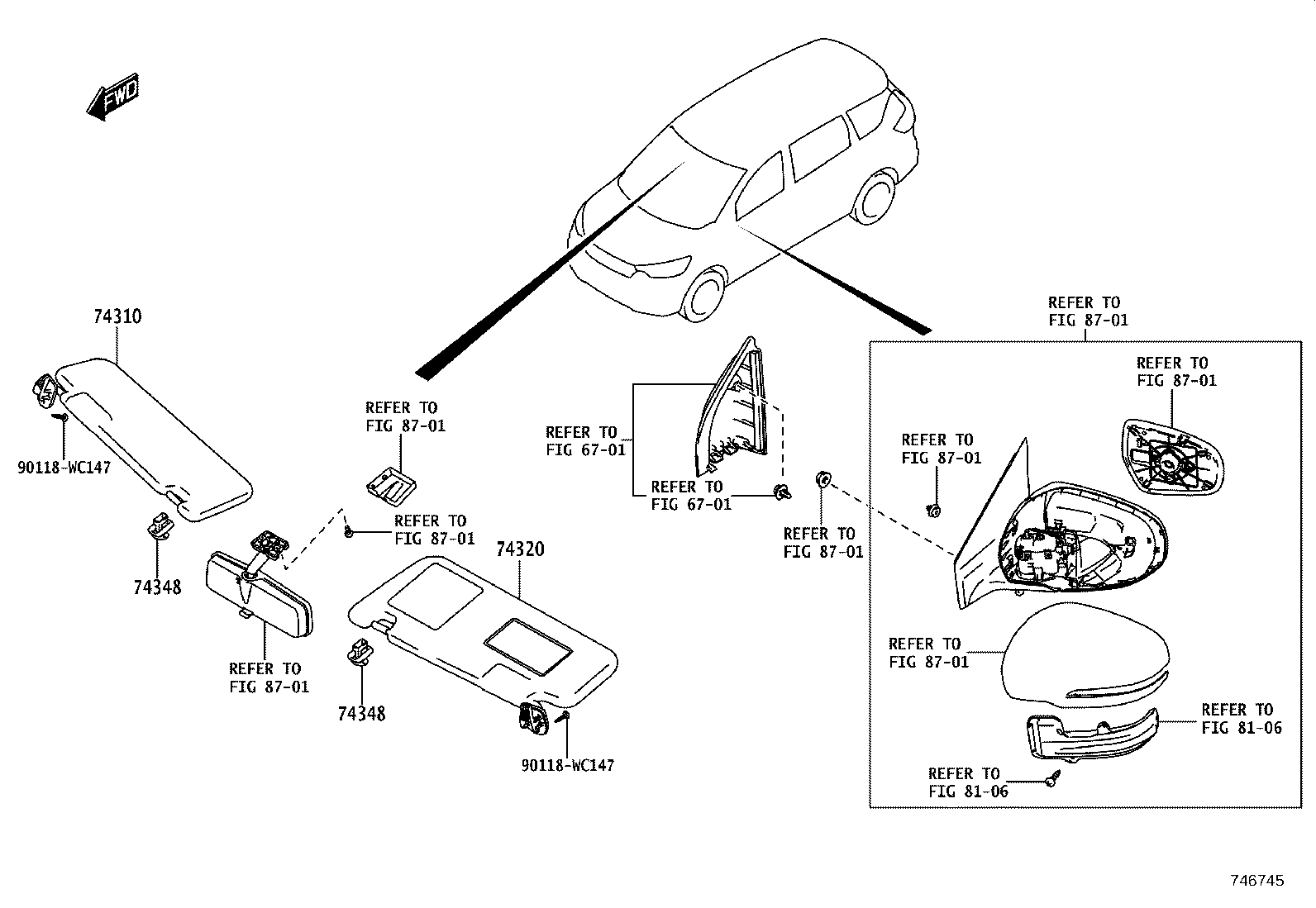

| 74310 | Visor Assy, RH |
| 74320 | Visor Assy, LH |
| 74348 | Holder, Visor |
| 74610A | Grip Sub-assy, Assist |
| 74610S | Grip Assy, Assist |

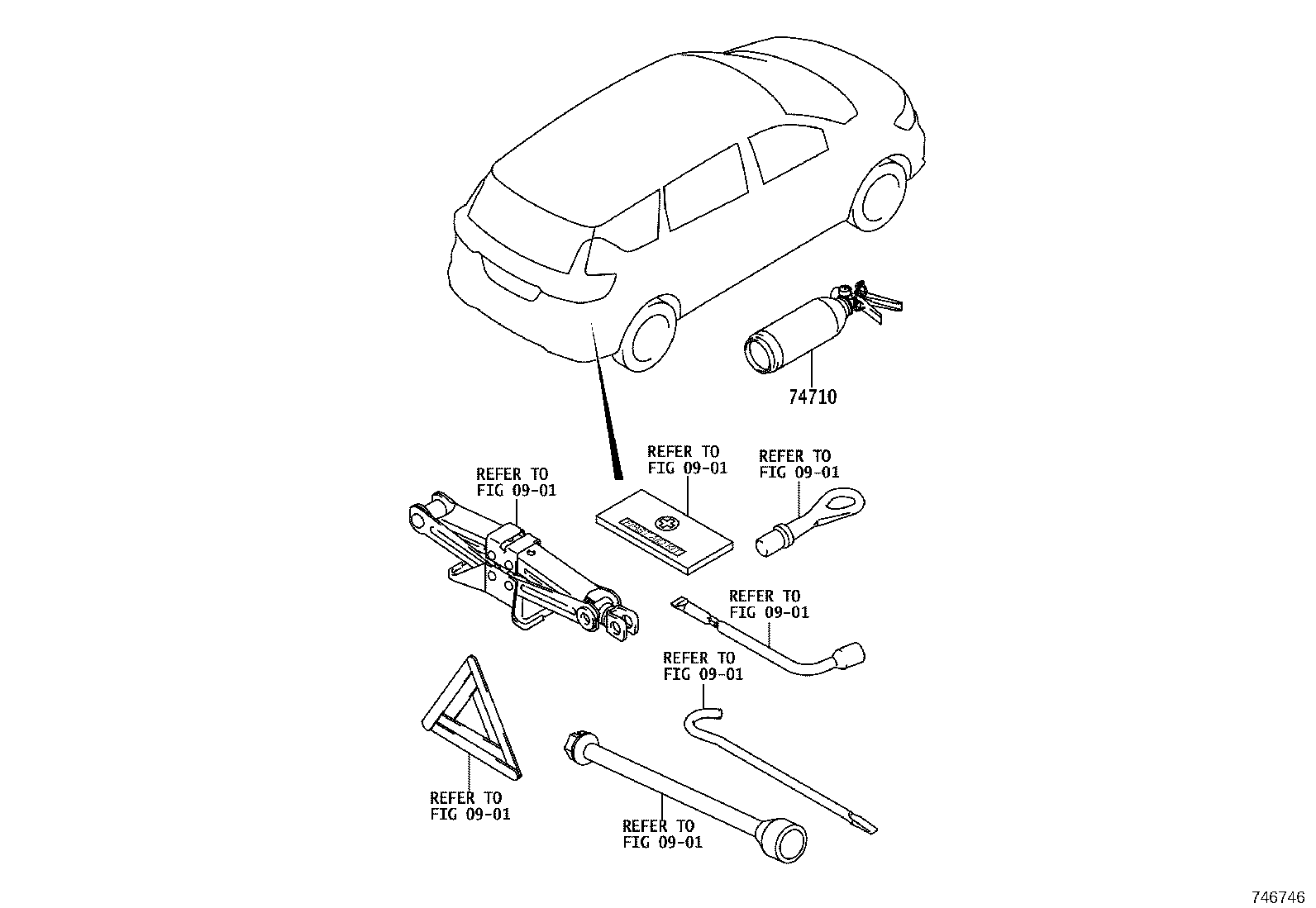

| 74710 | Extinguisher Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
