Toyota Rumion

2023-08 → present · chassis K15C · catalogue 139210 · General

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

4 part groups · 2 illustrations

Illustrations

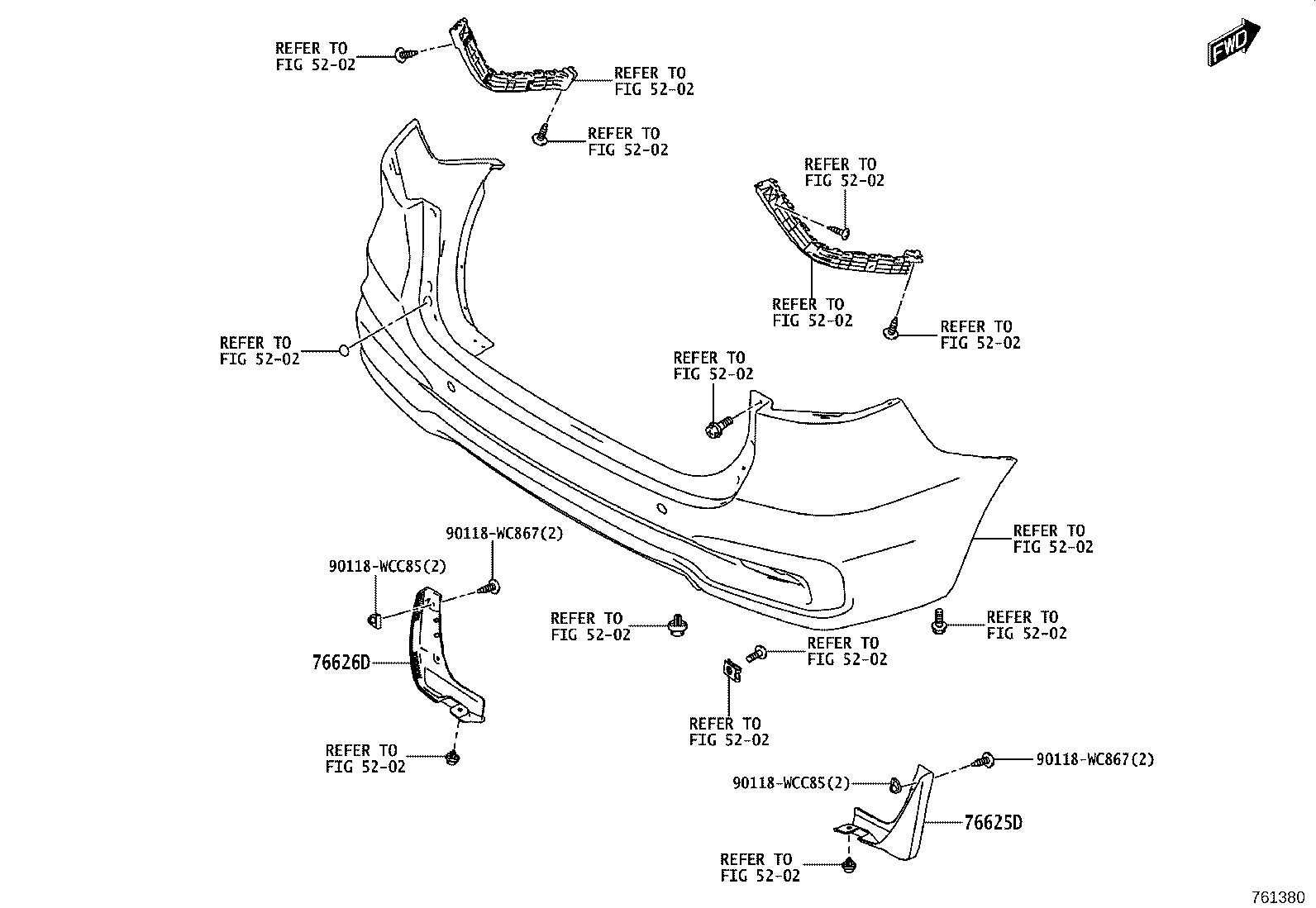

Figure 761379 761379 2023-08 → — Figure 761380 761380 2023-08 → —

Part groups

PNCDescription
76621C Mudguad, Front Fender, RH
76622C Mudguard, Front Fender, LH
76625D Mudguard, Quarter Panel, Rear RH
76626D Mudguard, Quarter Panel, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
