Toyota Rumion

2023-08 → present · chassis K15C · catalogue 139210 · General

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Turn Signal Lamp & Outer Mirror Lamp

4 part groups · 2 illustrations

Illustrations

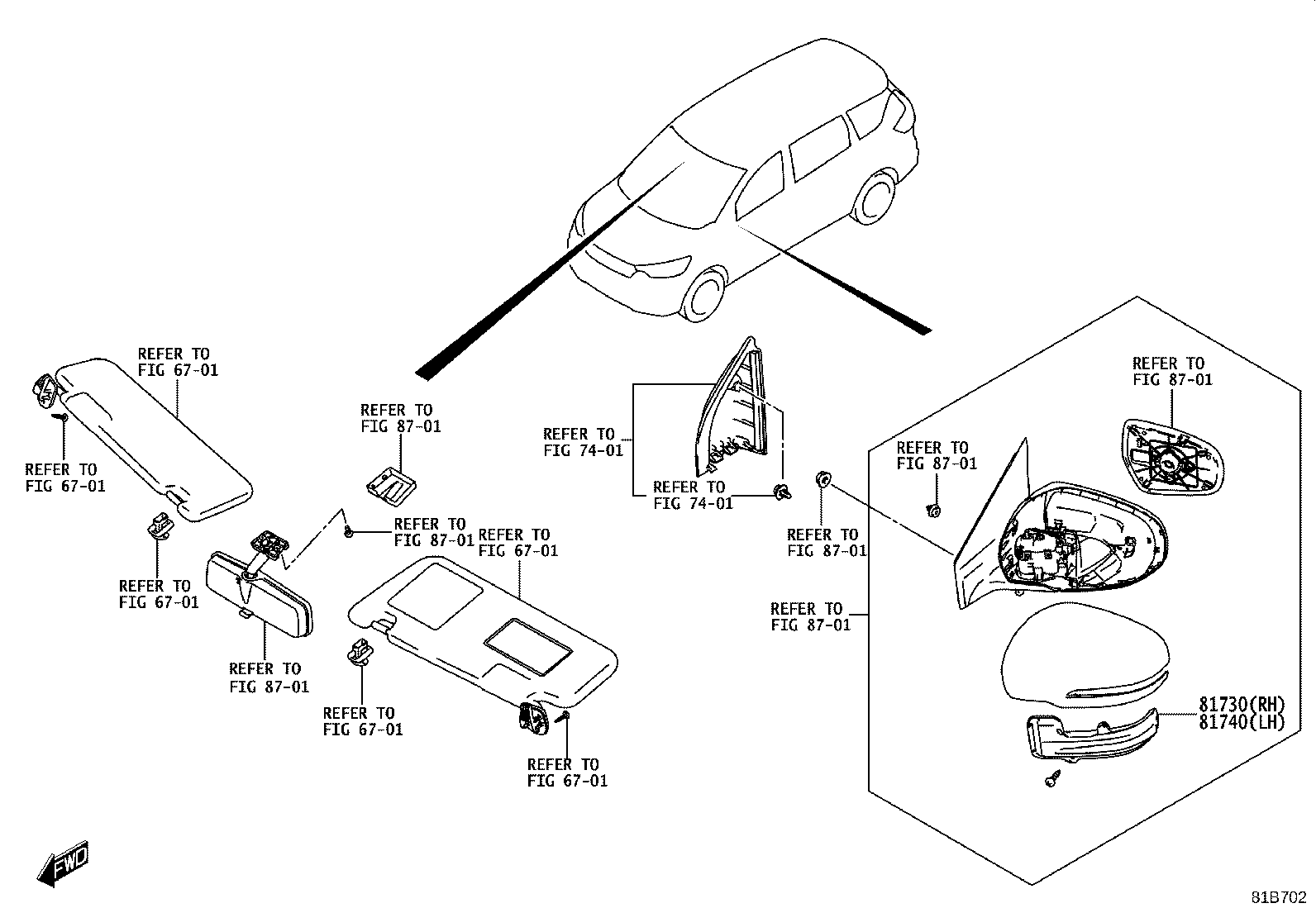

Figure 81B701 81B701 2023-08 → — Figure 81B702 81B702 2023-08 → —

Part groups

PNCDescription
81730 Lamp Assy, Side Turn Signal, RH
81730A Socket Plug(FOR SIDE TURN SIGNAL LAMP)
81730B Bulb (FOR SIDE TURN SIGNAL LAMP)
81740 Lamp Assy, Side Turn Signal, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
