Toyota Rumion
2023-08 → present · chassis K15C · catalogue 139210 · General
Supported model
Data version 2023-09

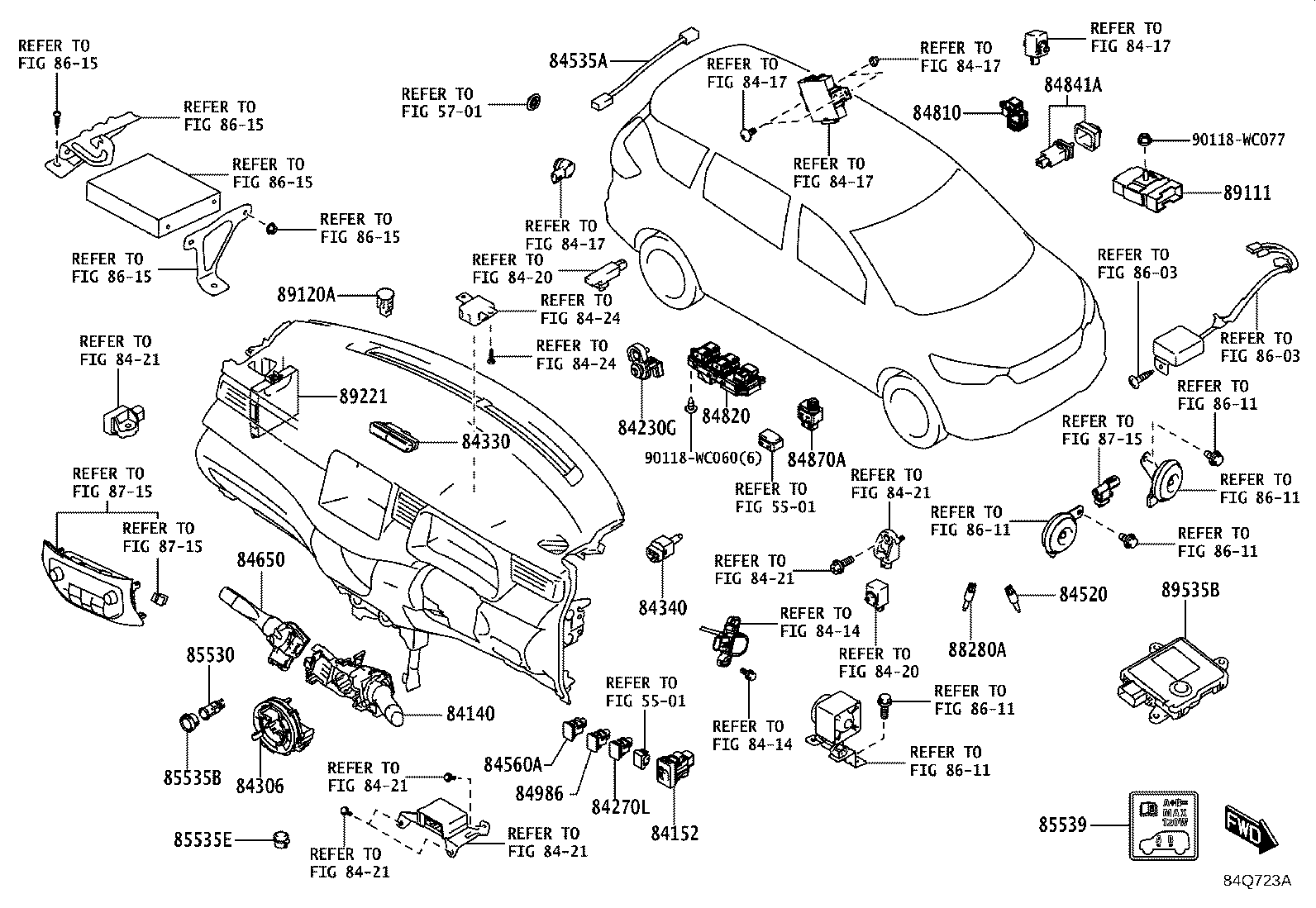

Switch & Relay & Computer
48 part groups · 16 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 82600D | Instrument Panel Fuse |

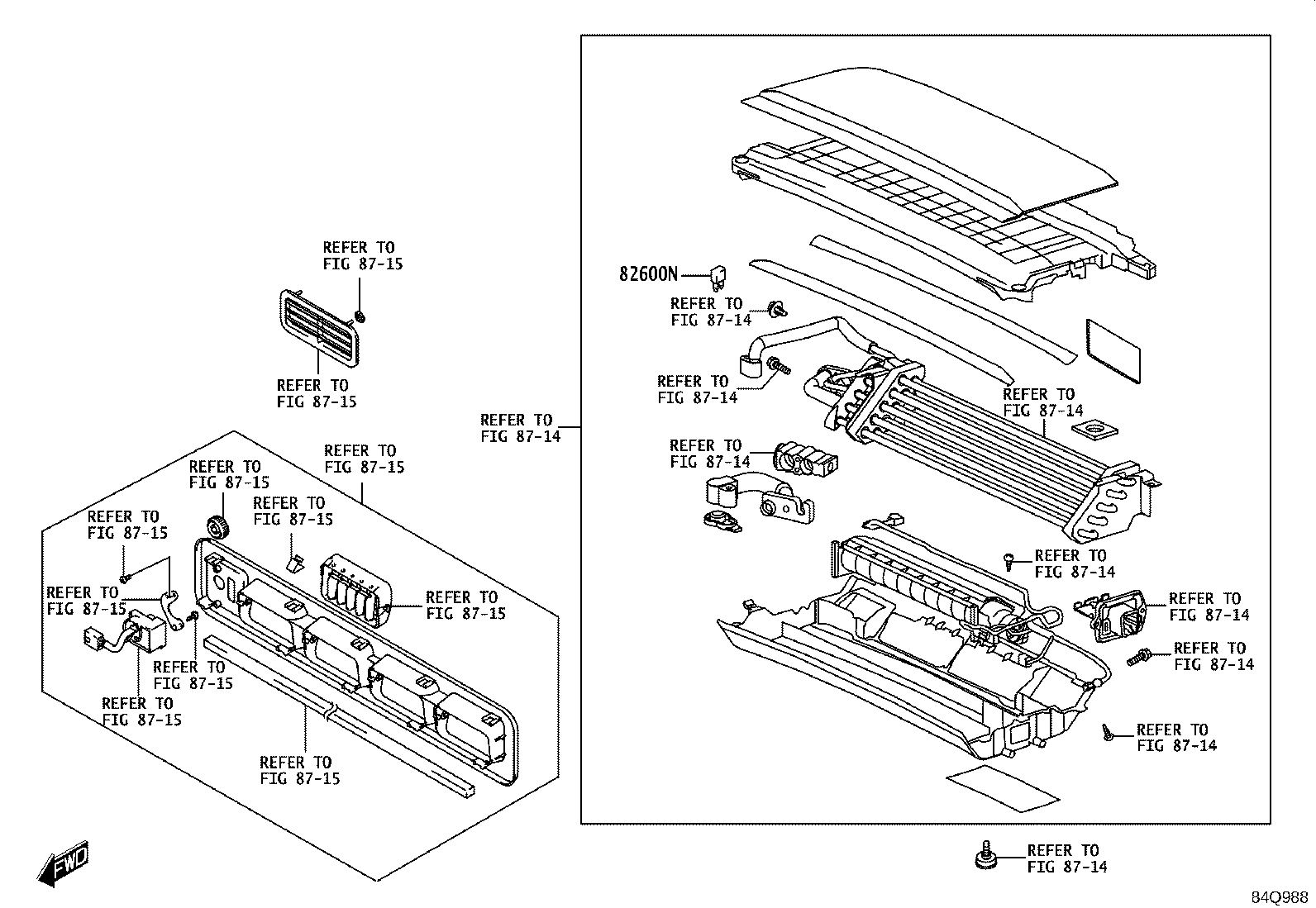

| 82600N | Fuse |

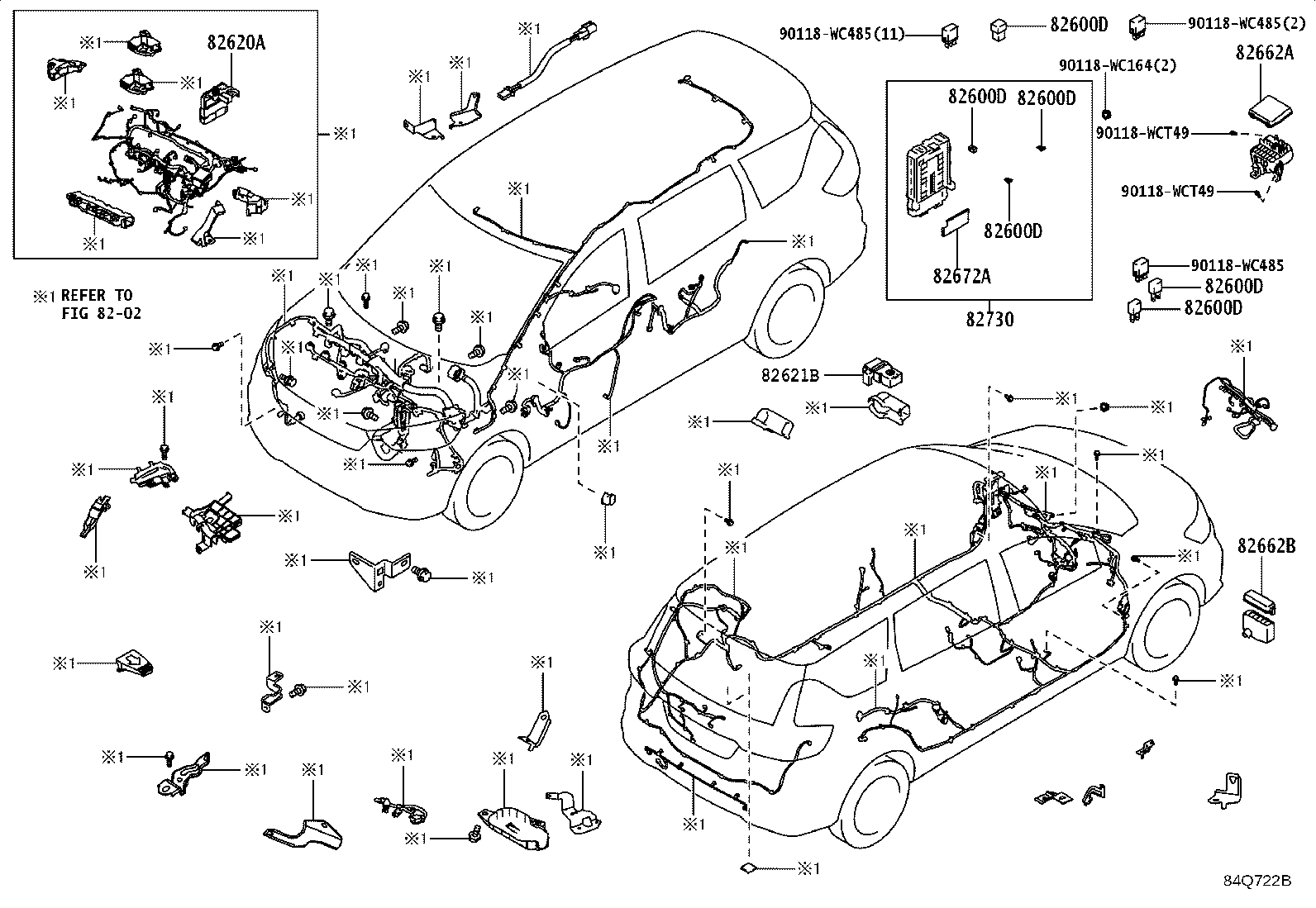

| 82620A | Block Assy, Fusible Link |

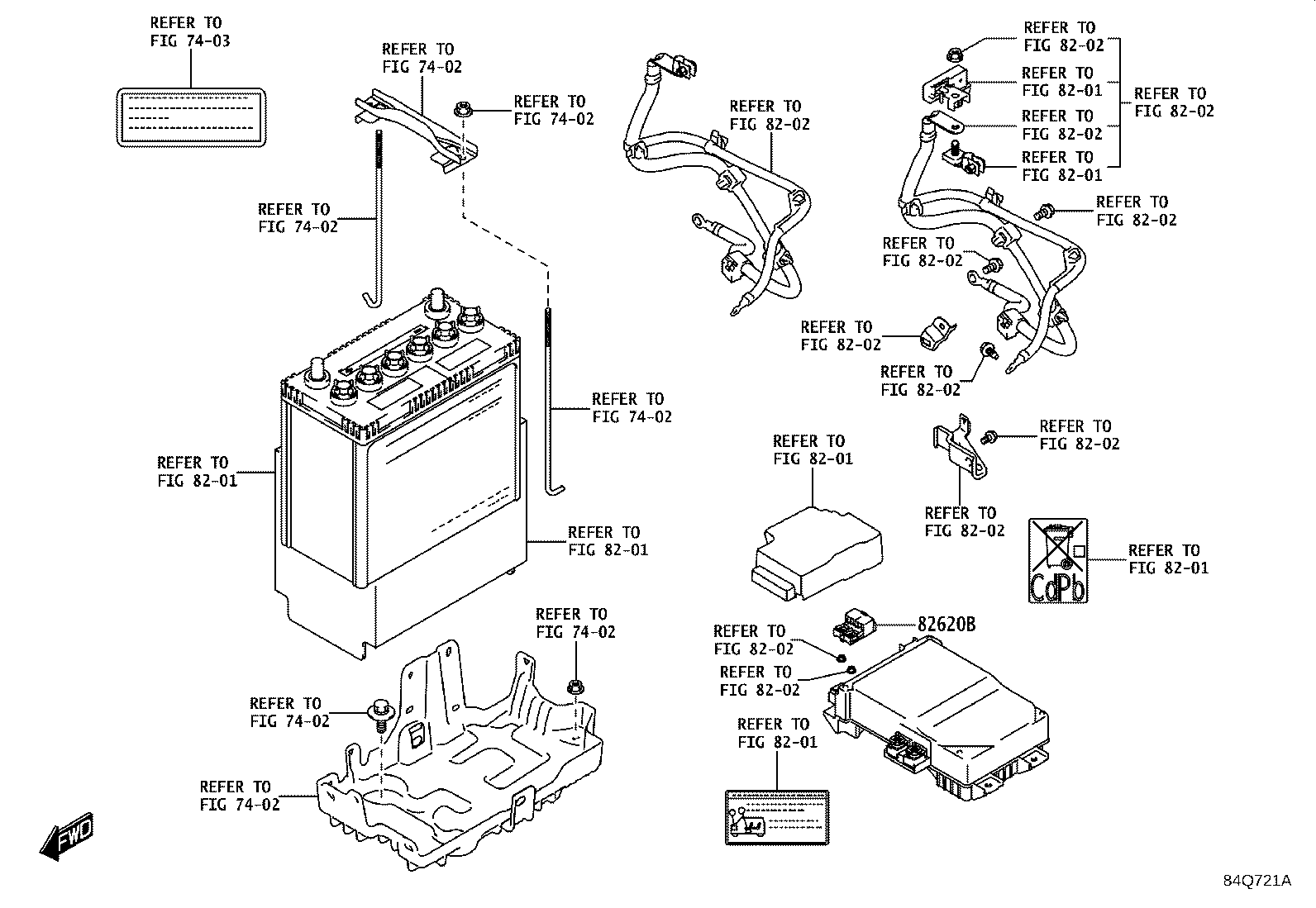

| 82620B | Block Assy, Fusible Link |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82662B | Cover, Relay Block, Upper, NO.2 |
| 82672A | Cover, Junction Block |
| 82715 | Bracket,Wiring Harness Clamp |
| 82715W | Bracket, Wiring Harness Clamp |
| 82730 | Block Assy, Instrument Panel Junction |

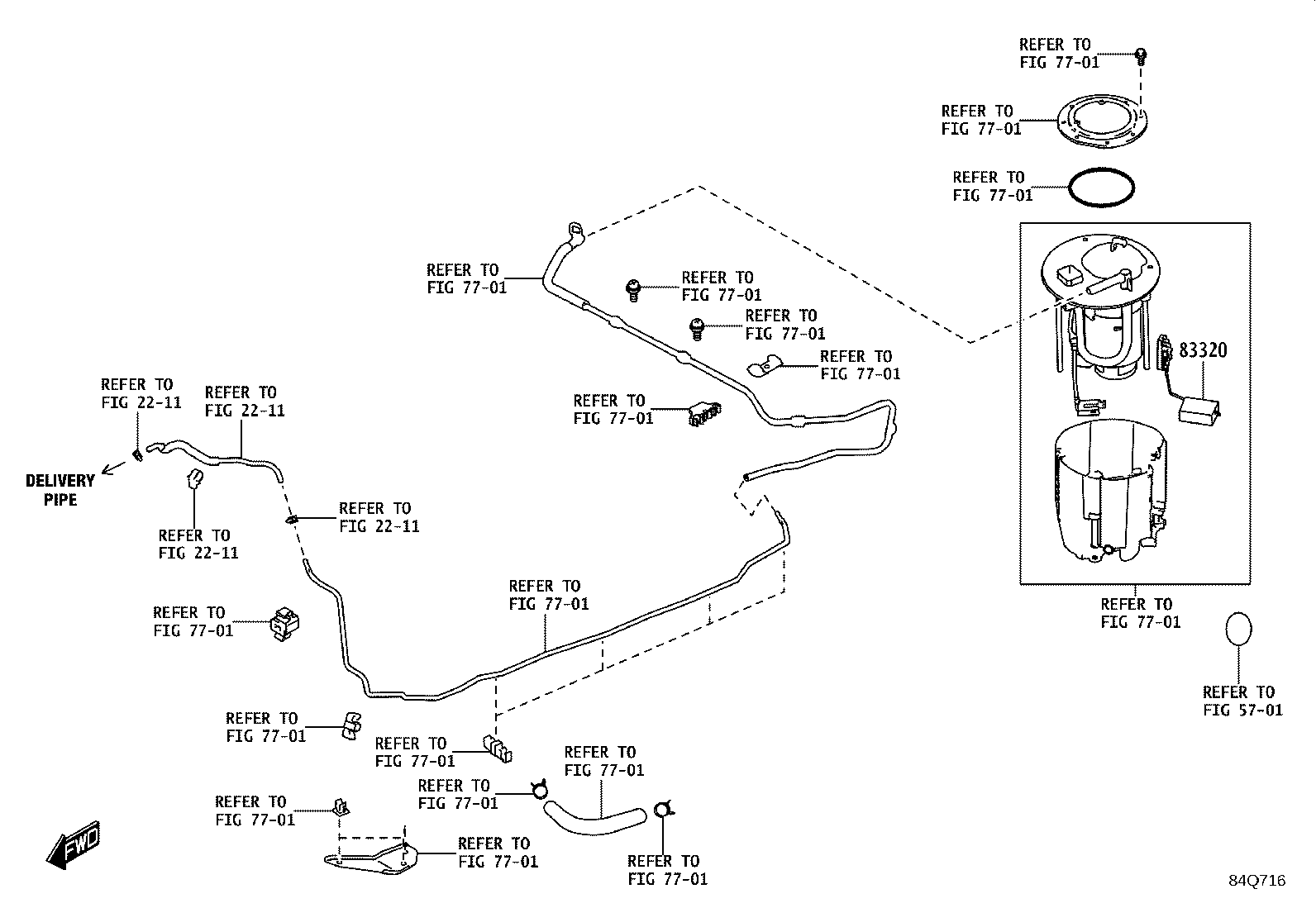

| 83320 | Gage Assy, Fuel Sender |

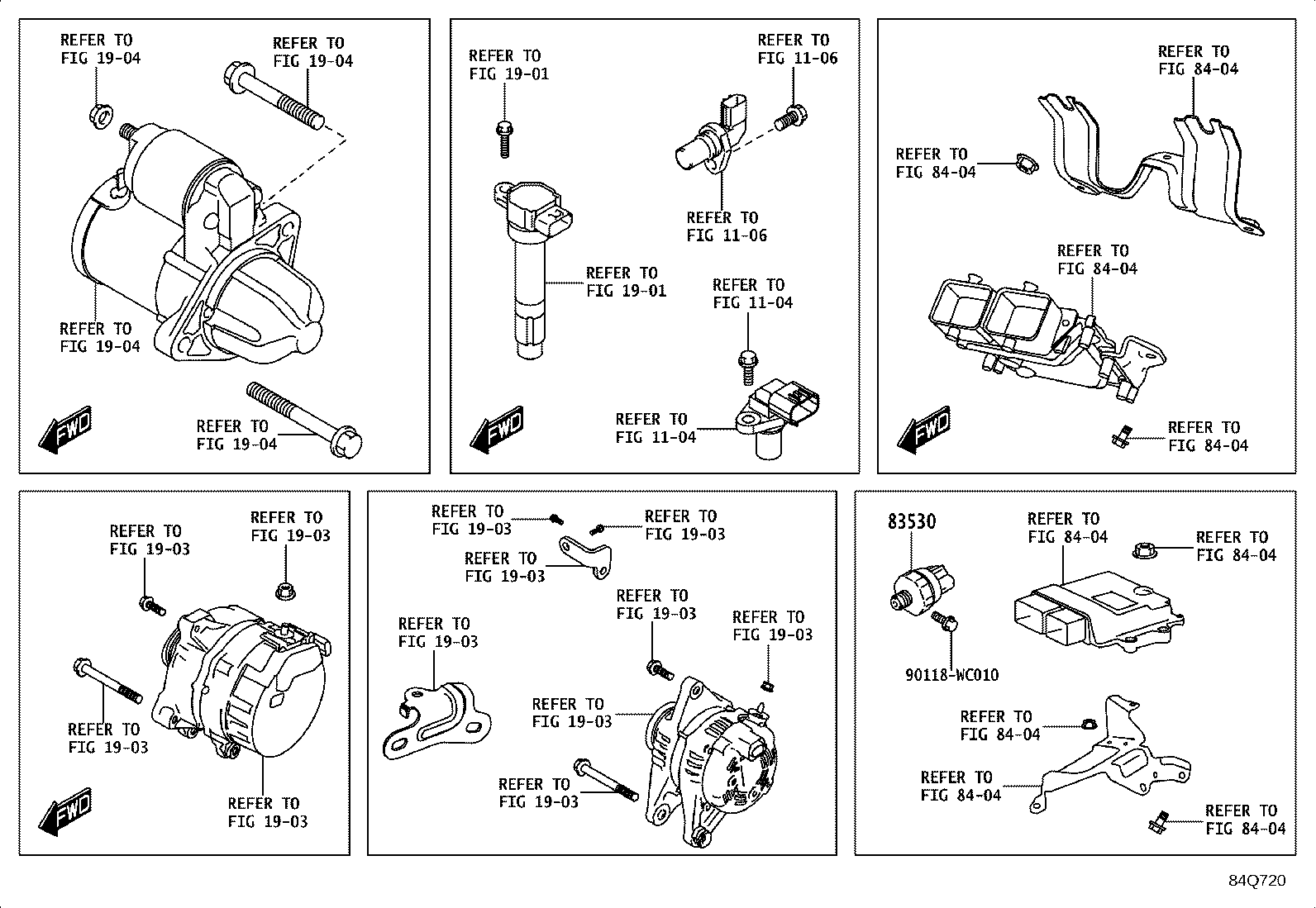

| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84152 | Switch, Headlamp Leveling |

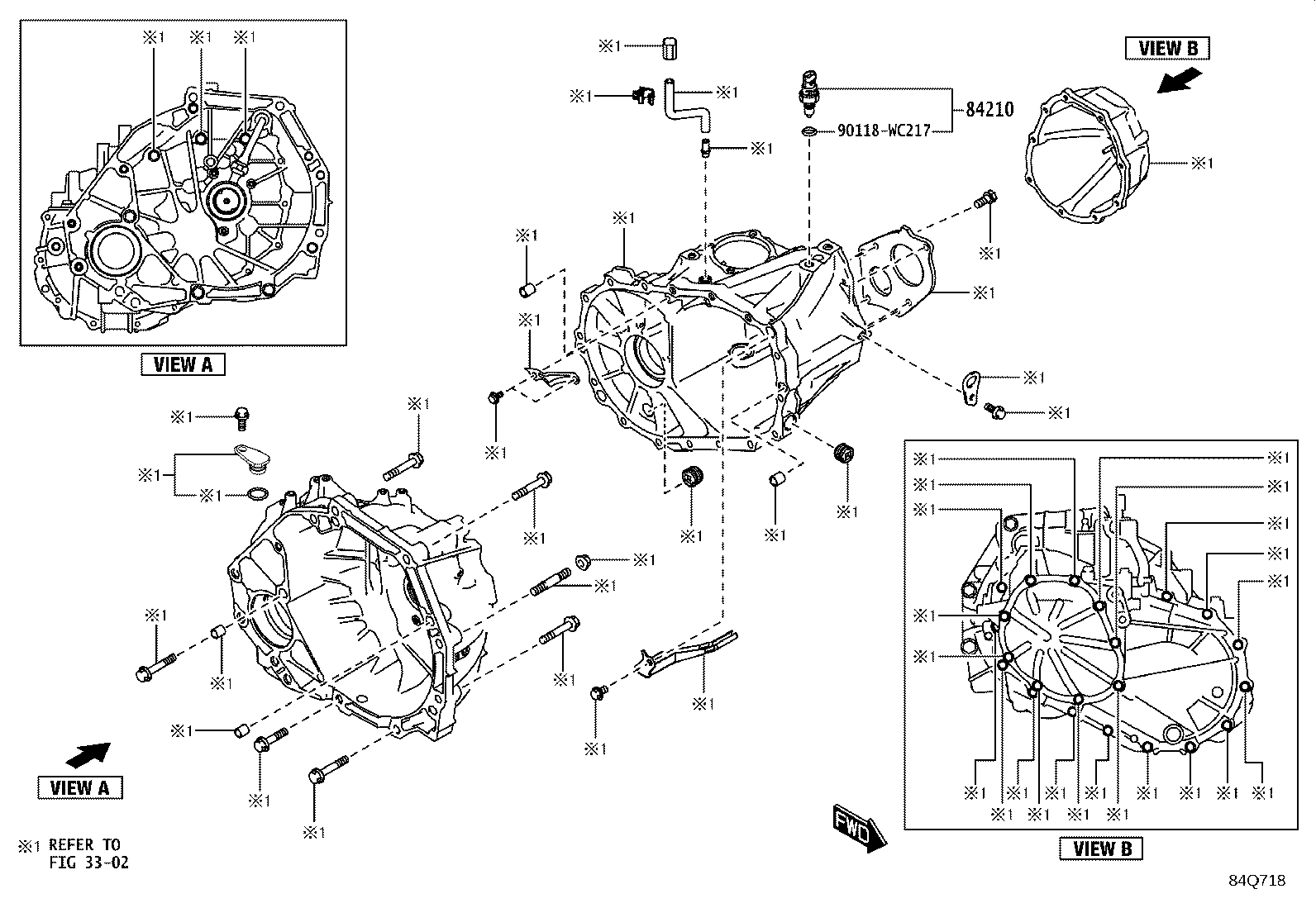

| 84210 | Switch Assy, Back-up Lamp |
| 84230G | Switch Assy, Courtesy Lamp |
| 84270L | Switch Assy, Idle Stop |
| 84306 | Cable Sub-assy, Spiral |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84340 | Switch Assy, Stop Lamp |
| 84520 | Switch Assy, Clutch Start |
| 84535A | Switch, Door Lock |

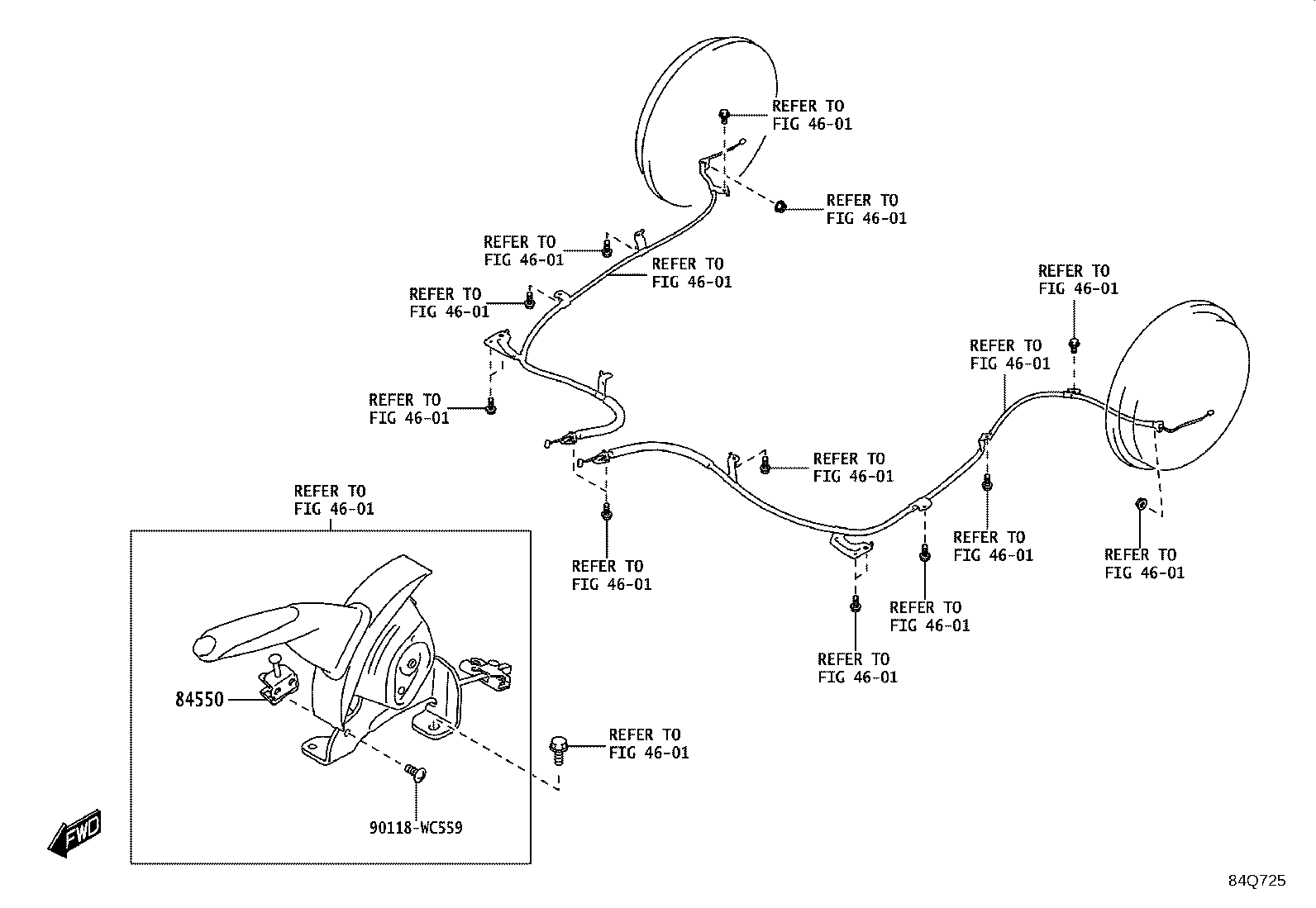

| 84550 | Switch Assy, Parking Brake |
| 84560A | Switch Assy, Fuel Control |
| 84650 | Switch Assy, Windshield Wiper |
| 84810 | Switch Assy, Power Window Regulator |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84841A | Switch, Fuel Lid Opener |
| 84870A | Switch Assy, Outer Mirror |
| 84986 | Switch, Vehicle Stability Control |
| 85530 | Socket Assy, Power Outlet, NO.1 |
| 85535B | Cover, Power Outlet Socket, NO.1 |
| 85535E | Cover, Power Outlet Socket, NO.2 |
| 85539 | Label, Power Outlet Notice |
| 88280A | Switch Assy, Clutch |

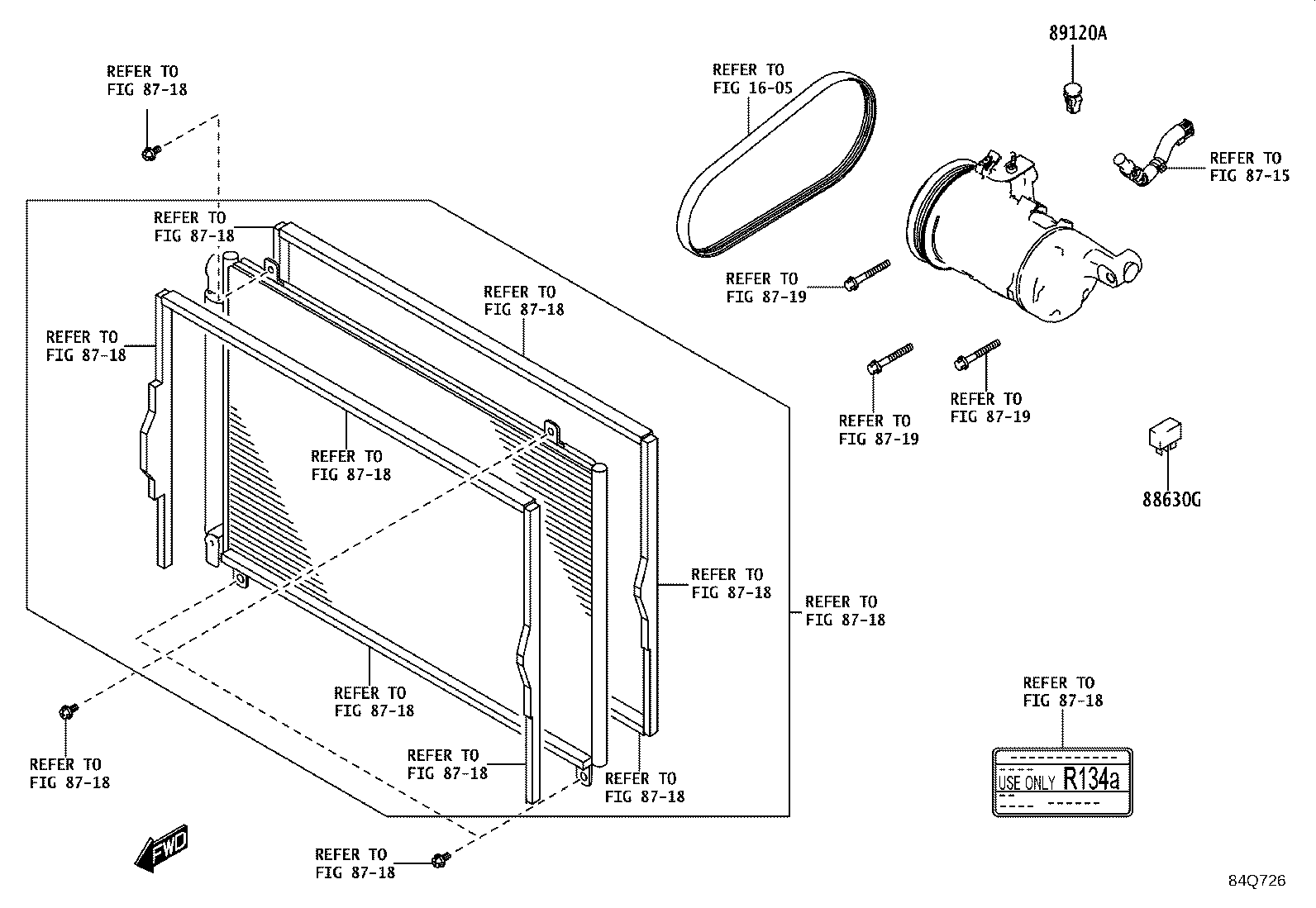

| 88630G | Relay Assy, Cooler |
| 89111 | Computer, Network Gateway |
| 89120A | Sensor, Automatic Light Control |
| 89221 | Computer, Multiplex Network Body |
| 89411B | Sensor, Speed |

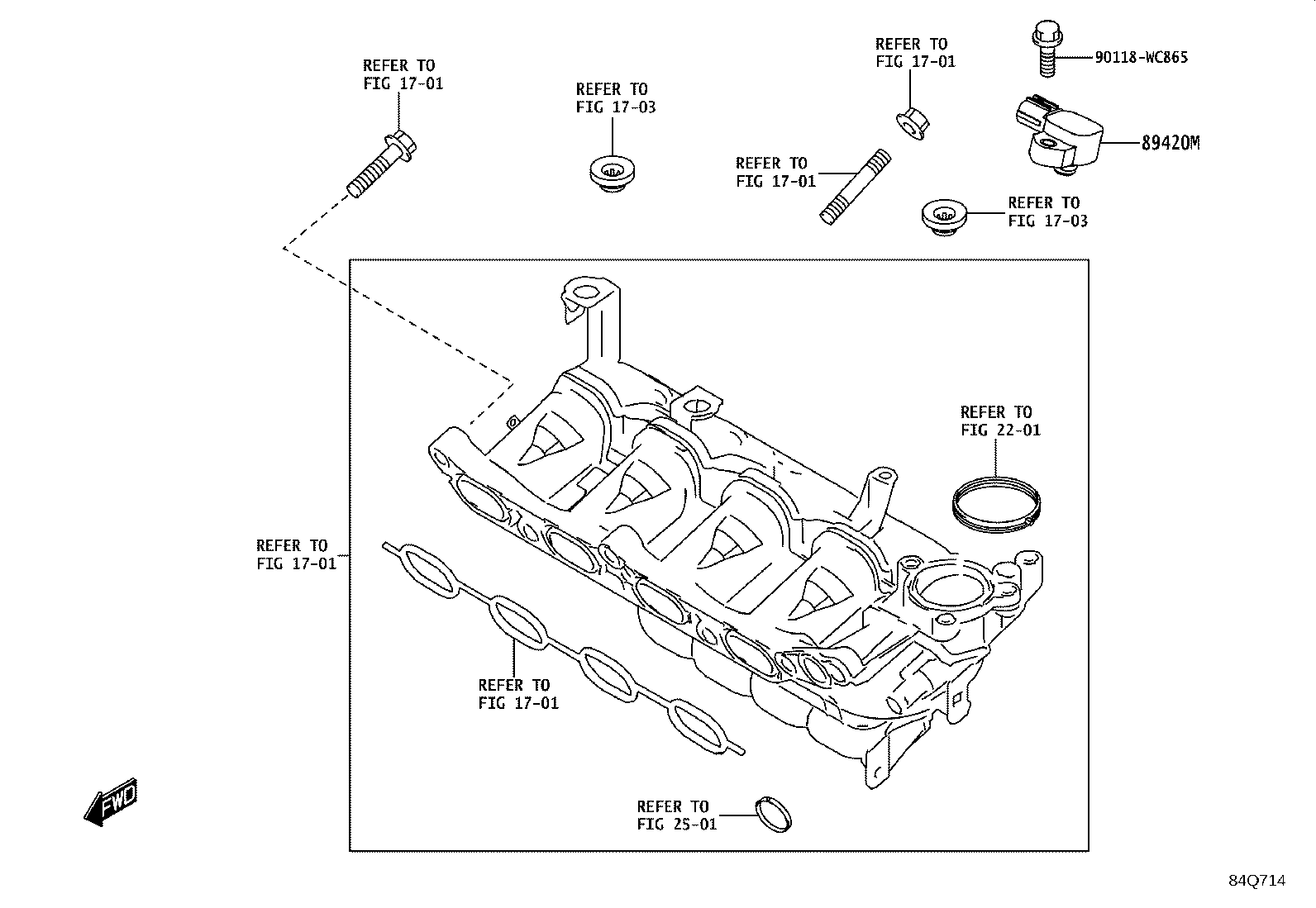

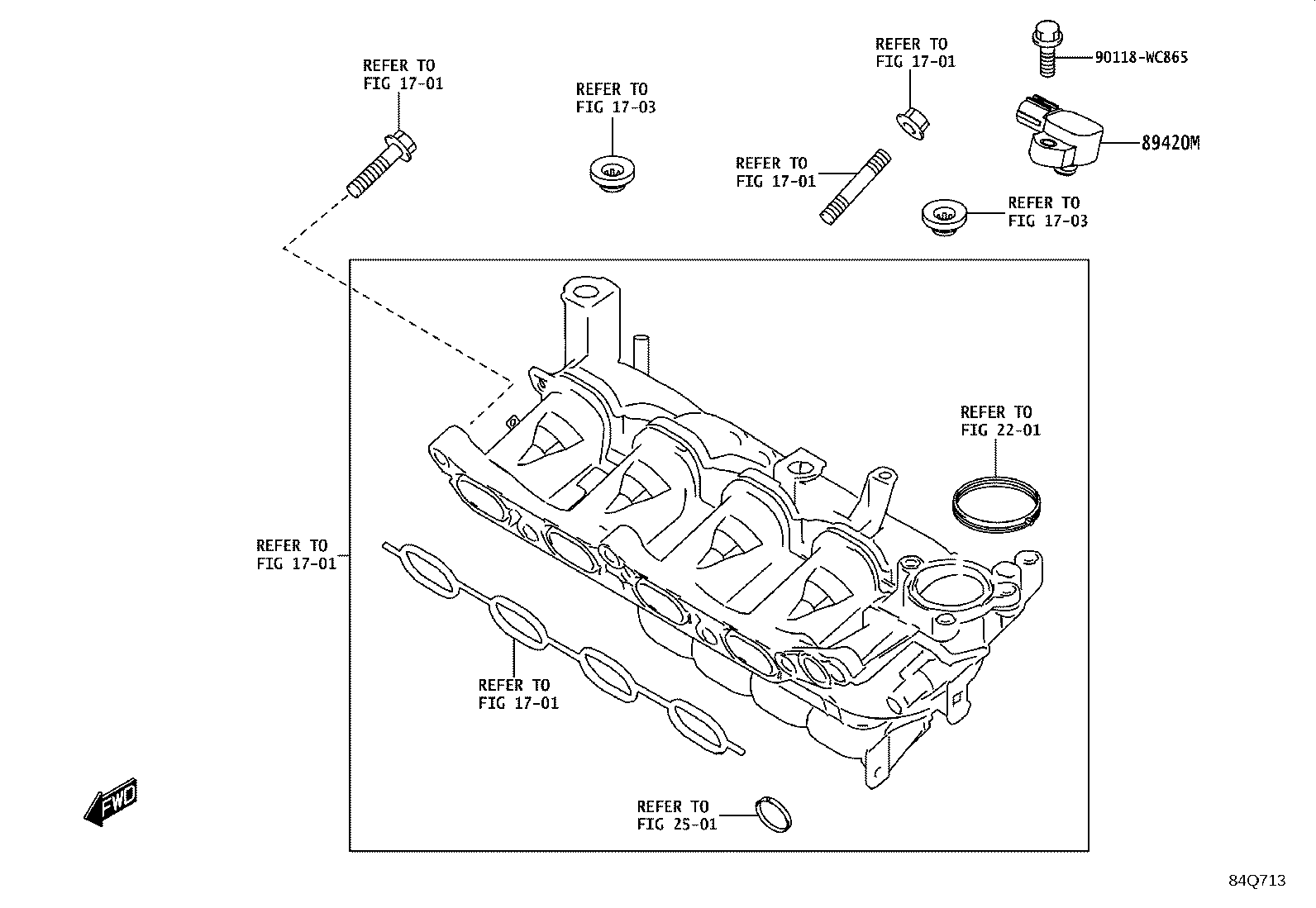

| 89420M | Sensor Assy, Air Pressure |

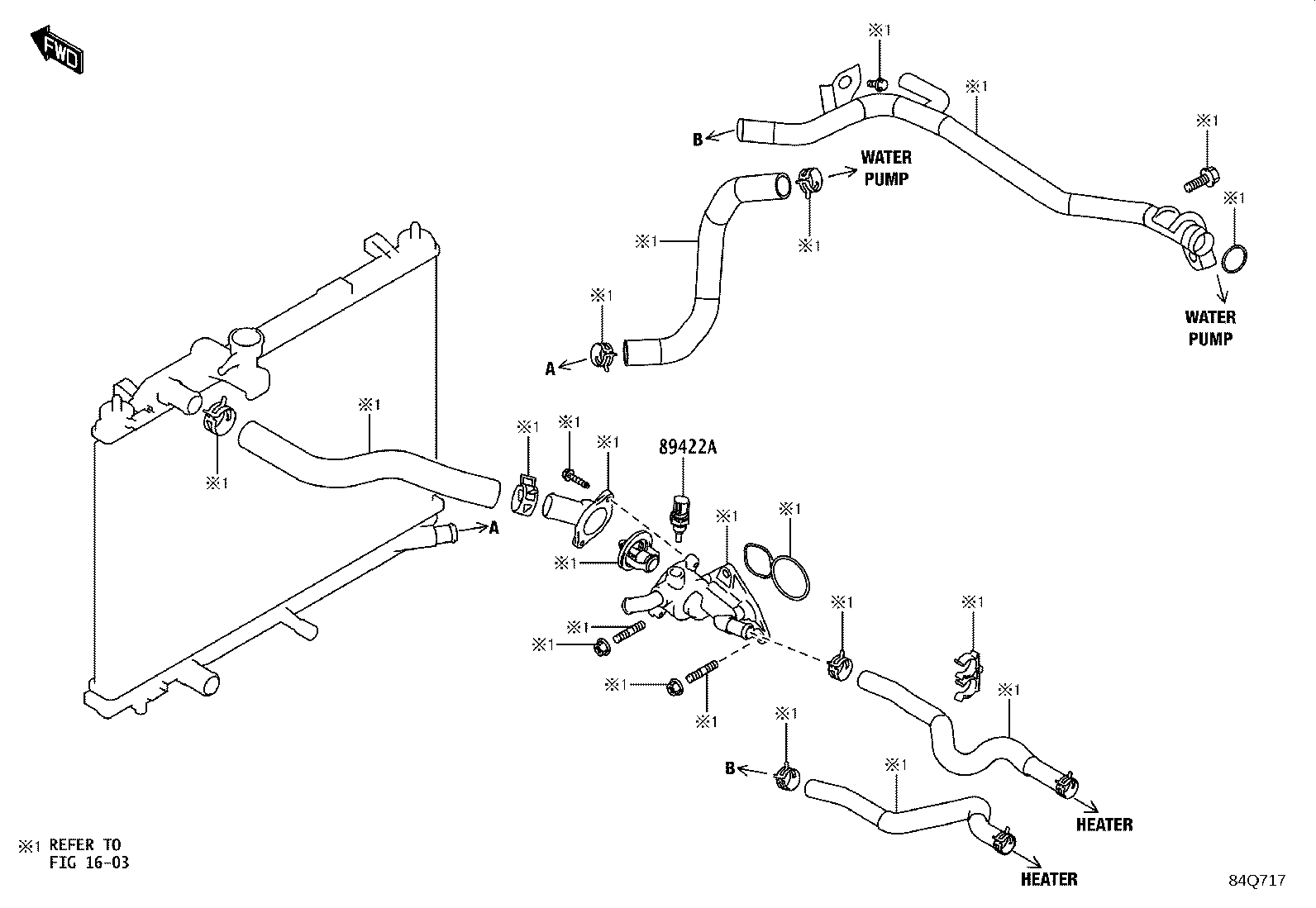

| 89422A | Sensor, Water Temperature |
| 89429 | Sensor, Oil Temperature |

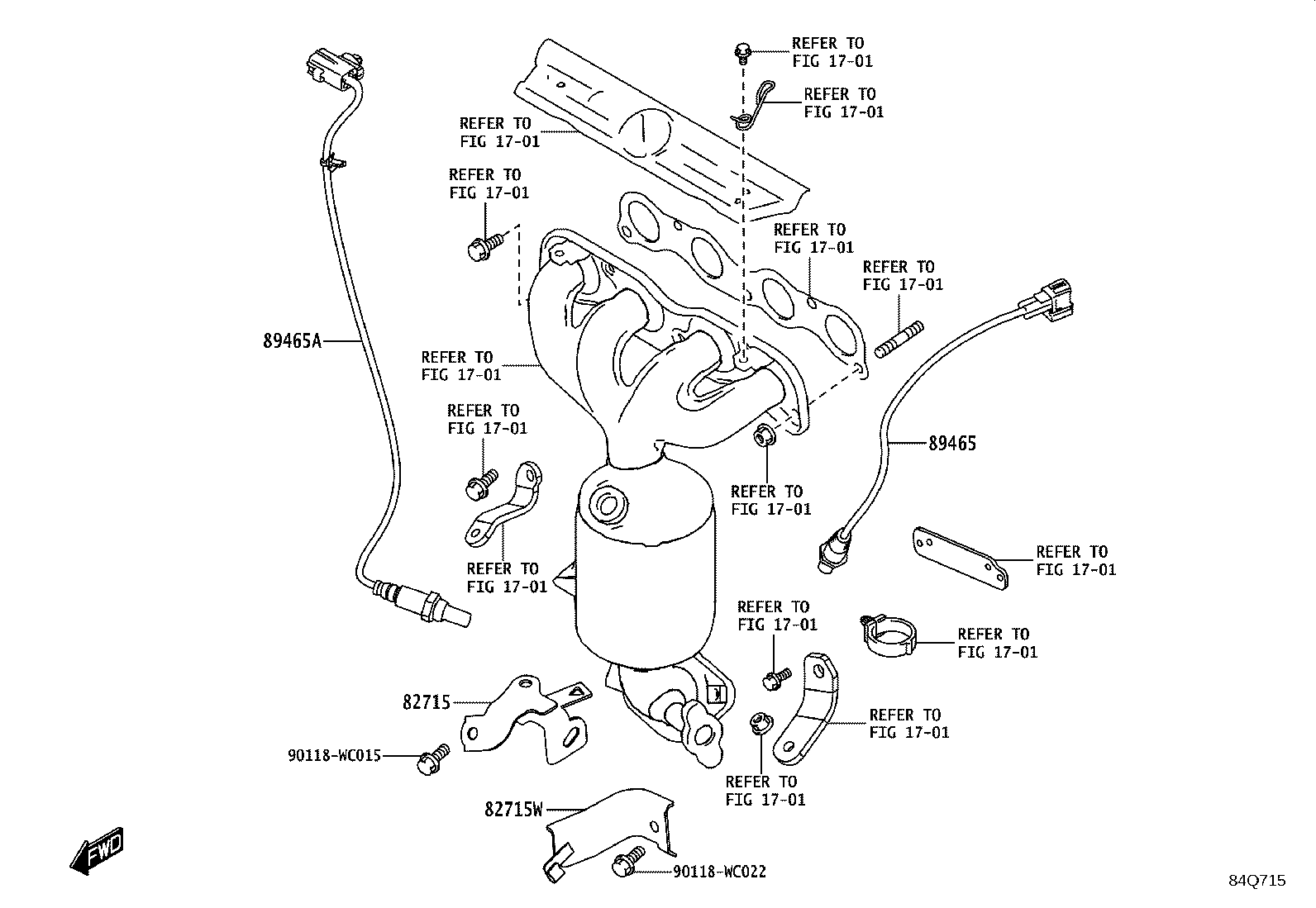

| 89465 | Sensor, Oxygen |
| 89465A | Sensor, Oxygen NO.2 |

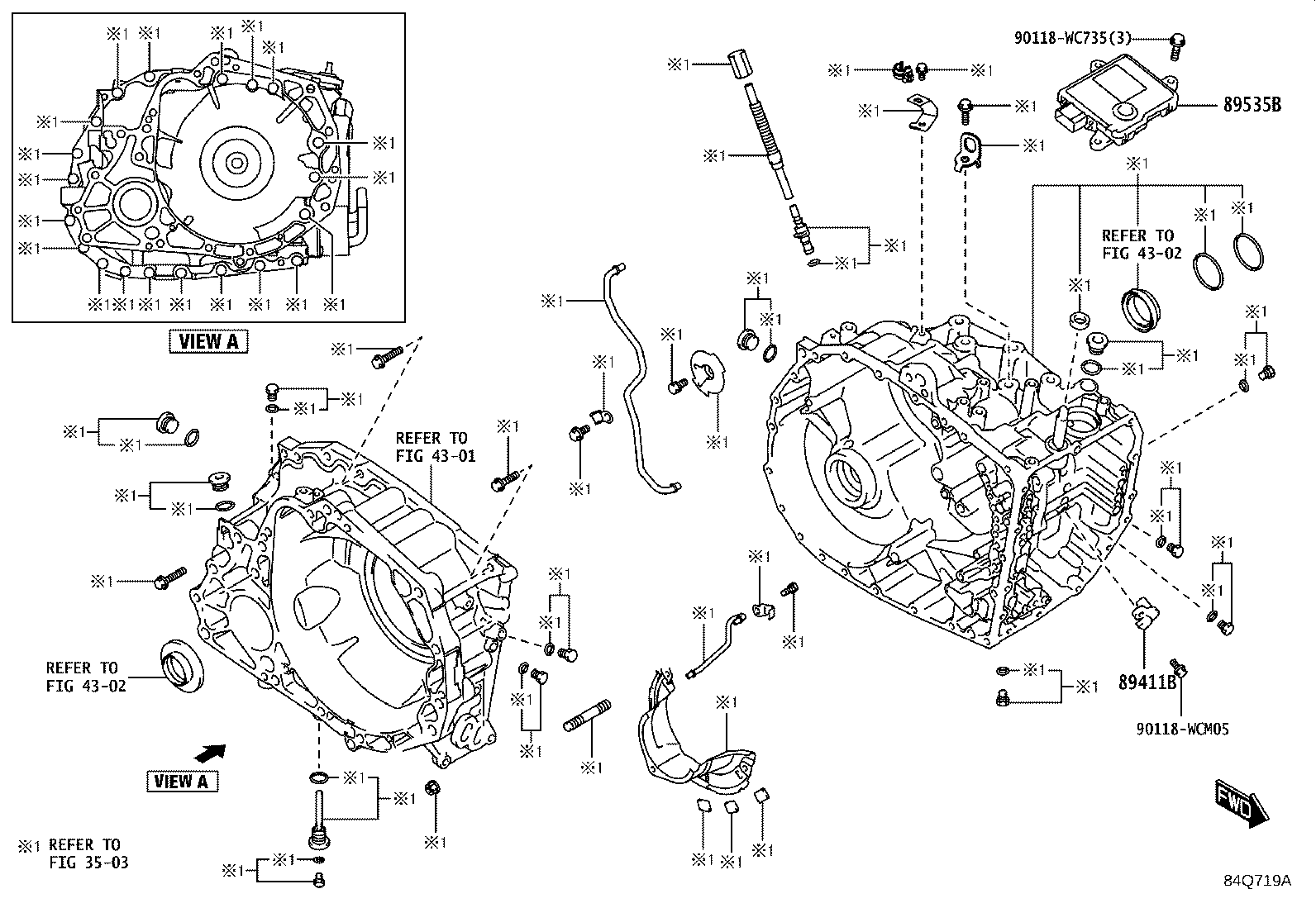

| 89535B | Computer, Transmission Control |
| 89611 | Switch, Push Start |
| 89615 | Sensor, Knock Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
