Toyota Rumion
2023-08 → present · chassis K15C · catalogue 139210 · General
Supported model
Data version 2023-09

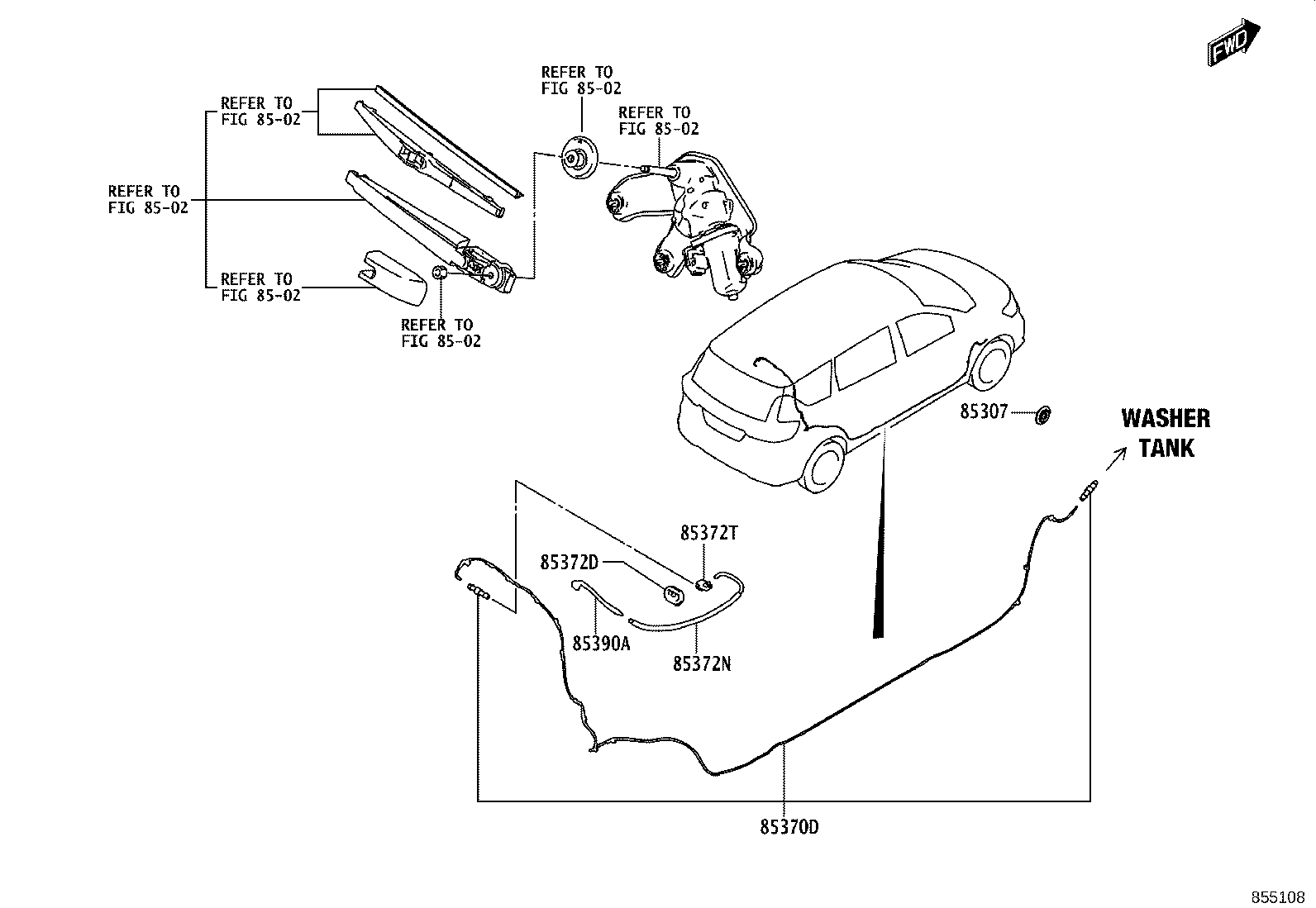

Rear Washer
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85307 | Grommet Sub-assy, Washer |
| 85310R | Motor Assy, Rear Washer |
| 85370D | Hose Assy, Rear Washer, NO.1 |
| 85372D | Grommet, Rear Washer Hose |
| 85372N | Hose, Rear Washer (FROM JOINT TO JOINT), NO.1 |
| 85372T | Grommet, Washer |
| 85390A | Nozzle & Hose Assy, RR Washer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
