Toyota Rumion
2023-08 → present · chassis K15C · catalogue 139210 · General
Supported model
Data version 2023-09

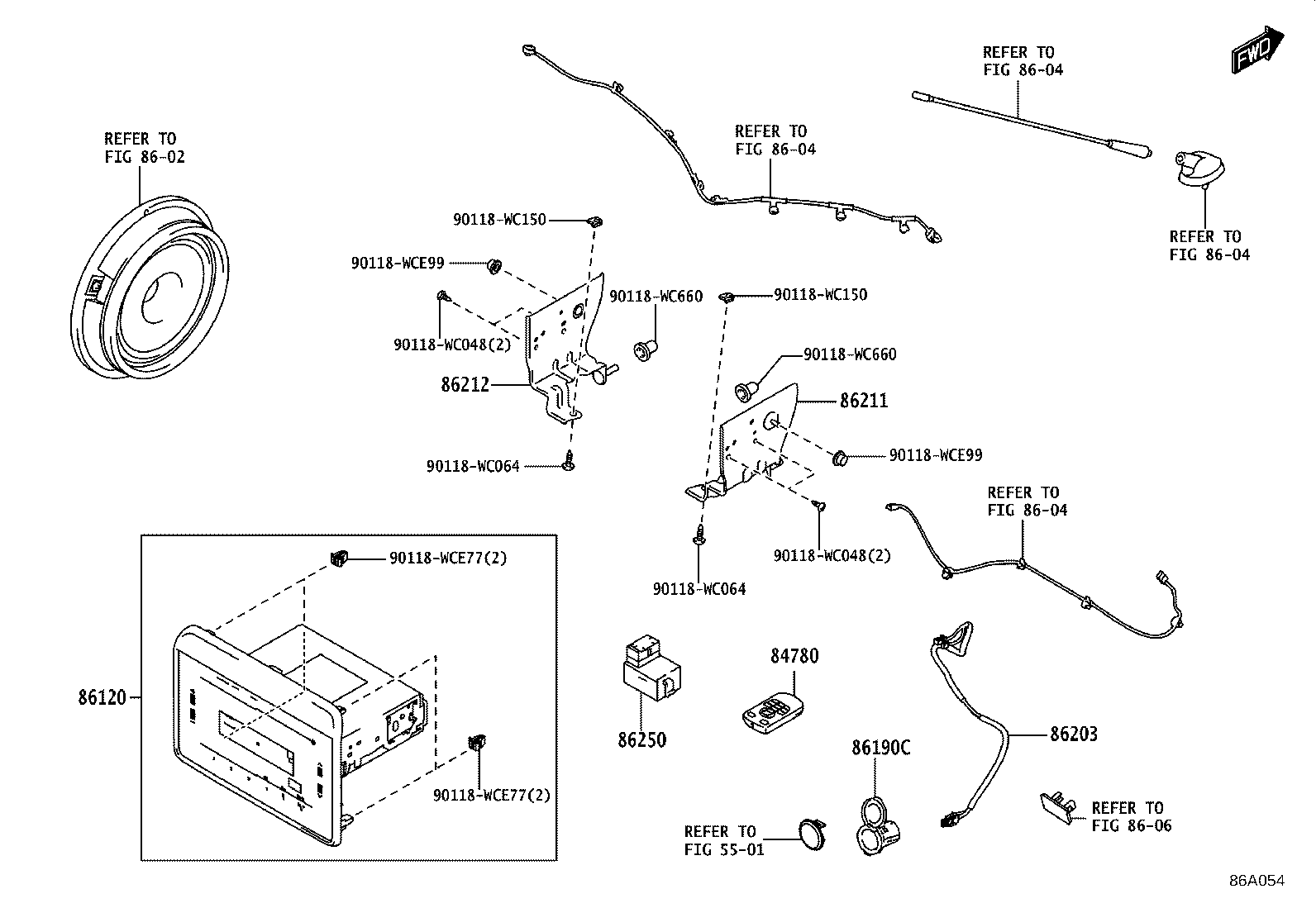

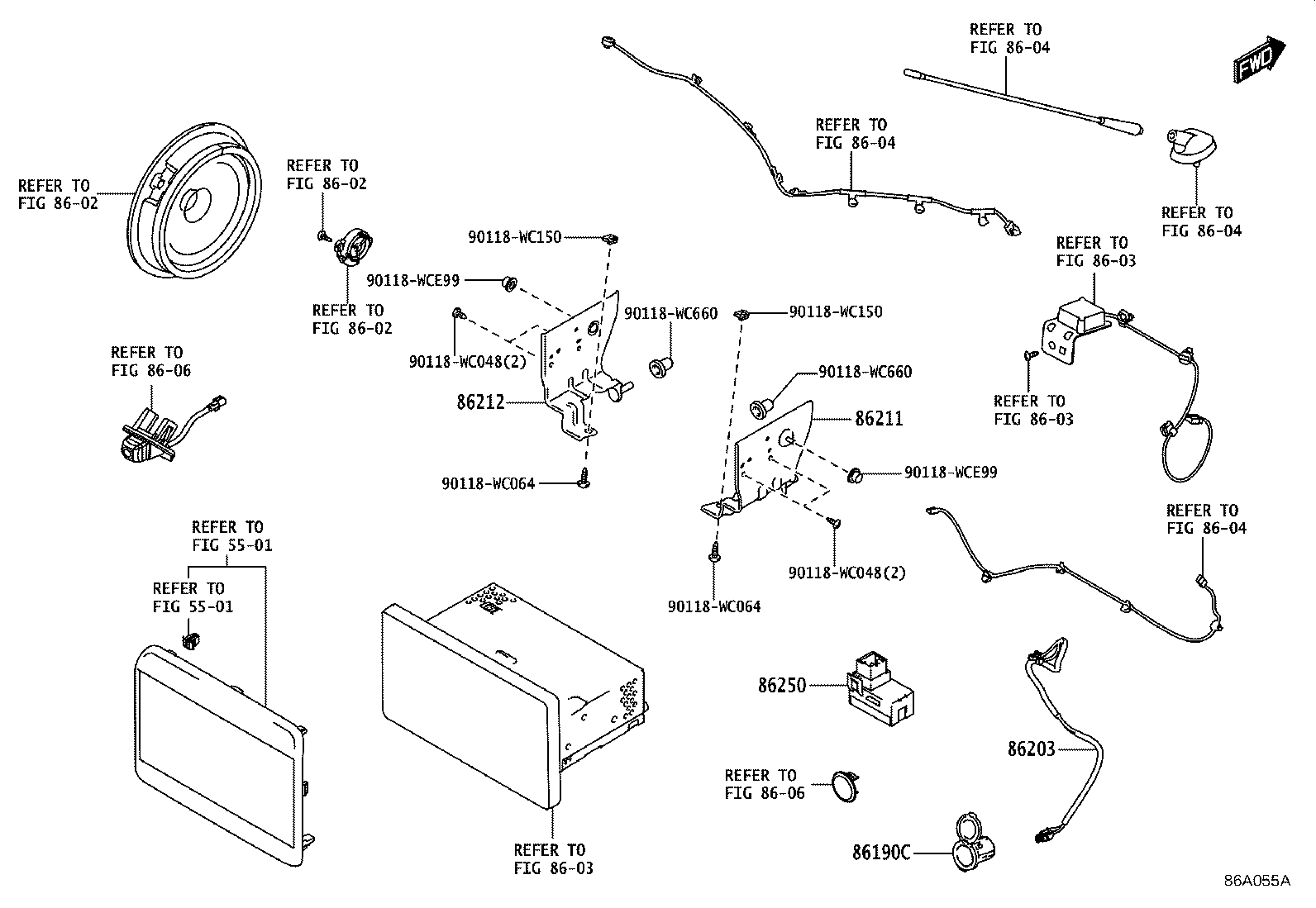

Radio Receiver & Amplifier & Condenser
7 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 84780 | Switch Assy, Radio Remote Tuning |
| 86120 | Receiver Assy, Radio |
| 86190C | Adapter Assy, Stereo Jack, NO.1 |
| 86203 | Wire, Radio |
| 86211 | Bracket, Radio, NO.1 |
| 86212 | Bracket, Radio, NO.2 |
| 86250 | Microphone Assy, Amplifier |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
