Toyota Rumion

2021-08 → present · chassis K15B · catalogue 139310 · General

Supported model Data version 2022-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

7 part groups · 3 illustrations

Illustrations

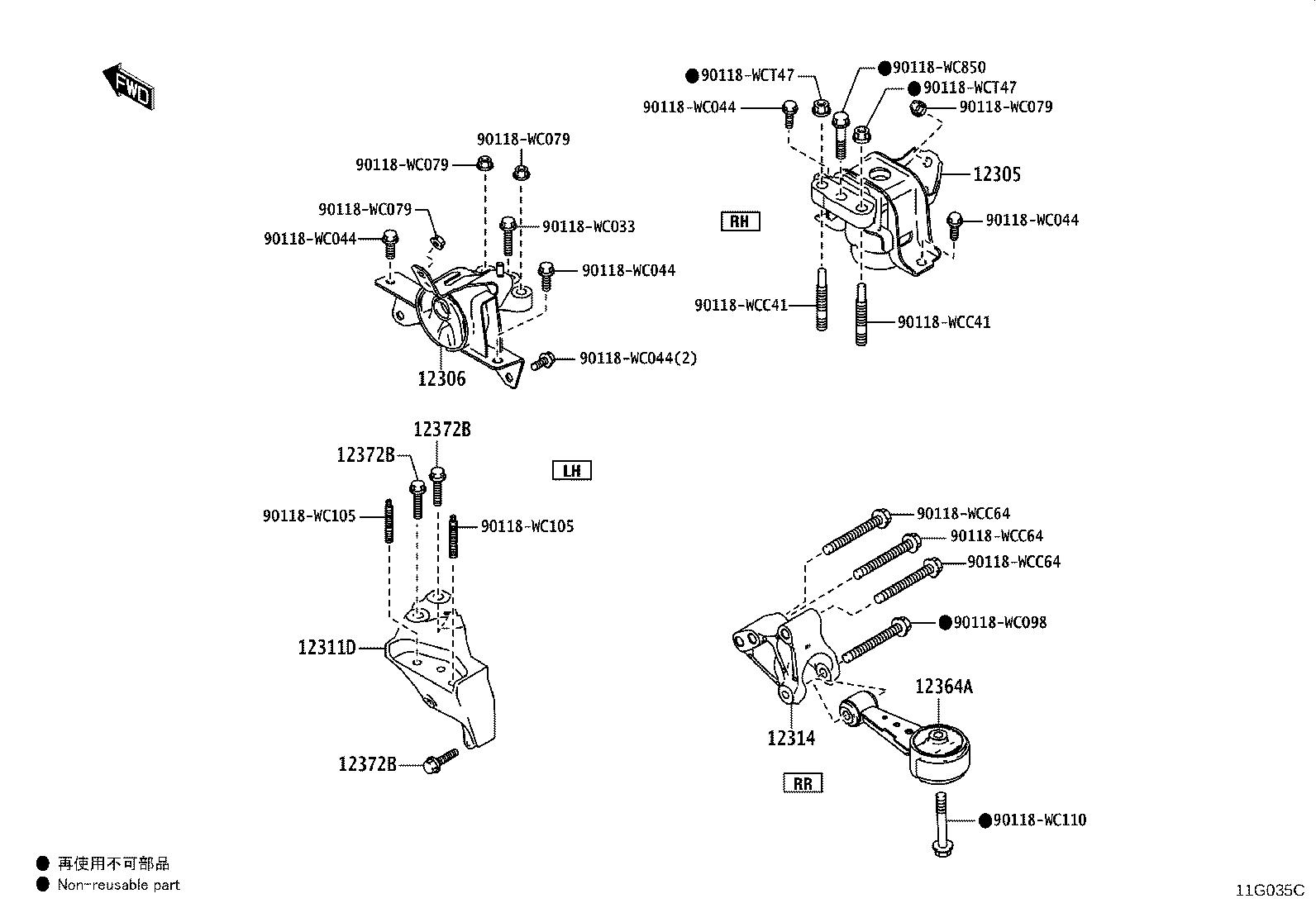

Figure 11G033C 11G033C 2021-08 → — Figure 11G034 11G034 2021-08 → — Figure 11G035C 11G035C 2021-08 → —

Part groups

PNCDescription
12281B Hanger, Engine, NO.1
12305 Insulator Sub-assy, Engine Mounting, RH
12306 Insulator Sub-assy, Engine Mounting, LH
12311D Bracket, Engine Mounting
12314 Bracket, Engine Lateral Control Rod
12364A Rod, Engine Lateral Control
12372B Bolt
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
